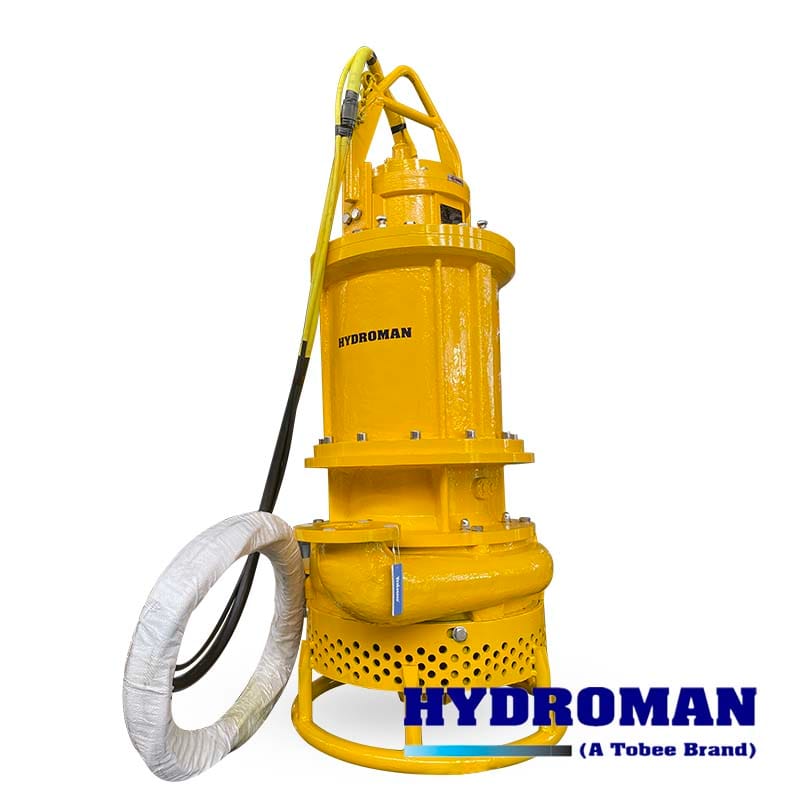

Hydroman® Electric Centrifugal Vertical Submersible Sand Sludge Pump is a high-efficiency, heavy-duty pump designed for continuous operation in harsh environments involving high concentrations of sand, sludge, and abrasive slurry. With its vertical, fully submersible structure and robust centrifugal design, hydroman® submersible slurry pump is ideal for mining, dredging, construction dewatering, and wastewater treatment applications.
• Centrifugal Pumping Technology – Delivers high flow rates and strong suction performance for efficient transfer of thick, abrasive slurries.
• Fully Submersible Vertical Design – Compact and vertically oriented with IP68-rated motor, allowing direct deployment into pits, basins, or water bodies without the need for priming.
• Solid-Handling Capability – Capable of transporting slurries with up to 70% solids by weight and particles as large as 100–120 mm, depending on model.
• Wear-Resistant Construction – All wet-end components (impeller, volute, wear plates) are made from Cr27 high-chrome alloy, providing superior resistance to erosion and abrasion.
• High-Performance Electric Motor – Submersible motor with H class insulation, moisture and thermal protection, and optional variable frequency drive (VFD) for speed control.
• Optional Agitator or Jet Ring – Enhances slurry mixing and prevents solids from settling, boosting pump efficiency in thick sludge applications.
• Easy Installation Operation – Designed for crane or guide-rail installation, with customizable cable length, mounting options, and control panels.
• Size: 50-400mm
• Capacity: 10-4000m3/h
• Head: 8-150m
• Max. particles: 60mm
• Max. concentration: 70%
• Max. working depth: ≤ 150m
• Agitator or Cutterheads: Available
• Sealing arrangement: Double mechanical seal
• Materials: Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc
• No need for priming or suction piping
• Excellent performance in high-abrasion environments
• Compact structure, easy to install and maintain
• High solids-handling capacity with minimal clogging
• Long service life with replaceable wear parts
• Sand and sludge dredging from rivers, lakes, and ponds
• Mining slurry and tailings transfer
• Tunnel and foundation pit dewatering
• Settling tank and reservoir desilting
• Industrial wastewater and sediment removal
• Municipal sludge and grit handling
