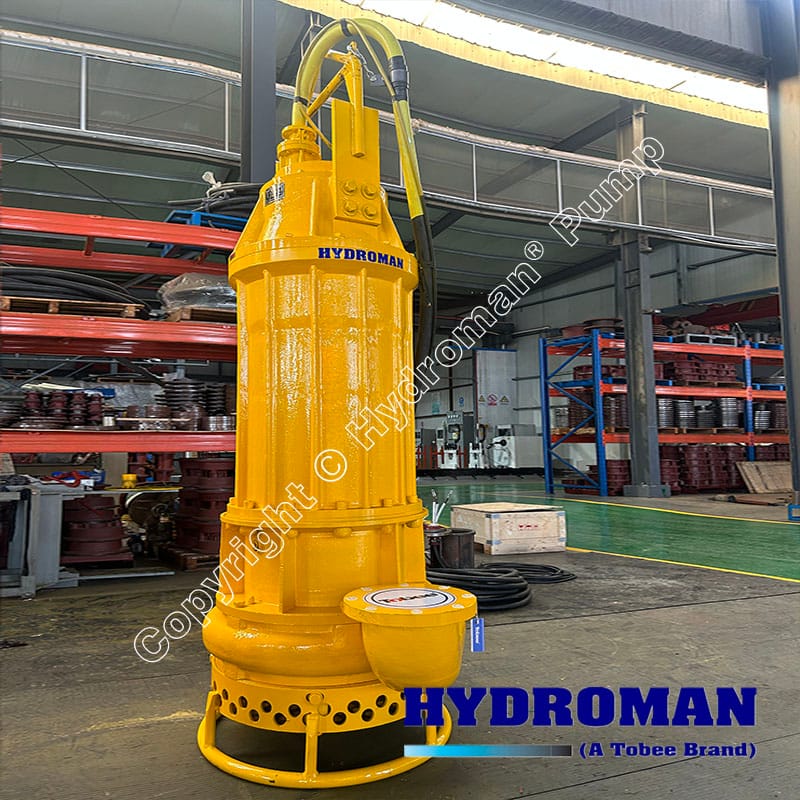

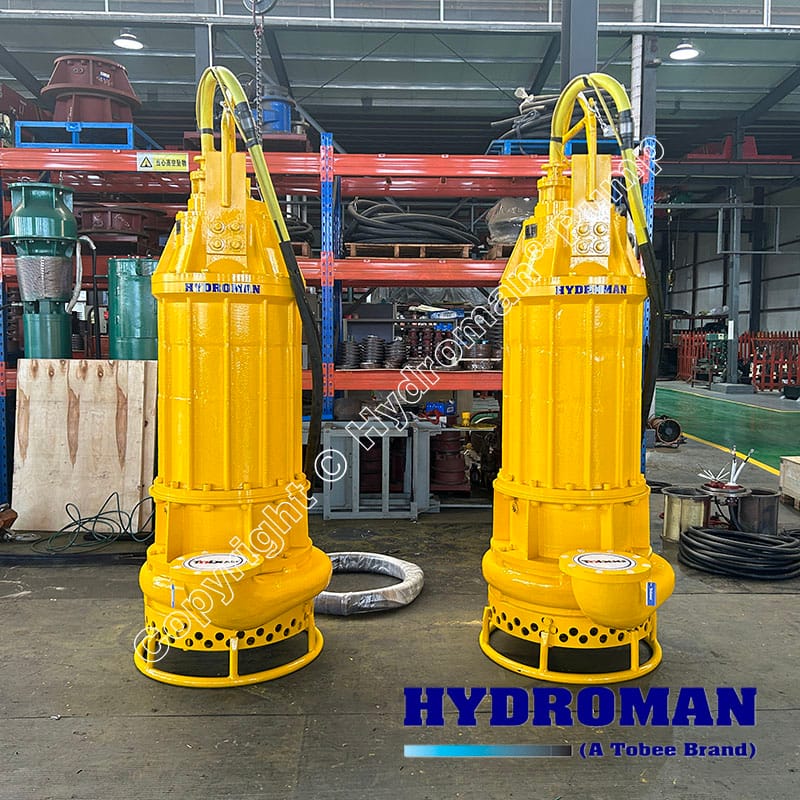

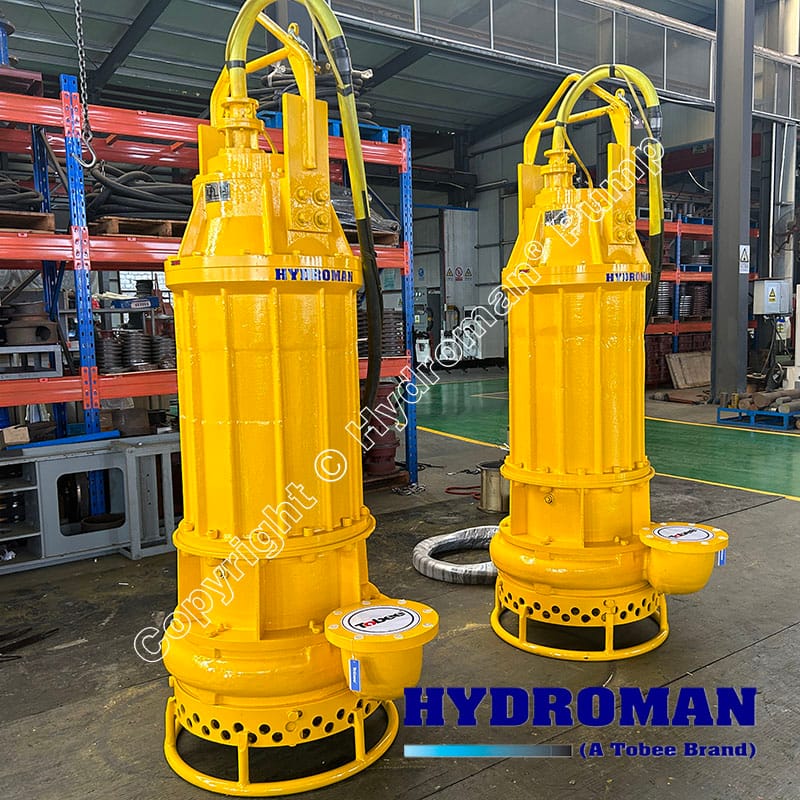

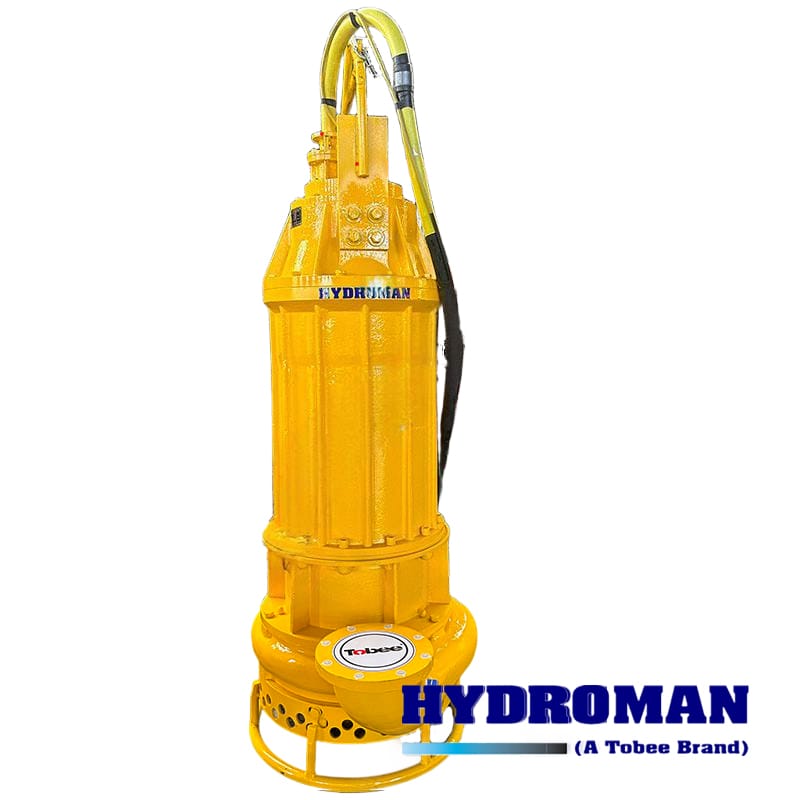

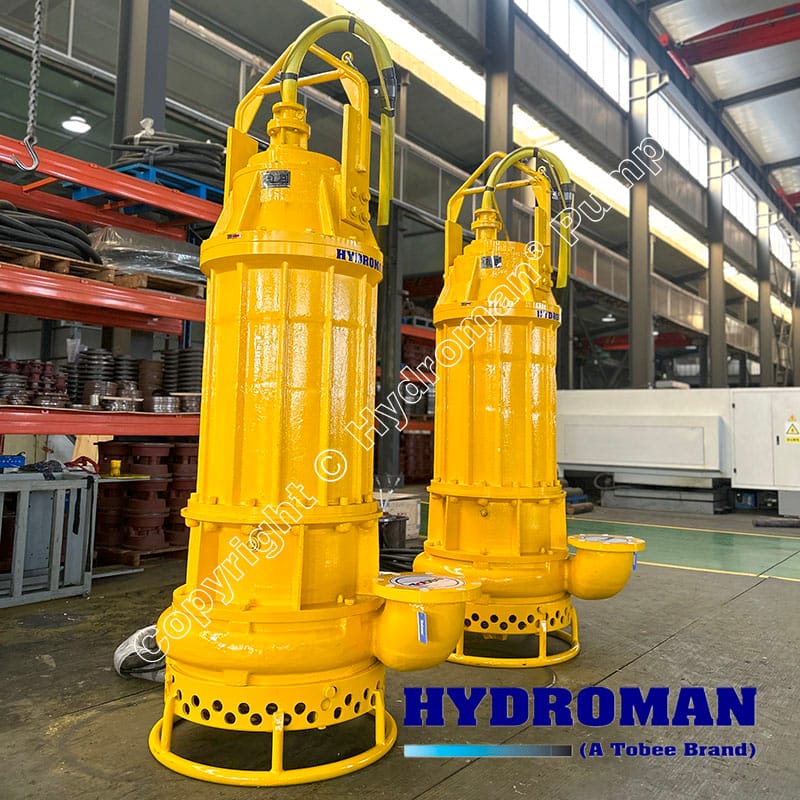

The Hydroman® 200TJQ Submersible Slurry Pump is a heavy-duty, high-efficiency pump engineered for dredging, mining, construction, and industrial sludge handling. Built with Cr27 cast iron for superior wear resistance, this 132KW submersible pump delivers exceptional solids-handling capacity, making it ideal for abrasive slurries, sand, gravel, and dense sludge.
Key Features & Applications of Submersible Utility Pump
• High-Power Performance: The Hydroman® 200TJQ 132KW pump ensures maximum solids throughput with low operational costs, perfect for continuous heavy-duty operations.
• Durable Construction: Cr27 cast iron enhances longevity in harsh environments, including mining, dredging, and oilfield applications.
• Versatile Handling: Designed for sand, gravel, slurry, and industrial waste, supporting marine, energy, and construction sectors.
• Superior Head & Capacity: One of the highest-head, large-capacity submersible slurry pumps available, optimized for efficiency and reliability.
1. High-Efficiency Reversible Agitator with High Chrome Construction
The Hydroman® 200TJQ features a high-chrome reversible agitator, doubling its lifespan compared to standard models. The hardened agitator blades generate powerful currents that lift settled sediments, ensuring a continuous flow of abrasive slurries, sand, and gravel into the impeller for optimal discharge performance.
2. Low Operating RPM for Extended Wear Life
Engineered for durability, this 132KW submersible slurry pump operates at lower RPM than conventional pumps, reducing wear rates and significantly extending component life—ideal for mining, dredging, and industrial sludge handling.
3. Oversized Motors for Heavy-Duty Slurry Handling
Hydroman® equips its heavy-duty submersible pumps with oversized motors, capable of handling slurries up to 1.6 SG. For even greater power, a hydraulic drive option is available, which can be paired with hydraulic augers for excavating compacted sand and hard soils without additional machinery.
4. Robust Construction with Premium Wear Resistance
Built for longevity, the Cr27 cast iron construction and high-chrome alloy wear parts (GS 500 or equivalent) ensure maximum abrasion resistance, reducing downtime and maintenance costs in harsh environments.
5. Dual Thrust Bearings for Enhanced Stability
All Hydroman® 200TJQ pumps incorporate dual thrust bearings, minimizing vibration and countering thrust loads in both directions—critical for high-head, high-solids pumping operations.
6. Superior Solids Handling (Up to 120mm / 5 Inches)
Specially designed slurry pump components deliver exceptional solids passage while minimizing wear, making them perfect for sand, gravel, and industrial waste transport.
7. Advanced Structural Features for Easy Maintenance
Adjustable High-Chrome Wear Plate – Maintains peak efficiency by allowing simple gap adjustments.
• Quick-Service Bolts – Enable fast disassembly for maintenance.
• Replaceable Wear Parts – Casings, impellers, and wear plates can be individually replaced, reducing long-term costs.
• Easy Oil Inspection – External lube oil ports allow seamless monitoring and refilling of shaft seal oil levels.
8. Industry-Leading Range & Performance
• Power Range: From 5 HP to 400 HP (3.7KW to 300KW)
• Discharge Sizes: 3" to 16" for versatile applications.
• High-Head Capability: Handles slurries up to 1.6 SG, outperforming standard pumps.
9. Multiple Seal Options for Different Applications
Choose from mechanical seals, lip seals, or hybrid seal systems based on operational needs—ensuring leak-proof performance in oil, mining, and wastewater applications.
10. Customizable Attachments for Specialized Tasks
Hydraulic & Electric Cutter Heads – For breaking up compacted soils without excavators.
Optional Upgrades:
• High-chrome casings
• Cooling jackets
• Anti-corrosion/abrasion packages
• Lower membrane protection
• Temperature & moisture sensors
• Custom excavator mounting frames
Why Hydroman®?
As a trusted utility pumps manufacturer, Hydroman® delivers heavy-duty submersible pumps engineered for maximum reliability in extreme conditions. The 200TJQ 132KW slurry pump combines cutting-edge hydraulic design, wear-resistant materials, and low-maintenance features—making it the top choice for dredging, mining, and industrial sludge management.
