Name: Hydraulic Mud Pump Hydroman
Brand: Hydroman
SKU: 250THY55-6P

Description

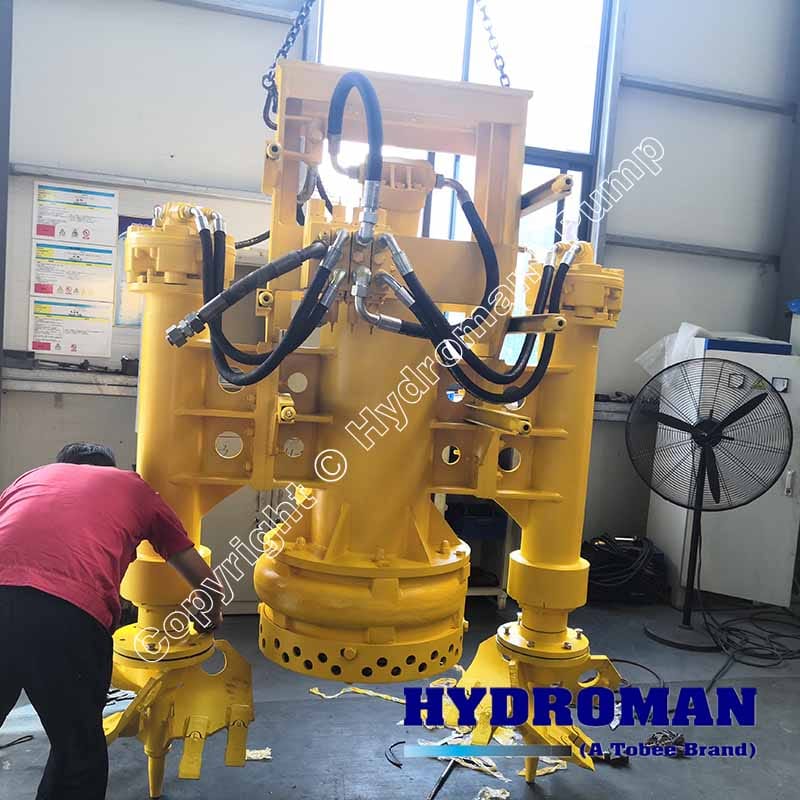

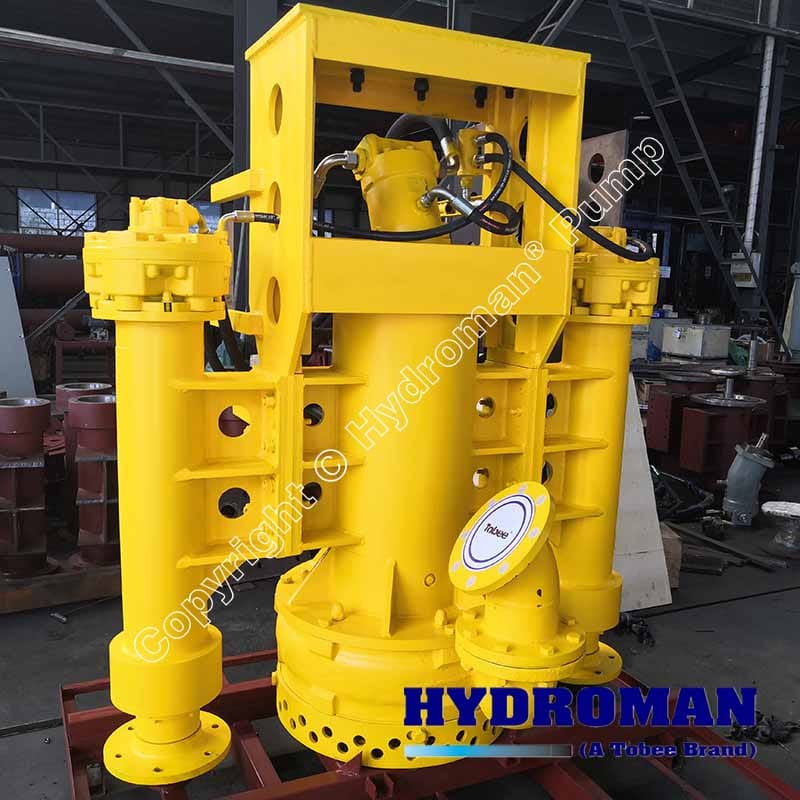

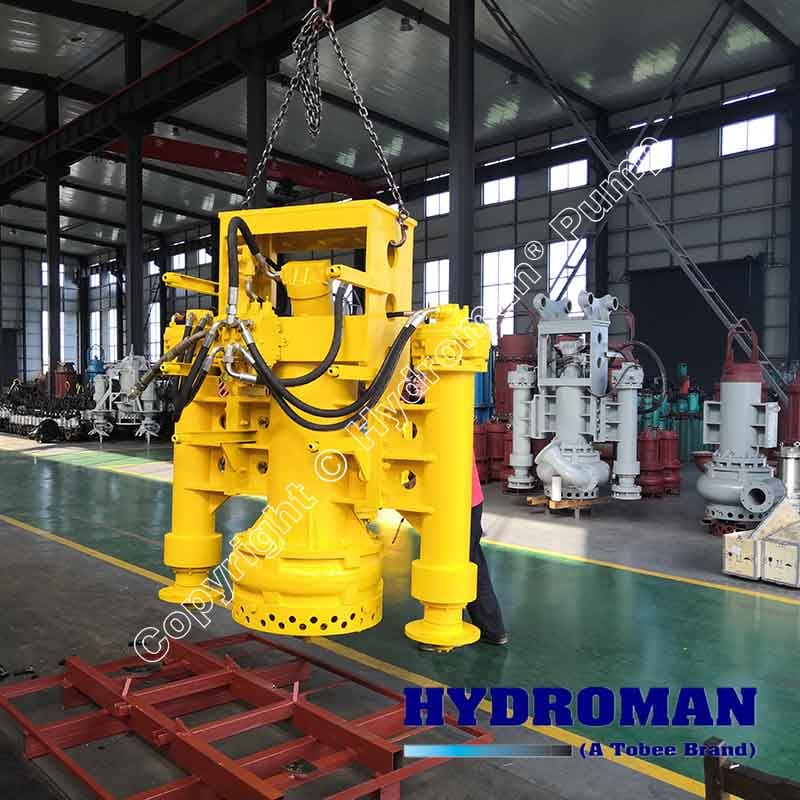

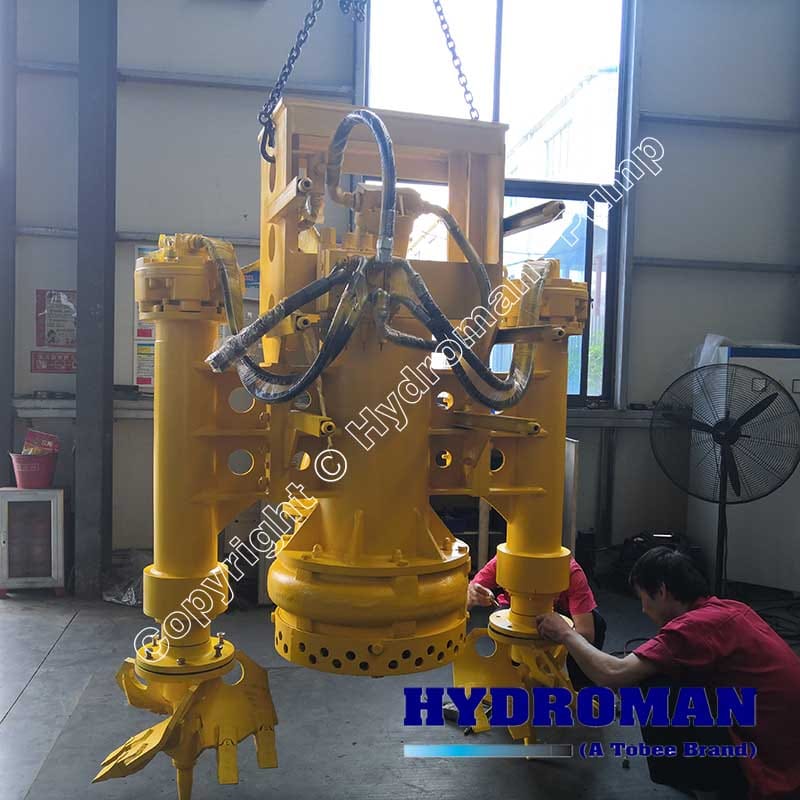

Hydroman^® Hydraulic Submersible Mud Pumps: Engineered for Extreme Slurry Handling

Technical Specifications

• Size Range: 80–400mm

• Flow Capacity: 50–1500 m³/h

• Head: 10–50m

• Max. Particle Size: 120mm

• Concentration Tolerance: Up to 70% solids

• Agitator: Integrated heavy-duty design

• Cutter Power: 3–22kW options

• Sealing System: Dual mechanical seals for leak-free operation

• Material Options: Hyperchrome, SS304/316L, CD4MCu, Duplex 2205, and other abrasion-resistant alloys

Unmatched Performance in Slurry & Mud Transfer

As a leading Hydraulic Drive High Pressure Mud Pump Manufacturer, Hydroman^® redefines reliability in challenging environments. Our Hydraulic Submersible Mud Pumps leverage advanced hydraulic power to deliver unmatched pressure and efficiency in transporting dense slurries, sludge, and abrasive mixtures. Unlike traditional pumps, the hydraulic drive system ensures consistent performance under extreme loads while minimizing wear.

Core Advantages of Hydroman^® Hydraulic Mud Pumps

• Hyperchrome Alloy Construction
Critical components like agitators, impellers, and cutterheads are forged from wear-resistant Hyperchrome alloys, extending service life in high-abrasion applications.

• Hydraulic Drive Technology
The Hydraulic Mudjacking Pump design eliminates complex mechanical linkages, reducing downtime. Hydraulic power enables precise control over pressure and flow, ideal for dewatering, dredging, and high-solids transfer.

• Built-In Agitation & Cutting System
A dual-impeller design combines a main slurry impeller with aggressive bottom agitator blades, fluidizing settled solids and preventing clogging—even with 120mm particles.

• Zero Leakage Guarantee
Advanced dual mechanical seals and pressure-rated housing protect the motor from corrosive fluids and fine particulates, ensuring 24/7 reliability.

• Energy-Efficient Operation
Hydraulic drive systems reduce power consumption by up to 30% compared to conventional electric pumps, with no need for auxiliary equipment like vacuum pumps.

Ideal Applications for Hydraulic Mud Pumps

• Mining & Mineral Processing: Tailings management, slurry transfer, and pit dewatering.

• Construction & Tunneling: Mudjacking, tunnel muck removal, and foundation dewatering.

• Industrial Waste Handling: Mill scale, coal ash, and high-viscosity sludge evacuation.

• Environmental Remediation: Silt removal, river dredging, and contaminated sediment pumping.

• Marine Operations: Barge cleanout, port siltation control, and tanker discharge.

Why Choose Hydroman^®?

As a trusted Hydraulic Mud Pump Manufacturer, we combine 25+ years of engineering expertise with globally certified materials. Our pumps are tested in real-world scenarios—from mining sites to disaster recovery zones—to ensure durability under 70% solid concentrations and corrosive pH levels.

Custom Solutions for Unique Challenges
Select from modular configurations, including high-pressure cutterheads for viscous media or corrosion-resistant builds for chemical-laden slurries. Our team provides end-to-end support, from site analysis to maintenance planning.

Upgrade to Hydraulic Efficiency
Whether tackling sewage bypass operations or drilling mud transfer, Hydroman^® Hydraulic Drive Mud Pumps deliver relentless performance. Contact our engineers to configure your system at:
