When you’re dealing with settled sand, thick tailings, or industrial slurry, standard pumps often fail within weeks. They clog, wear out, or simply cannot lift heavy solids from the bottom. That’s where the Hydroman Heavy Duty Sludge Pump With Agitators changes the game. But what truly sets this pump apart from a typical dewatering unit?

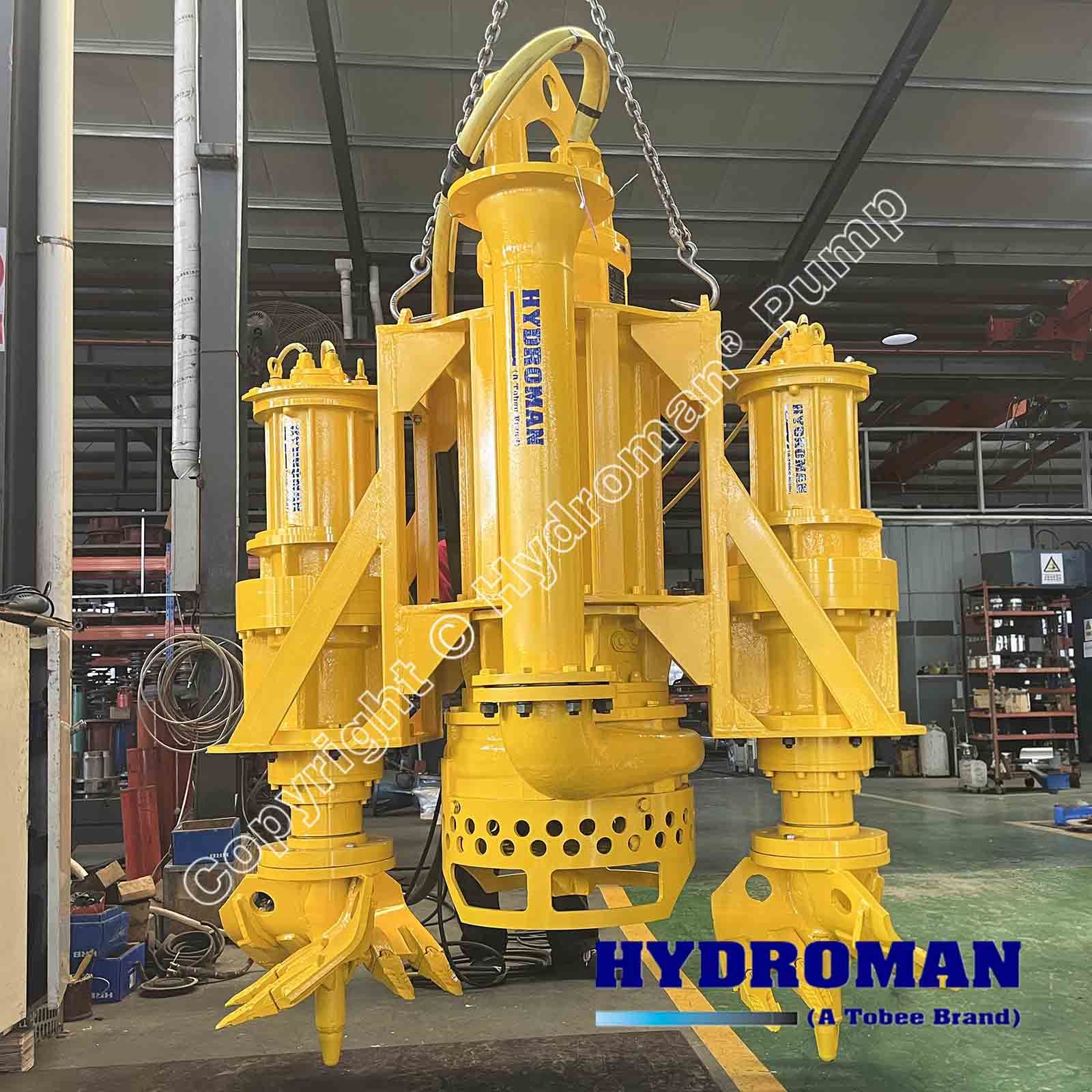

First, consider the Electric Submersible Pump For Sludge Removal design. Unlike hydraulic or air-driven models, this electric version runs quietly and efficiently while fully submerged. It needs no external power pack – just a reliable electrical supply. This makes it ideal for remote dredging projects, mining sumps, and industrial settling ponds where portability matters.

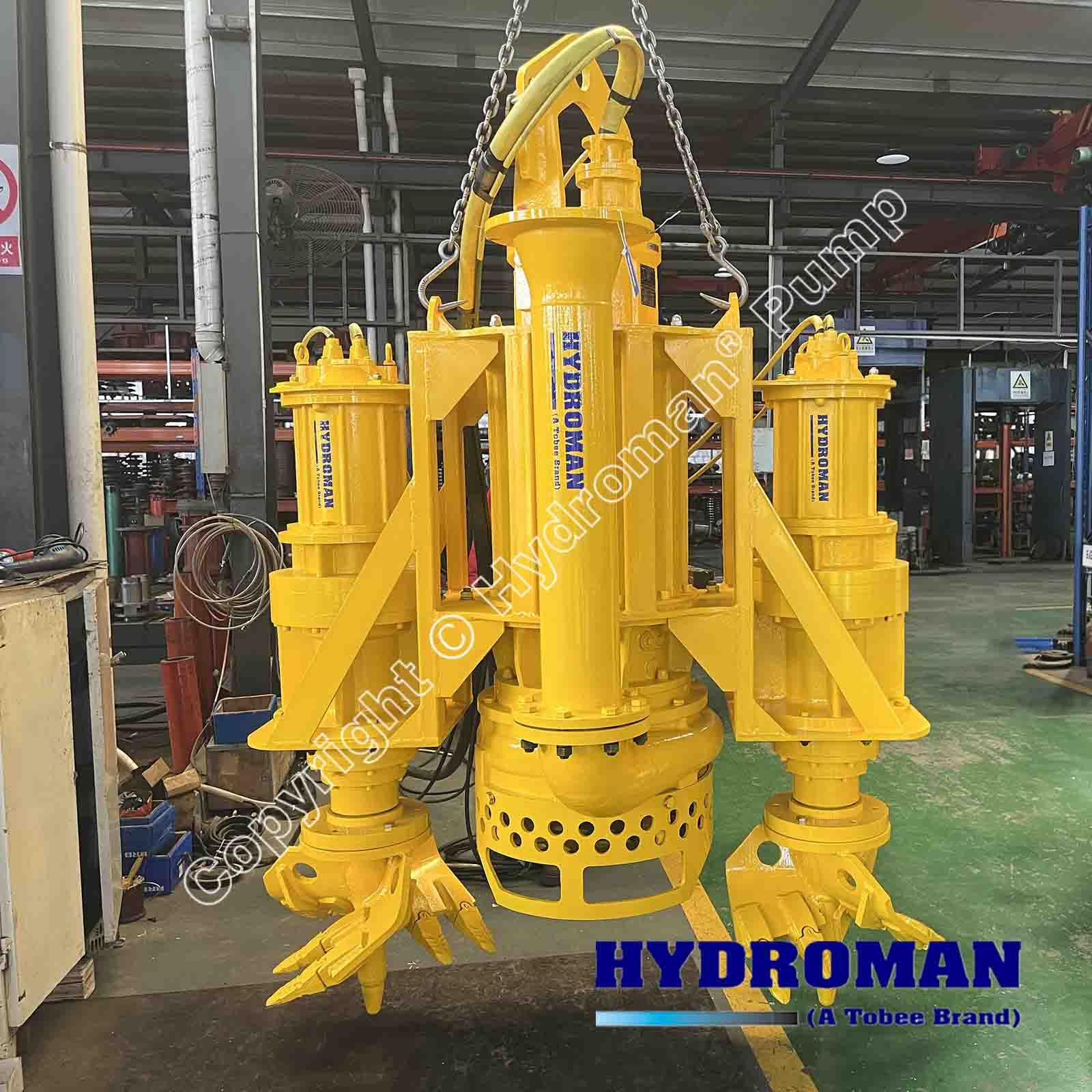

Then look at the Vertical Underwater Slurry Pump With Side Agitators. Most slurry pumps rely only on suction, which leaves a layer of compacted solids untouched. The side agitators here create a powerful vortex that loosens and lifts settled material directly into the intake. You get continuous, high-concentration pumping – up to 70% solids by weight – without manual raking or hose flushing.

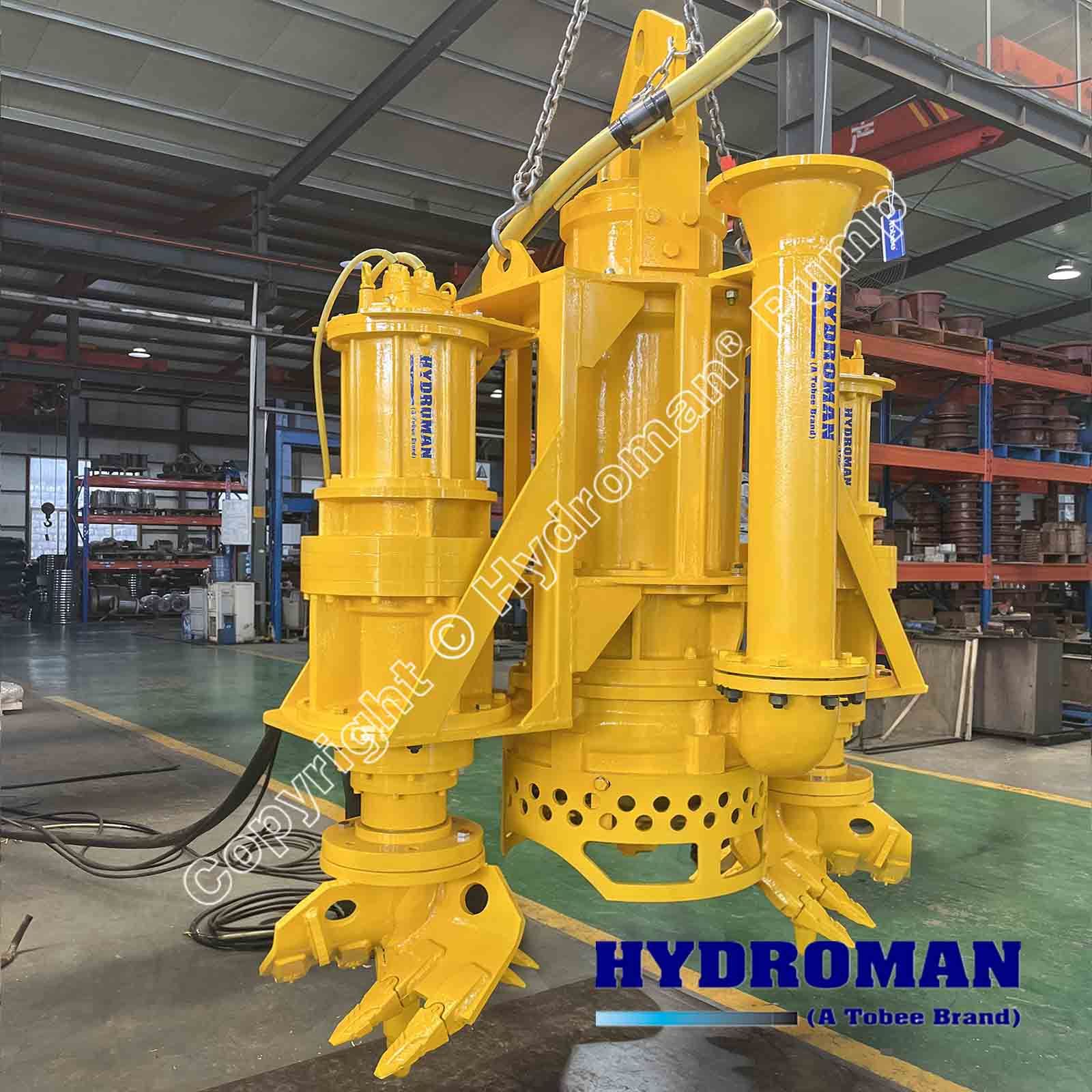

For plant managers and contractors, the Heavy Duty Electric Pump For Industrial Sludge answers the biggest headache: premature wear. The pump’s wet end is cast from high-chrome alloy or optional HYPERCHROME®. These materials survive the sharp edges of crushed ore, glass cullet, or coal ash that would destroy a cast-iron pump in days.
Finally, the entire assembly is built as a Submerged Sludge Pump System With Dual Agitators. One agitator sits at the bottom near the suction, while the side units extend the mixing radius. This dual-action design prevents “rat-holing” – a common issue where a single agitator just drills a narrow hole without clearing the wider area.
Imagine a slag pit at a steel mill. The bottom is packed with abrasive, sharp-edged slag fines mixed with water. A standard pump would lose its impeller in two weeks. The Electric Submersible Pump For Sludge Removal from Hydroman® runs continuously for months. Why?
For industrial sludge management, this means no more scheduled shutdowns for cleaning. The pump works while you focus on production.
You might ask: Why side agitators instead of just a bottom cutter? A bottom-only agitator works well for loose sand but struggles with compacted sludge. The Vertical Underwater Slurry Pump With Side Agitators uses a triangular positioning: one bottom impeller plus two side-mounted blades. This creates a wide, turbulent flow that reaches every corner of a pit or tank.
In practice, operators lower the pump directly into the sludge. The side agitators start breaking material immediately, even before the main impeller spins up. Once running, the pump maintains a self-cleaning cycle – solids are lifted, mixed, and discharged through a high-head outlet. This makes it perfect for deep sewage wet wells or mine tailings thickeners where manual entry is dangerous.
Standard submersible pumps are designed for clean water or light sewage. Put them in heavy industrial sludge – metal refining slurry, paper mill waste, or ceramic glaze – and you’ll face three failures:
The Heavy Duty Electric Pump For Industrial Sludge eliminates all three. Its oil-filled motor chamber with dual silicon carbide seals handles particles up to micron sizes. The high-chrome impeller and volute maintain efficiency even after 5,000 hours of abrasive service. And the side agitators keep the suction eye clean – no rags wrap around the shaft because the agitators break fibrous materials before they enter.
Where can you deploy this system today?
In every case, the Submerged Sludge Pump System With Dual Agitators runs unattended. You can set it on a float switch or a timer, and it will churn through layers of consolidated sludge that would stall any other pump.
Let’s talk numbers. The High Efficiency Electric Sludge Dredging Pump achieves hydraulic efficiency above 55% even when pumping 40% solids by volume. Compare that to a standard slurry pump that drops to 30% efficiency under the same load.
Key specs (typical for the Hydroman® series):
The side agitators run at a slightly slower speed than the main impeller, which reduces wear while maximizing mixing. A replaceable wear plate protects the volute inlet. And the cable entry uses a rubber gland plus epoxy sealing – no water creepage along the conductors.
1. Can the pump run partially submerged or dry?
No. Like all submersible sludge pumps, the motor relies on the surrounding liquid for cooling. Running dry – even for 30 seconds – can overheat the mechanical seals. Always ensure the pump is fully submerged below the minimum oil level mark. The side agitators still work even if the top of the pump is exposed, but the motor casing must stay wet.
2. How often do you need to replace the mechanical seals?
It depends on the slurry abrasiveness. In heavy mining applications (60% solids with quartz particles), inspect the oil chamber every 3 months. Change seals every 6–12 months. In lighter industrial sludge (20% solids, soft particles), seal life often exceeds 2 years. The double seal design gives you a warning – if you see milky oil, the outer seal is failing, but the inner seal still protects the motor.
3. What maintenance does the side agitator require?
Very little. The agitator blades are cast from the same high-chrome alloy as the impeller. They wear at a similar rate. Every time you replace the impeller (typically after 4,000–8,000 hours depending on abrasion), inspect the agitators. They are bolted directly to the lower motor flange – no complex shaft coupling. You can change them in 20 minutes with basic tools.
The Hydroman® heavy duty electric submersible sludge pump with side agitators delivers vertical underwater performance for sludge removal. Built for submerged operation and tough industrial duty. Explore Hydroman® reliable heavy duty sludge pumping solution.
Whether you need to clean a 20-year-old tailings pond, dewater a tunneling slurry line, or empty a paper mill’s clarifier, this pump keeps running when others quit. Contact Hydroman® now or visit the official website for sizing assistance, material options (high-chrome, HYPERCHROME®, or stainless steel), and fast delivery. Stop digging sludge by hand – let the side agitators do the work.
