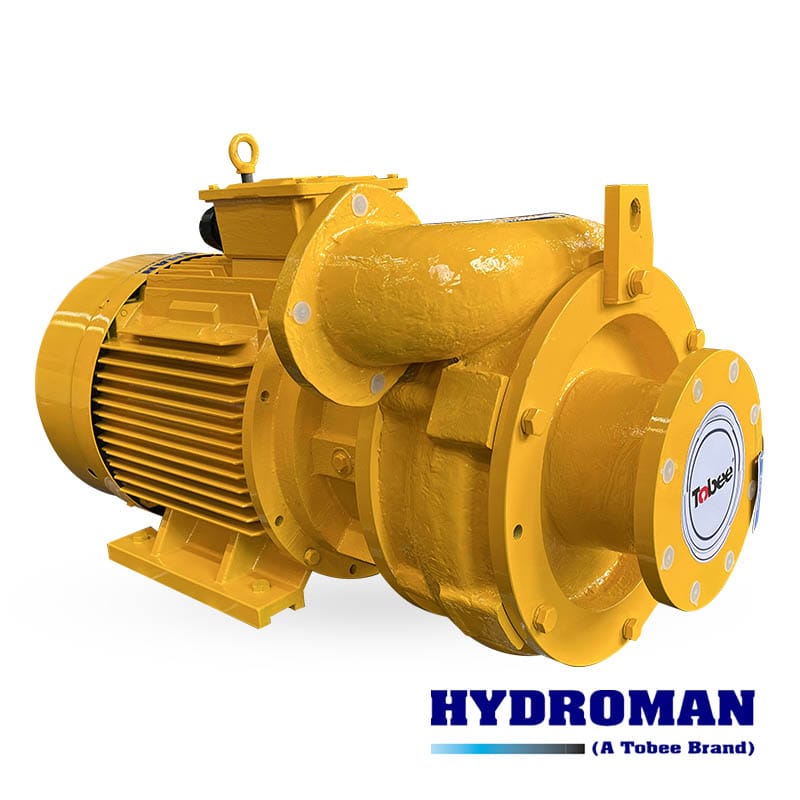

Efficiently managing the challenging mixture of bentonite slurry, excavated spoil (gravel, sand, mud), and wastewater is absolutely critical in pipe jacking beneath live UK railway tunnel infrastructure. This trenchless method relies on bentonite lubrication but generates highly abrasive, dense waste that demands robust removal solutions. Enter the Hydroman® Pump for Underground Pipe Installation: specifically engineered as a Heavy Duty Muck Pump for Tunneling Projects to excel in these demanding conditions. Its high-pressure capabilities and abrasion resistance are non-negotiable for maintaining project timelines and ensuring ground stability under sensitive railways.
Unmatched Handling of Abrasive Slurries: The core challenge is pumping a mixture laden with bentonite clay, ground particles (often including gravel up to 60mm), sand, mud, and water. Hydroman® horizontal slurry pumps are purpose-built with ultra-high-chrome alloy wear parts (impellers, liners, wear plates) specifically to withstand this extreme abrasion, drastically reducing downtime and maintenance costs compared to standard pumps. This makes it the definitive Bentonite Slurry Pump for Railway Tunnel applications.
High Pressure & High Solids Capacity: Transporting dense slurry mixtures over the long distances often required in tunnel projects, and against the back-pressure from the pipe jacking face and ground, demands significant power. Hydroman® High Pressure Muck Pumps for Pipe Jacking generate the necessary force. Crucially, they can handle slurries with solids concentrations up to 60% by weight, effortlessly dealing with the varying consistency of the waste stream encountered during excavation.
Robust, Electric-Driven Reliability: Designed for continuous, harsh-environment operation, these horizontal, electric-driven pumps offer exceptional reliability. Features like dual thrust bearings and adjustable wear plates ensure longevity and sustained performance. For UK railway projects where unexpected delays carry massive penalties and safety implications, this reliability is paramount. It's a true Industrial Pump for UK Railway Construction.
Efficient High Flow for Tunnel Cleaning: The High Flow Muck Pump for Pipe Jacking Applications design ensures rapid removal of the bentonite-contaminated spoil, wastewater, and other waste materials from the confined tunnel space. Efficient cleaning is vital to keep the jacking operation moving smoothly and prevent blockages or pressure build-up that could affect ground stability above.
• Safety & Compliance: Adherence to Network Rail's strict safety protocols (like the Rule Book and COSS/PICOP requirements) and environmental regulations is non-negotiable. Equipment must be certified and operated within stringent guidelines.
• Minimising Vibration & Settlement: Careful control of the pipe jacking process, including precise bentonite injection and consistent slurry removal using reliable pumps like the Hydroman®, is essential to prevent ground movement that could disrupt sensitive railway tracks overhead.
• Soil Adaptability: The bentonite mix and pump operating parameters may need adjustment based on encountered soil conditions (e.g., clay, sand, water table). The Hydroman® pump's robust design provides the flexibility needed for these variations.
• Real-Time Monitoring: Implementing systems to monitor bentonite pressure, flow rates, and slurry density is crucial for maintaining optimal face support and lubrication, directly impacting the success and safety of the drive beneath the railway.
Q: Why is high pressure so important for bentonite slurry pumps in railway tunnels?
A: High pressure is essential to overcome friction losses over long pipe runs, push the dense slurry mixture to the surface separation plant, and counteract the pressure exerted by the surrounding ground and groundwater. This ensures consistent flow and prevents blockages, critical for stability under railways. Hydroman® pumps are engineered specifically for these high-pressure demands.
Q: How does the Hydroman® pump handle large gravel and abrasive materials?
A: Hydroman® pumps feature exceptionally wear-resistant components made from high-chrome alloys in critical areas like the impeller, casing liners, and adjustable wear plates. This robust construction, combined with a volute design optimized for solids passage, allows them to reliably pump slurries containing particles up to 60mm in diameter, common in pipe jacking spoil.
Q: Is the Hydroman® pump suitable for the confined space of a tunnel?
A: Yes. As a horizontal, electric-driven Submersible Slurry Pump for Bentonite Handling is not typically the primary solution for main tunnel muck lines (though Hydroman offers them too), their horizontal high-pressure slurry pumps are designed for efficient installation and operation within the limited space of the pipe jacking tunnel or shaft. Their reliability minimizes the footprint needed for backups or frequent maintenance.
Don't let bentonite slurry removal become your bottleneck or risk factor. The Hydroman® High Pressure Muck Pump for Pipe Jacking delivers the proven performance, durability, and high-flow capability essential for the strict demands of UK railway tunnel construction. It's the engineered solution for efficient, reliable, and safe tunnel cleaning of bentonite, slurry, gravel, sand, mud, waste, and wastewater.
Boost efficiency and safety in your tunneling projects. Explore the full technical specifications of the Hydroman® range and request a personalised quote today!
