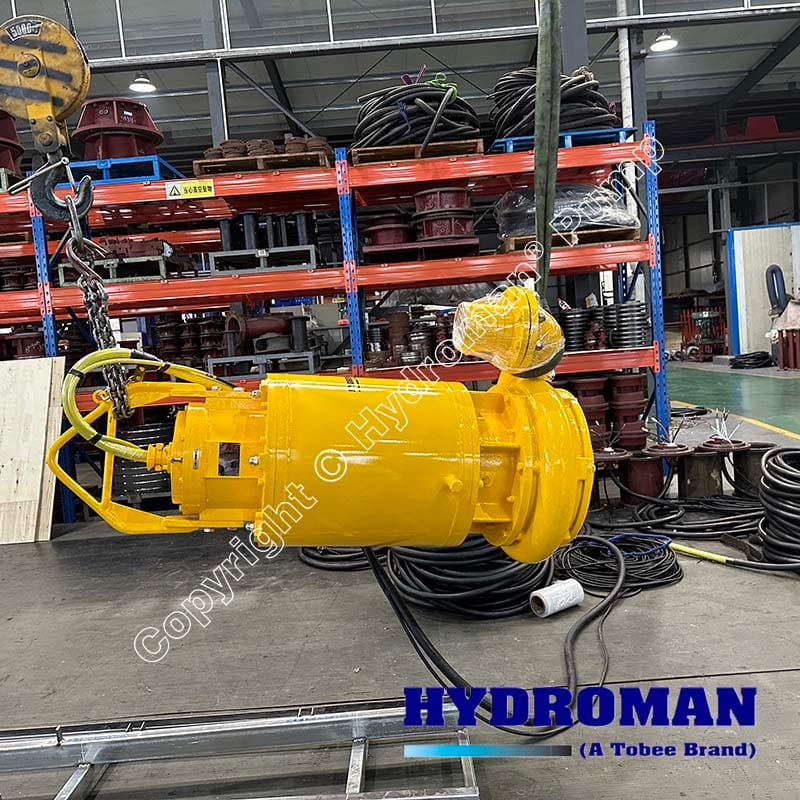

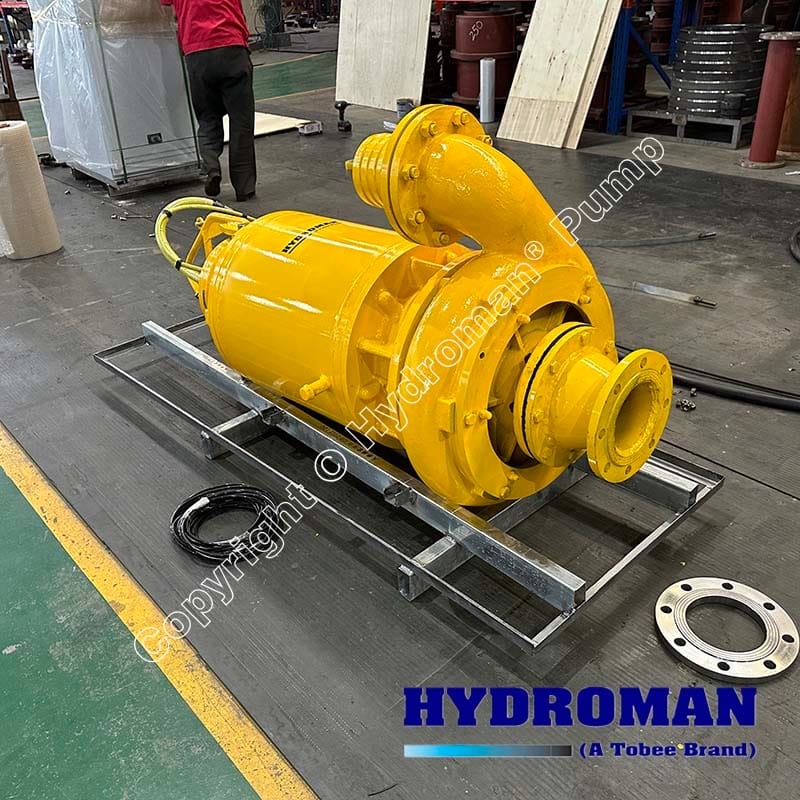

Hydroman® Wear Resistant Electric Submersible Sand Pump delivers unmatched reliability in the punishing world of carbon mining. Engineered for continuous submersion in abrasive mixtures, this Heavy Duty Electric Driven Sand Pump for Carbon Mining features a High Chromium Iron Impeller and critical wear parts, offering superior erosion resistance. As an Electric Submersible Pump for Abrasive Sand Applications, it excels where standard pumps fail. The Electric Submersible Pump for Harsh Mining Environments efficiently handles slurry, gravel, sand, mud, and wastewater, while its unique bottom agitation impeller fluidizes settled sludge, boosting productivity. This Durable Electric Submersible Pump for Mining Operations ensures reduced downtime and lower lifetime costs, making it the essential High Efficiency Electric Submersible Sand Slurry Pump for profitable mine dewatering and material extraction.
1. High Chromium Iron (HCI) – The Core of Durability:
• Superior Hardness: Hydroman® pumps utilize specially alloyed high-chromium iron (typically 27-30% Cr), achieving a Brinell hardness exceeding 600 HB. This dwarfs the hardness of standard cast iron or even mild steel.
• Microstructure Advantage: The high chromium content promotes the formation of hard, interconnected chromium carbides within a tough martensitic matrix. These carbenes act like armor, directly resisting the cutting and gouging action of abrasive particles.
• Exceptional Wear Resistance: Independent tests show HCI components withstand abrasive wear 5-8 times longer than standard materials in coal slurry applications. This directly translates to extended impeller, casing, and agitator life.
• Corrosion Mitigation: While primarily for abrasion, the high chromium content also provides significantly better resistance to corrosion in mine water (often acidic or saline) compared to standard materials, preventing synergistic wear-corrosion damage.
2. Optimized Hydraulic Design for Slurries:
• Wide Flow Channels: Impellers and volutes are designed with generously sized, smooth flow passages to minimize particle congestion and reduce recirculation wear hotspots.
• Optimum Vane Angle & Profile: Vanes are shaped to efficiently impart energy to the dense slurry mixture while minimizing turbulence-induced wear on surfaces.
• Reduced Relative Velocity: Designs aim to lower the relative velocity difference between the pumped solids and the pump surfaces wherever possible, reducing erosive impact.
3. Robust Mechanical Construction:
• Heavy-Duty Castings: Pump casings, bearing housings, and agitator components are precision-cast from high-grade ductile iron or specialized alloys for maximum structural integrity under load and vibration.
• Reinforced Shaft System: Large diameter shafts made from hardened and tempered alloy steel (e.g., 4140/42CrMo) transmit torque reliably. Critical shaft sleeves in wear zones are often HCI.
• Premium Sealing Technology: Multi-stage mechanical seals, often silicon carbide/silicon carbide faces, protected by expeller labyrinths or lip seals, ensure long life by excluding abrasives. Optionally supplied clean water flush systems further enhance seal longevity in severe conditions.
• Heavy-Duty Bearings: Oversized, high-capacity roller bearings (often Timken® or SKF® equivalent) are selected for L10 life far exceeding the pump's maintenance intervals, housed in robust, oil-lubricated chambers.
4. Agitation System – Maximizing Pumping Efficiency:
• Dedicated Agitation Impeller: Mounted below the main impeller on the extended shaft, this component is crucial for Hydroman® submersibles in mining.
• Fluidization Action: The agitator blades vigorously stir the settled sludge bed (sand, gravel, sediment) at the pump sump, breaking cohesion and mixing it with water into a turbulent, pumpable slurry.
• Preventing "Bogging Down": By proactively lifting solids into suspension, the pump avoids sucking down into compacted material, ensuring continuous operation and preventing motor overload.
• HCI Construction: Like the main impeller, the agitator is cast from wear-resistant high-chromium iron to withstand the direct impact and abrasion of solids.
5. High-Efficiency Electric Motor:
• Submersible Construction: Totally enclosed, oil-filled (or optionally water-filled), providing excellent cooling and inherent protection from the surrounding liquid and atmosphere.
• Thermal Protection: Built-in thermal sensors (PTC/PTC thermistors or thermostats) automatically disconnect the motor in case of overload or low flow conditions, preventing burnout.
• High Efficiency Class: Motors meet or exceed IE3 efficiency standards (or equivalent), minimizing energy consumption over long operating hours – a critical factor in cost-intensive mining operations.
• Voltage & Phase Options: Available in various standard voltages (380V, 415V, 440V, 480V, 660V, 690V, 1140V) and both 50Hz/60Hz, 3-phase configurations to suit global mine site power supplies.
Carbon mining involves relentless exposure to highly erosive mixtures. Hydroman® pumps are specifically engineered to tackle these head-on:
• Abrasive Slurry Handling (Coal Fines & Tailings): The High Chromium Iron Impeller and wear plates resist rapid degradation caused by sharp coal particles and mineral tailings suspended in water. This maintains pump efficiency and head far longer than conventional pumps.
• Dewatering Pits & Sumps: As a true Electric Submersible Pump for Abrasive Sand Applications, it operates submerged directly in the water/slurry mix, efficiently lowering groundwater levels or clearing flooded work areas without priming issues.
• Settling Pond & Tailings Dam Management: Efficiently removes accumulated sand, sediment, and coal fines from settling ponds and tailings storage facilities. The bottom agitator is vital for lifting compacted solids.
• Coal Washing Plant Duties: Handles the recirculation and transfer of dense media slurries and wash water containing sand, magnetite, and coal particles.
• Drainage Gallery & Tunnel Clearing: Effectively pumps out inflows laden with suspended solids like sandstones, gravel, and silt encountered during development and operation.
• High Solids Concentration: Capable of handling slurries with exceptionally high solids content (often 40-60% by weight, depending on particle size and density), a common scenario in mine drainage and clean-up.
• Dramatically Extended Wear Life: The High Chromium Iron Impeller and critical components offer 5-8x the lifespan of standard cast iron or Ni-Hard equivalents in coal slurry, drastically reducing replacement frequency and inventory costs.
• Minimized Downtime & Maintenance Costs: Fewer component changes mean less planned and unplanned downtime. Robust construction reduces catastrophic failures. Seal systems are designed for longevity.
• Unmatched Reliability in Harsh Conditions: Built as a Durable Electric Submersible Pump for Mining Operations, it withstands submersion, abrasives, potential impacts, vibration, and variable pH water far better than surface pumps or lesser submersibles.
• Enhanced Hydraulic Efficiency: Optimized impeller design and the agitation system ensure the High Efficiency Electric Submersible Sand Slurry Pump maintains high flow and head even with challenging mixtures, reducing energy costs per ton pumped.
• Simplified Operation & Installation: No priming required. Simply lower the pump into the sump. Eliminates complex priming systems and associated failures. Automatic level controls can be easily integrated.
• Versatility Beyond Carbon Mining: While ideal for coal, its capability makes it perfect for hard rock mining (metal ores), sand & gravel extraction, dredging, industrial waste handling, and heavy construction dewatering.
| Feature | Specification Range | Material/Notes |
|---|---|---|
| Flow Rate (Q) | 10 m³/h to 2000 m³/h (44 GPM to 8800 GPM) | Varies significantly by model size & application |
| Head (H) | 10 meters to 60 meters (33 ft to 200 ft) | Capability depends on impeller design & stages |
| Power (P) | 3 kW to 400 kW (4 HP to 535 HP) | Electric motor, 3-phase, various voltages/frequencies |
| Max. Solids Size | Up to 50mm (2 inches) spherical equivalent | Passes through volute & discharge; agitator handles larger settled solids |
| Max. Solids % by Wt | Up to 60% (depends on particle size, shape, density) | Agitation impeller crucial for high-density mixtures |
| Pump Material (Wet Parts) | High Chromium Iron (27-30% Cr), Ductile Iron | Impeller, Casing, Agitator, Wear Plates in HCI; structural parts in Ductile Iron |
| Shaft Material | Hardened Alloy Steel (e.g., 42CrMo/4140) | Precision machined, hardened & tempered |
| Seal Type | Double Mechanical Seal | SiC/SiC faces standard; optional tungsten carbide; clean water flush available |
| Bearing Type | Heavy Duty Roller Bearings | Oil-lubricated chamber; high L10 life rating |
| Agitator | Standard Feature | High Chromium Iron blades; optimized for sludge fluidization |
| Motor Protection | IP68, Oil-Filled or Water-Filled, Built-in Thermal Switch | Class F or H insulation; overload protection |
Hydroman® leverages decades of specialized pump engineering, focusing on solving the toughest abrasion challenges. Our commitment involves:
• Rigorous In-House Testing: Pumps undergo extensive testing with actual mining slurries to validate performance and wear resistance before deployment.
• Advanced Foundry Techniques: Precise control over HCI metallurgy and heat treatment ensures consistent, superior hardness and microstructure.
• Global Support & Spares: Dedicated technical support teams and strategically located spare parts depots ensure minimal downtime worldwide.
• Customization Capability: While standard models cover most needs, Hydroman® can tailor pumps for specific flow, head, solids, or material requirements.
Q: How does the bottom agitator on the Hydroman® Electric Submersible Pump improve performance in carbon mining?
A: The dedicated agitation impeller is crucial. It actively stirs up settled sludge, sand, and gravel at the bottom of the sump, transforming compacted material into a turbulent, pumpable slurry. This prevents the main impeller from "bogging down" in solids, ensures continuous operation, maximizes solids intake, and significantly boosts overall pumping efficiency, especially when dealing with heavy sediments or tailings common in mines.
Q: Why is the High Chromium Iron Impeller so critical for longevity in abrasive coal slurry applications?
A: Coal slurry, laden with sharp silica sand and mineral particles, is extremely erosive. Standard cast iron or even lower-grade alloys wear rapidly, causing loss of efficiency, increased vibration, and frequent failures. Hydroman®'s High Chromium Iron Impeller offers exceptional hardness (over 600 HB) due to its interconnected network of hard chromium carbides. This microstructure provides outstanding resistance to cutting and gouging wear, extending impeller life by 5-8 times compared to standard materials, directly reducing maintenance costs and downtime.
Q: What makes the Hydroman® pump suitable as a "Heavy Duty Electric Driven Sand Pump for Carbon Mining" compared to standard submersibles?
A: "Heavy Duty" encompasses multiple factors:
Materials: Extensive use of High Chromium Iron for wear parts.
Construction: Robust ductile iron castings, oversized hardened alloy steel shaft, heavy-duty roller bearings.
Sealing: Multi-stage mechanical seals with premium faces (SiC/SiC) and protection against abrasives.
Motor: High-efficiency, oil-filled submersible motor (IP68) with thermal protection, built for continuous operation.
Design: Slurry-optimized hydraulics and the essential bottom agitator.
Application Focus: Engineered specifically for the extreme abrasion, submersion, and demanding cycles of mining, not just general dewatering.
Stop losing money to frequent pump failures, costly downtime, and inefficient material handling. The Hydroman® Wear Resistant Electric Submersible Sand Pump with High Chromium Iron is engineered to be the most reliable, durable, and efficient solution for the harshest carbon mining environments.
• Unmatched Wear Life: Thanks to the High Chromium Iron Impeller and components.
• Maximum Uptime: Robust construction and premium seals minimize breakdowns.
• Superior Efficiency: Optimized hydraulics and agitation deliver lower cost per ton pumped.
• Proven Reliability: Trusted by mining operations worldwide.
Order your Hydroman® Wear Resistant Electric Submersible Sand Pump today! Contact our expert engineering team to specify the perfect model for your specific carbon mining application and maximize your operational profitability.
