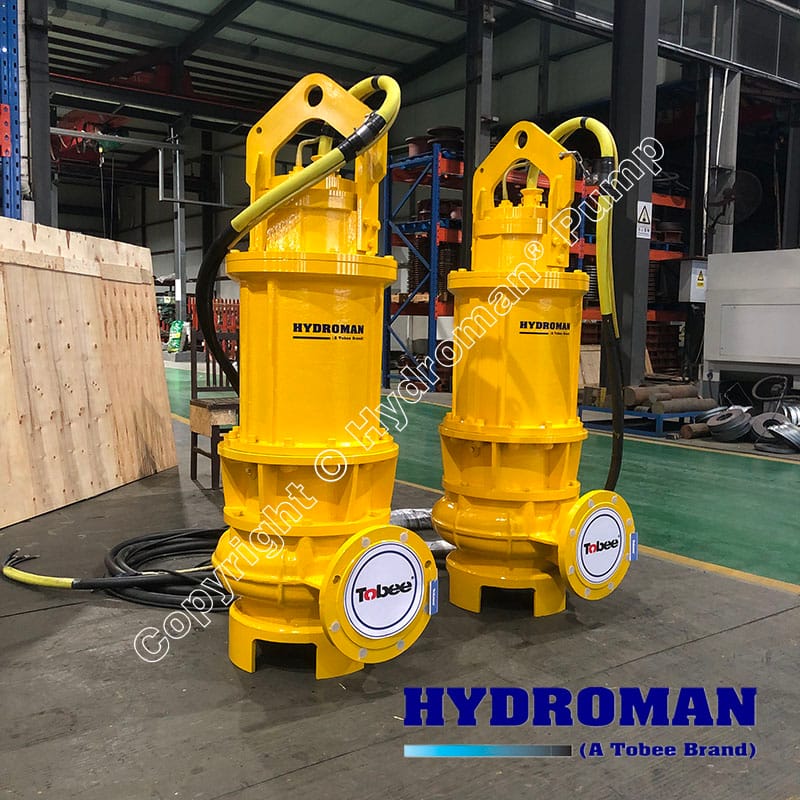

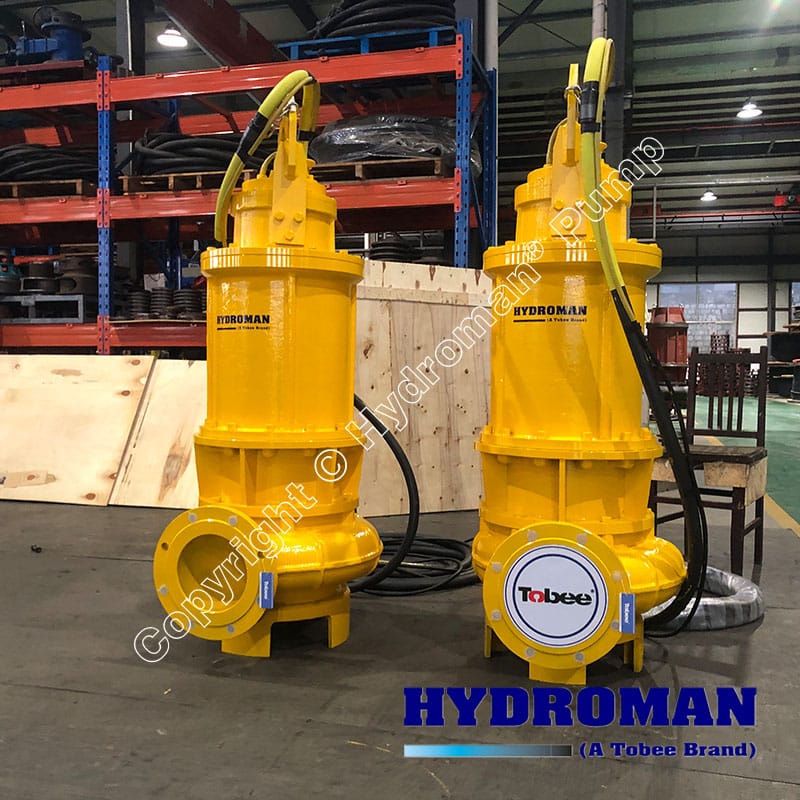

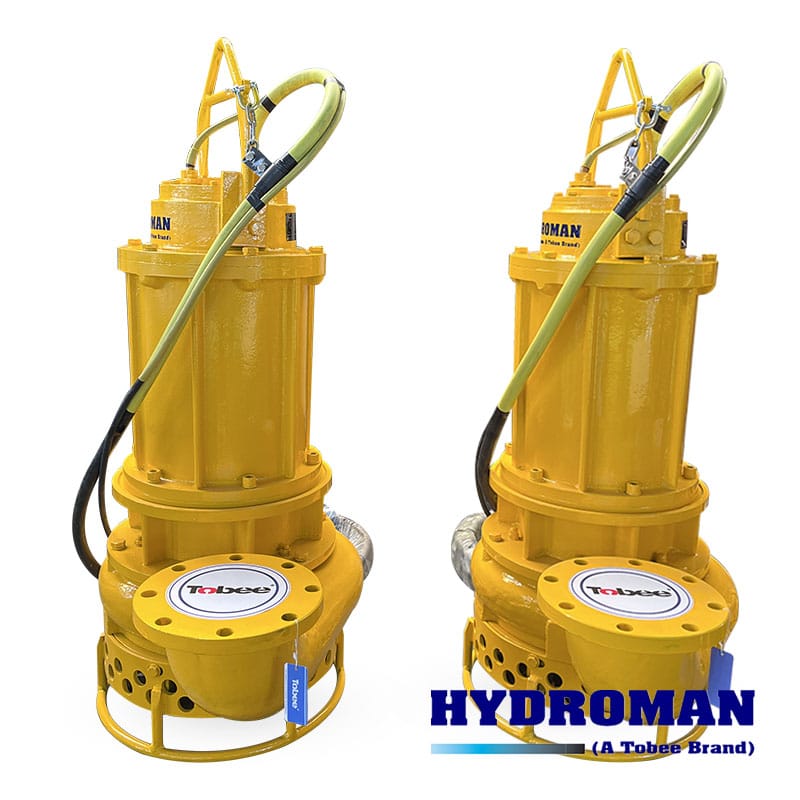

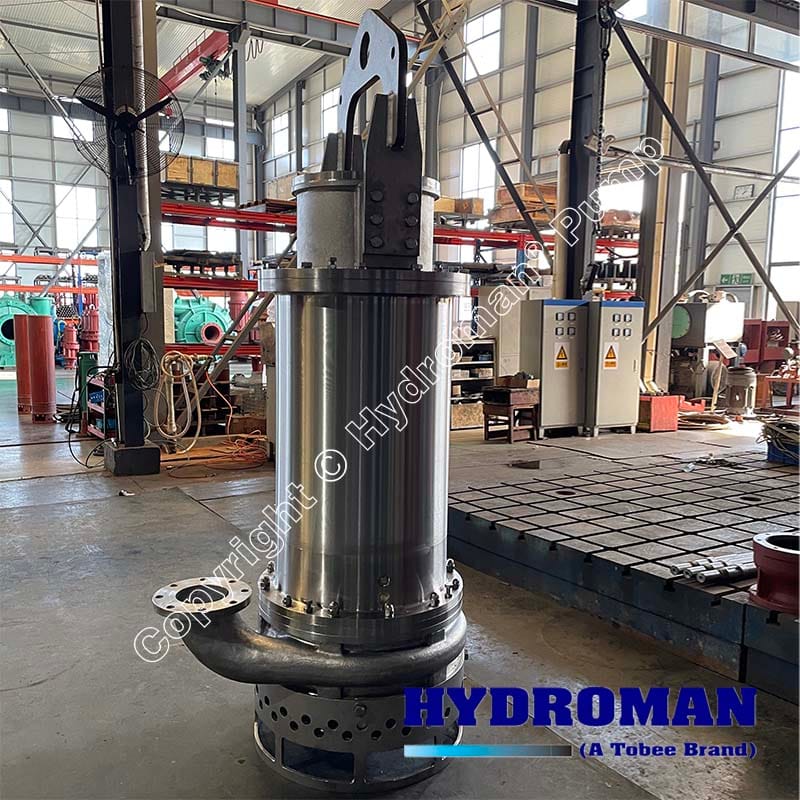

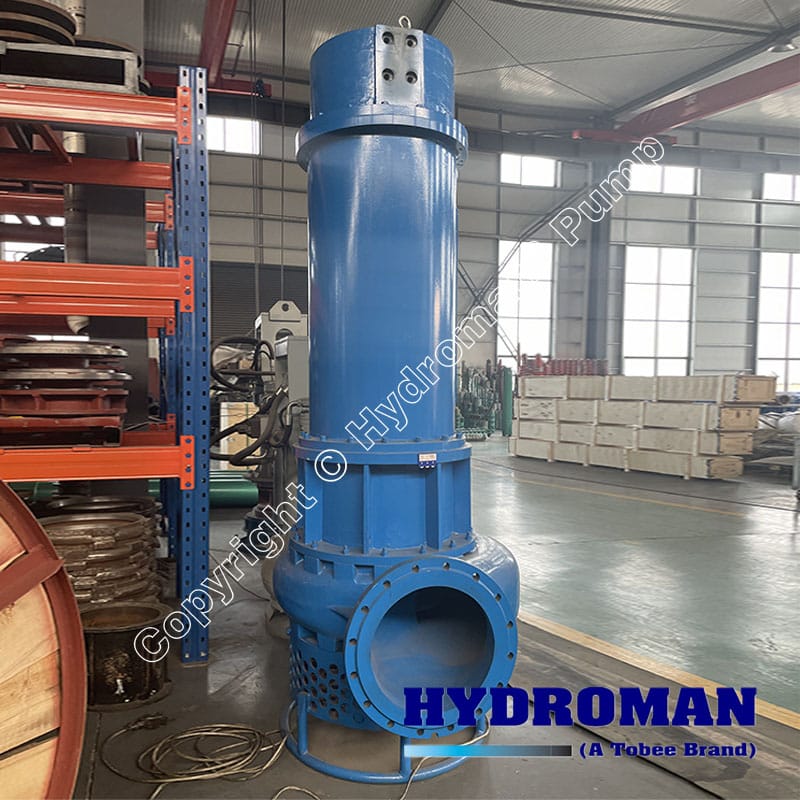

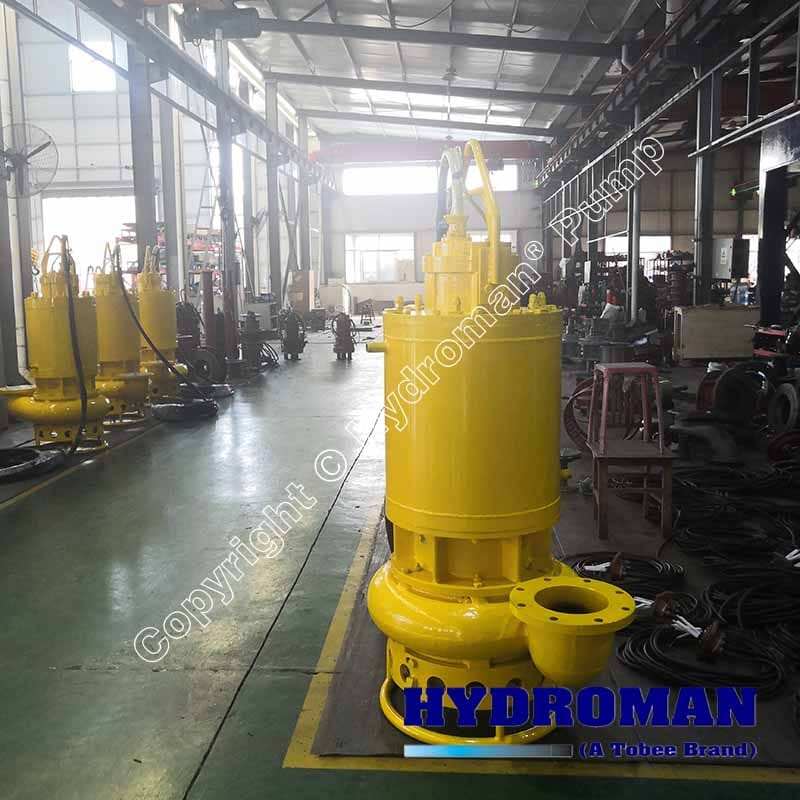

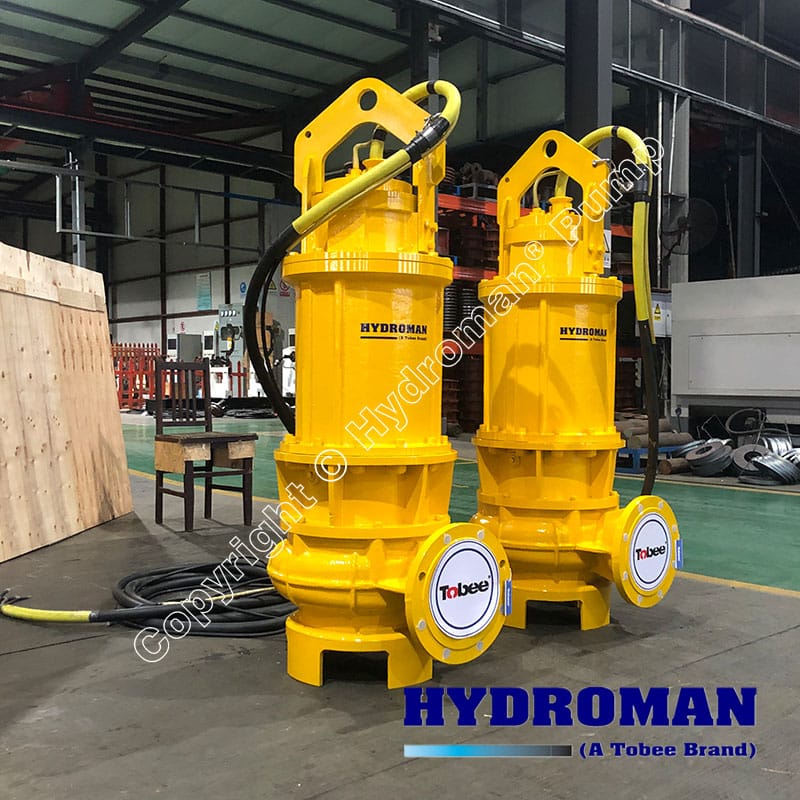

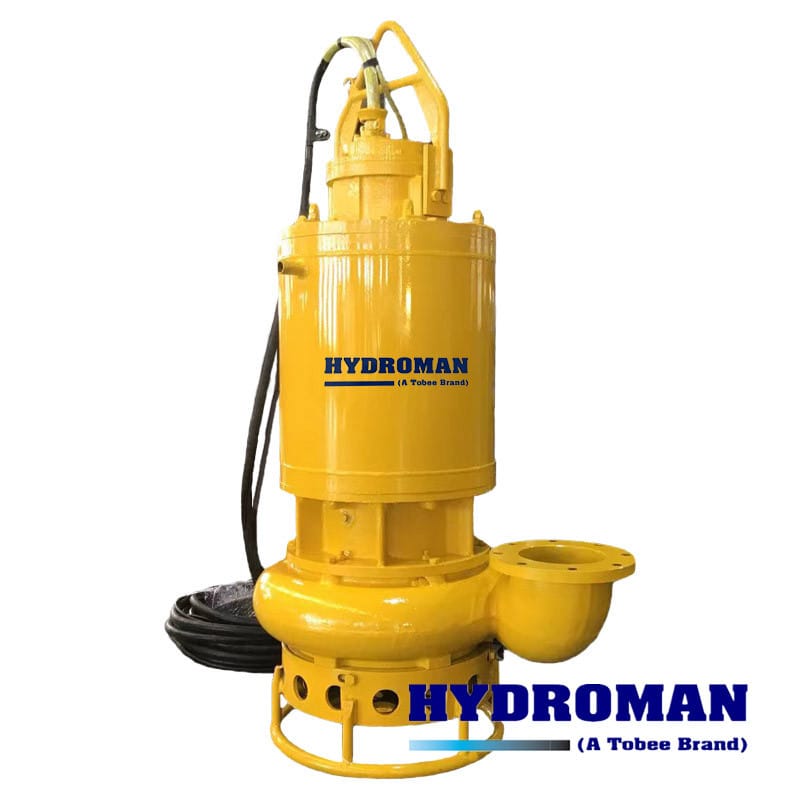

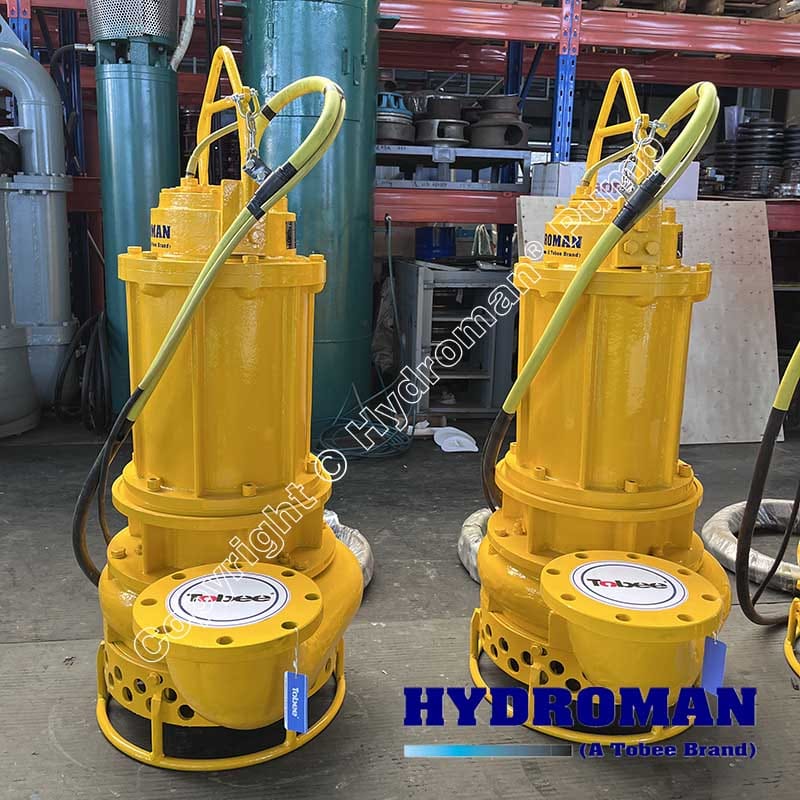

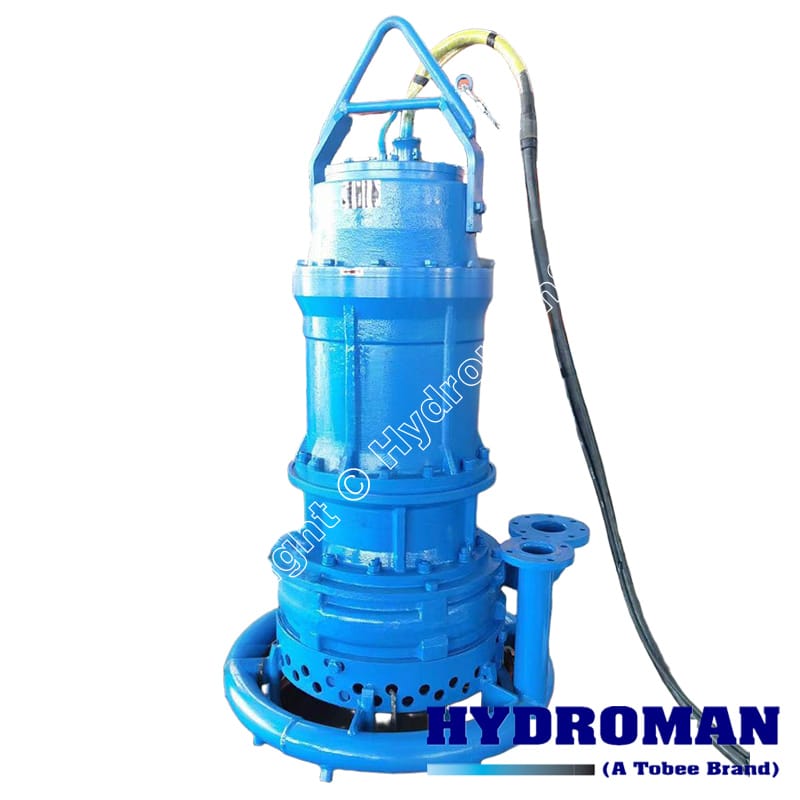

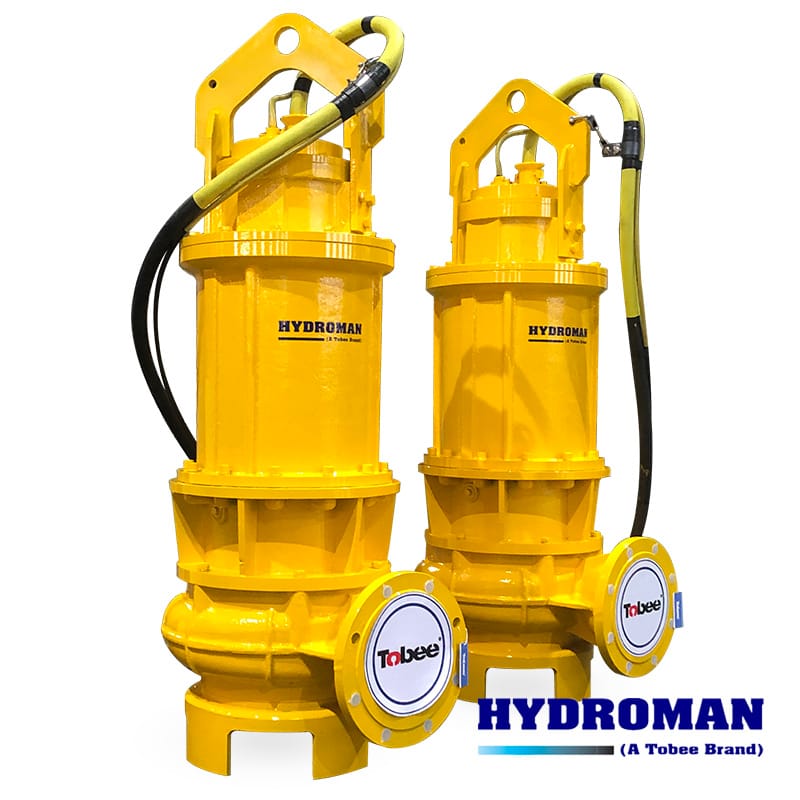

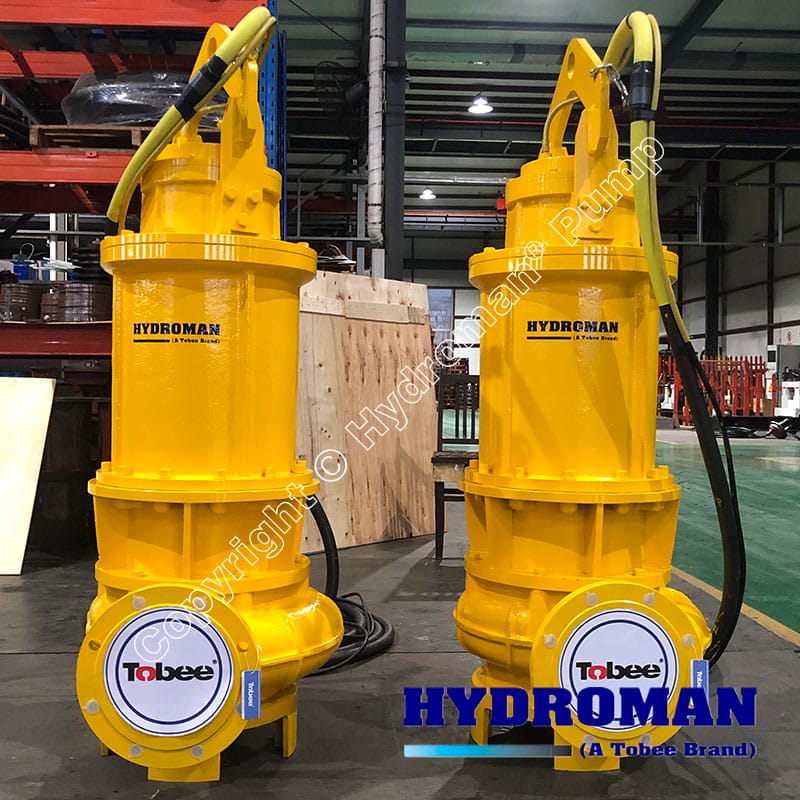

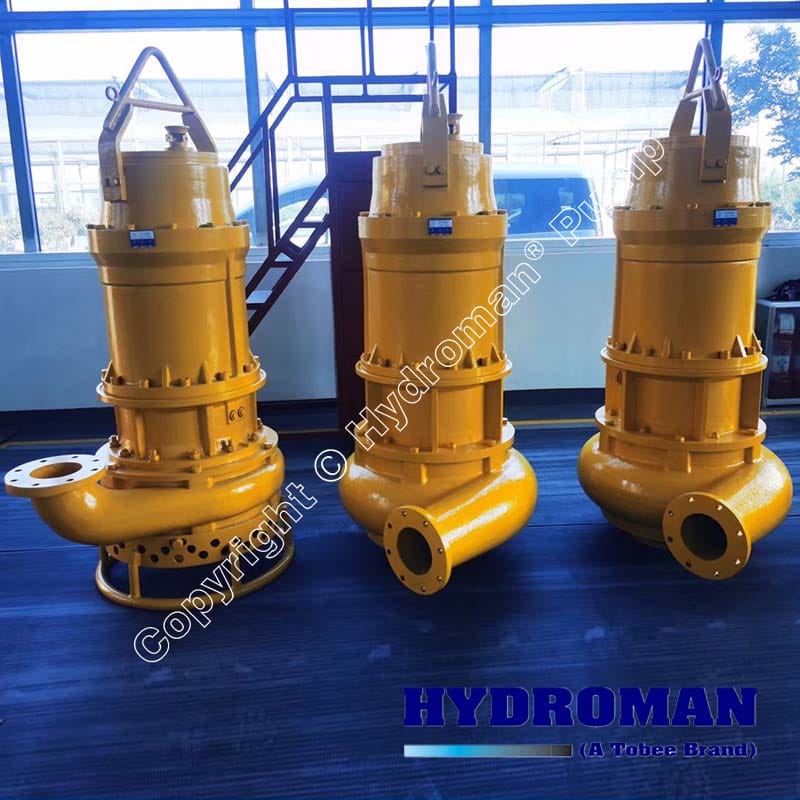

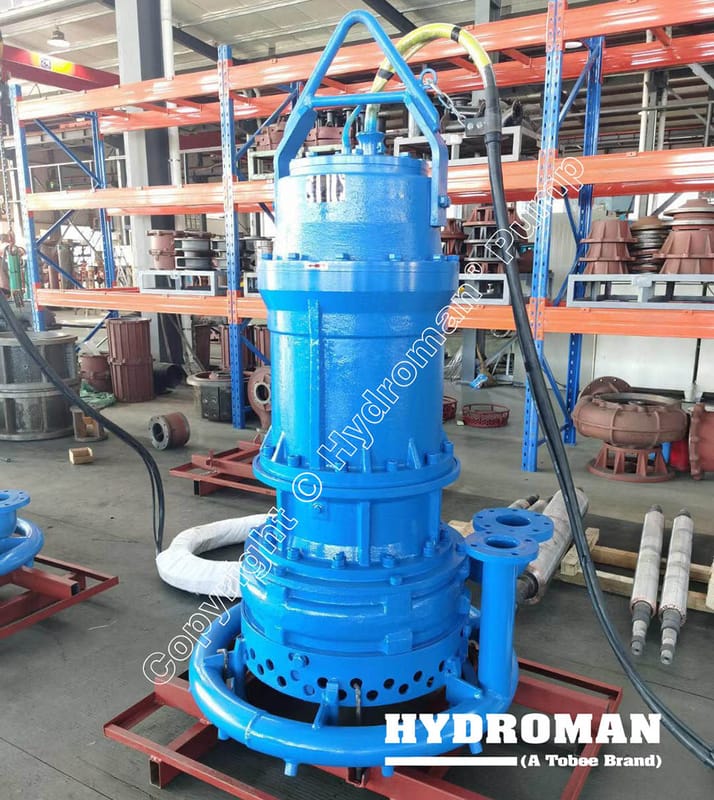

Hydroman® Non-Clogging Submersible Sewage Sludge Water Pump is designed for efficient and uninterrupted pumping of heavily contaminated fluids containing solids, fibrous material, and sludge. Hydroman® Submersible Effluent Sewage Pump is the preferred solution for municipal wastewater systems, industrial effluent stations, sewage treatment plants, and flood control applications. Its innovative impeller design ensures clog-free operation, even in demanding sludge-rich environments.
Hydroman® Non-Clogging Submersible Sewage Sludge Water Pump Technical Specifications
Size: 50-600mm
Capacity: 10-6000m3/h
Head: 5-62m
Speed: 750-3550r/min
Temperature Range: ≤80°C
Sealing arrangement: Double Mechanical seal
Motor: 50Hz/60Hz, 110V/220V/380V/440V/460V/660V/1000V
Materials: Cast iron, SS304, SS316L, Duplex SS, High chrome, Hyperchrome etc
Hydroman® Non-Clogging Submersible Sewage Sludge Water Pump Performance Parameters:
Model | Capacity Q (m3/h) | Head H (m) | Speed n (r/min) | Motor Power P (kw) | Eff. η (%) |
40TWQ | 8.4-14.4 | 14-16 | 2900 | 1.5 | 42-70 |
50TWQ | 7-50.4 | 8-36 | 1450-2900 | 0.75-7.5 | 46-62 |
65TWQ | 17.5-44.4 | 11-30.2 | 2900 | 2.2-4 | 39-72 |
80TWQ | 20.3-72 | 5.7-27.5 | 2900 | 2.2-7.5 | 51-75 |
100TWQ | 35-120 | 5.6-38.5 | 1450 | 4-15 | 46-80 |
150TWQ | 49-300 | 5.5-44.5 | 1450 | 5.5-37 | 58-82 |
200TWQ | 110-480 | 5.7-44.5 | 1450 | 11-75 | 63-83 |
250TWQ | 420-840 | 7-35 | 980-1450 | 30-90 | 63-84.5 |
300TWQ | 280-1140 | 6.7-27 | 980-1450 | 45-110 | 68-84.5 |
350TWQ | 700-1800 | 8-40 | 980 | 45-160 | 68-85 |
400TWQ | 1050-2640 | 12-33 | 980 | 132-160 | 71-85 |
500TWQ | 1400-3600 | 9-22.5 | 980 | 110-200 | 72-85 |
600TWQ | 2500-6000 | 8-25 | 590-740 | 110-315 | 65-78 |
Hydroman® Non-Clogging Submersible Sewage Sludge Water Pump Advantages
• Non-Clog Impeller Technology
Equipped with vortex or channel-type impellers capable of passing large solids (up to 100mm), preventing blockages and minimizing downtime.
• Heavy-Duty Submersible Construction
Made with cast iron or optional stainless steel for enhanced resistance to corrosion, abrasion, and aggressive media. Built to withstand continuous submersion (IP68 rated).
• Efficient and Reliable Motor
Oil-filled submersible motor with Class F/H insulation and thermal protection, engineered for 24/7 continuous duty (S1) in harsh sewage environments.
• Double Mechanical Seal in Oil Chamber
Dual mechanical seals with silicon carbide or tungsten carbide faces provide superior sealing and longer service life.
Hydroman® Non-Clogging Submersible Sewage Sludge Water Pump Applications
• Municipal wastewater lift stations
• Sewage and sludge transfer in treatment plants
• Industrial wastewater drainage and recycling
• Commercial and residential sewage discharge
• Flood water and stormwater pumping
• Agricultural waste and manure handling
