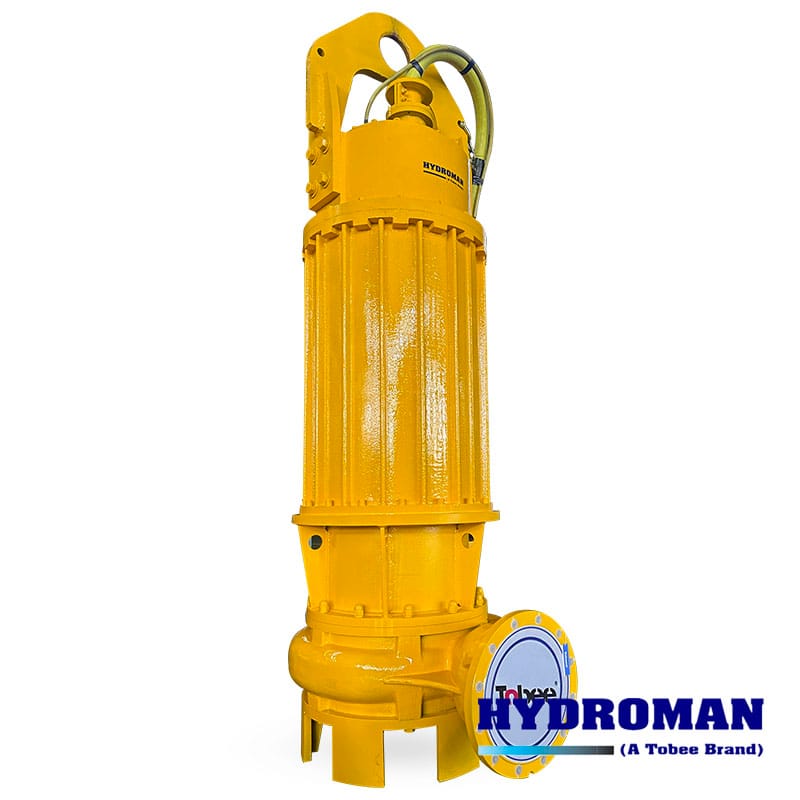

Hydroman® Sludge Dewatering Water Submersible Sewage Pump is purpose-built for handling thick sludge, sediment-laden water, and wastewater containing high solids. Engineered for continuous-duty operation in tough environments, it delivers efficient sludge removal and wastewater dewatering in municipal, industrial, and environmental applications.
Hydroman® Sludge Dewatering Water Submersible Sewage Pump Performance
| Model | Capacity (m3/h) | Head (m) | Speed (r/min) | Power (kw) | Efficiency (%) | Weight (Kg) |
| 350TWQ1200-6-30 | 1200 | 6 | 730 | 30 | 70-75 | 850 |
| 350TWQ1200-8-37 | 1200 | 8 | 740 | 37 | 70-76 | 950 |
| 350TWQ1100-10-45 | 1100 | 10 | 740 | 45 | 67-70 | 1250 |
| 350TWQ1100-12-55 | 1100 | 12 | 740 | 55 | 66-71 | 1320 |
| 350TWQ1100-16-75 | 1100 | 16 | 980 | 75 | 70-75 | 1650 |
| 350TWQ1100-20-90 | 1100 | 20 | 980 | 90 | 70-75 | 1770 |
| 350TWO1100-25-110 | 1100 | 25 | 980 | 110 | 72-76 | 1840 |
| 350TWQ1100-30-132 | 1100 | 30 | 980 | 132 | 72-79 | 1920 |
| 350TWQ1100-36-160 | 1100 | 36 | 980 | 160 | 70-80 | 2700 |
| 350TWQ1500-30-185 | 1500 | 30 | 980 | 185 | 75-80 | 2800 |
| 350TWQ1500-32-200 | 1500 | 32 | 740 | 200 | 75-80 | 2850 |
| 350TWQ1500-35-220 | 1500 | 35 | 740 | 220 | 75-80 | 3050 |
| 350TWQ1500-40-250 | 1500 | 40 | 740 | 250 | 78-82 | 3250 |
| 350TWQ1800-40-280 | 1800 | 40 | 740 | 280 | 78-82 | 3450 |
| 350TWQ1800-43-315 | 1800 | 43 | 740 | 315 | 78-82 | 3650 |
| 350TWQ1800-46-355 | 1800 | 46 | 740 | 355 | 78-82 | 3950 |
Hydroman® Sludge Dewatering Water Submersible Sewage Pump Key Features
• High-Solids Handling Capability
Vortex or semi-open impeller design allows passage of solids, fibrous materials, and thick slurry, reducing risk of clogging and downtime.
• Heavy-Duty Submersible Design
Constructed with wear-resistant cast iron or stainless steel materials for reliable performance in abrasive, corrosive, or sludge-filled environments.
• Efficient Submersible Motor
IP68-rated, oil-filled motor with Class H insulation and built-in thermal protection ensures stable and continuous operation.
• Double Mechanical Seals in Oil Chamber
Dual sealing system with silicon carbide or tungsten carbide materials to protect the motor from slurry ingress and extend pump life.
• Optional Agitator (Mixer) Attachment
Available with a built-in agitator to stir settled sludge and enhance solids suspension before pumping.
Hydroman® Sludge Dewatering Water Submersible Sewage Pump Applications
• Sludge dewatering in municipal and industrial wastewater treatment
• Thickened sludge transfer from sedimentation tanks
• Sewage and effluent pumping in mining and construction
• Food processing waste and organic slurry transfer
• Stormwater and flood drainage with high sediment load
• Agricultural waste, manure, and bio-solids handling
