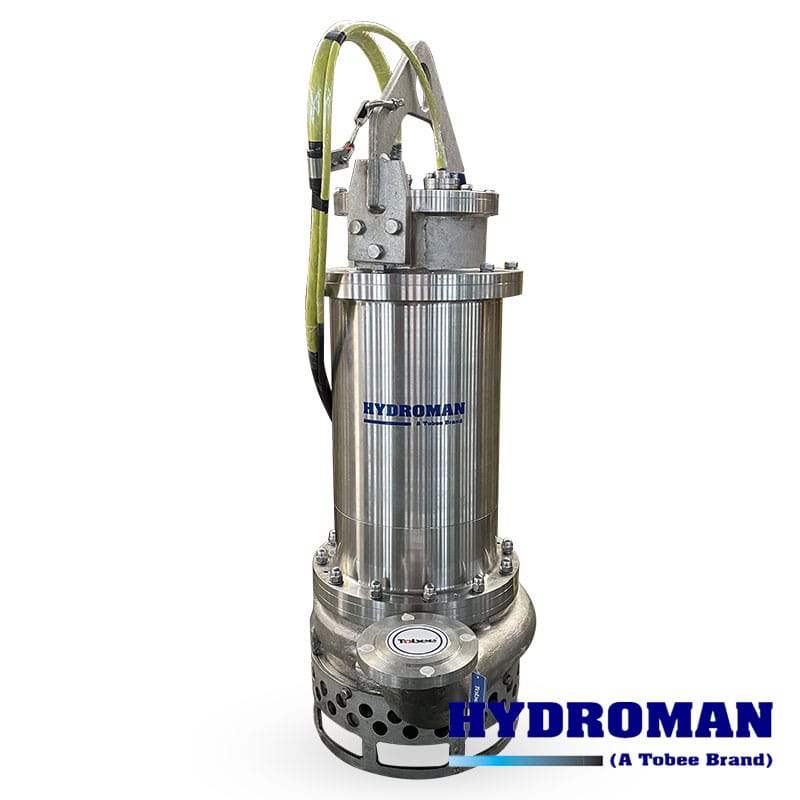

Hydroman® Stainless Steel Material Submersible Pumps is corrosion-resistant heavy-duty pump specifically engineered for handling highly abrasive and chemically aggressive slurries materials, such as slurry, acid, and mud, in harsh industrial applications. Constructed with premium stainless steel, it delivers superior performance in acidic, alkaline, and saline environments where standard pumps fail.
▪ Submersible Design: This pump operates fully submerged in liquid, eliminating the need for additional external components such as suction pipes or surface-mounted pumps. Its submersible feature makes it highly efficient and compact, suitable for confined or deep locations.
▪ Stainless Steel Construction: Made from high-grade stainless steel (such as 304 or 316), this pump is designed to resist corrosion, oxidation, and abrasion. This makes it ideal for handling acidic, alkaline, or highly corrosive slurry materials, ensuring longevity and durability even in harsh environments.
▪ Acid and Slurry Handling: Specifically engineered for applications involving acid, chemical slurries, or mud, the pump's construction and design ensure that it can withstand the aggressive nature of these materials. It is built to handle high-density and thick slurries without compromising performance.
▪ High-Efficiency Motor: The pump is equipped with a high-efficiency submersible motor that delivers consistent, reliable power while minimizing energy consumption. It also features built-in thermal overload protection to ensure the motor operates safely under heavy loads.
▪ Wear-Resistant Impeller and Shaft: The pump features an impeller and shaft designed to resist abrasion from the highly abrasive nature of slurry and mud. This results in less frequent maintenance and prolonged operational life.
▪ Chemical Processing: Suitable for pumping acidic and corrosive slurries in chemical plants, including the handling of liquid waste from chemical reactions.
▪ Wastewater Treatment: Commonly used in wastewater treatment facilities to remove mud, sludge, and acid-based waste materials from wastewater streams.
▪ Dredging & Environmental Maintenance: Effective for dredging applications in acidic or polluted water bodies, helping to remove sediment, mud, and contaminants while ensuring minimal damage to aquatic environments.
▪ Mining Industry: Used to pump acid-based slurries and wastewater from mining operations, this pump is ideal for transporting abrasive materials such as tailings and slurry containing heavy metals.
▪ Material: High-grade Stainless Steel (304/316), Duplex SS, Hyperchrome alloy, Cast iron etc
▪ Motor Power: Available in various power ratings (typically from 3 kW to 315 kW or more)
▪ Flow Rate: Customizable to meet specific project requirements
▪ Head: Up to 150 meters, also can customizable to meet specific project requirements
▪ Impeller Type: Closed, open for various slurry types
▪ Sealing: Double mechanical seal
▪ Operating Temperature: Typically up to 60°C, but can be customized for higher temperatures
▪ Voltage: Available in various configurations (e.g., 380V, 415V, 3-phase etc)
