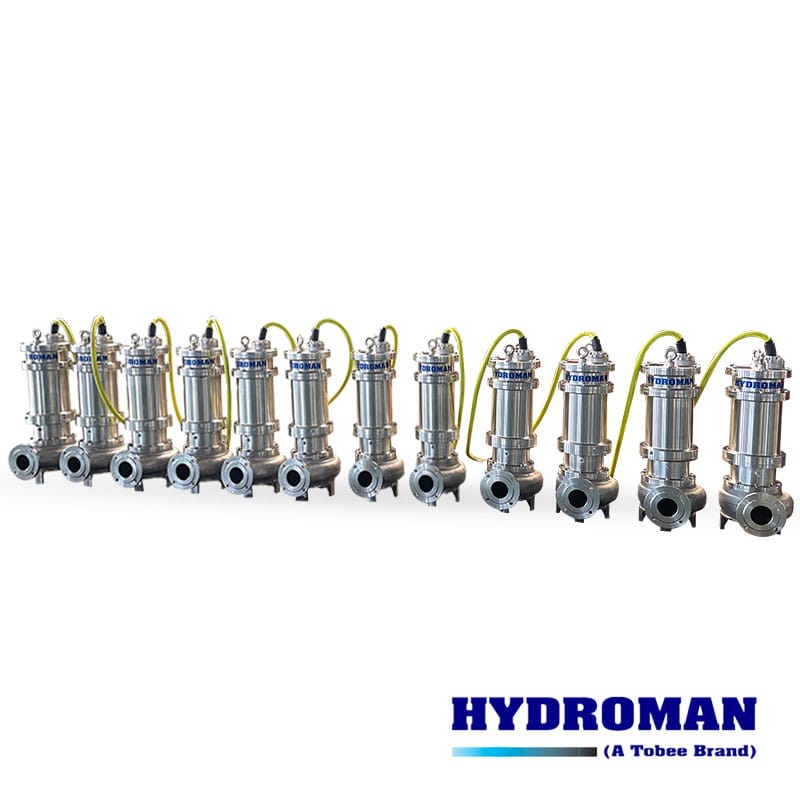

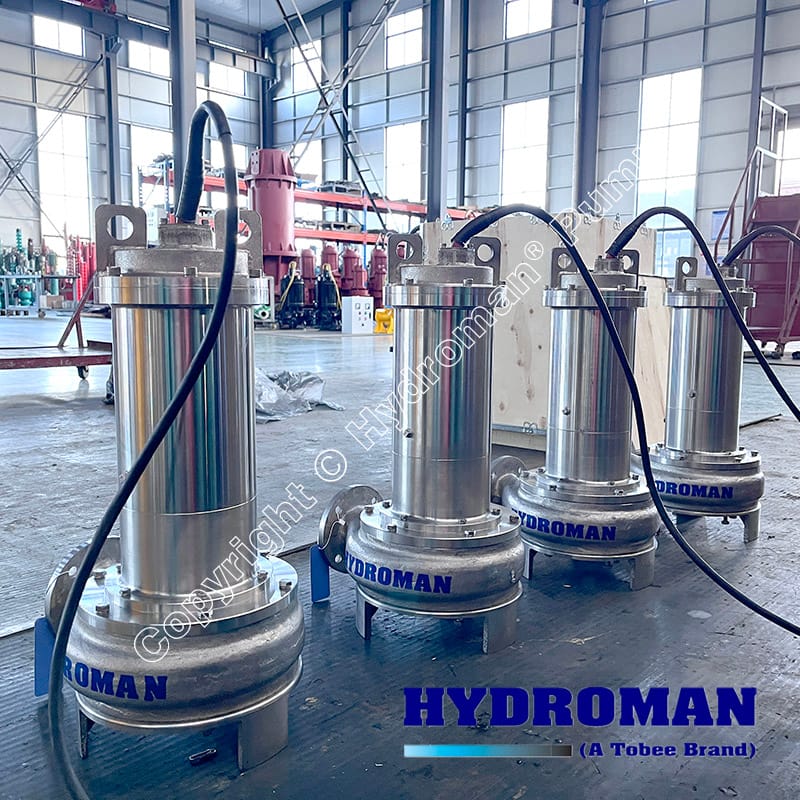

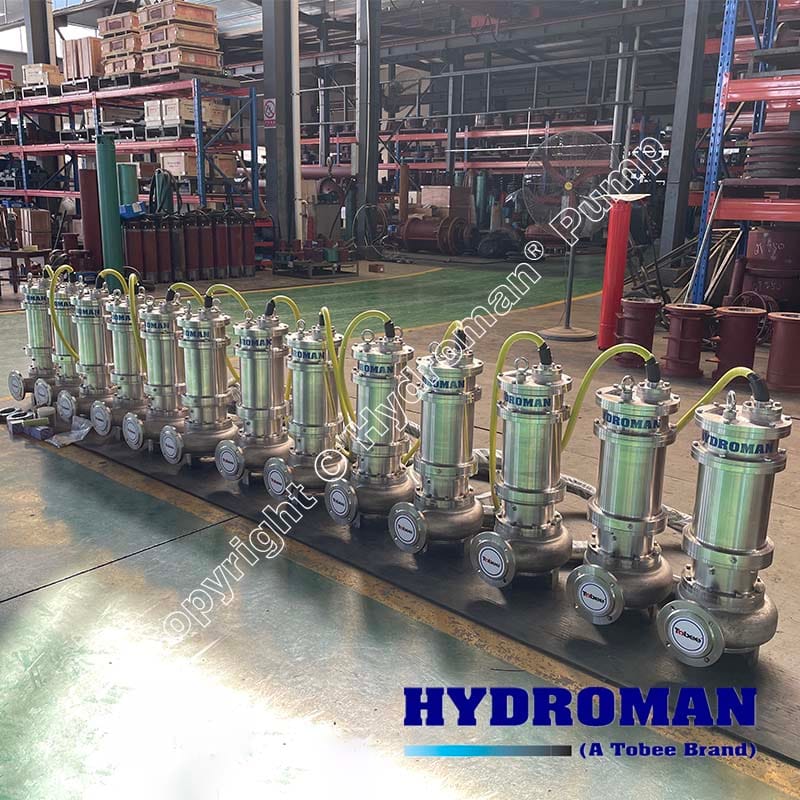

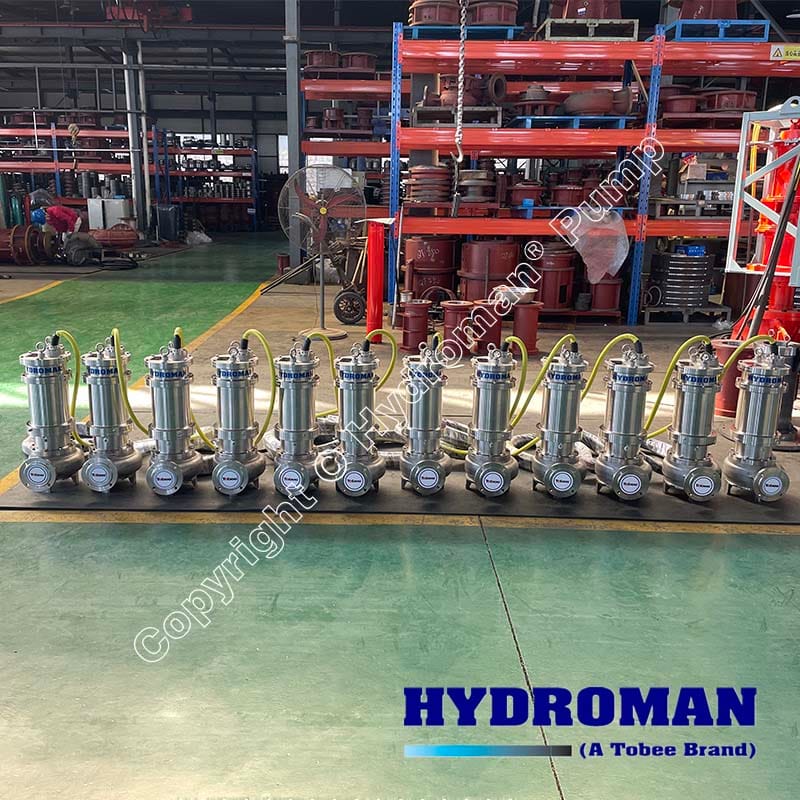

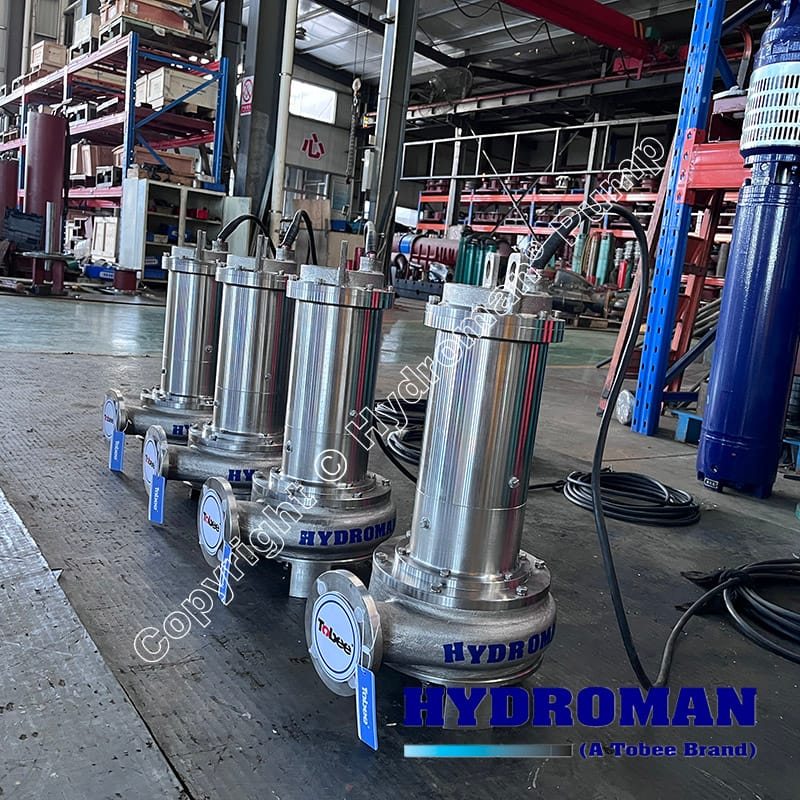

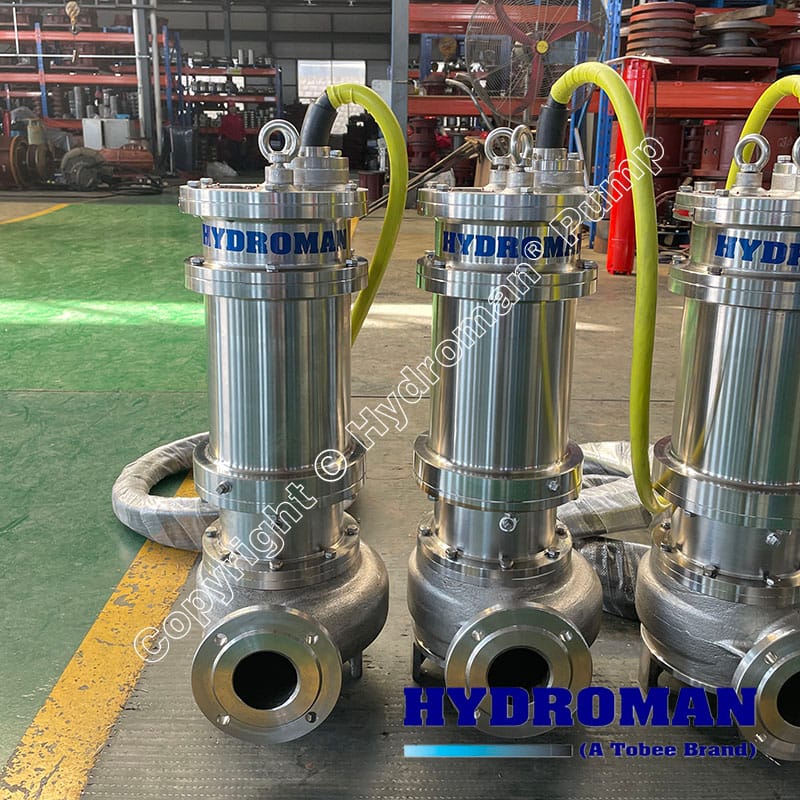

Hydroman® Stainless Steel Material Submersible Sewage Pump for Wastewater Treatment Plant is engineered specifically for wastewater treatment plants, where corrosive, aggressive, or chemically contaminated liquids must be efficiently and safely handled. Manufactured using high-grade stainless steel materials such as SS304, SS316, or duplex stainless steel, this pump provides superior corrosion resistance, ensuring longevity and performance in harsh industrial environments.
• Pump Construction:
Corrosion Resistance: All wetted parts are made of SS316, SS304, or duplex stainless steel, offering high resistance to acids, alkalis, salt water, and industrial chemicals.
High-Chrome Impeller Option: For enhanced wear resistance in solids-heavy wastewater.
Semi-Open or Vortex Impeller: Prevents clogging and allows solids passage up to 80 mm.
Mechanical Seals: Dual seal arrangement with independent oil chamber prevents leakage and extends service life.
• Hydraulic Performance:
High hydraulic efficiency, with optimized impeller and volute geometry.
Capable of delivering large flow at low to medium head or high head at moderate flow, depending on model.
• Motor Protection:
Overheat sensors embedded in stator windings.
Moisture detectors in seal chamber to detect seal failure early.
Optional external control panel with automatic shutoff and alarms.
• Cooling System:
Integrated or optional cooling jacket enables use in dry pit, shallow sump, or partially submerged conditions.
Improves motor efficiency and prevents overheating during continuous duty.
• Auto-Coupling System:
Enables pump to be easily lowered and connected/disconnected from a discharge pipe in a fixed installation without entering the pit.
Common in wastewater treatment facilities for safety and maintenance ease.
• Portable Installation:
Freestanding with bottom stand, float switch, and flexible hose connection.
Ideal for temporary setups or flood response.
• Guide Rail System:
Stainless steel guide rails for large stationary pumps.
Maintenance personnel can service the pump without manual lifting.
• Municipal Sewage Networks: Pumping raw sewage or sludge from underground wells or treatment tanks.
• Industrial Wastewater Plants: Disposing or transferring acidic or caustic effluents.
• Chemical Plants: Handling process water containing solvents, oxidizers, or salts.
• Food Processing Facilities: Managing wastewater with fats, oils, organic waste.
• Coastal Installations: Saltwater-resistant pumping for stormwater or greywater.
• Pharmaceutical Plants: Disposing contaminated liquid waste safely.
Contact Us for Your Customized Sewage Pumping Solution!
