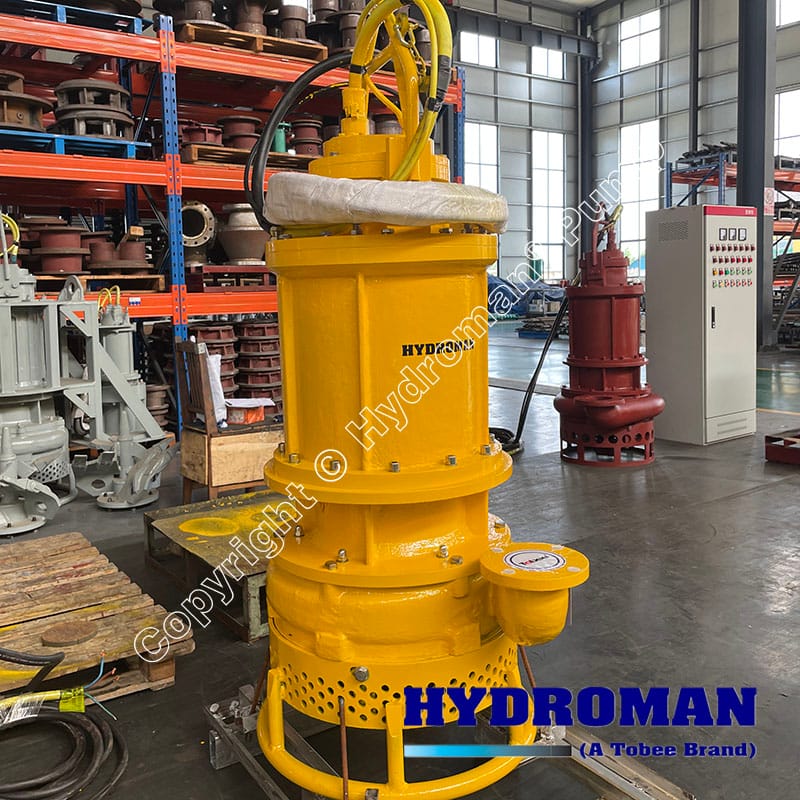

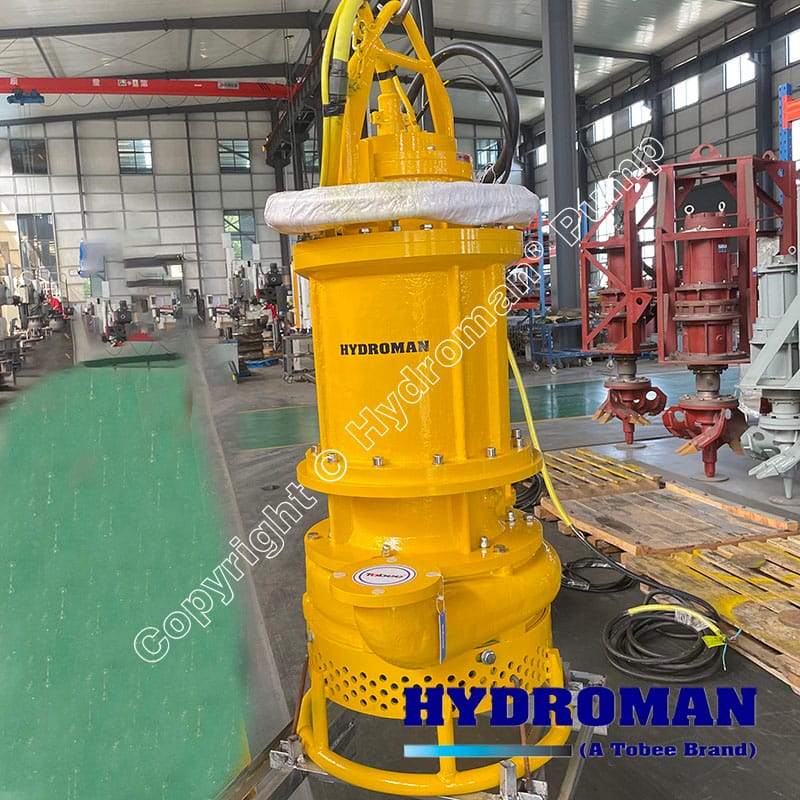

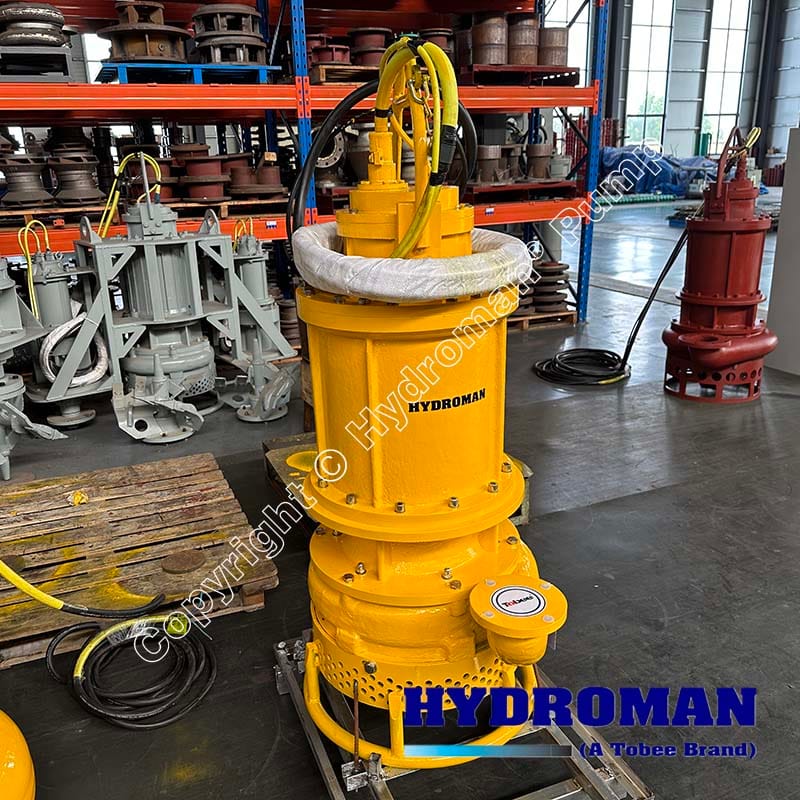

Hydroman® Submersible Agitator Heavy Duty Sludge Dredging Pump is a robust, high-performance slurry pump designed to handle the most demanding applications in mining, dredging, construction, and industrial wastewater. Engineered for durability and efficiency, hydroman® electric submersible sand slurry pump is equipped with a powerful agitator system that breaks up and suspends solids, ensuring continuous and efficient slurry transport even in the most challenging environments.
Hydroman® Submersible Agitator Headvy Duty Sludge Dredging Pump Design Features
• Large-capacity hard metal submersible pump with agitator;
• High-chromium alloy fittings (volute, impeller, wear-resistant plate);
• High-chromium alloy iron stirrer
• Leakage and temperature overload protection;
• Oil lubrication, double mechanical seal design.
• Heavy-duty lip seals and labyrinth rings
• H-class motor insulation with amperes
Hydroman® Submersible Agitator Headvy Duty Sludge Dredging Pump Performance Parameters
Model | Capacity (m3/h) | Head (m) | Power (kw) | Speed (r/min) | Eff. (%) | Max particles (mm) | Weight (kg) |
TJQ50-21-11 | 35-60 | 20-22 | 11 | 1460 | 43 | 13 | 200 |
TJQ100-18-11 | 70-120 | 15-20 | 11 | 1460 | 55 | 21 | 260 |
TJQ50-35-15 | 35-60 | 32-38 | 15 | 1460 | 47 | 13 | 400 |
TJQ60-30-15 | 42-72 | 27-33 | 15 | 1460 | 50 | 13 | 270 |
TJQ75-25-15 | 52-90 | 22-28 | 15 | 1460 | 51 | 13 | 270 |
TJQ75-35-22 | 52-90 | 32-38 | 22 | 980 | 48 | 13 | 700 |
TJQ100-25-22 | 70-120 | 22-27 | 22 | 980 | 55 | 14 | 700 |
TJQ100-35-30 | 70-120 | 31-38 | 30 | 980 | 50 | 21 | 660 |
TJQ100-45-37 | 70-120 | 42-48 | 37 | 980 | 43 | 21 | 1020 |
TJQ100-50-37 | 70-120 | 47-53 | 37 | 980 | 43 | 13 | 1020 |
TJQ100-60-45 | 70-120 | 55-64 | 45 | 980 | 43 | 13 | 1200 |
Hydroman® Submersible Agitator Headvy Duty Sludge Dredging Pump Typical Applications
• Mining tailings and ore slurry removal
• River, lake, and harbor dredging
• Sediment removal in reservoirs and ponds
• Sand and gravel extraction
• Steel and power plant ash ponds
• Industrial wastewater and sludge pumping
• Tunnel boring machine (TBM) slurry handling
FAQ:
1. Are you the manufacturer or trading company?
Yes, We are real manufacturer for submersible slurry pumps with full export experience.
2. Is it easy for customers to change the parts by themselves?
Yes, Hydroman® submersible slurry and sand pump structure is simple, customers can change it very easily.
3. Whether the submersible slurry pumps in stock or not?
Yes, our submersible slurry pumps are always in stock.
4. What is the time for the submersible sand pumps can be sent out after payment?
It is only 7 -10 days that the submersible dredging sand pump will be sent out to you.
5. How long is the warranty period for your submersible dredge pump?
Our warranty period for the whole pump is 2 years except for wetted end parts.
