Submersible Cutting Sewage Centrifugal Water Pump

Hydroman^® Submersible Cutting Sewage Centrifugal Water Pump Overview

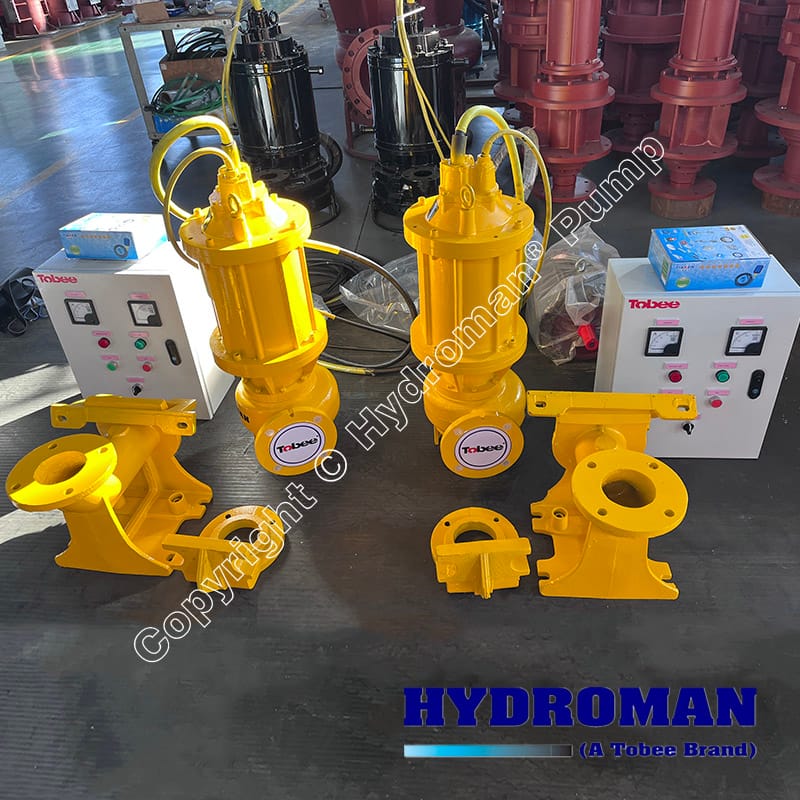

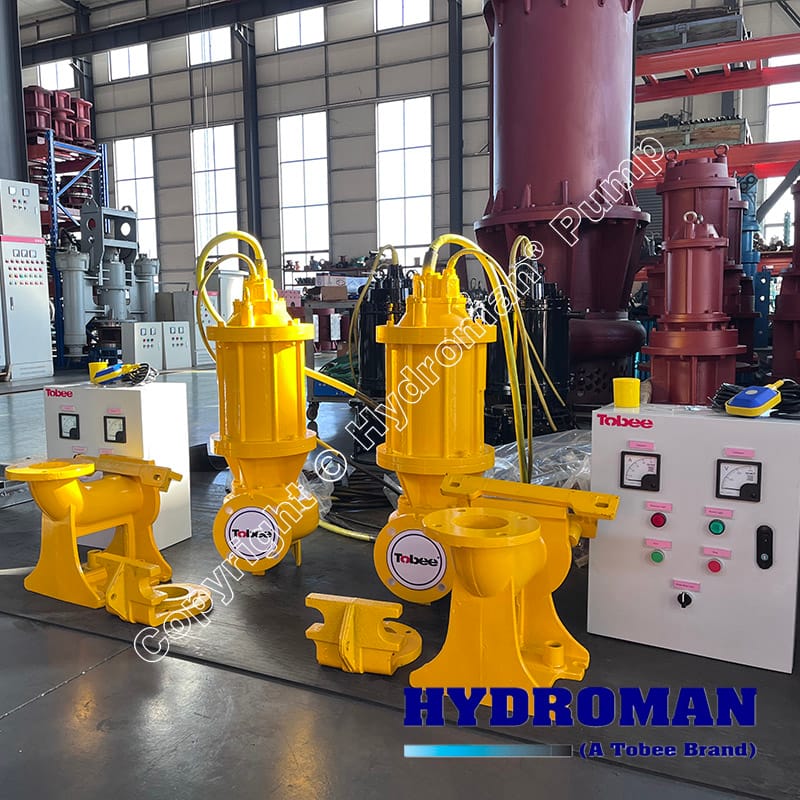

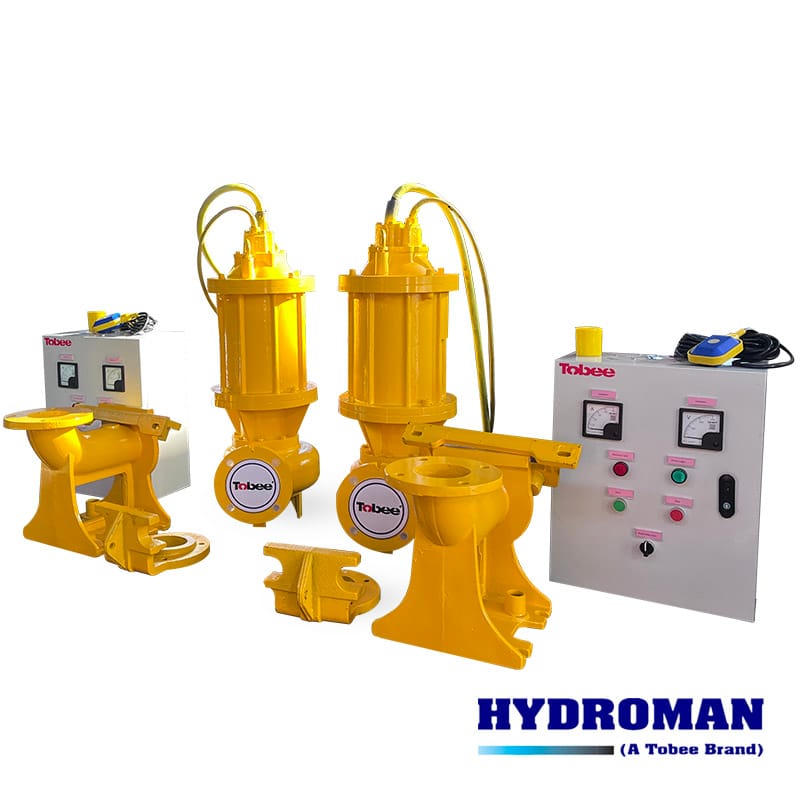

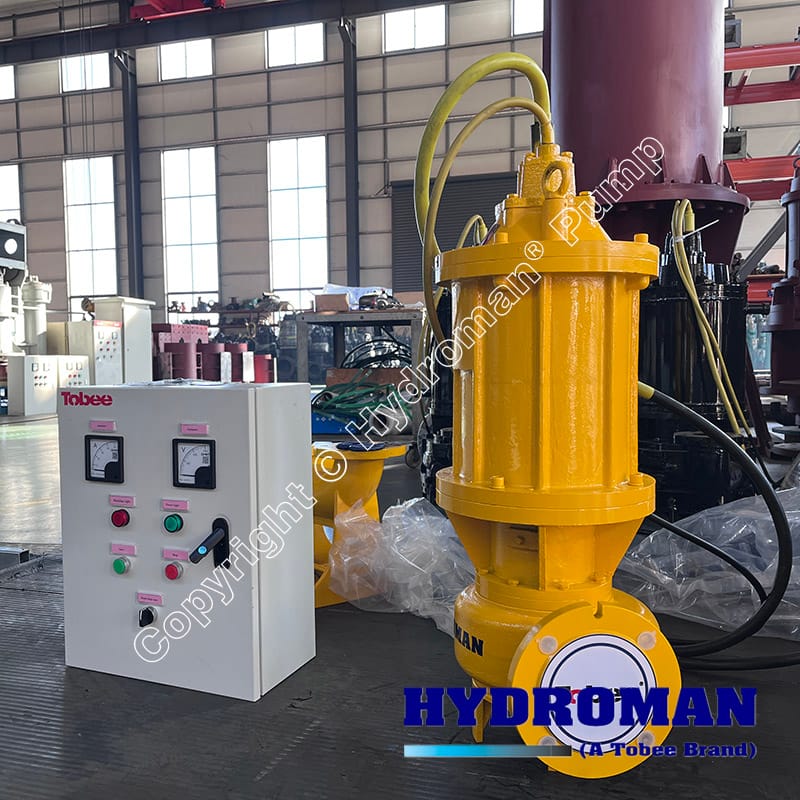

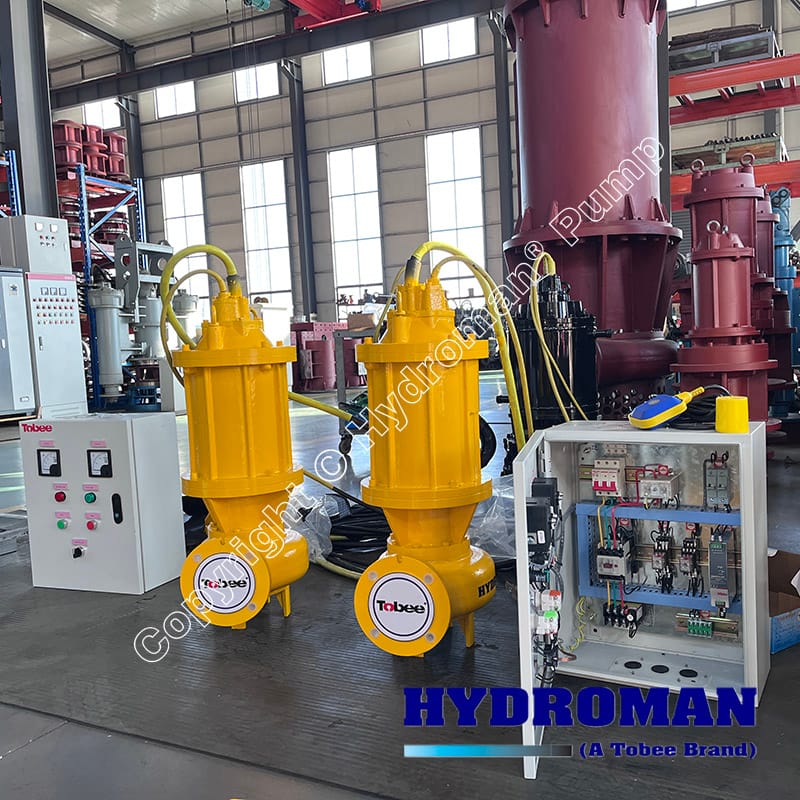

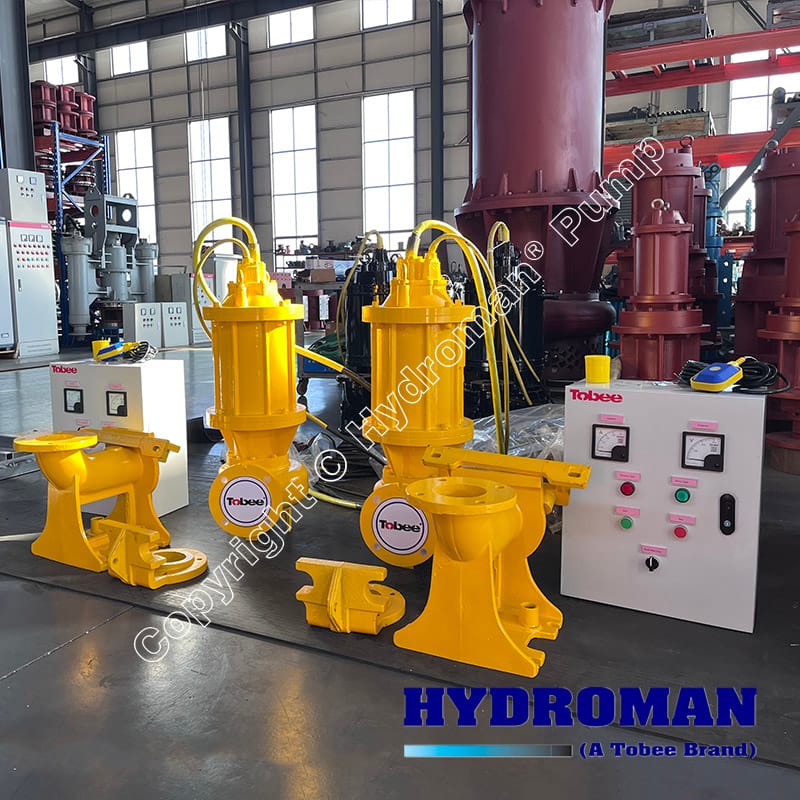

Hydroman® Submersible Cutting Sewage Centrifugal Water Pump is a heavy-duty, high-efficiency submersible pump specially engineered for handling raw sewage, sludge, and industrial wastewater containing long fibers, plastics, and solid particles. Integrated with a cutting mechanism, the pump is capable of chopping and shredding solid materials before they pass through the impeller, significantly reducing the risk of clogging and ensuring reliable, continuous operation.

Hydroman^® Submersible Cutting Sewage Centrifugal Water Pump Technical Specifications

• Pump Type                            Submersible Sewage Cutting Centrifugal Pump
• Power Range                         0.75 – 315 kW
• Voltage                                  380V/415V/660V, 3 Phase (50Hz/60Hz)
• Flow Capacity                        Up to 6000 m³/h
• Maximum Head                     Up to 62 meters
• Solids Handling Capacity       Up to 80 mm (after cutting)
• Seal Type                               Double mechanical seal with oil chamber
• Max Liquid Temperature       ≤80°C


Hydroman^® Submersible Cutting Sewage Centrifugal Water Pump Key Features

• Powerful Cutting System
Equipped with high-torque, wear-resistant cutting blades at the pump inlet that effectively shred fibrous waste, rags, and solid debris.

• Non-Clogging Impeller Design
The semi-open or vortex impeller is designed to handle solids without clogging, enabling smooth and uninterrupted flow.

• Robust Construction
Made of high-chrome wear-resistant materials and ductile cast iron, suitable for tough operating environments and long service life.

• Submersible Motor with Protection
IP68-rated submersible motor with thermal and leakage protection ensures safe underwater operation under harsh conditions.

• Easy Installation & Maintenance
Optional auto-coupling system allows quick and convenient installation or removal without entering the sump or pit.

Hydroman^® Submersible Cutting Sewage Centrifugal Water Pump Optional Configurations

• Guide Rail Auto-Coupling System
Allows for quick, safe, and easy installation or removal without entering the sump.

• Float Switch or Level Sensor Control
Enables automatic start/stop based on liquid level, ideal for unattended operation.

• Variable Frequency Drive (VFD)
Enhances energy efficiency, provides soft start/stop, and allows adjustable flow/head.

• Cooling Jacket for Continuous Low-Level Operation
Ensures effective motor cooling even when the pump is not fully submerged.

• Double Channel or Vortex Impeller Options
Depending on the solid content and viscosity of the pumped medium.

Hydroman^® Submersible Cutting Sewage Centrifugal Water Pump Applications

• Municipal Sewage Systems
Wastewater lifting stations and urban drainage systems.

• Industrial Wastewater Treatment
Factories, food processing plants, textile and chemical industries.

• Residential Waste Systems
Basement pumping, community septic systems, building wastewater discharge.

• Agricultural and Livestock Waste Management
Slurry, animal waste, irrigation water with solid content.

Choose Hydroman^® — your expert partner for tough wastewater handling.
