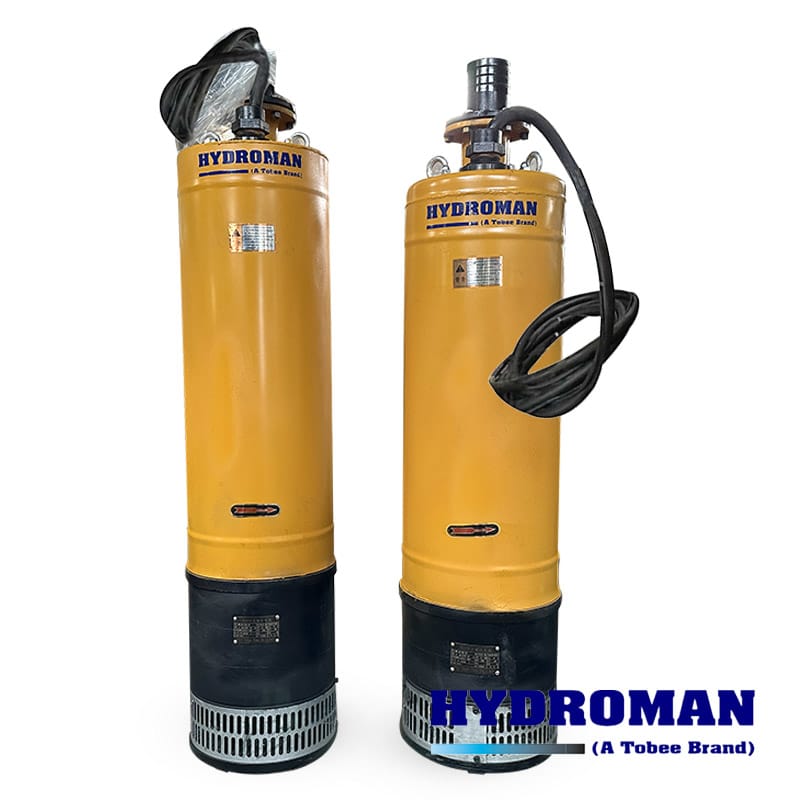

Hydroman® Submersible Dirty Waste Water Drainage Pump Overview
Hydroman® Submersible Dirty Waste Water Drainage Pump is designed for the efficient removal and dewatering of dirty water, wastewater, and effluents that contain suspended solids and contaminants. Built to handle a wide variety of challenging applications, this durable and high-performance pump is ideal for construction sites, municipal wastewater systems, industrial effluent handling, and stormwater drainage. With a robust submersible motor and solid handling capabilities, this pump ensures continuous operation in dirty and contaminated environments.
Hydroman® Submersible Dirty Waste Water Drainage Pump Technical Specifications
Hydroman® Submersible Dirty Waste Water Drainage Pump | |
| Size: | 50-600mm |
| Capacity: | 10-6000m3/h |
| Head: | 5-62m |
| Speed: | 750-3550r/min |
| Temperature Range: | ≤80°C |
| Sealing arrangement: | Double Mechanical seal |
| Motor: | 50Hz/60Hz, 110V/220V/380V/440V/460V/660V/1000V |
| Materials: | Cast iron, SS304, SS316L, Duplex SS, High chrome, Hyperchrome etc |
Hydroman® Submersible Dirty Waste Water Drainage Pump Key Features
• High-Efficiency Submersible Motor
IP68-rated, this motor is designed for continuous submerged operation, ensuring reliable and durable performance under water. It provides high power output with low energy consumption.
• Durable Construction
Constructed from high-quality cast iron or stainless steel, the pump is resistant to corrosion, abrasion, and damage from harsh wastewater environments. It is built to last, even when exposed to chemicals, dirt, and debris.
• Non-Clogging Vortex Impeller
The pump features a vortex or semi-open impeller that allows it to handle dirty water with suspended solids, such as sand, silt, and organic debris, without clogging or losing efficiency.
• Solid Handling Capacity
Designed to handle solids up to 50mm in diameter, making it perfect for pumping wastewater from construction sites, stormwater, and sewage treatment plants.
• Automatic Operation
The pump can be equipped with an automatic float switch for start/stop control, ensuring hands-free operation based on water level, ideal for dewatering tasks.
Hydroman® Submersible Dirty Waste Water Drainage Pump Performance Parameters:
Model | Capacity Q (m3/h) | Head H (m) | Speed n (r/min) | Motor Power P (kw) | Eff. η (%) |
150TWQ | 49-300 | 5.5-44.5 | 1450 | 5.5-37 | 58-82 |
Hydroman® Submersible Dirty Waste Water Drainage Pump Applications
• Construction Site Dewatering
Ideal for removing water from excavation sites, trenches, and pits where dirty water and debris are common.
• Municipal Wastewater Systems
Efficiently pumps wastewater containing solid waste, grit, and debris from municipal sewage systems, manholes, and treatment facilities.
• Industrial Effluent Handling
Suitable for managing industrial wastewater in factories, food processing plants, and chemical manufacturing sites, which may contain sand, grit, or solid residues.
• Stormwater Drainage
Used for draining stormwater that contains large amounts of debris, including leaves, branches, and dirt, to prevent flooding.
• Septic and Sewage Systems
Excellent for lifting and transferring waste from septic tanks or sewage systems to treatment facilities.
For more information or to request a custom solution for your wastewater system, feel free to reach out to us.
