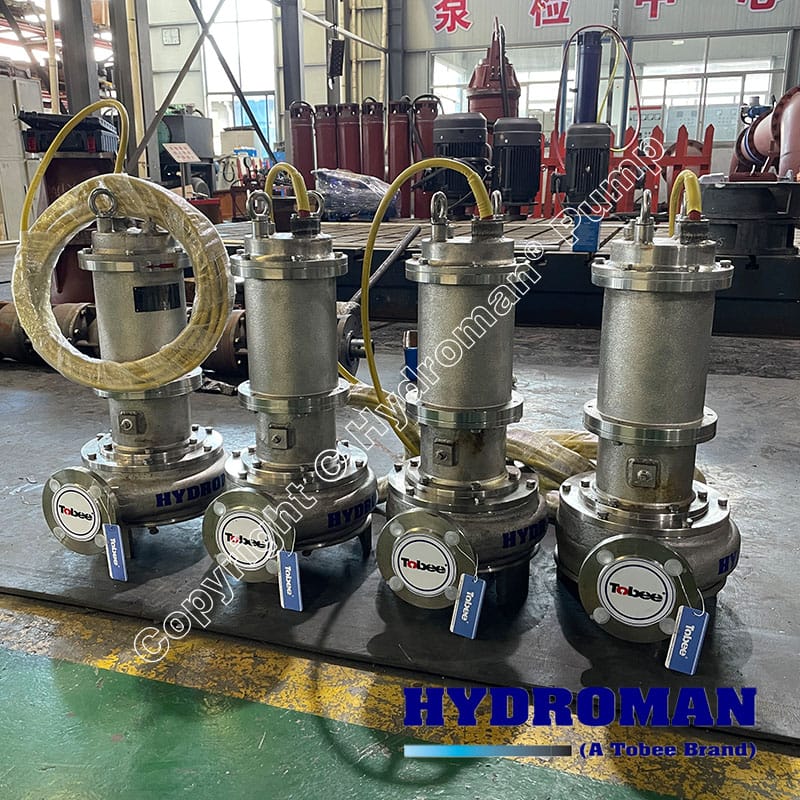

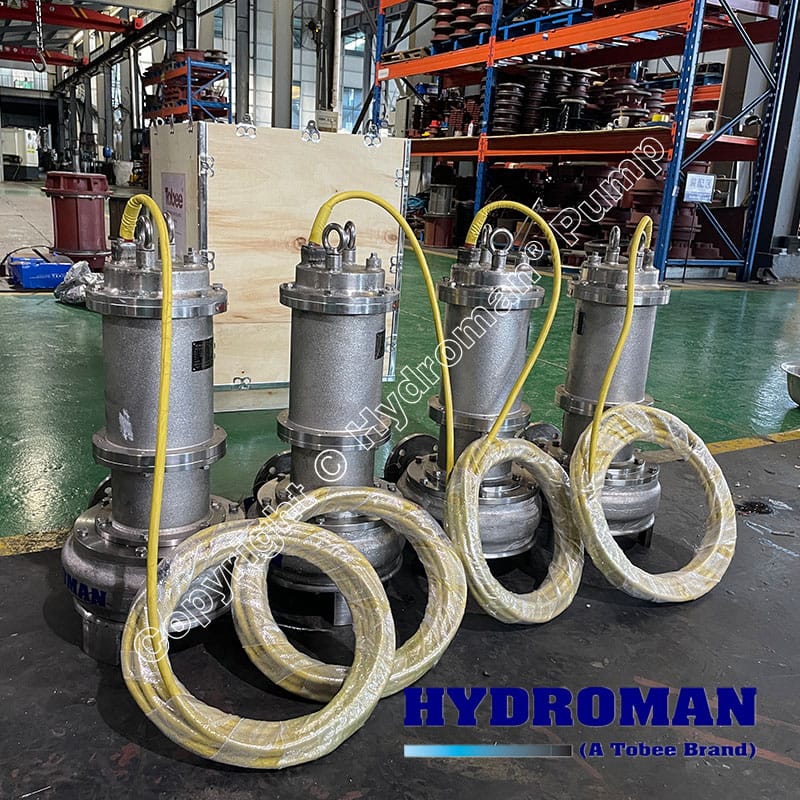

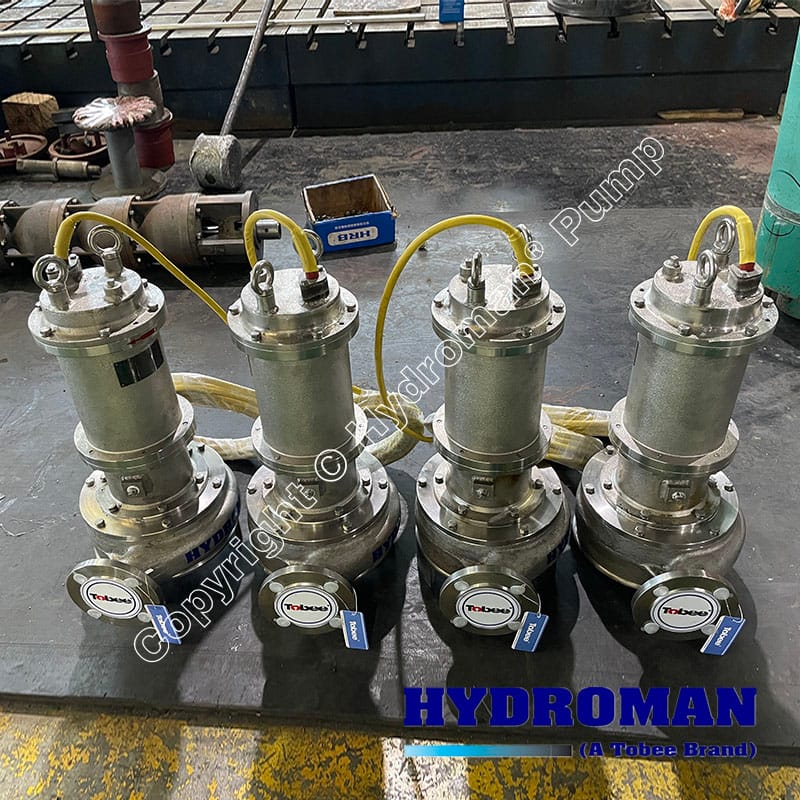

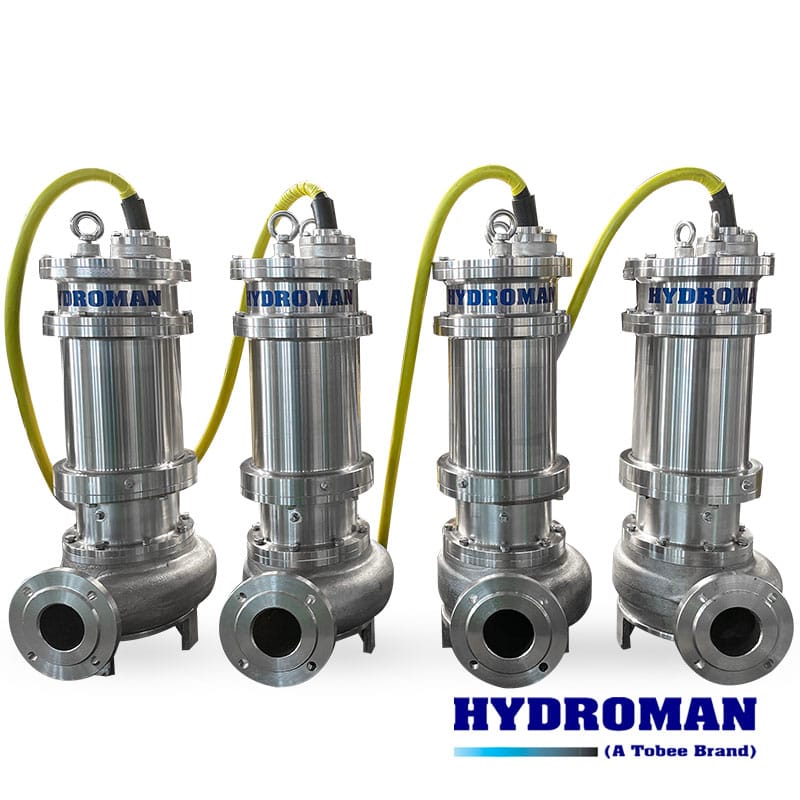

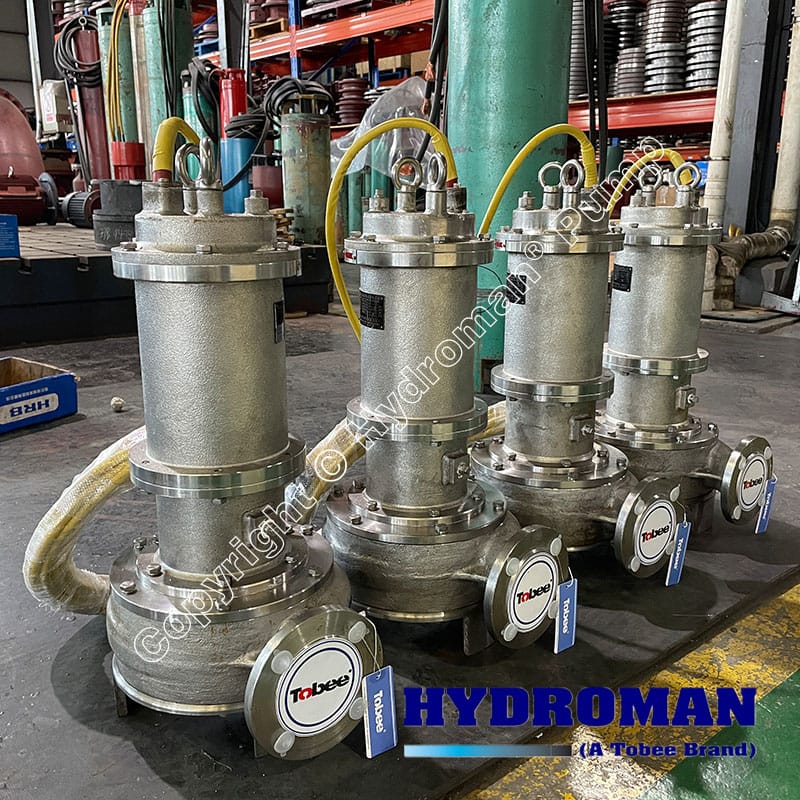

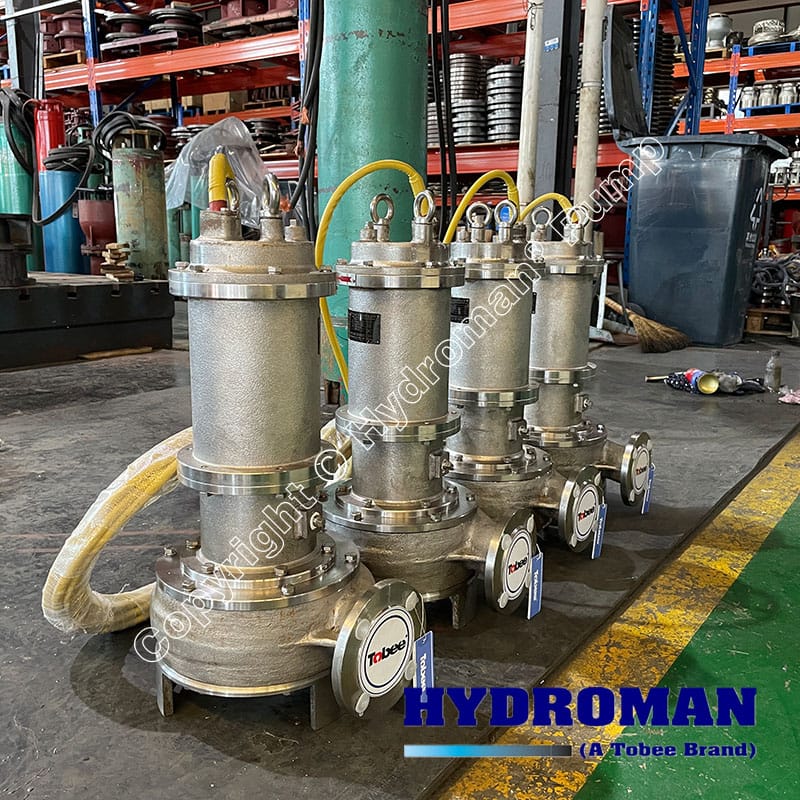

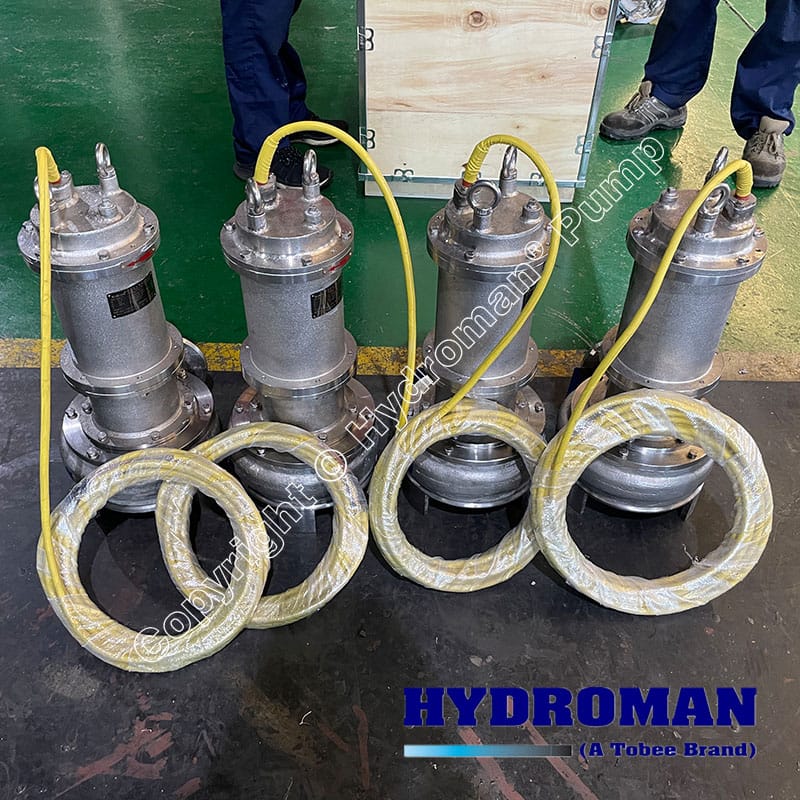

Hydroman® Submersible Dirty Waste Water Vertical Stainless Steel Sewage Pump is an advanced, non-clogging submersible wastewater pump built for handling aggressive, corrosive, and solid-laden liquids in harsh industrial environments. With its full stainless steel construction, this pump provides superior corrosion resistance, making it ideal for chemical wastewater, marine drainage, and food or pharmaceutical effluent applications.
Hydroman® vertical submersible pump design allows for sewage tank or tight-space installations, while its vortex or channel impeller effectively handles sludge, grit, fibrous waste, and large solid particles, preventing clogging and reducing maintenance frequency.
| Model | Capacity (m3/h) | Head (m) | Speed (rpm) | Power (kw) | Eff. (%) | Weight (kg) |
| 150TWQ150-7-5.5 | 100-220 | 5-9 | 1440 | 5.5 | 63-72 | 130 |
| 150TWQ150-10-7.5 | 7-12 | 7.5 | 150 | |||
| 150TWQ150-15-11 | 11-18 | 1460 | 11 | 67-72 | 215 | |
| 150TWQ150-20-15 | 17-23 | 15 | 60-68 | 240 | ||
| 150TWQ150-25-18.5 | 19-28 | 1470 | 18.5 | 300 | ||
| 150TWQ150-30-22 | 100-200 | 25-33 | 22 | 320 | ||
| 150TWQ150-40-30 | 33-42 | 30 | 580 | |||
| 150TWQ150-45-37 | 38-47 | 37 | 55-65 | 650 | ||
| 150TWO150-50-45 | 47-52 | 45 | 750 | |||
| 150TWQ100-60-55 | 80-150 | 56-62 | 55 | 53-63 | 850 |
• Stainless Steel Construction: Built with high-quality stainless steel, this pump is resistant to rust and corrosion, ensuring longevity and durability even in harsh environments.
• Submersible Design: Capable of being fully submerged, this pump is designed to operate underwater, making it ideal for use in septic tanks, sewage pits, and other submerged settings.
• Vertical Pumping Action: The vertical design allows for efficient pumping of waste water, minimizing clogging and maximizing flow rates, which ensures quick and effective sewage management.
• High-Flow Capacity: Engineered to handle large volumes of water, this pump can manage substantial amounts of dirty water and sewage, reducing the risk of overflow and water damage.
• Automatic Operation: Equipped with a float switch, the pump automatically turns on and off based on water levels, offering convenience and preventing dry running.
• The medium temperature shouldnot be over 60℃, the density 1200Kg/m', and the PH value within 5-9.
• During running, the pump must not be lower than the lowest liquid level, see" ▼ lowest liquid level" in the drawing of installation dimensions(covering the automatic cooling system),▽ means lowest liquid level without no automatic cooling system.
• Rated voltage 380V, rated frequency 50Hz. The motor can run successfully only under the condition the deviations of both rated voltage and frequeney are not over ±5%.
• The maximum diameter of the solid grain going through the pump has not to be larger than 50% of that of the pump outlet.
• Residential Use: Ideal for managing waste water in homes with septic systems, preventing backups, and ensuring clean and sanitary living conditions.
• Industrial Use: Suitable for factories and industrial plants that need to manage waste water efficiently, especially in facilities processing large volumes of liquid waste.
• Agricultural Use: Useful on farms for managing waste water in livestock areas, preventing contamination of clean water sources.
Hydroman® Submersible Dirty Waste Water Vertical Stainless Steel Sewage Pump is an indispensable tool for anyone dealing with waste water management. Its robust construction, efficient design, and automatic features make it an excellent choice for ensuring clean and effective sewage handling. Whether for residential, industrial, or agricultural applications, hydroman® submersible cutter pump provides a reliable solution to managing dirty water challenges.
