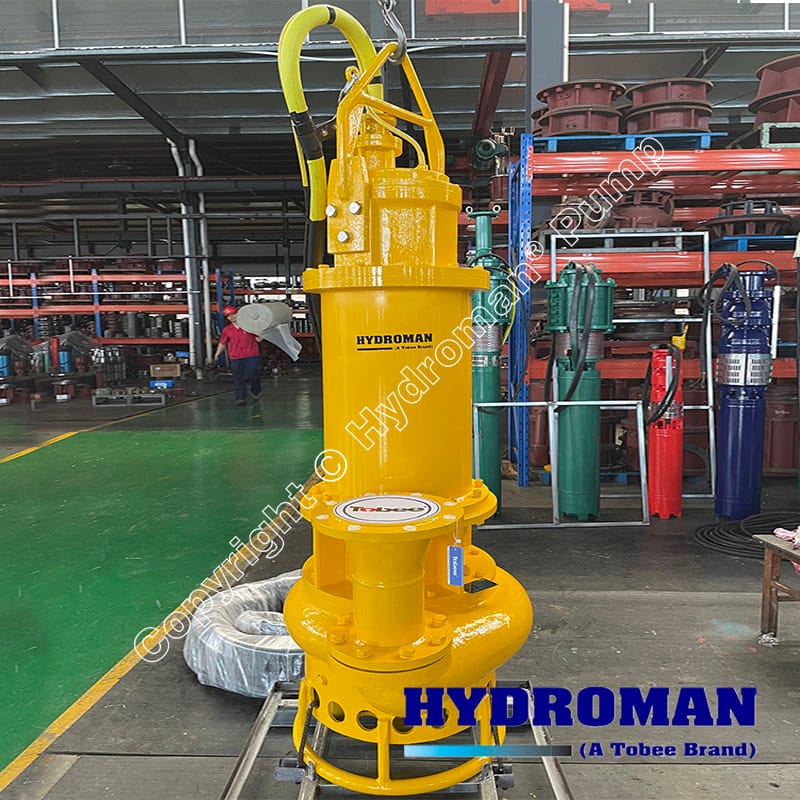

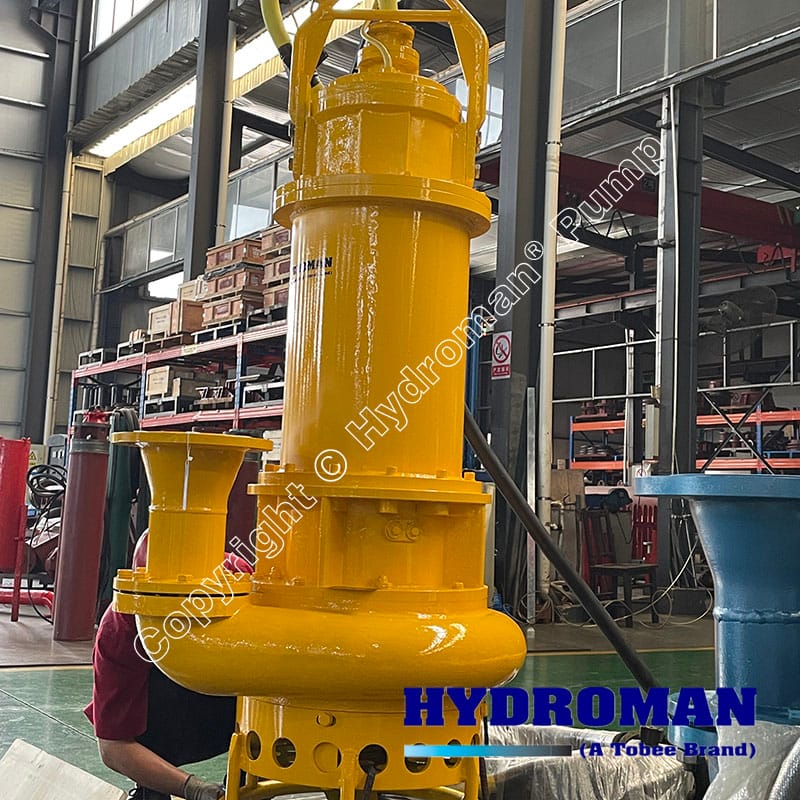

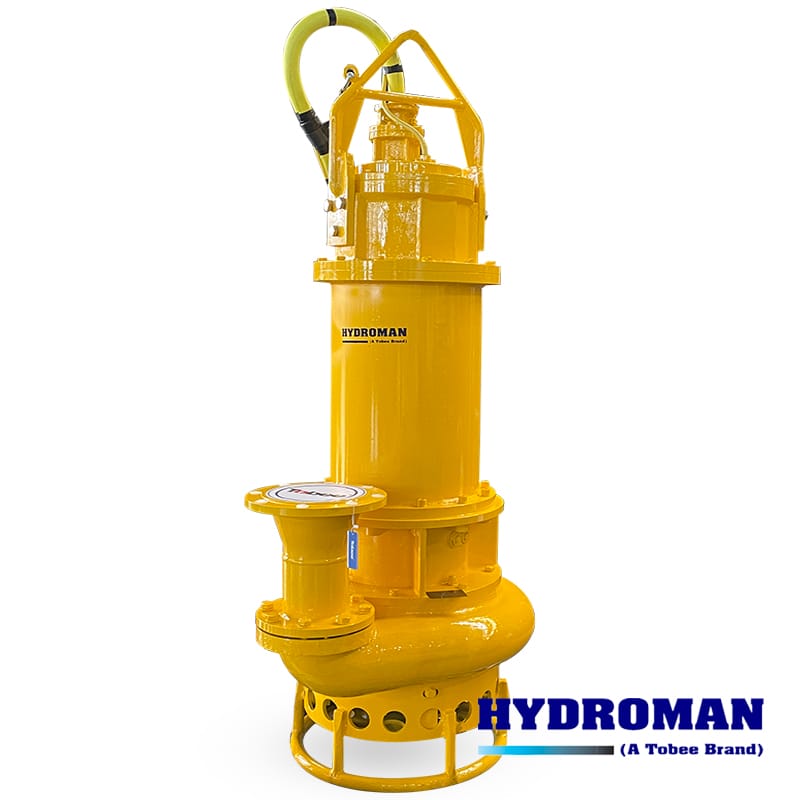

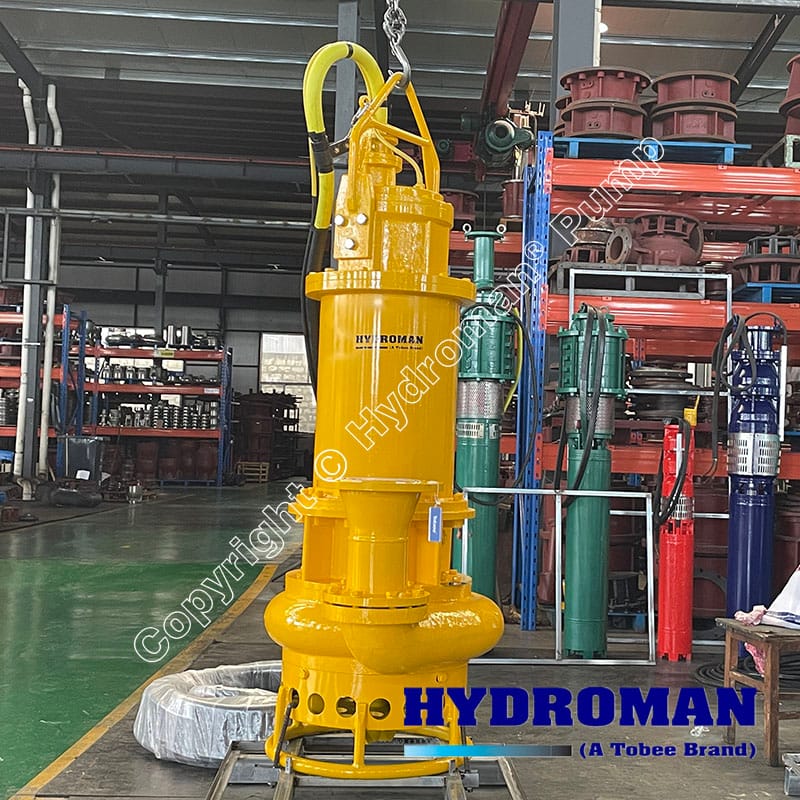

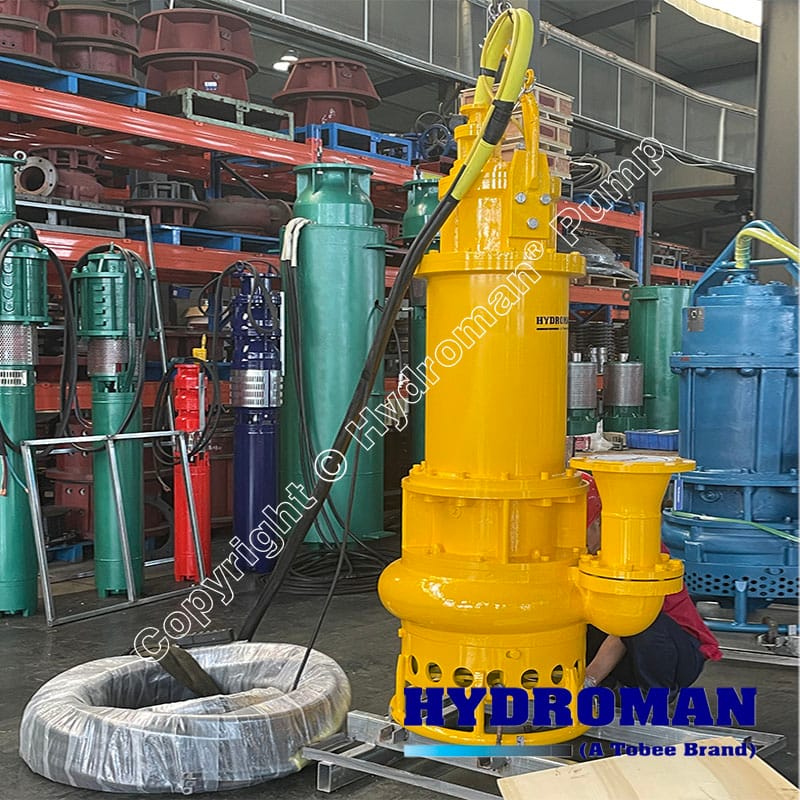

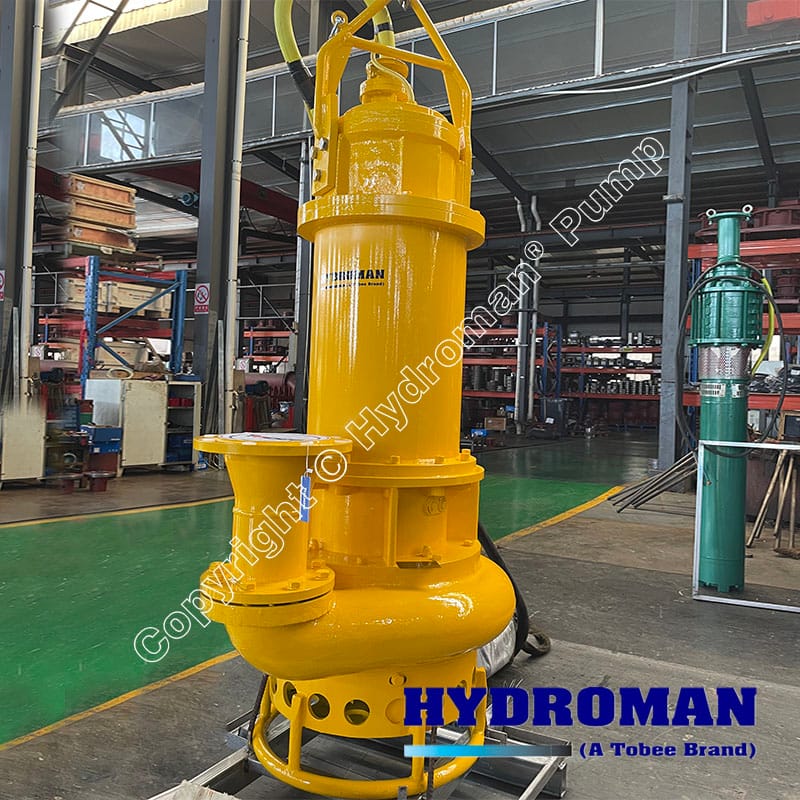

Hydroman® Submersible Dredging Sand Pump for Maritime Constructions is a heavy-duty, electric submersible pump designed specifically for maritime construction, coastal restoration, harbor deepening, breakwater projects, and offshore sand extraction. Built to withstand highly abrasive environments, it features a high-chrome wear-resistant impeller, integrated agitator, and non-clogging hydraulic design for handling sand, gravel, and silt mixtures efficiently.
| Component | Material / Feature | Functionality |
| Pump Casing | High-chrome alloy (Cr28) / ductile iron | Withstands abrasion and impact during dredging operations |
| Impeller | High-efficiency open or semi-open design | Ensures large solid-passing capability with minimal clogging |
| Agitator | Integrated high-chrome agitator | Breaks up and suspends sand, silt, and debris at suction inlet |
| Motor Housing | Cast iron or stainless steel (IP68) | Encloses sealed submersible motor for underwater use |
| Mechanical Seal System | Dual SIC/SIC seals in oil chamber | Prevents slurry from entering motor, designed for high-pressure environments |
| Bearings | Heavy-duty anti-friction ball bearings | Designed to handle radial and axial loads during continuous dredging |
| Cable Entry Seal | Epoxy or rubber compression system | 100% waterproof connection for harsh offshore conditions |
• Fixed Vertical Installation on a dredger platform or pontoon
• Crane-Lowered directly into pit, riverbed, or sea channel
• Excavator-Mounted (Hydraulic version available)
• Jet Ring or Side Agitator Attachments to extend suction coverage
• Skid Base for easy transport and positioning
• Optional Guide Rail System for maintenance-accessible vertical pits
• Jet-Assisted Agitator Ring for compacted seabed disaggregation
• Side Cutter Heads for clay or heavy sludge application
• ATEX Explosion-Proof Motors for flammable environments
• Variable Frequency Drives (VFD) for adjustable speed control
• Remote Monitoring & Control Panels with overload and leakage protection
• Hose or Flange Discharge Outlets in multiple sizes
• Galvanized or Stainless Steel Cable Entry Glands for corrosion resistance
• Coastal Engineering: Jetty trenching, beach replenishment, breakwater foundation excavation
• Port & Harbor Maintenance: Silt removal from docks, berths, and navigation channels
• Land Reclamation: Sand and sediment pumping for raising terrain levels
• River Dredging & Canal Cleaning: Removal of sediment buildup to restore flow and depth
• Offshore Foundation Prep: Pile cleaning, mud removal around platforms and caissons
• Sand Mining & Aggregate Processing: Submerged extraction of construction materials
Would you like this content formatted into a downloadable PDF spec sheet, installation manual, or quotation template?
