For demanding dredging projects in rivers, harbors, and industrial ponds, Hydroman®’s Cable Dredge-Submersible Slurry Pump systems set a new benchmark in efficiency and adaptability. Combining heavy-duty engineering with innovative features like 100m waterproof electric cables and customizable configurations, these systems excel in sediment removal, mining operations, and hazardous area dredging.

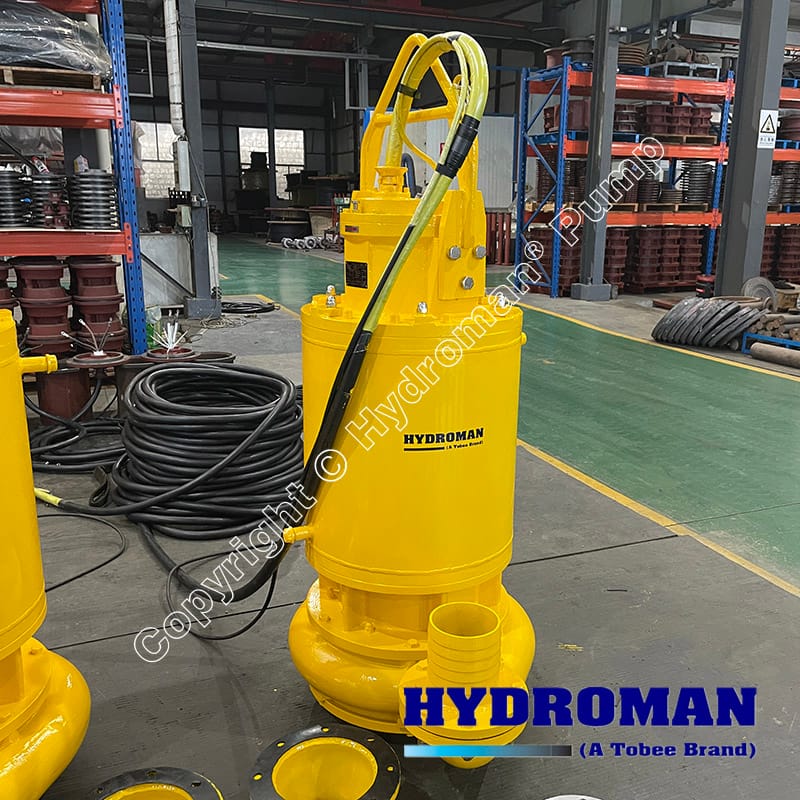

Hydroman®, a trusted China dredging pump manufacturer, integrates cutting-edge hydrodynamic design with robust components to deliver unmatched performance. Our systems are built around the TJQ series submersible dredging slurry pumps, featuring centrifugal immersion technology and extended 100m electrical cables for deep-water operations.
Core Advantages of Cable Dredge-Submerible Slurry Pump:

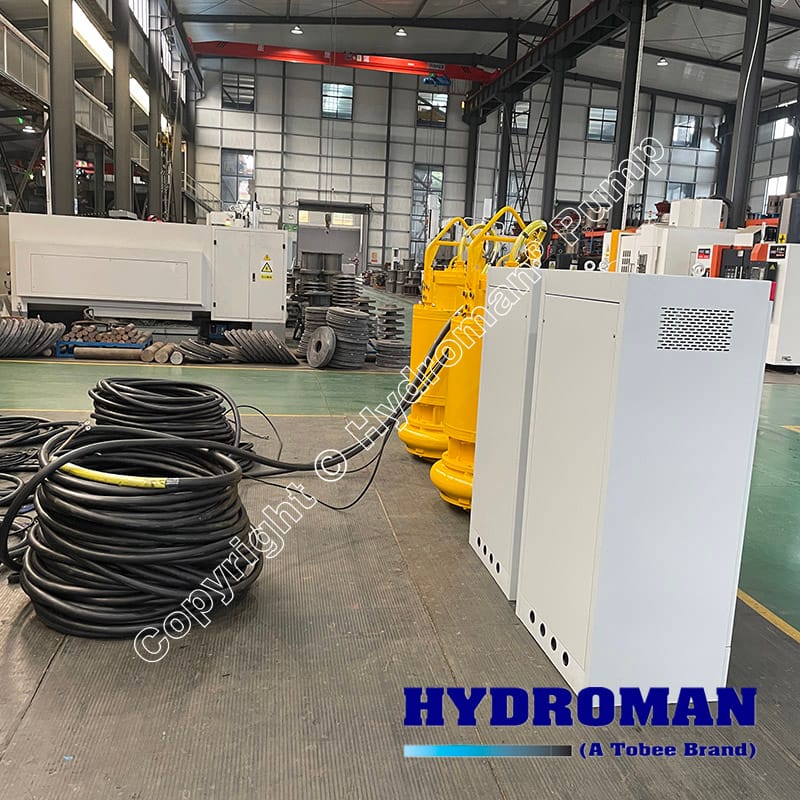

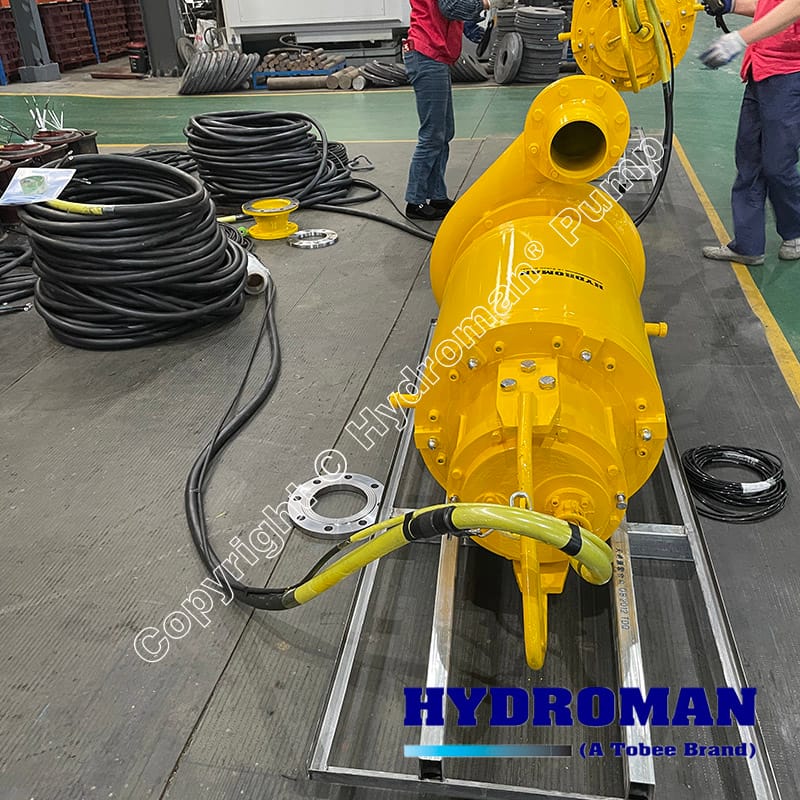

• 100m Cable Durability: The 100m cable centrifugal immersion pumps utilize epoxy-sealed, abrasion-resistant cables designed for submersion in corrosive or high-pressure environments.
• Explosion-Proof Options: ATEX-certified models ensure safety in oil, gas, or chemical-laden hazardous areas.
• High Solids Handling: Capable of moving slurries with up to 60% solids concentration, including sand, gravel, and sewage sludge.
Hydroman’s Cable Dredge systems are engineered for versatility across applications like dock maintenance, mine pool dewatering, and dam desilting.
1. Modular Floating Platform of Centrifugal Immersion Pumps
• Custom Pontoon Configuration: Tailored dimensions (6m to 15m lengths) ensure stability in varying water depths and currents.
• Detachable Structure: Side float boxes and a high-strength steel gantry enable easy transport and on-site assembly.
• Optional Add-ons: Add cabins, canopies, or PLC control panels for enhanced operational efficiency.

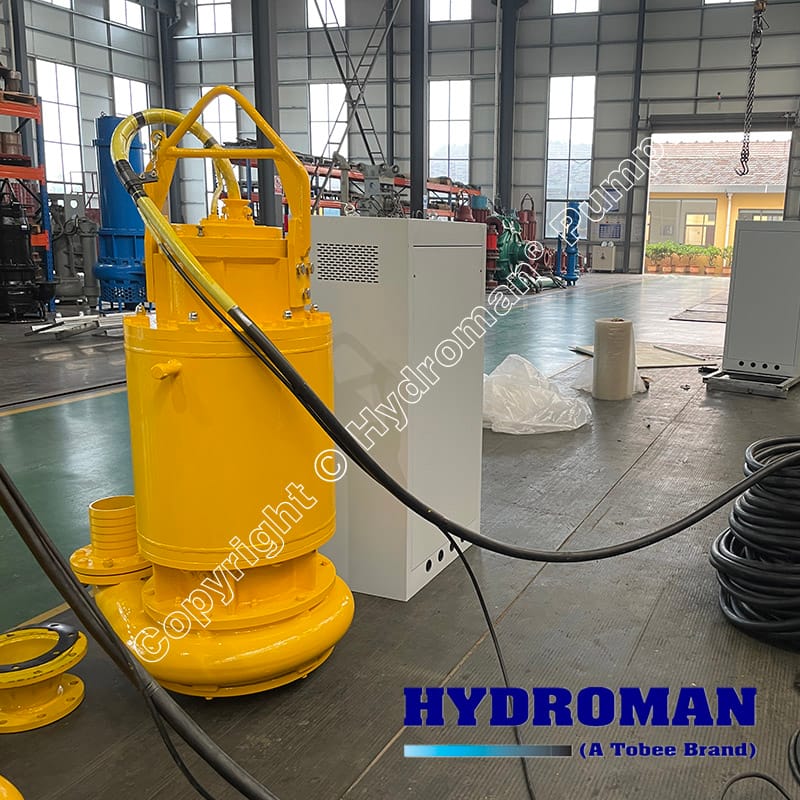

2. High-Performance Submersible Dredge Pump

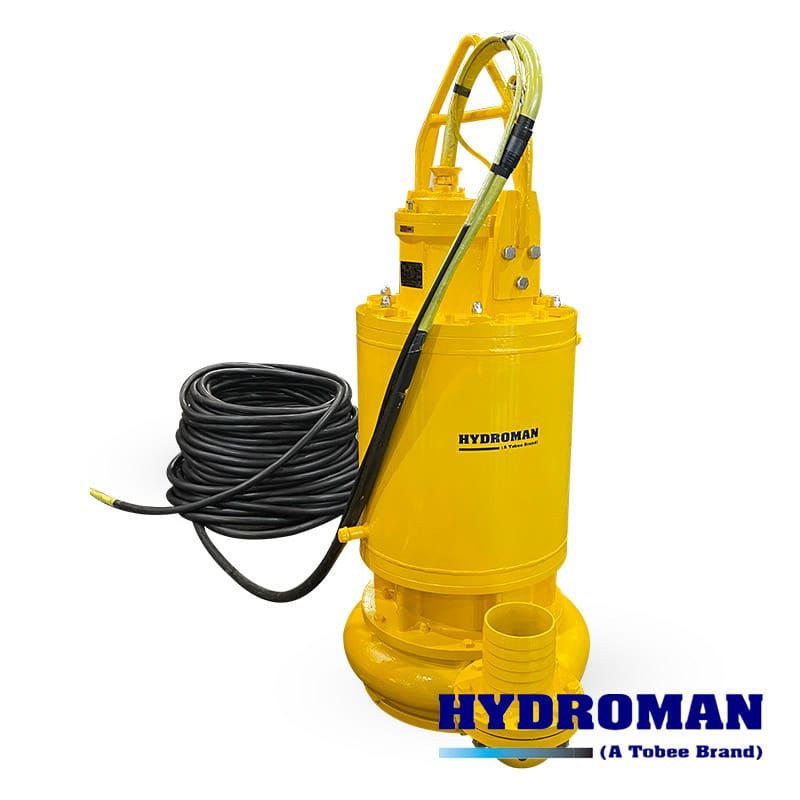

• Model 100TJQ: Flagship pump with a 100m electric cable, delivering 800m³/hr flow rates and 35m head for deep excavation.
• Material Options: High-chrome alloy (55–60 HRC) or stainless steel impellers for wear resistance in abrasive environments.
Triple Protection System:
• Overheating Sensors: Automatically shut down the pump during overloads.
• Oil Chamber Monitoring: Prevents water ingress into the motor.
• Double Mechanical Seals: Silicon carbide seals ensure leak-free operation.
3. Efficiency-Boosting Auxiliary Systems of Dreging Pump
• Agitation/Cutter System: Add 2–3 hydraulic agitators to break up compacted sediments, increasing slurry concentration by 40%.
• High-Pressure Water Jets: Integrate 22kW–75kW jet pumps to fluidize stubborn sludge, reducing pump clogging risks.
• HDPE Pipeline Networks: Floating HDPE pipes with quick-connect joints enable slurry transport over 2km distances.
• Submersible Pump: TJQ Series (15kW–200kW), 100m cable, 10–50mm solids handling
• Floating Platform: Customizable 6m–15m pontoons, 5–20 ton load capacity
• Control System: Optional PLC + HMI interface for real-time monitoring of flow, pressure, and RPM
• Movement System: Diesel-powered propellers with 360° steering
• Mining & Quarrying: Extract sand, coal slurry, or tailings from sedimentation ponds.
• Municipal Waste Management: Clear sewage sludge from treatment plants or stormwater drains.
• Marine Infrastructure: Maintain navigational depths in ports, rivers, and reservoirs.
• Hazardous Zones: ATEX-certified pumps for oil refineries or chemical plants.
Maximize lifespan and efficiency with these best practices:
• Cable Inspection: Check for abrasions or kinks monthly. Use protective sleeves in rocky environments.
• Seal Integrity: Test mechanical seals quarterly; replace if leakage exceeds 5 drops/minute.
• Impeller Clearance: Adjust clearance to 0.3–0.5mm annually to maintain flow efficiency.
• Motor Protection: Ensure oil chambers are filled with ISO VG 68 synthetic oil to prevent overheating.
• OEM/ODM Expertise: Customize pump materials, cable lengths, or control systems.
• Global Compliance: CE, ATEX, and ISO 9001 certifications guarantee quality.
• Rapid Delivery: 15–30 day lead times for standard models.
• 24/7 Support: On-call engineers for troubleshooting or onsite training.
Transform Your Dredging Operations with Hydroman®’s 100m Cable Technology!
Whether you need explosion-proof submersible dredging pumps for hazardous zones or high-efficiency centrifugal immersion pumps for mining, Hydroman® delivers solutions engineered for pressure, performance, and reliability.
Contact Us Today for a Free Consultation!
Explore our 2024 catalog featuring the 100TJQ and other industry-leading models. Download technical specs, compare pricing, or request a customized quote – your next-level dredging system starts here!
