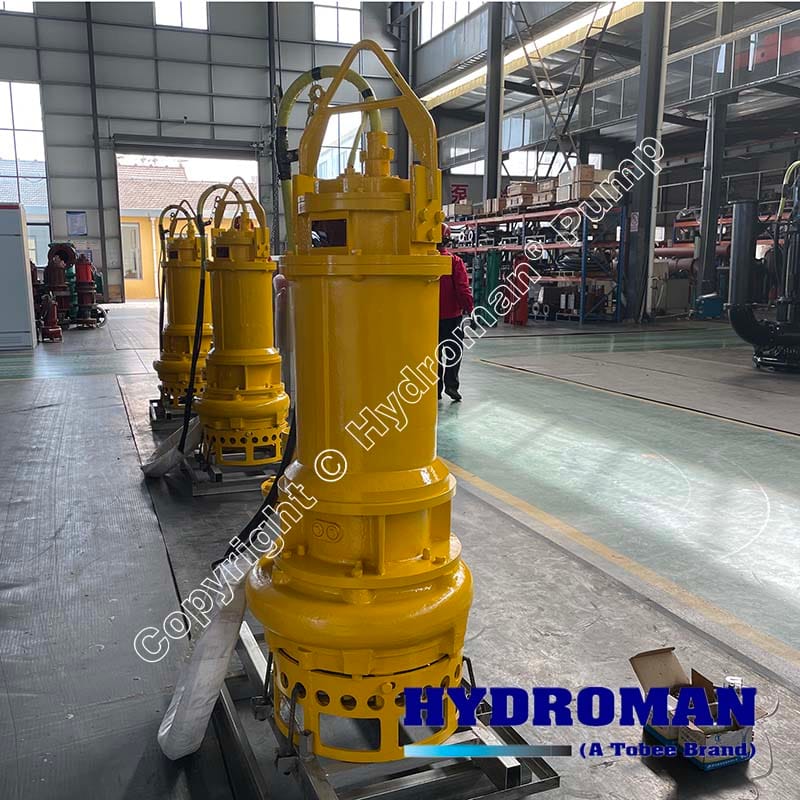

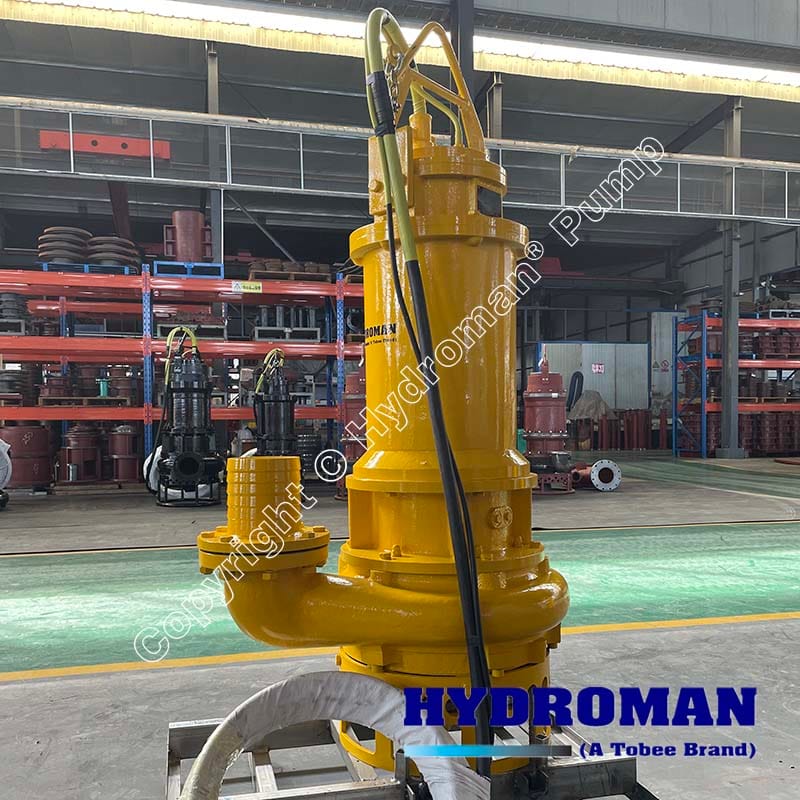

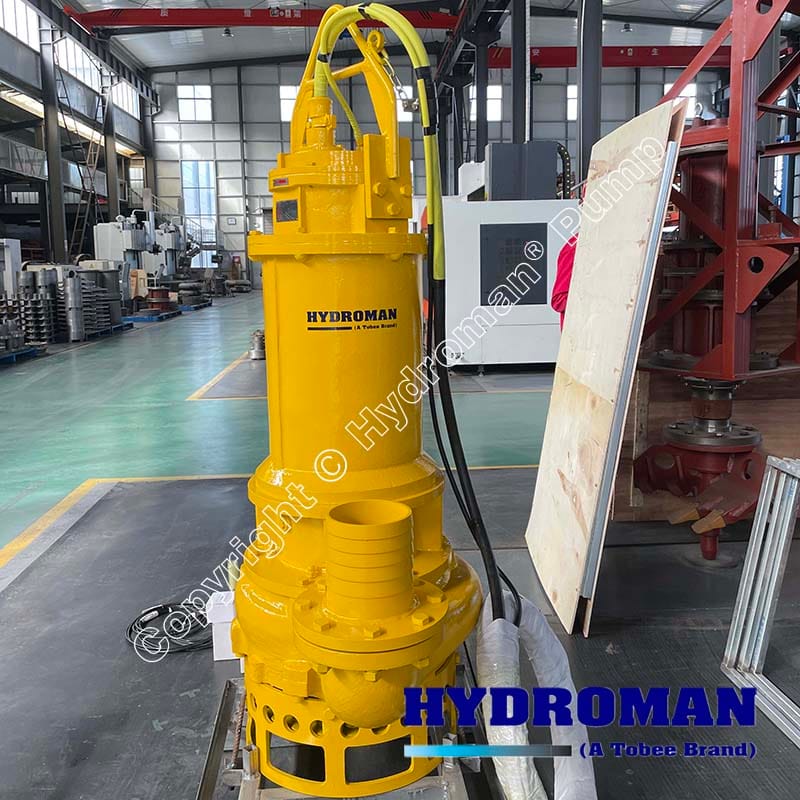

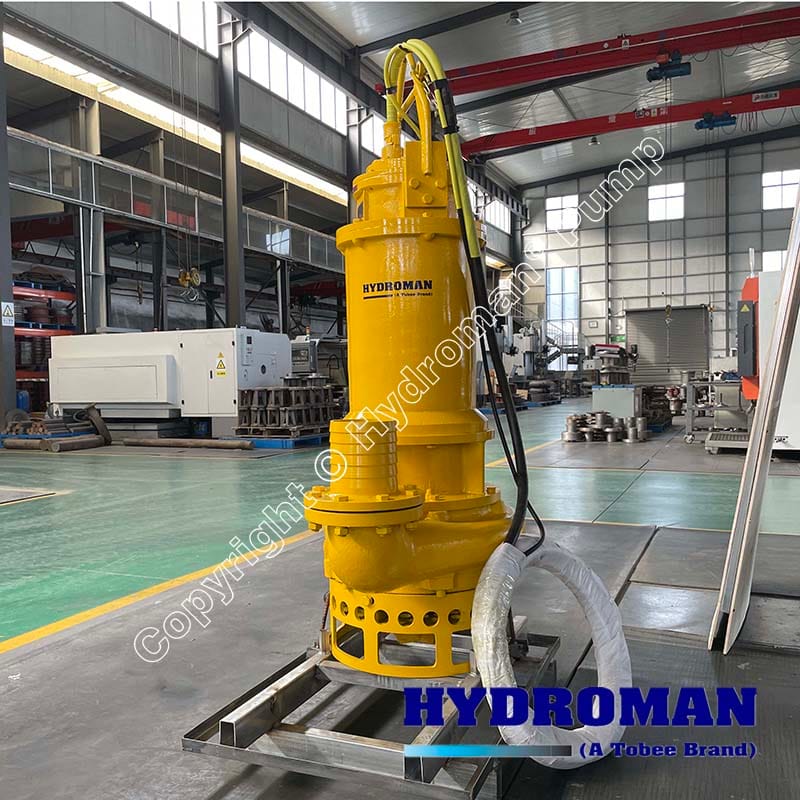

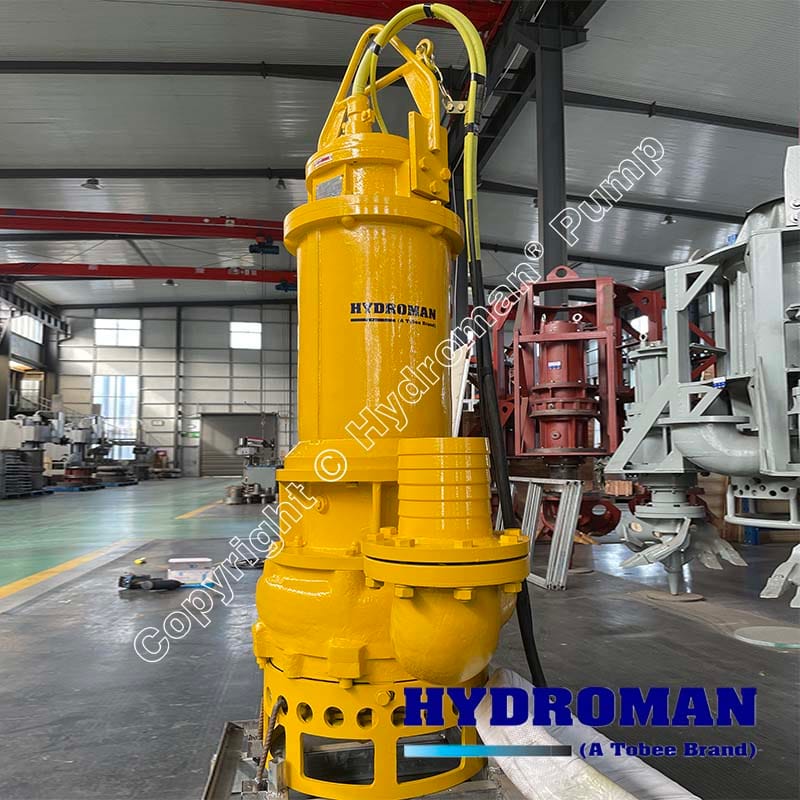

Submersible Electric Mud Pump for Dredging Sand

Hydroman^® Submersible Electric Mud Pump for Dredging Sand is a heavy-duty, high-performance pump designed to handle abrasive slurries, mud, and sand in dredging and dewatering applications. With its integrated agitator, wear-resistant components, and submersible electric motor, hydroman^® submersible slurry pump delivers efficient, uninterrupted sand dredging and slurry transport in marine, mining, construction, and industrial environments.

Hydroman^® Submersible Electric Mud Pump for Dredging Sand Technical Specification

• Power Range                  7.5 kW – 800 kW
• Max Flow Rate                Up to 4000 m³/h
• Max Head                       Up to 125 meters
• Solids Handling Size       Up to 120 mm
• Material Options             High Chrome Alloy, Cast Iron, SS304/SS316
• Voltage                            380V / 440V / 660V, 3-phase
• Cable Length                   Standard 10m (customizable)
• Seal Type                         Double Mechanical Seal in Oil Chamber
• Installation                       Vertical submersion, optional guide rail

Hydroman^® Submersible Electric Mud Pump for Dredging Sand Advantages

• Integrated Agitator
Breaks up and suspends settled solids to facilitate smooth slurry intake and continuous operation.

• Heavy-Duty Construction
Made from high-chrome alloy or cast iron components, ensuring excellent resistance to wear and corrosion in harsh environments.

• High Solids Handling Capacity
Designed to pump fluids with up to 70% solid concentration by weight, including coarse sand and gravel.

• Submersible Electric Motor (IP68)
Fully sealed for underwater operation, with H class insulation, thermal protection, and long service life.

• Optional Side Cutters / Jet Ring
Enhances material agitation and suction in compact or compacted sediment zones.

• Modular Mounting Design
Supports portable, vertical, or guide rail installation depending on operational needs.

Structural Drawing of Hydroman^® Submersible Electric Mud Pump for Dredging Sand

Applications of Hydroman^® Submersible Electric Mud Pump for Dredging Sand

• River, lake, and port dredging

• Sand and gravel extraction operations

• Slurry pits in mining and tunneling

• Construction site excavation dewatering

• Settling pond and tailings removal

• Marine and offshore engineering sediment handling
