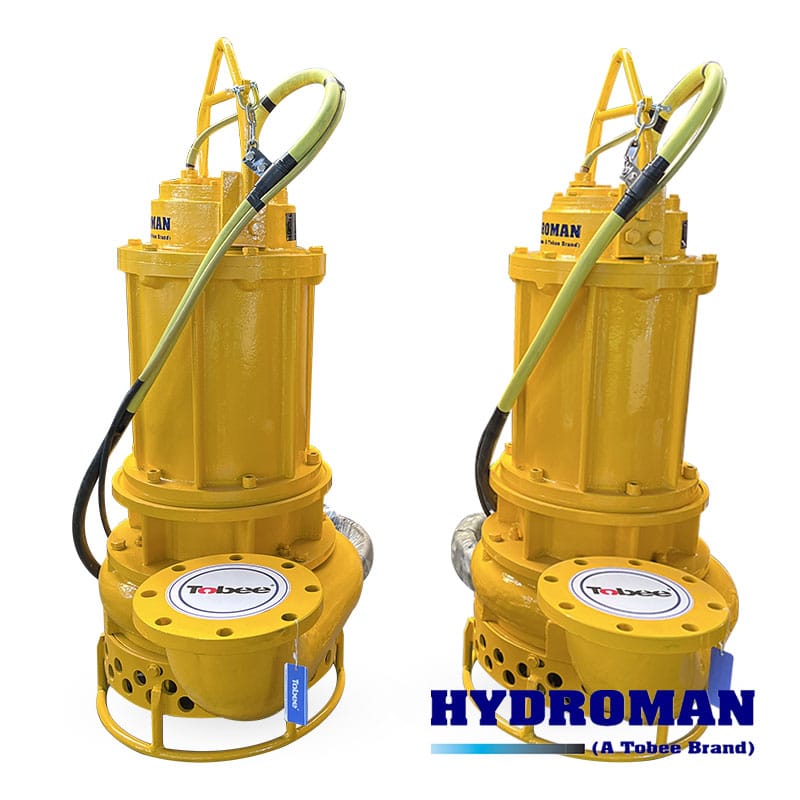

Hydroman® TJQ submersible slurry pump widely used for sand dredging, mud dredging, port building and deepening in ponds, rivers, artificial lakes, ports, seas, reservoirs, boat docks, canals and waterfront sites, etc.
Hydroman® TJQ submersible slurry pump is our own specially designed submersible mine slurry waste pump, advanced high efficiency suction pump and the best submersible motor. All of them are integrated together to realize high dredger suction capacity, more thorough dredging and large slurry or sand output. Also called submersible sand gravel pump, sand agitator submersible dredging pump, submersible sludge pump, etc.
No. | Model | Size (mm) | Capacity Q (m3/h) | Head H (m) | Power P (kw) | Eff. η (%) | Speed n (r/min) | Max. particles (mm) | Weight (kg) |
1 | 50TJQ10-20-3 | 50 | 10 | 20 | 3 | 37 | 1460 | 8 | 110 |
2 | 50TJQ15-18-3 | 50 | 15 | 18 | 3 | 46 | 1460 | 8 | 110 |
3 | 50TJQ20-15-3 | 50 | 20 | 15 | 3 | 52 | 1460 | 8 | 110 |
4 | 50TJQ25-12-3 | 50 | 25 | 12 | 3 | 58 | 1460 | 8 | 110 |
5 | 65TJQ30-12-3 | 65 | 30 | 12 | 3 | 60 | 1460 | 8 | 110 |
6 | 65TJQ35-10-3 | 65 | 35 | 10 | 3 | 64 | 1460 | 8 | 110 |
7 | 65TJQ40-8-3 | 65 | 40 | 8 | 3 | 66 | 1460 | 8 | 110 |
8 | 50TJQ18-20-4 | 50 | 15 | 22 | 4 | 43 | 1460 | 10 | 113 |
9 | 50TJQ18-20-4 | 50 | 18 | 20 | 4 | 46 | 1460 | 10 | 113 |
10 | 50TJQ20-18-4 | 50 | 20 | 18 | 4 | 50 | 1460 | 10 | 113 |
11 | 50TJQ25-20-4 | 50 | 25 | 20 | 4 | 52 | 1460 | 10 | 113 |
12 | 65TJQ30-16-4 | 65 | 30 | 16 | 4 | 52 | 1460 | 10 | 113 |
13 | 65TJQ35-15-4 | 65 | 35 | 15 | 4 | 60 | 1460 | 10 | 113 |
14 | 65TJQ40-12-4 | 65 | 40 | 12 | 4 | 63 | 1460 | 10 | 113 |
15 | 65TJQ45-10-4 | 65 | 45 | 10 | 4 | 66 | 1460 | 10 | 113 |
16 | 80TJQ20-30-5.5 | 80 | 20 | 30 | 5.5 | 42 | 1460 | 13 | 205 |
17 | 80TJQ30-20-5.5 | 80 | 30 | 20 | 5.5 | 54 | 1460 | 13 | 205 |
18 | 80TJQ45-15-5.5 | 80 | 45 | 15 | 5.5 | 41 | 1460 | 13 | 205 |
19 | 80TJQ15-20-5.5 | 80 | 15 | 20 | 5.5 | 33 | 1460 | 13 | 205 |
20 | 80TJQ50-10-5.5 | 80 | 50 | 10 | 5.5 | 44 | 1460 | 13 | 205 |
21 | 80TJQ15-20-7.5 | 80 | 15 | 20 | 7.5 | 34 | 1460 | 13 | 210 |
22 | 80TJQ20-25-7.5 | 80 | 20 | 25 | 7.5 | 35 | 1460 | 13 | 210 |
23 | 80TJQ25-20-7.5 | 80 | 25 | 20 | 7.5 | 36 | 1460 | 13 | 210 |
24 | 80TJQ25-30-7.5 | 80 | 25 | 30 | 7.5 | 36 | 1460 | 13 | 210 |
25 | 80TJQ30-30-7.5 | 80 | 30 | 30 | 7.5 | 37 | 1460 | 13 | 210 |
▪ Dredging: River, lake, and harbor sediment removal.
▪ Mining: Sand, gravel, coal, and mineral slurry transport.
▪ Construction: Land reclamation, tunnel dewatering, and foundation pit pumping.
▪ Industrial Waste: Handling abrasive sludge, tailings, and effluents.
▪ Sand & Gravel Extraction: Efficient pumping in quarries and aggregate plants.
