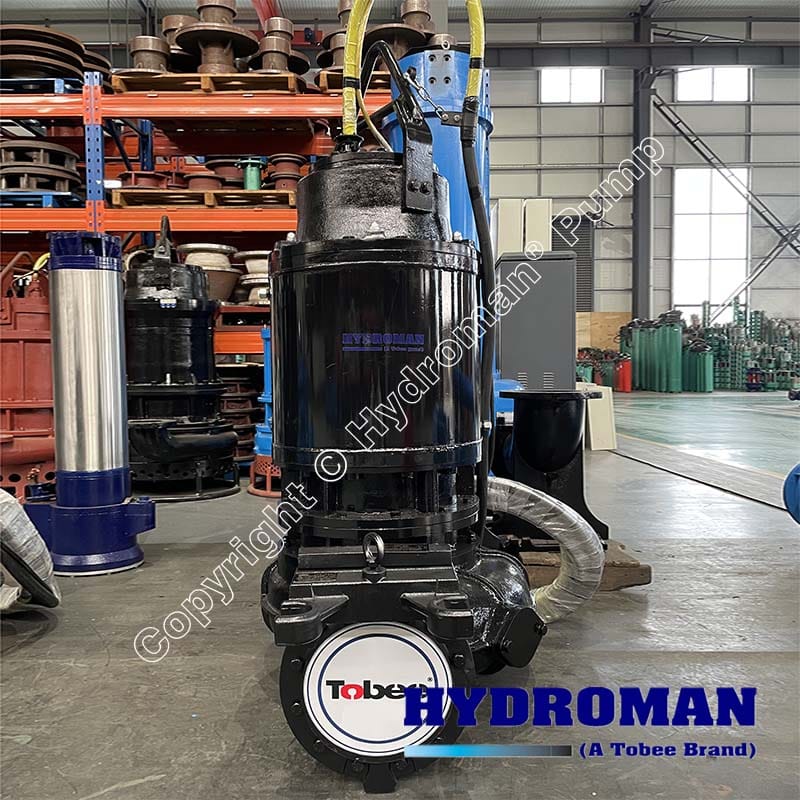

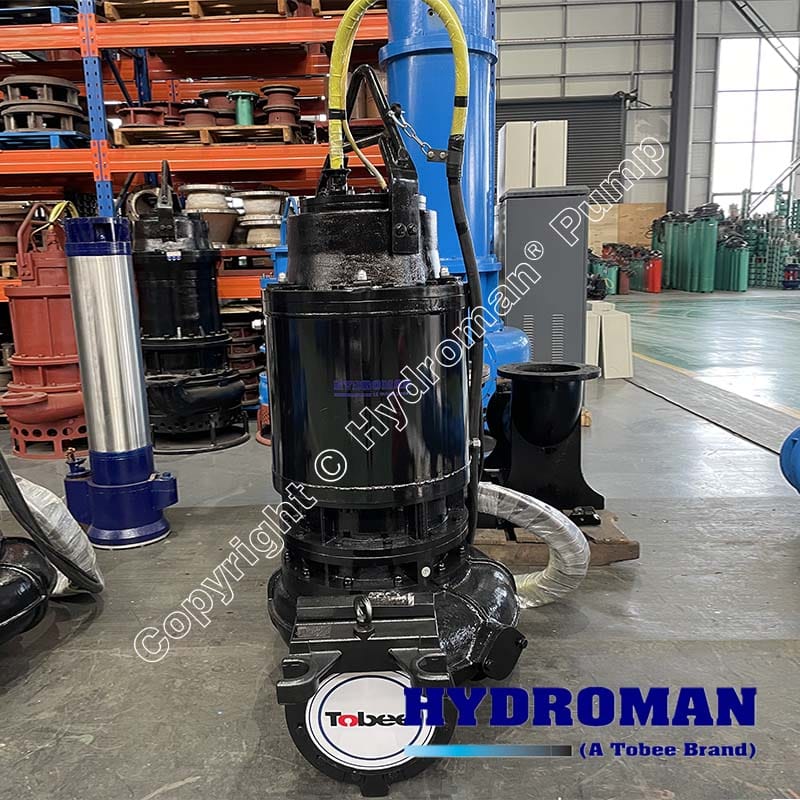

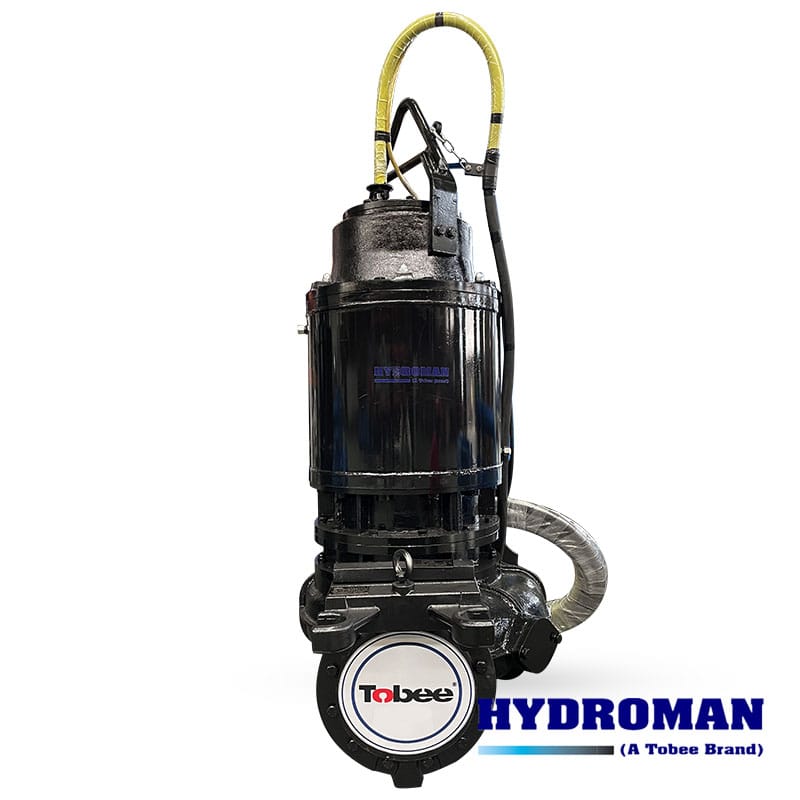

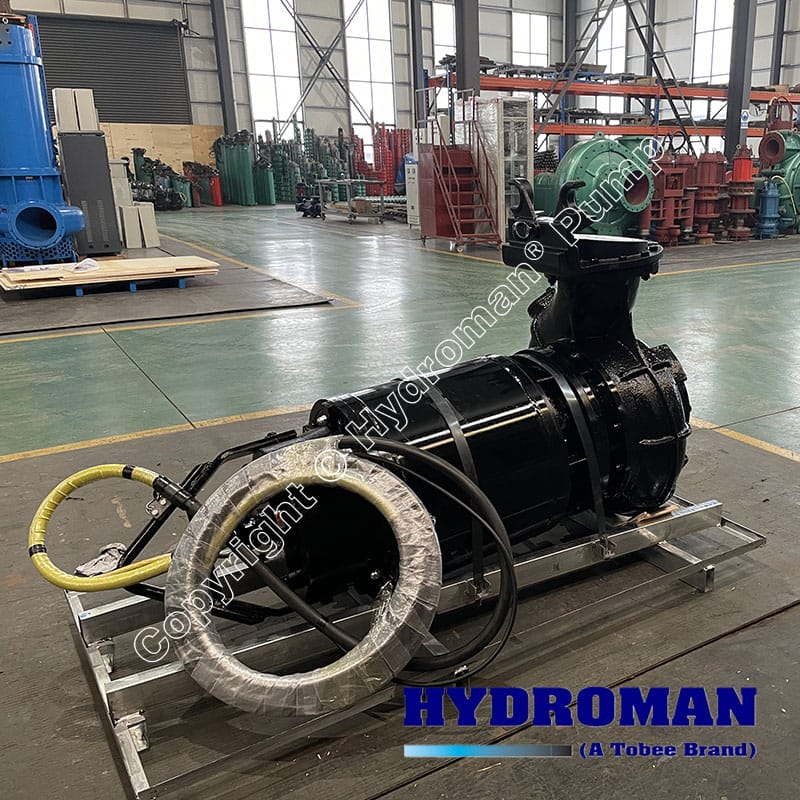

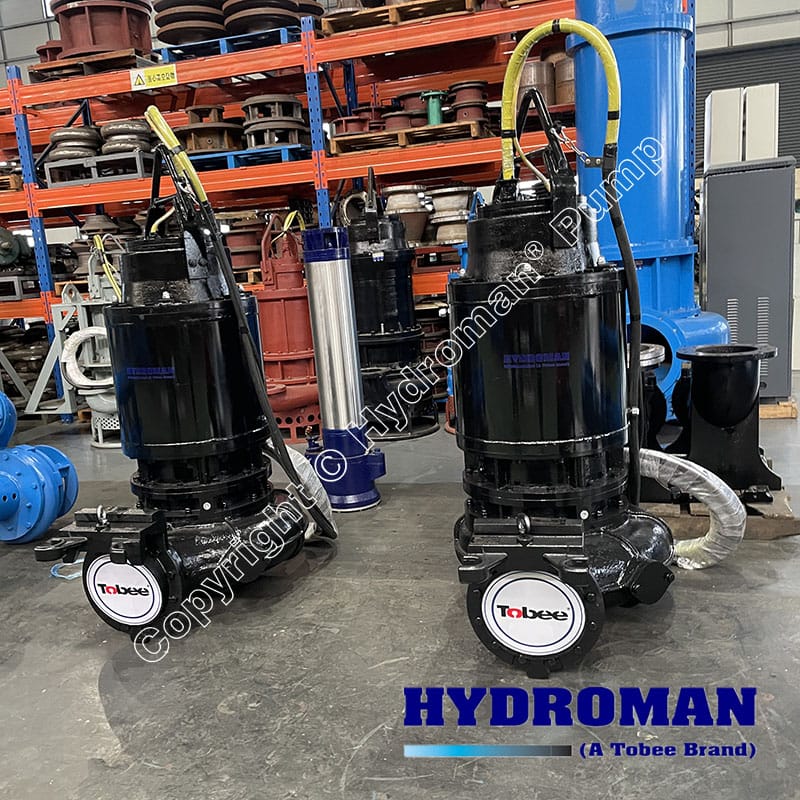

Submersible Pumps for Sewage and Drainage with Cooling Jacket

Hydroman^® Submersible Pumps for Sewage and Drainage with Cooling Jacket

Hydroman^® Submersible Pumps for Sewage are mainly used for discharging sewage, wastewater, stormwater and domestic water in urban areas containing solid particles and various long fabrics.

Hydroman^® Submersible Pumps for Sewage and Drainage with Cooling Jacket Key Features:

• High-Efficiency Motor – Thermally protected, oil-cooled motor with high torque for continuous operation under heavy loads.
• Superior Solids Handling – Vortex or cutter impeller options to pass solids (up to 3” diameter) without clogging.
• Durable Construction – Corrosion-resistant cast iron or stainless steel housing for extended lifespan.
• Double Mechanical Seal – Silicon carbide/tungsten carbide seals prevent leakage and protect the motor from abrasives.
• Automatic Operation – Integrated float switch or external controller for hands-free pumping.
• Versatile Applications – Ideal for municipal sewage systems, industrial wastewater, stormwater drainage, septic tanks, and lift stations.

Hydroman^® Submersible Pumps for Sewage and Drainage with Cooling Jacket Technical Specifications:

• Size: 50-600mm
• Capacity: 10-6000m3/h
• Head: 5-62m
• Speed: 750-3550r/min
• Temperature Range: ≤80°C
• Sealing arrangement: Double Mechanical seal
• Motor: 50Hz/60Hz, 110V/220V/380V/440V/460V/660V/1000V
• Materials: Cast iron, SS304, SS316L, Duplex SS, High chrome, Hyperchrome etc

Hydroman^® Submersible Pumps for Sewage and Drainage with Cooling Jacket Applications:

• Municipal: Wastewater treatment plants, sewer systems.
• Industrial: Chemical plants, food processing, mining.
• Commercial: Hotels, hospitals, shopping centers.
• Residential: Basement drainage, septic tank pumping.

Why Choose Hydroman^® Submersible Pumps for Sewage and Drainage with Cooling Jacket？

• Reliable & Long-Lasting – Heavy-duty construction ensures minimal downtime.
• Low Maintenance – Sealed design reduces wear and servicing needs.
• Customizable Solutions – Multiple impeller types, materials, and control options available.
• Global Certifications – Compliant with international safety and efficiency standards.

Hydroman^® submersible pumps are trusted worldwide for their rugged performance and dependable service, making them a top choice for professionals in the water and wastewater industries.

Contact us for customized solutions and expert support!
