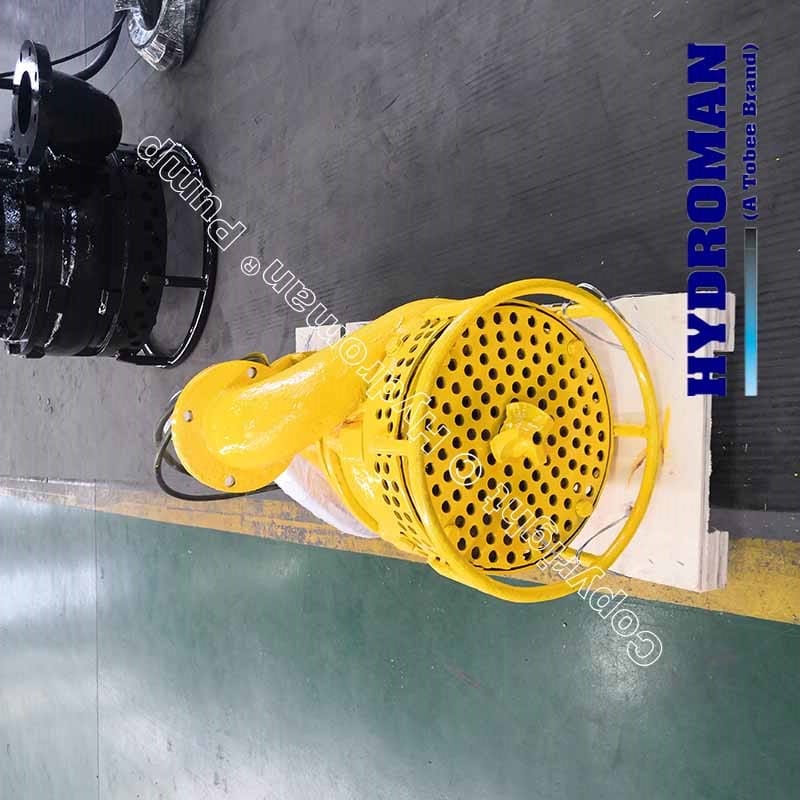

The Hydroman® Submersible Sand Slurry Pump with Electric Agitator is engineered for the most demanding underwater solids-handling tasks. This robust Electric Submersible Pump for Sludge Mud Clay excels in challenging environments where settled solids pose a constant threat to efficiency. As a premier Vertical Electric Slurry Pump for Sand Handling, it is designed to be fully submerged and operate vertically, providing powerful, direct-lift capability. This Underwater Submerged Pump for Slurry Sand Removal integrates a dedicated agitator to fluidize compacted materials, ensuring continuous operation. Ultimately, the Heavy Duty Submersible Pump for Sludge Handling from Hydroman® represents a paradigm shift in reliability and performance for abrasive, high-solids applications.

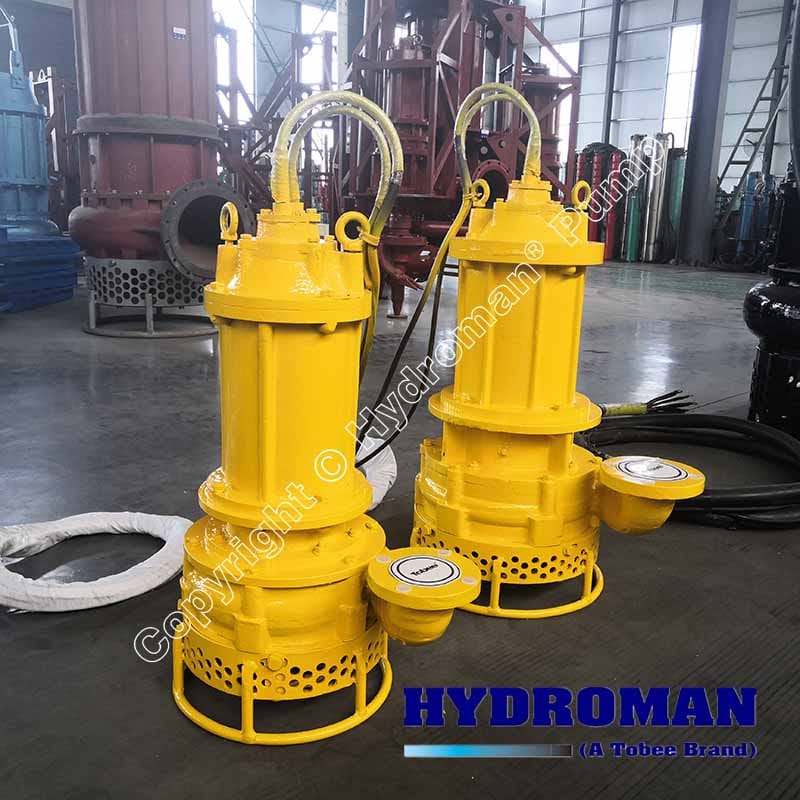

At its core, the Hydroman Submersible Agitator Pump for Slurry combines two critical functions in one integrated unit. The lower section features a powerful, mechanically driven agitator. This component rotates at high speed, directly targeting the sediment bed. Its kinetic energy breaks up densely packed solids like clay lumps, hardened sludge, and settled sand, mixing them with the surrounding liquid to form a homogeneous, pumpable slurry.
Simultaneously, the pump section, located directly above the agitator, creates a powerful vacuum. This draws the newly fluidized mixture into the pump’s intake. The Electric Driven Slurry Pump for Mud Clay then imparts centrifugal force, discharging the abrasive slurry vertically through the discharge pipe to the desired location. The vertical design is crucial, allowing for deep sump and trench dewatering without the need for complex priming systems.
Hydroman® builds these pumps to withstand relentless punishment. Key components like the agitator blades, pump impeller, and volute casing are constructed from high-chrome alloy or other advanced abrasion-resistant materials. This significantly extends service life when pumping sand-laden and other erosive mixtures.
A critical focus is on seal integrity. The pump employs a robust double mechanical seal system, often running in an oil-filled chamber, to create an impervious barrier. This protects the electric motor from water ingress and abrasive particles, the primary cause of failure in standard submersible pumps. The motor itself is engineered for submerged operation, with features like built-in thermal sensors and advanced cooling jackets that use the surrounding liquid for heat dissipation, ensuring reliability even during prolonged duty cycles.
This pump is not a general dewatering tool; it is a specialist for severe conditions.
The primary benefit is sustained efficiency. By preventing solids from settling and burying the pump intake, the agitator ensures the unit consistently moves the intended volume of solids, reducing downtime for cleaning or repositioning. This translates directly to lower labor costs and faster project completion.
1. What makes the Hydroman® Electric Submersible Pump for Sludge Mud Clay different from a standard submersible pump?
A standard submersible pump is designed for relatively clean or lightly silted water. In contrast, the Hydroman Submersible Agitator Pump for Slurry is built as a Heavy Duty Submersible Pump for Sludge Handling. Its integrated electric agitator proactively stirs up settled solids, creating a slurry that the pump can then handle. It is constructed with vastly superior abrasion-resistant materials and sealing technology to survive the wear and tear of dense, gritty mixtures that would quickly destroy a conventional pump.
2. Can this Vertical Electric Slurry Pump for Sand Handling run dry?
No, like all submersible pumps, it is designed to operate fully submerged to cool the motor and lubricate the seals. Running dry, even briefly, can cause severe damage due to overheating and seal failure. The pump’s design encourages it to be placed directly on the sediment bed where the agitator works, ensuring it is always surrounded by fluid. For added protection, models are available with advanced moisture and temperature sensors that can trigger an automatic shutdown.

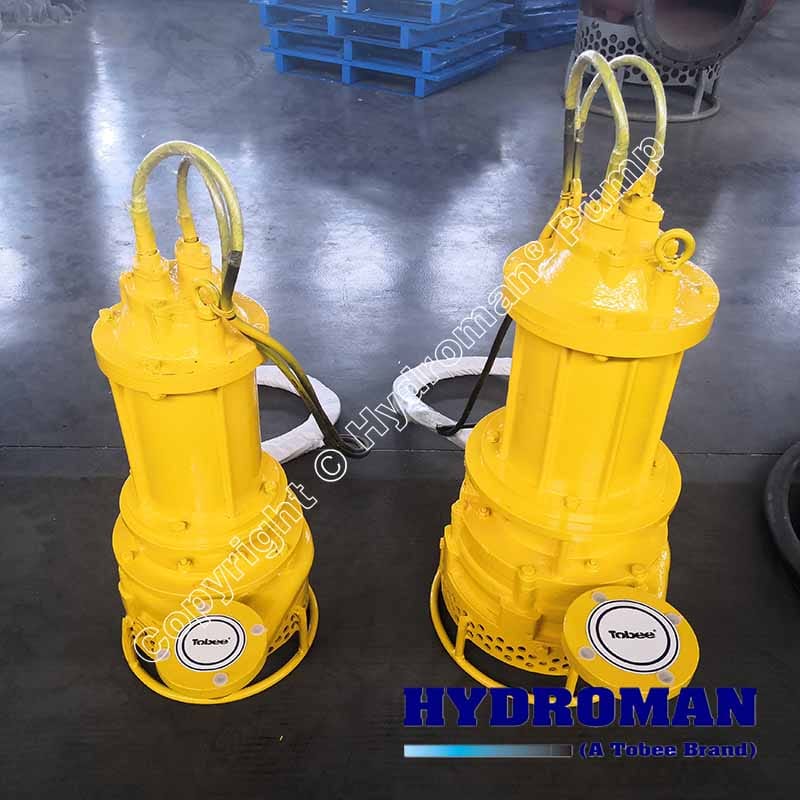

3. Where is the best application for an Underwater Submerged Pump for Slurry Sand Removal?
Its ideal application is any deep, confined, or flooded area with a heavy accumulation of dense, settled solids. This includes flooded mine shafts, deep construction sumps filled with sandy water, sludge pits in wastewater treatment, and sedimentation ponds in mineral processing. The vertical deployment is key here, allowing it to be lowered directly into the pit without the need for a separate, space-consuming horizontal setup.
Tackling challenging materials like compacted sludge, viscous clay, and abrasive sand requires specialized equipment. The Hydroman® submersible sand slurry pump with electric agitator delivers powerful vertical underwater performance for removing slurry, sand, sludge, mud, and clay. Built for harsh conditions, it is the reliable, high-efficiency solution to keep your project moving.
Contact Hydroman® today to improve your slurry handling efficiency! Our team can help you select the perfect Electric Driven Slurry Pump for Mud Clay tailored to your specific application requirements.
