Submersible Sewage Pump for Wastewater and Sludge Handling

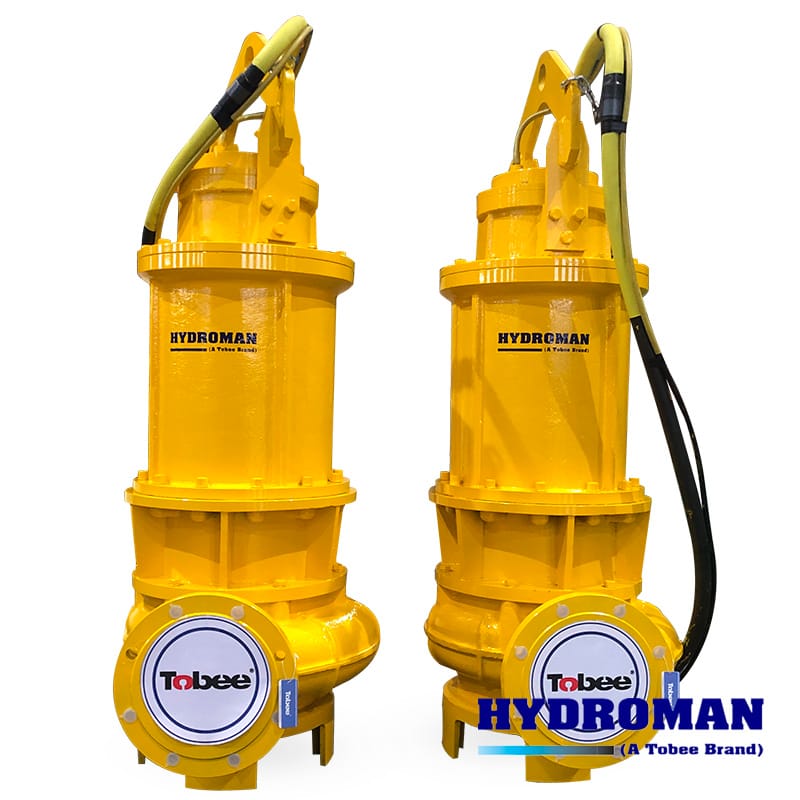

Hydroman^® Submersible Sewage Pump for Wastewater and Sludge Handling Overview

Hydroman^® Submersible Sewage Pump for Wastewater and Sludge Handling is specifically designed for efficient and reliable handling of wastewater, sewage, and sludge in municipal, industrial, and commercial applications. Built with rugged construction and cutting-edge hydraulic components, these pumps ensure long-term performance in the most demanding environments.

Hydroman^® Submersible Sewage Pump for Wastewater and Sludge Handling Key Features

• Heavy-Duty Construction
Made of high-quality cast iron or stainless steel for maximum durability and corrosion resistance.

• Non-Clog Impeller Design
Equipped with vortex or channel impellers for superior solids handling capabilities, minimizing clogging risks and ensuring smooth operation.

• High Efficiency Motor
Energy-efficient, IP68-rated submersible motors with thermal protection for reliable and safe continuous operation.

• Wide Range of Applications
Suitable for municipal sewage systems, industrial wastewater treatment, flood control, sludge dewatering, and more.

• Automatic Operation Options
Optional float switches or control panels available for automatic start/stop functionality based on fluid levels.

• Seal Protection
Double mechanical seals in oil chamber to prevent leakage and extend service life.

Hydroman^® Submersible Sewage Pump for Wastewater and Sludge Handling Technical Installation Method

• Auto-coupled installation

• Movable Hard Pipe Installtion

• Movable SoftPipe Installation

• Fixed Dry Installation

• Fixed Wet Installation

Hydroman^® Submersible Sewage Pump for Wastewater and Sludge Handling Matters Need Attention

• It is not proper to use the pump in a medium environment easy to explode and burnand to extract any combustible liquid.

• It is strictly prohibited to impact or press the cable and use it as a lifting rope, and pull it at will when the pump is running so as not to damage it, which may result in an electric shock, or lowering the cable sealness, or the insulation performance of the wiring box of the motor.
• When to use the way of fixed automatic coupling installation, lift or lower down the pump with the lifting chains locking the handle and take care to handle it.
• The pump has to be vertically lifted when it is placed in water and not horizontally landed, further more, not sunk into sludge.
• A flow regulating valve must be equipped with the spitting pipeline to avoid overload of the motor due to a too heavy flow.

Hydroman^® Submersible Sewage Pump for Wastewater and Sludge Handling Applications

• Municipal sewage treatment plants

• Industrial wastewater systems

• Construction site dewatering

• Sludge pumping from septic tanks

• Livestock farm waste management

• Floodwater drainage systems

Contact our sales team for technical support, pricing, or a customized quote.
