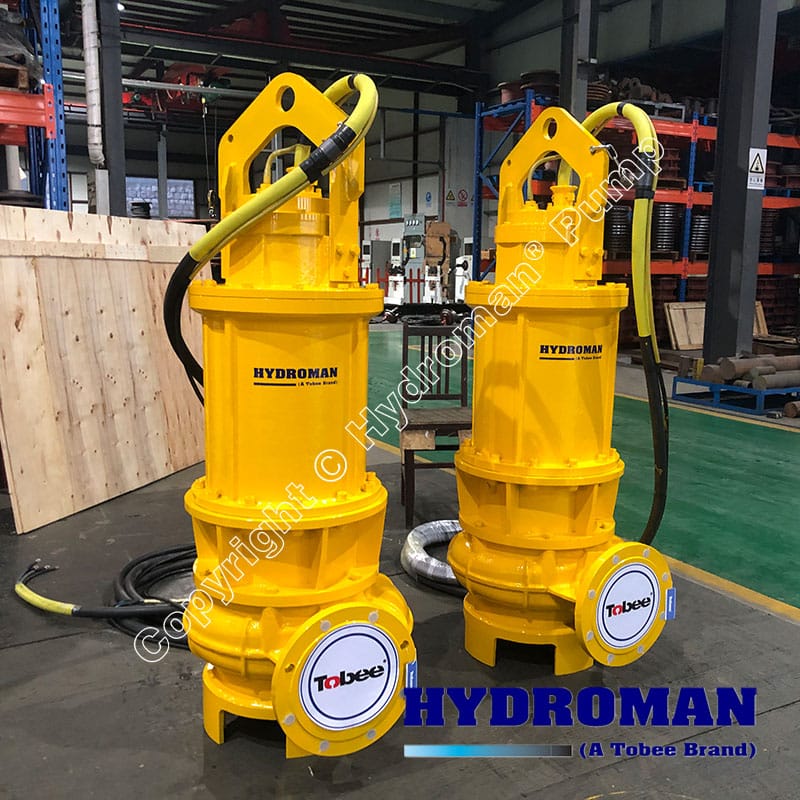

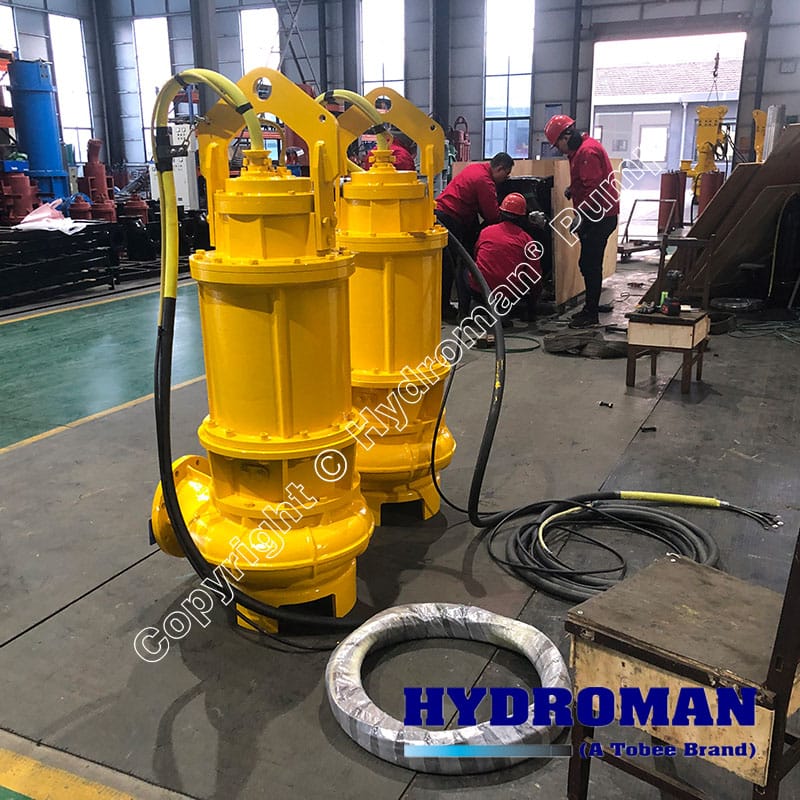

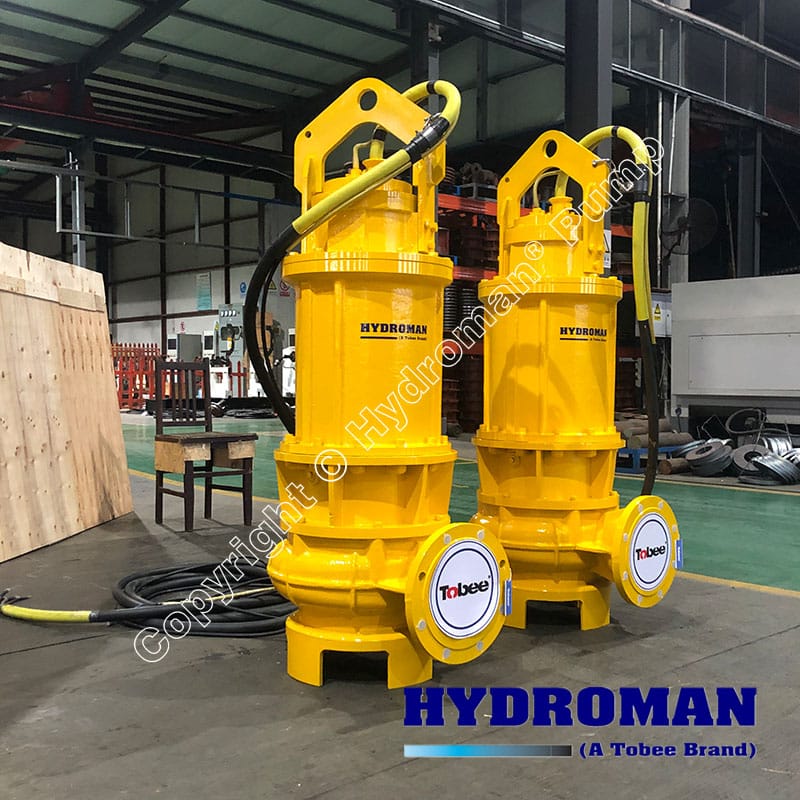

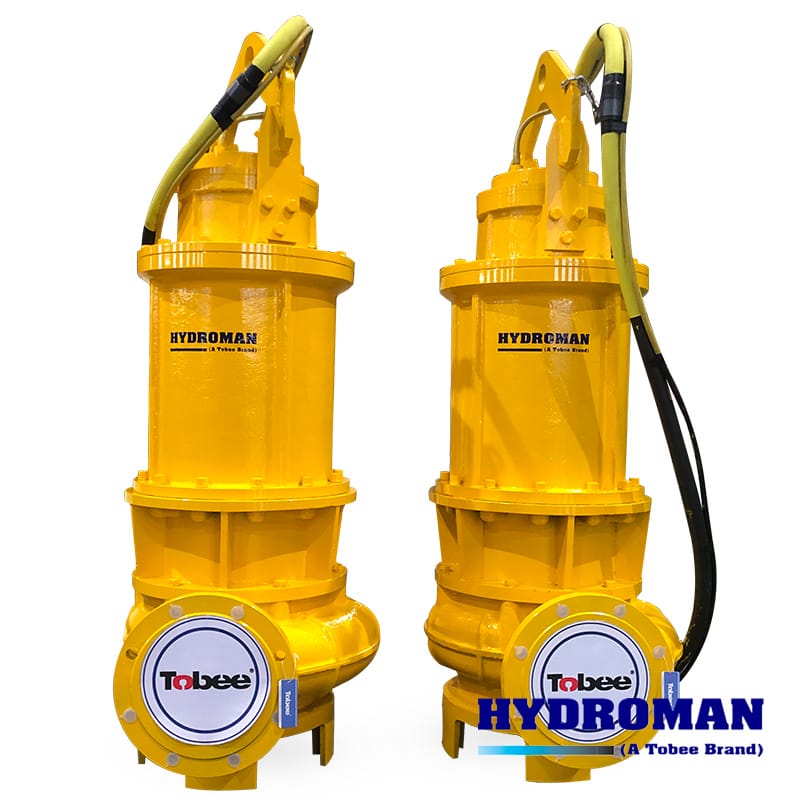

Submersible Sewage Pump for Wastewater Treatment Plant

Hydroman^® Submersible Sewage Pump for Wastewater Treatment Plant is specifically designed for the efficient transfer of sewage, sludge, and industrial wastewater containing solids and fibrous material. Built for continuous operation in harsh environments, it is ideal for municipal sewage stations, industrial wastewater treatment systems, and centralized drainage systems. With a robust submersible motor and a non-clogging hydraulic design, this pump ensures reliable and low-maintenance operation even in demanding conditions.

Hydroman^® Submersible Sewage Pump for Wastewater Treatment Plant Technical Specafications

• Size: 50-600mm

• Capacity: 10-6000m3/h

• Head: 3-125m

• Speed: 750-3550r/min

• Temperature Range: ≤80°C

• Sealing arrangement: Double Mechanical seal

• Motor: 50Hz/60Hz, 110V/220V/380V/440V/460V/660V/1000V

• Materials: Cast iron, SS304, SS316L, Duplex SS, High chrome, Hyperchrome etc

Hydroman^® Submersible Sewage Pump for Wastewater Treatment Plant Advantages
• Heavy-Duty Submersible Design
Operates directly in wet wells and underground tanks, eliminating the need for complex suction piping and reducing installation footprint.

• Non-Clogging Impeller
Equipped with single-channel or vortex-type impellers capable of handling solids, fibrous waste, and sludge without clogging.

• Corrosion- and Wear-Resistant Materials
Pump casing and impeller made of cast iron or stainless steel (optional SS304/SS316) for high resistance against corrosive and abrasive fluids.

• Double Mechanical Seal Protection
Dual seal system in an oil-filled chamber ensures leakage prevention and extended service life.

• Guide Rail Compatible
Supports guide rail systems for easy, tool-free removal and maintenance, perfect for wastewater plant operation.

Hydroman^® Submersible Sewage Pump for Wastewater Treatment Plant Optional Accessories

• Guide rail system with duck foot for automatic coupling

• Control panels with alarms and overload protection

• Float switches or level sensors

• Discharge hose or valve sets

• Cooling jacket for low-submergence conditions

Hydroman^® Submersible Sewage Pump for Wastewater Treatment Plant Typical Applications

• Raw Sewage Lift Stations: Pumping influent to primary screens.

• Sludge Scum Transfer: Moving thickened sludge to digesters.

• Effluent Discharge: Releasing treated water to rivers/reuse systems.

• Stormwater Management: Handling peak flows during heavy rainfall.

For technical consultation, selection support, or a custom quote for your wastewater treatment project:
