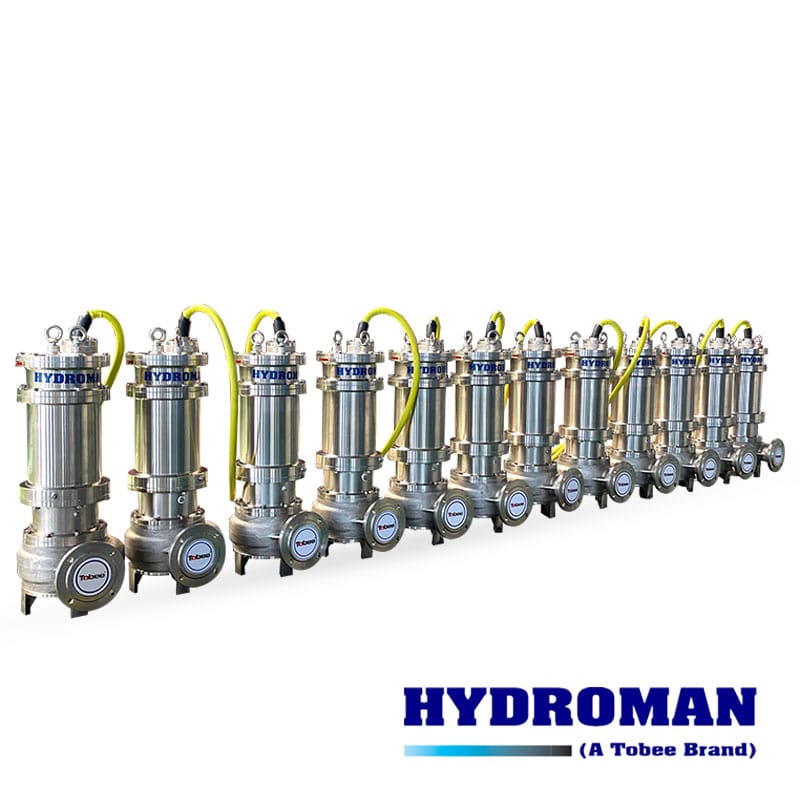

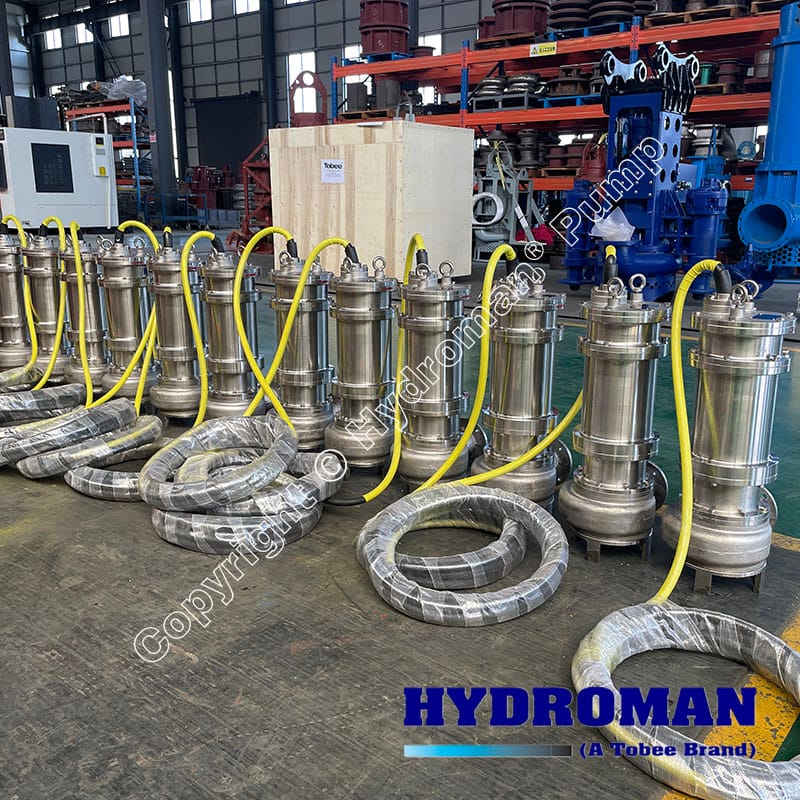

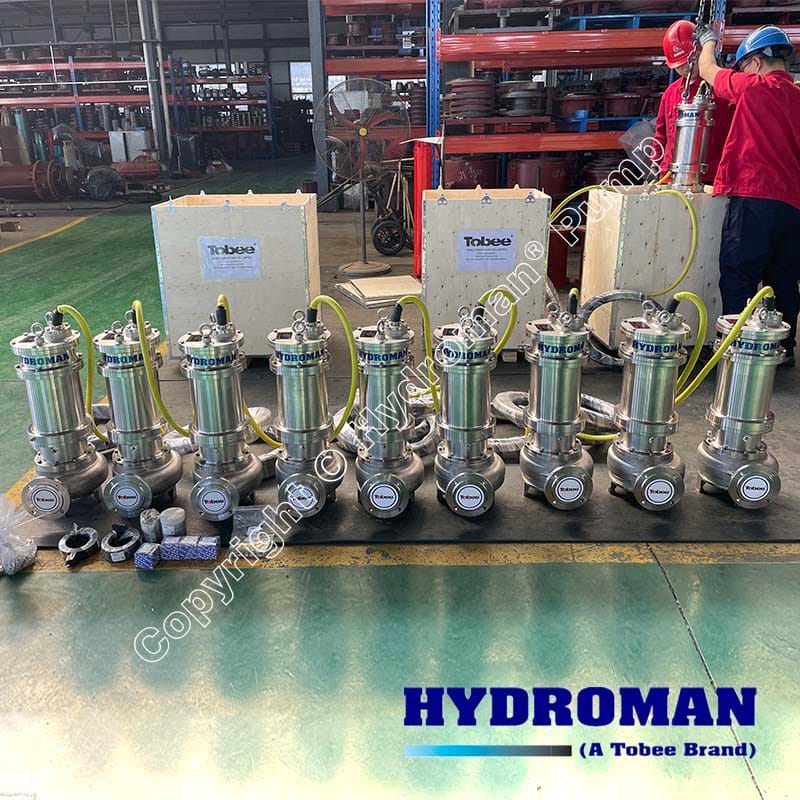

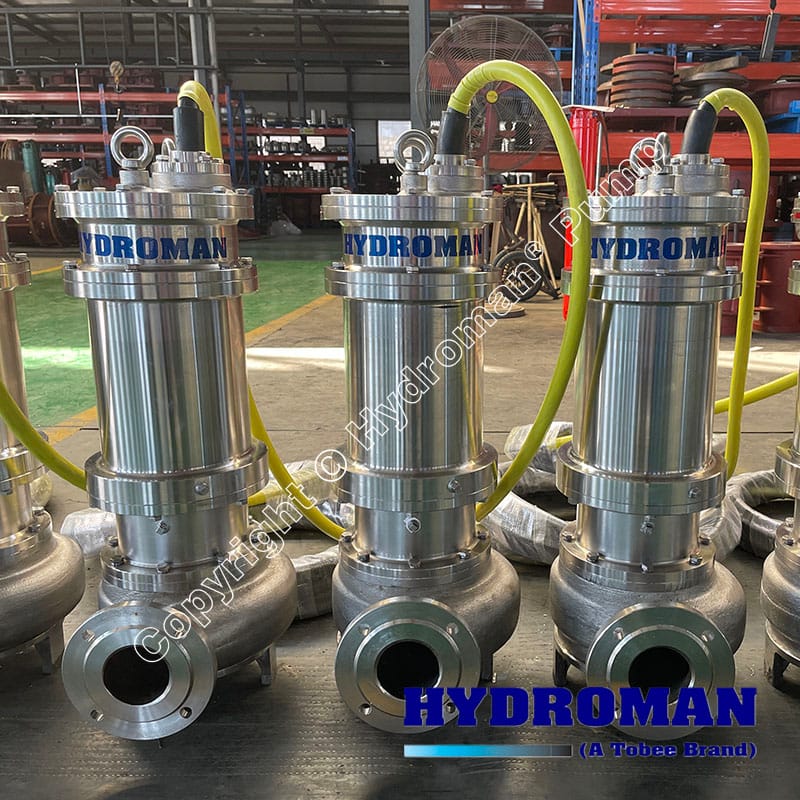

Hydroman® Submersible Sewage Pump with Solid Handling is specially engineered for pumping raw sewage, wastewater, and industrial effluent containing solids, sludge, and fibrous materials. Designed to deliver high performance in tough environments, this pump is ideal for municipal wastewater treatment, commercial building drainage, residential sewage systems, and various industrial processes. It features a non-clogging impeller and robust motor, ensuring continuous operation and reliable solid-passing capability.
Hydroman® Submersible Sewage Pump with Solid Handling Technical Specifications
| Size: | 50-600mm |
| Capacity: | 10-6000m3/h |
| Head: | 5-62m |
| Speed: | 750-3550r/min |
| Temperature Range: | ≤80°C |
| Sealing arrangement: | Double Mechanical seal |
| Motor: | 50Hz/60Hz, 110V/220V/380V/440V/460V/660V/1000V |
| Materials: | Cast iron, SS304, SS316L, Duplex SS, High chrome, Hyperchrome etc |
Hydroman® Submersible Sewage Pump with Solid Handling Key Features
• Solid-Handling Impeller Design
Non-clog vortex or channel impeller efficiently handles solids up to 80mm (depending on model) without jamming, ideal for raw sewage and sludge-laden fluids.
• Heavy-Duty Construction
Cast iron or stainless steel components offer excellent resistance to abrasion, corrosion, and wastewater chemicals.
• Submersible IP68 Motor
High-efficiency motor with thermal overload protection and Class H insulation.
• Double Mechanical Seal in Oil Chamber
Features double mechanical seals with durable silicon carbide faces to prevent leakage and extend service life.
• Easy Maintenance Design
Compatible with auto-coupling (duck foot) guide rail systems for fast removal and reinstallation without entering the sump.
Hydroman® Submersible Sewage Pump with Solid Handling Optional Accessories
• Guide rail (duck foot) installation system
• Float switch or level controller
• Control panel with overload/phase protection
• Stainless steel lifting chain
• Check and gate valve assemblies
• External cooling jacket for low-liquid operation
Hydroman® Submersible Sewage Pump with Solid Handling Typical Applications
• Municipal sewage and lift stations
• Industrial effluent and sludge transfer
• Commercial and residential wastewater systems
• Septic tank discharge
• Flood and stormwater control
• Agricultural waste handling
