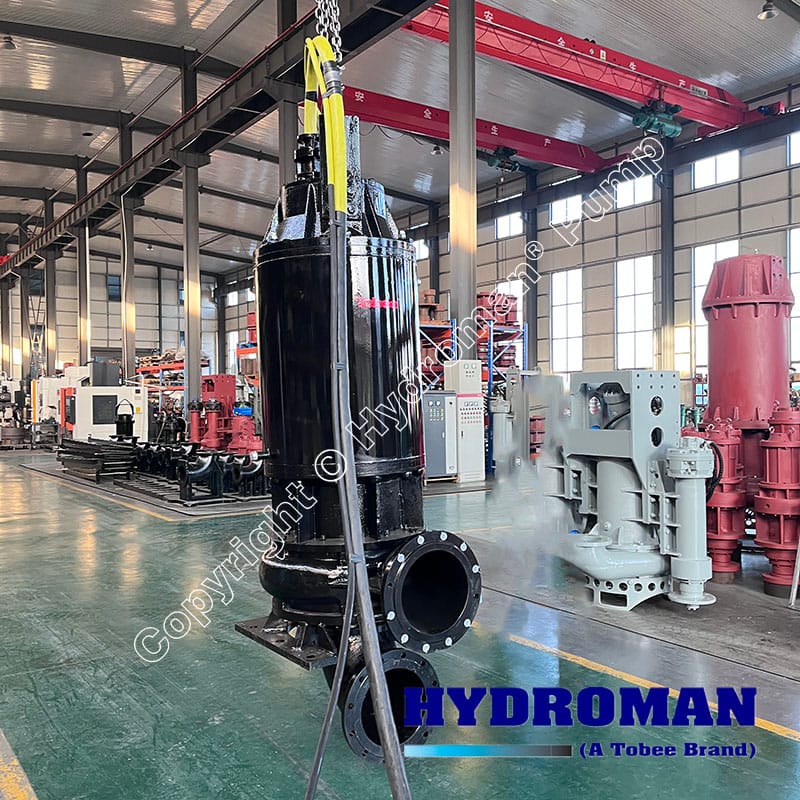

Submersible Sewage Pump with Suction Pipe

Hydroman® Submersible Sewage Pumps with Suction Pipe | Superior Solids Handling for Challenging Wastewater Applications

Innovative Suction Pipe Design for Unmatched Performance

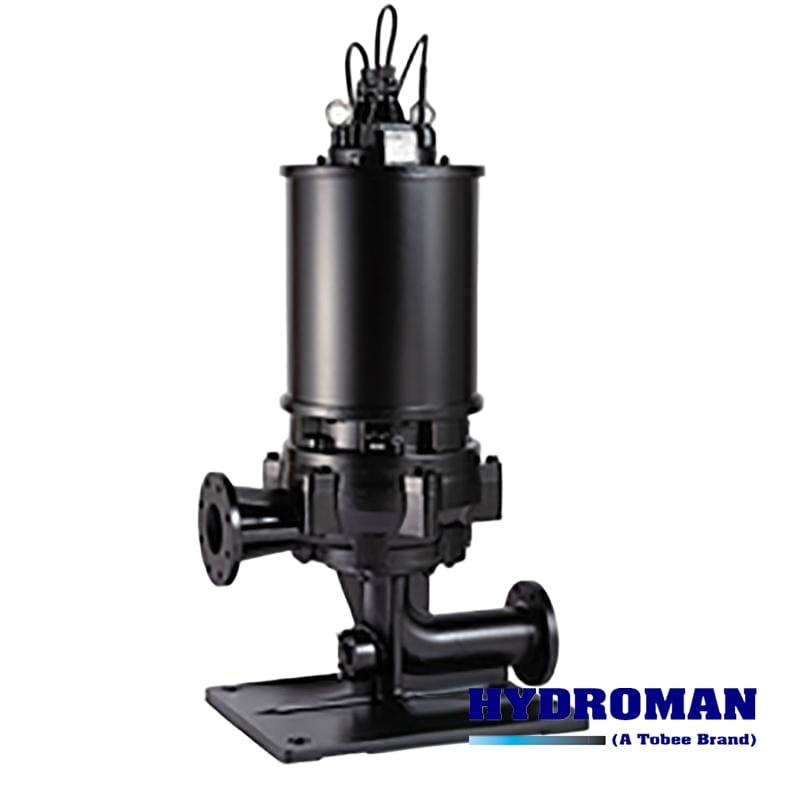

Hydroman® submersible sewage pumps with suction pipe (also called suction-type wastewater pumps or bottom-intake submersible sewage pumps) feature a revolutionary design that solves common problems in traditional submersible pumps. Our integrated suction pipe system provides:
• 30% Better Solids Handling – Direct bottom suction prevents solids accumulation
• Reduced Clogging Risk – Eliminates the "dead zone" in standard sump designs
• Extended Pump Life – Minimizes abrasive particle recirculation
• Easy Maintenance Access – Quick-disconnect pipe coupling system

Certified Reliability of Suction Pipe Sewage Pumps
• ISO 9001 & CE certified
• IP68/IP69K waterproof ratings
• ATEX Zone 1/21 options available

Technical Advantages Over Conventional Pumps

1. Superior Hydraulic Performance of Submersible water Pumps
• Flow Range: 10–1200 m³/h (44–5,280 GPM)
• Head Capacity: 7–80m (23–262 ft)
• Solids Passage: 50–100mm (2"-4") with optional grinder
• Power Options: 3–250kW (4–335HP)

2. Patented Suction Pipe Benefits
• 316L Stainless Steel Construction – Resists corrosion in aggressive fluids
• Adjustable Length – Customizable from 0.5–3m for different sump depths
• Vortex-Breaking Design – Prevents air entrainment
• Removable Screen – Easy clean-out without pump extraction

3. Smart Monitoring System
• Clog Detection Sensor – Automatic reverse-cleaning cycle
• Bearing Temperature Monitoring – PT100 sensors with alarm output
• Leakage Protection – Dual moisture sensors in motor chamber

Why This Design Outperforms Standard Submersibles

For Municipal Operators:
• 40% Fewer Service Calls due to reduced clogging
• 50% Faster Pump Replacement with quick-coupling system
• Eliminates the need for frequent sump cleaning

For Industrial Users:
• Handles stringy materials (textile, paper waste) that jam standard pumps
• Perfect for settling ponds with heavy sludge layers
• Optional hardened materials for abrasive slurries

For Mining Applications:
• Superior dewatering in sumps with settled solids
• 30% Longer Wear Life in sandy conditions
• ATEX Version available for explosive atmospheres

Unique Value Proposition for Municipal Wastewater Pump

1. Operational Cost Savings
• 20% Lower Energy Use – Optimized hydraulic path reduces friction losses
• 60% Reduced Maintenance Time – No need for complete pump removal
• Standardized Components – Compatible with existing pipework

2. Installation Flexibility
• Retrofit-Ready – Works in existing sumps without modification
• Multiple Orientation Options – Horizontal or vertical discharge
• Space-Saving – Compact footprint fits tight spaces

3. Enhanced Safety Features
• Dry-Run Protection – Automatic shutdown if water level drops
• Corrosion Monitoring – Wall thickness sensors on suction pipe
• Explosion-Proof options for hazardous areas

Why Customers Choose Hydroman® Suction Pipe Pumps

• Field Proven – 850+ installations in 30 countries
• 2-Year Warranty – On suction pipe hydraulic  Pumps
• Custom Engineering – Special configurations for:
  High-temperature fluids (to 90°C/194°F)
  Seawater applications (super duplex materials)
  Food processing (sanitary designs)

Request Engineering Consultation about Settled solids removal pump

+86 189 3110 6396 (24/7 Technical Support)
inquiry@tobeepump.com
(Include your sump dimensions and wastewater characteristics for optimal configuration)
