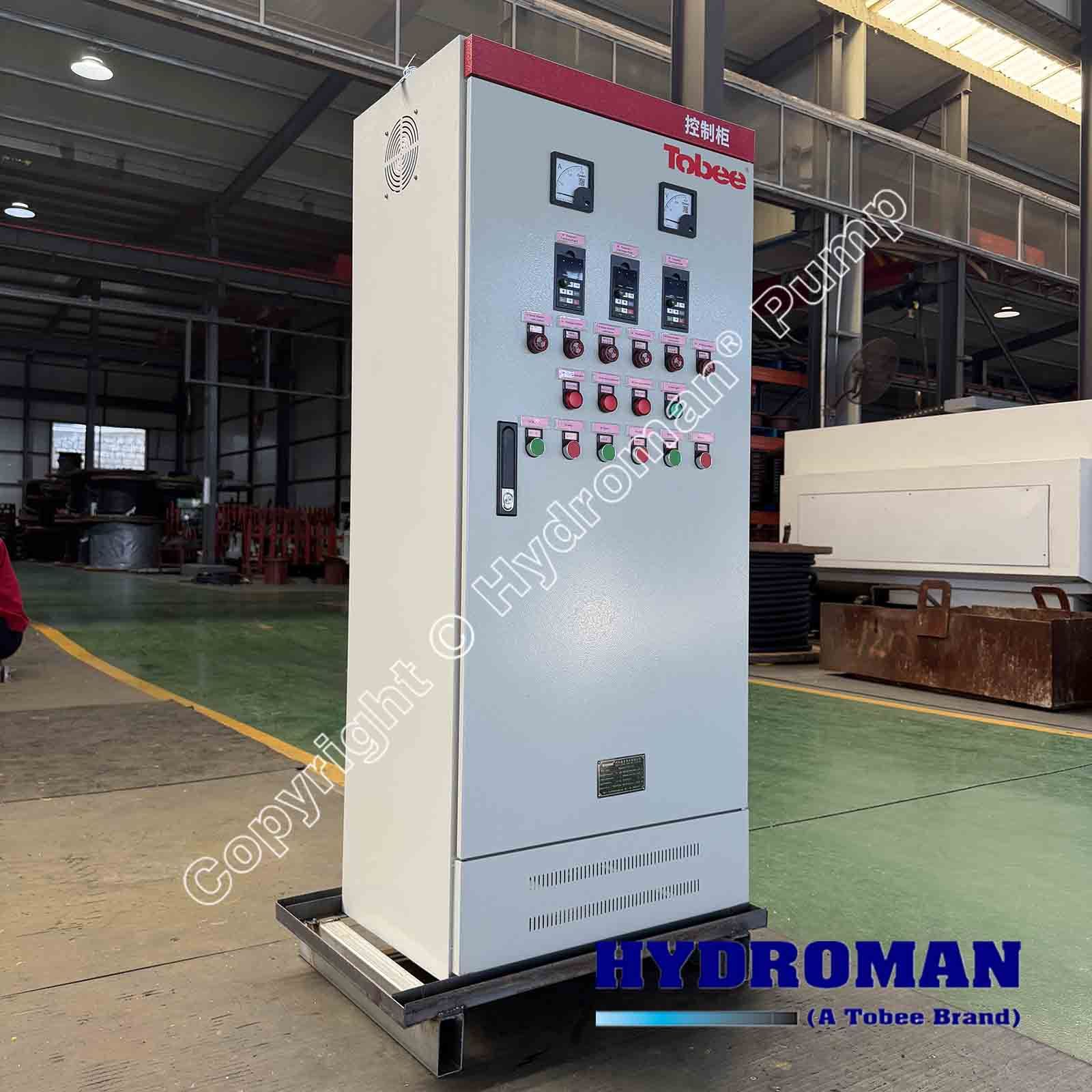

Name: VSD Control Cabinet for Hydroman TJQ Submersible Sand Pump
Brand: Wepanel
SKU: VSD

Description

Hydroman^® VSD Control Cabinet for Submersible Sand Pump is a game‑changer for abrasive handling. As an Electric Soft Starter Cabinet for Slurry Pump, it eliminates mechanical shock at startup. The Hydroman TJQ Pump Variable Speed Control System integrates perfectly with TJQ pumps.

Meanwhile, the Industrial VFD Panel for Submersible Pump Operation and Energy Saving Control Cabinet for Sand Pump work together to slash power draw by up to 50% compared to fixed‑speed drives.

Hydroman^® VSD Control Cabinet acts as an electric soft starter for TJQ submersible sand pump and slurry pump systems. Ensures stable variable speed control, energy saving, and safe operation.

This Heavy Duty Pump Soft Starter Cabinet Solution also provides “soft stop” to prevent water hammer – a common cause of pipeline bursts. Real‑time torque command reads slurry density on the fly. If you pump loose sand, the VSD reduces speed; when you hit a dense pocket of gravel or tailings, it instantly delivers more torque.

In real‑world dredging, mining dewatering, and aggregate processing, the cabinet automatically detects cavitation through torque ripple analysis and reduces pump speed before the impeller erodes. It also shuts down when dry running is detected, protecting the mechanical seal. With IP55 outdoor rating and remote monitoring via 4G or Ethernet, operators can adjust parameters from a control room miles away.

FAQ 1: How does the Heavy Duty Pump Soft Starter Cabinet Solution prevent reverse rotation damage?

Reverse rotation often happens when a submersible sand pump stops abruptly – the column of water falls back, spinning the motor backward. This can unscrew impellers, damage bearings, and even break the shaft.

The VSD Control Cabinet for Submersible Sand Pump handles this by controlling the ramp‑down sequence. Instead of a sudden stop, it gradually reduces frequency to zero while monitoring the motor’s back‑EMF. Once the pump reaches standstill, a DC injection brake holds the rotor in place for a few seconds. This eliminates all reverse rotation.

Additionally, the cabinet’s software includes an anti‑reverse logic that prevents starting the pump if any residual reverse spin is detected. For operators working in tidal rivers or deep wells, this feature alone can save thousands in repair costs each year.

FAQ 2: Can the Electric Drive Control System for Slurry Applications handle high‑density sand mixtures above 60% solids?

Yes. Unlike conventional starters that deliver full torque regardless of load, the Hydroman TJQ Pump Variable Speed Control System continuously measures motor current and voltage to calculate real‑time load. When the slurry concentration exceeds 60% solids, the VFD automatically increases frequency to maintain flow without stalling.

If the density becomes too high – for example, 75% sand – the system caps the speed at a safe threshold and alerts the operator via the remote interface. It also logs the event. You can set custom density limits: once exceeded, the cabinet will either reduce speed to prevent clogging or trigger an alarm.

Many sand mining sites in Southeast Asia use this Industrial VFD Panel for Submersible Pump Operation to pump heavy bottom sludge that would otherwise burn out a standard motor within weeks. The built‑in overcurrent protection and thermal modeling allow short bursts of 120% torque without tripping – perfect for clearing momentary blockages.

FAQ 3: What protection features come with the VSD Control Cabinet for Submersible Sand Pump?

The Energy Saving Control Cabinet for Sand Pump integrates six layers of active protection:

Motor overheat – using PTC thermistors embedded in the windings.
Water intrusion – moisture detectors in the stator housing; if humidity exceeds 90%, the cabinet shuts down the pump.
Cavitation prevention – torque ripple analysis. When cavitation begins, the VSD reduces speed by 20% instantly.
Dry‑run protection – a power monitor detects no‑load condition (current below 10% of rated) and stops the pump within 2 seconds.
Phase loss and under/over voltage – standard on all industrial VFD panels.
Ground fault – shielded with a fast‑acting residual current device (30 mA).

All these parameters can be set remotely via the Electric Drive Control System for Slurry Applications. The cabinet also stores the last 50 fault events with timestamps, helping maintenance teams diagnose issues without guessing.

For harsh environments like offshore dredging or high‑humidity river sites, the IP55 enclosure keeps dust and water jets out. Optional stainless steel cabinets are available for corrosive tailings ponds.

Upgrade Your Dredging Efficiency Today

Stop running your submersible sand pump at fixed speed and burning through high‑chrome parts every three months. Hydroman’s VSD Control Cabinet for Submersible Sand Pump cuts energy bills by half, extends component life by 300%, and eliminates unplanned downtime from cavitation or dry running.

Whether you need a stand‑alone Electric Soft Starter Cabinet for Slurry Pump or a fully integrated Hydroman TJQ Pump Variable Speed Control System with remote SCADA integration, we have a solution.

Explore Hydroman^® advanced pump control solution today. Request a quote for the Industrial VFD Panel for Submersible Pump Operation that matches your dredge’s flow rate and slurry density. Our engineers will help you size the right Heavy Duty Pump Soft Starter Cabinet Solution – complete with installation support and remote commissioning.
