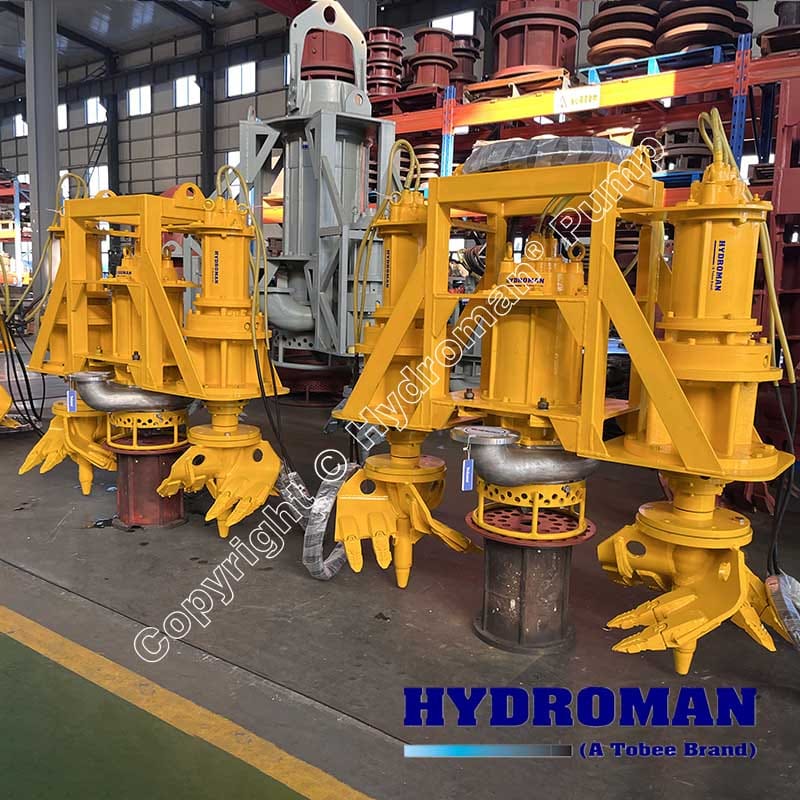

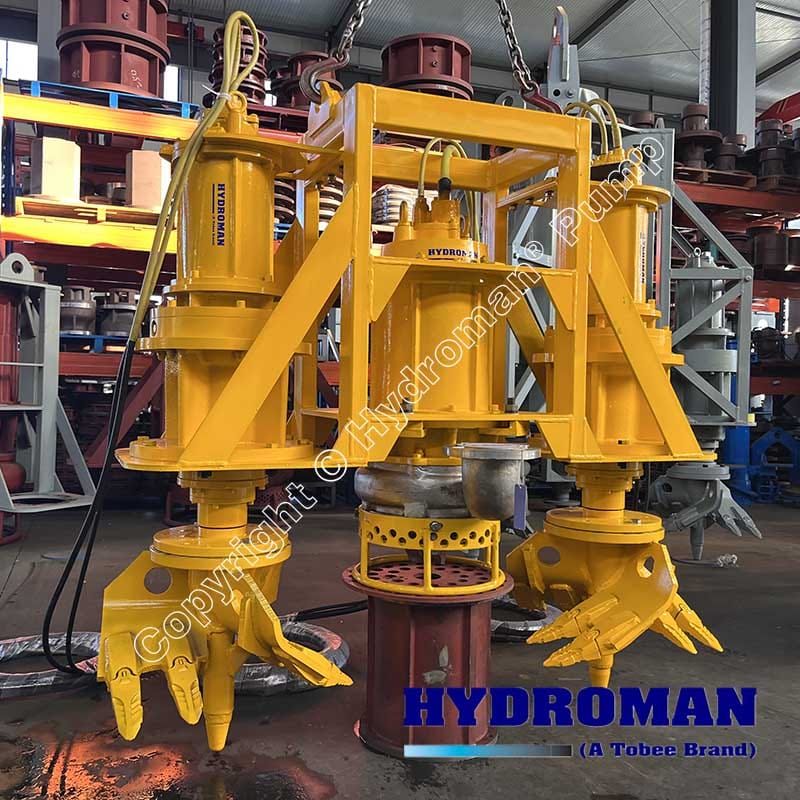

For the most demanding slurry, sand, and sludge applications, conventional pumping methods often fall short. Hydroman® delivers unmatched performance with our High Efficiency Submerged Slurry Pumps for Mining, construction, and industrial dredging. Our Industrial Submersible Pumps with 2 Side Agitators are engineered from the ground up to tackle compacted, abrasive materials head-on. Discover the power of our Vertical Electric Agitator Pump for Sand Removal, a cornerstone of our Reliable Underwater Sludge Dredging Pumps for Construction and processing industries. These Powerful Submerged Slurry Pumps for Sand Sludge represent the pinnacle of durable, agitator-enhanced pumping technology.

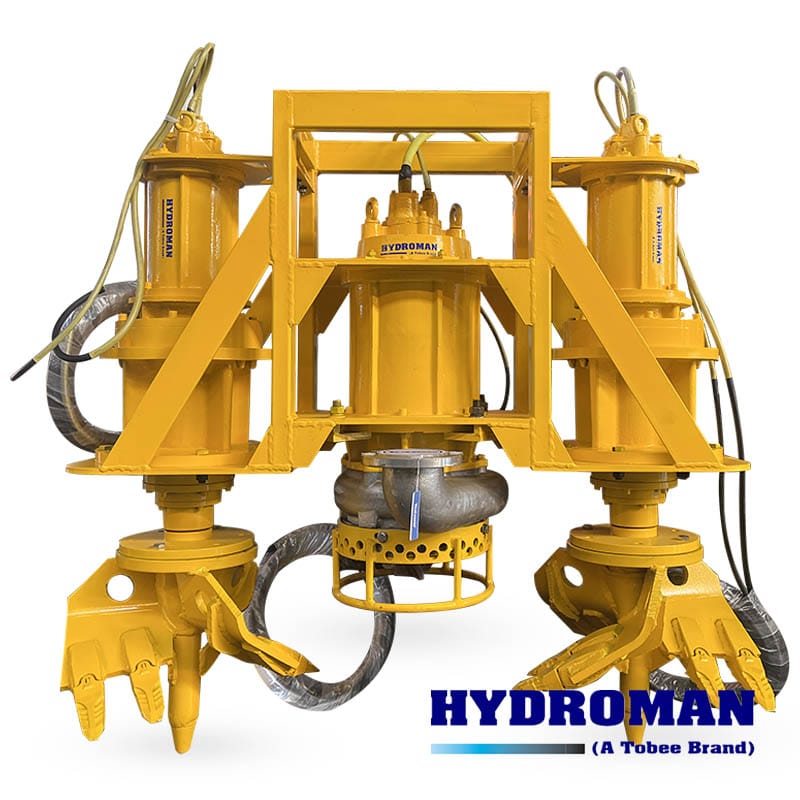

The defining feature of this pump is its integrated twin agitators. Unlike standard submersible pumps that can struggle with settled solids, our model proactively manages the slurry environment. The two high-chromium alloy agitators, positioned on either side of the pump suction inlet, rotate to mechanically dislodge and liquefy densely packed sediments like sand, silt, and viscous sludge.
This action prevents the formation of vacuum pockets and ensures a consistent, high-density mixture is fed into the impeller. The result is a significant reduction in the risk of clogging, minimized pump cavitation, and a dramatic increase in overall material transfer efficiency. It transforms a passive pumping unit into an active solids-handling system.
As a true Electric Vertical Submersible Slurry Pump, its design is optimized for direct immersion and vertical lifting. The 11kW (15HP) electric motor provides substantial power to move heavy slurries over considerable heads and distances. Being fully submerged is a key advantage; the surrounding fluid provides natural cooling to the motor, preventing overheating during continuous duty cycles, while the positive head pressure at the inlet improves pumping efficiency and stability.
The entire wetted end is constructed for extreme abrasion resistance. The impeller, agitators, and wear plates are typically manufactured from high-chrome cast iron, achieving a hardness of HRC 58-60, to withstand the scouring effect of sand and solid particles. This ensures extended service life even in the most punishing environments, handling solids concentrations often exceeding 60%.
Reliability in a submerged, abrasive setting is non-negotiable. Hydroman® pumps incorporate a heavy-duty, double mechanical seal system housed in a separate oil-filled chamber. This critical barrier is meticulously engineered to exclude water and fine abrasive particles from the motor compartment. The oil-lubricated chamber ensures the seals operate smoothly and coolly, granting exceptional protection and defining our pumps as truly Reliable Underwater Sludge Dredging Pumps for Construction and other high-stakes applications.
The versatility of these Powerful Submerged Slurry Pumps for Sand Sludge makes them indispensable across sectors:
1. What makes Hydroman® Industrial Submersible Pumps with 2 Side Agitators different from a standard slurry pump?
The key difference is the proactive agitation. Standard pumps rely on material flowing freely to the intake. Our pumps feature two hardened agitators that actively cut, mix, and suspend compacted solids like sand and sludge before they enter the pump. This prevents blockages, ensures a consistent slurry density, and drastically reduces pump-down times in sumps or settling ponds, offering a complete Heavy Duty Underwater Sand Sludge Pumping Solution.
2. Can these Vertical Electric Agitator Pumps for Sand Removal handle large solid particles?
Yes, but capacity depends on the specific model and impeller type. Hydroman® Electric Vertical Submersible Slurry Pumps with Agitators are designed with large, wear-resistant passageways. They can typically handle spherical solids up to 50-70mm in diameter, depending on the configuration, making them suitable for gravelly sands and coarse industrial wastes. It is crucial to match the pump’s solids-handling specification to your expected particle size.
3. Why is the submersible design advantageous for these Powerful Submerged Slurry Pumps?
Submersion offers three core benefits. First, it provides superior motor cooling via the surrounding liquid, allowing for continuous operation without overheating. Second, it creates a positive pressure head at the pump inlet, improving flow efficiency and priming. Third, it simplifies installation—the pump is simply lowered into the sump or liquid, eliminating the need for complex priming systems or long suction lines vulnerable to air leaks, which is vital for reliable underwater sludge dredging.
When your project involves challenging, abrasive slurries, settling solids, and demanding environments, half-measures are not an option. Hydroman® Electric Vertical Submersible Slurry Pumps with Agitators deliver powerful, reliable, and efficient performance where it counts. From mining sumps to construction dewatering, our engineered solutions are built to last and keep your operations running.
Ready to transform your slurry handling? Contact Hydroman® today for detailed specifications, expert application support, and to discover the right Industrial Submersible Pump with 2 Side Agitators for your specific sand and sludge removal needs.
