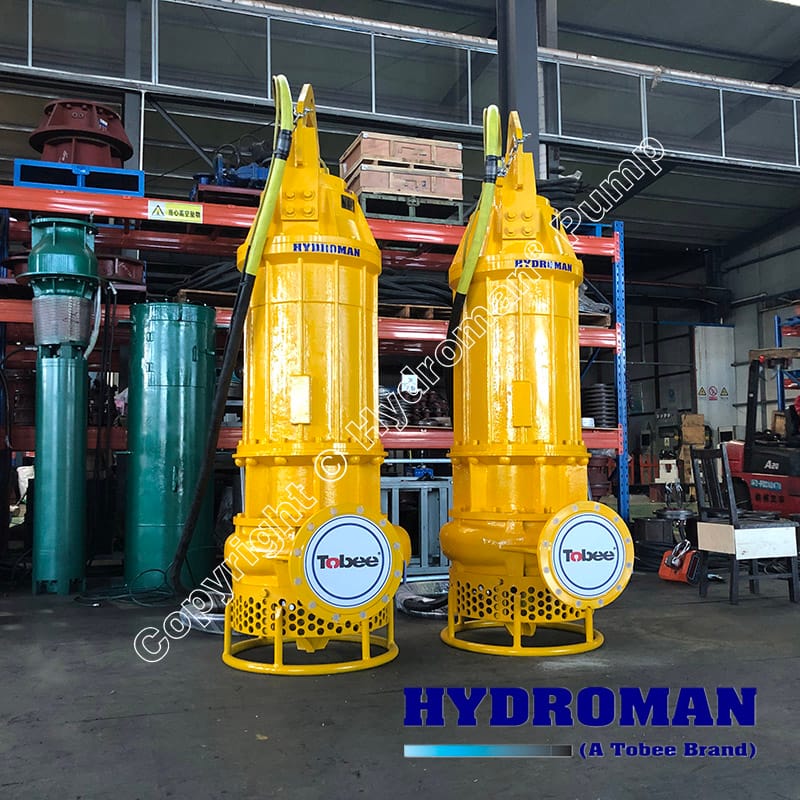

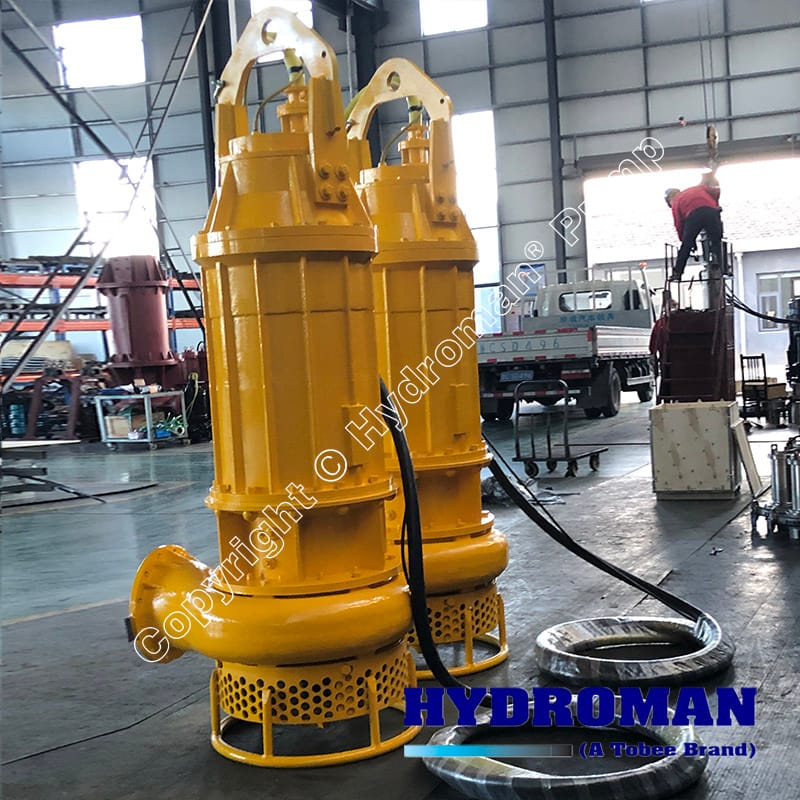

Hydroman® is the professional manufacturer of submersible slurry pump. Hydroman® sand dredging agitator submersible pumps equipped with a high-efficiency agitator, the pump stirs up settled solids at the bottom of the water body, enabling smooth and continuous material extraction. Hydroman® these pumps are heavy-duty, submersible slurry pump specially designed for pumping sand, sludge, silt, and other abrasive materials in dredging and mining operations.
| Parameter | Value |
| Flow Rate | Up to 2500 m³/h (customizable) |
| Head | Up to 150 m (customizable) |
| Solid Particle Size | Up to 120 mm |
| Power Rating | 3 kw – 315 kw |
| Voltage | 380V / 415V / 660V (customizable) |
| Material | High-Chrome Cast Iron / SS |
| Max Submergence Depth | 30 m(customizable) |
| Seal Type | Double Mechanical Seal |
| Attachment | Agitator, Cutter, Control Cabinet, Cable, Jet ring etc |
▪ River and lake dredging
▪ Sand and gravel extraction
▪ Slurry transfer in mining sites
▪ Harbor and dock maintenance
▪ Wastewater and sediment removal
▪ Integrated Agitator: Heavy-duty agitator at the suction inlet helps break up and suspend solids for continuous pumping.
▪ Wear-Resistant Materials: Impeller, agitator, and wear parts made from high-chrome alloy (Cr27 or higher) for maximum durability in abrasive environments.
▪ High Solids Handling Capacity: Capable of handling solids up to 60% by weight and particle sizes up to 120mm, depending on the model.
