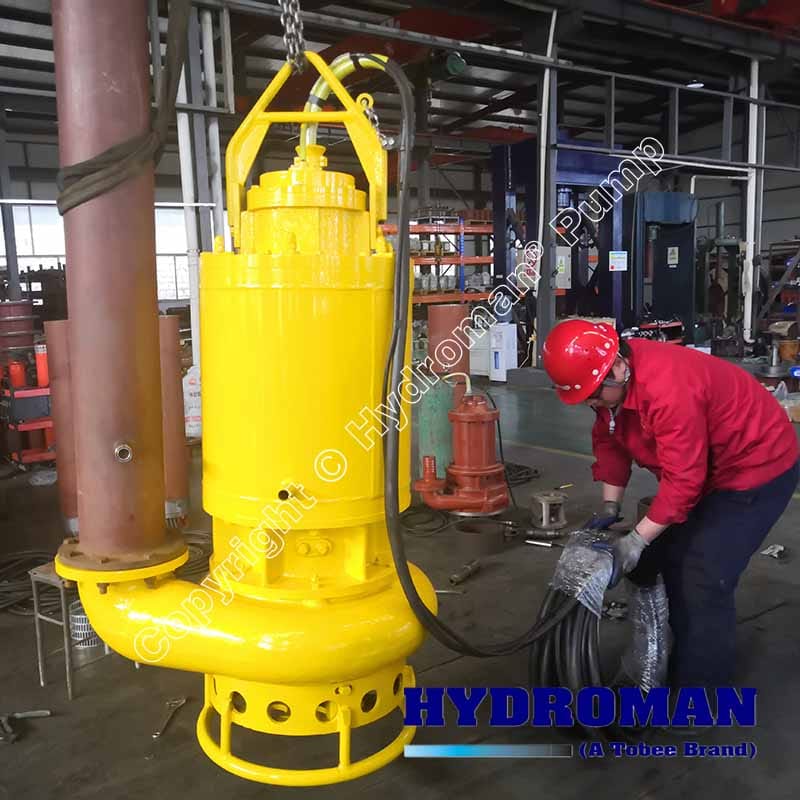

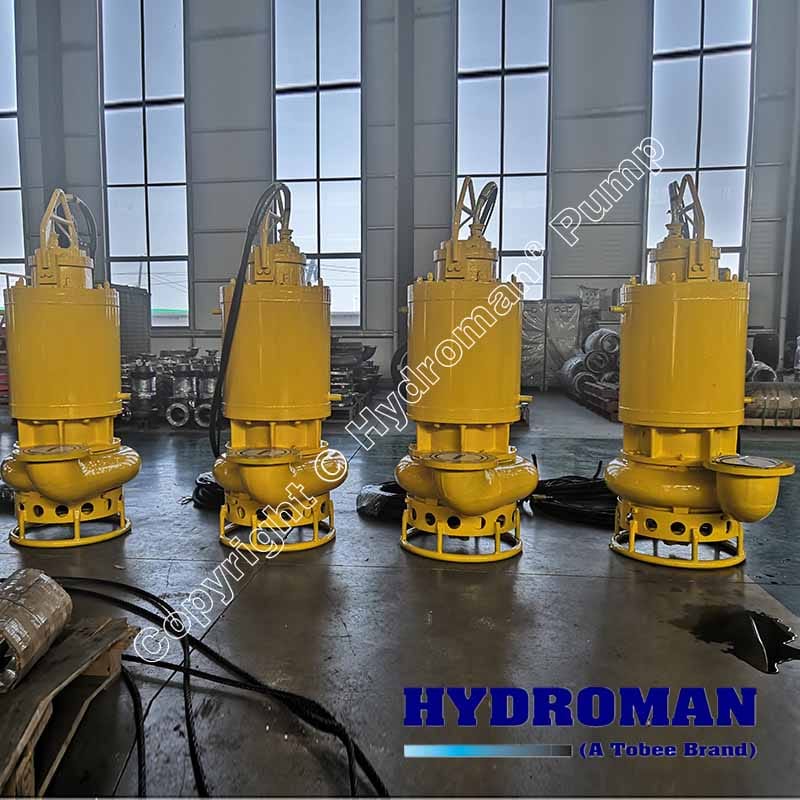

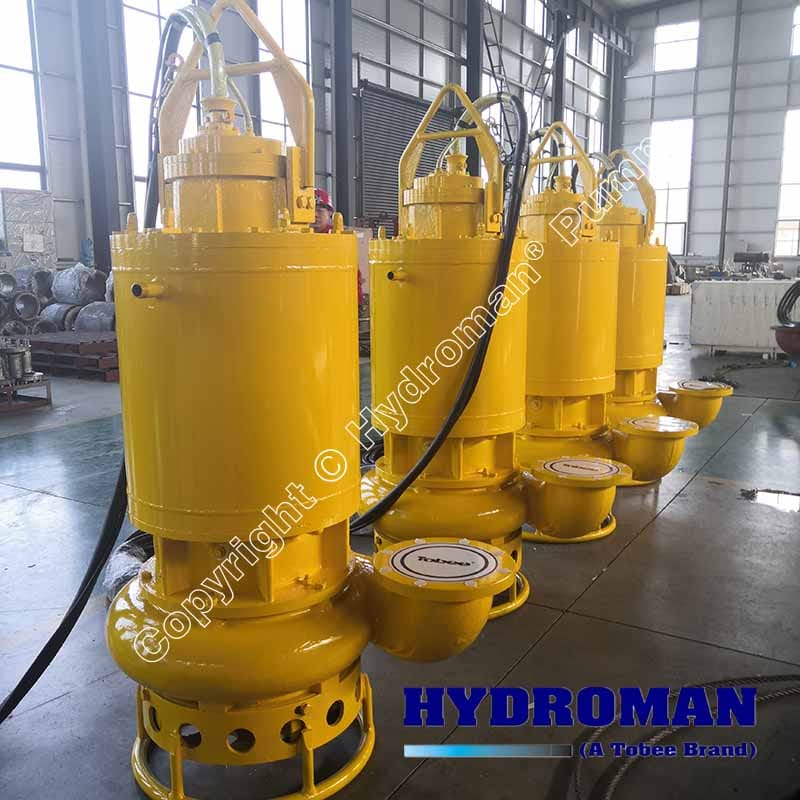

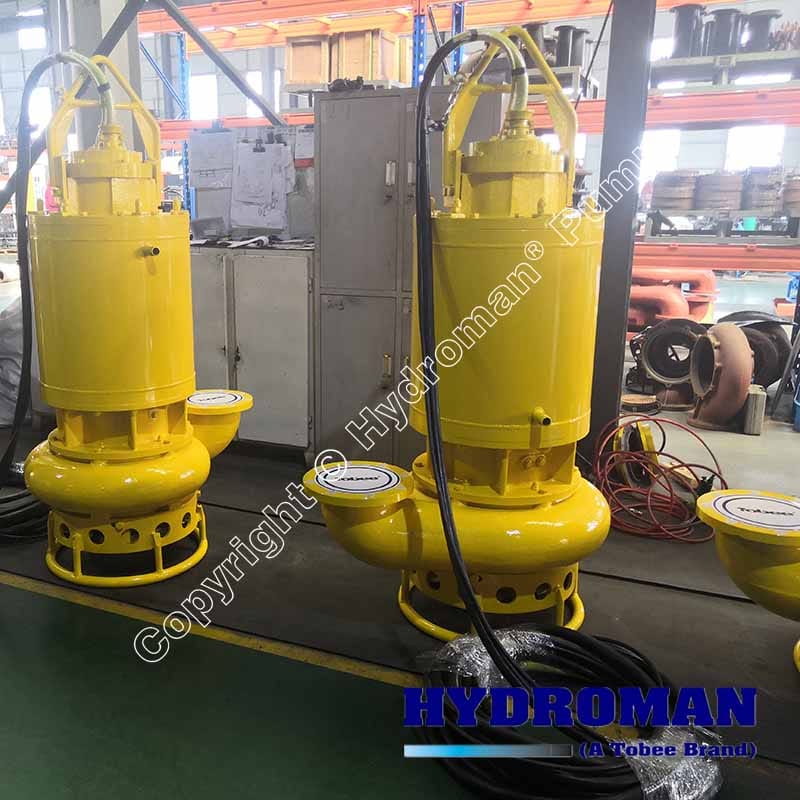

• A Submersible pump with cooling jacket is available for the pumping liquid or external liquid to be circulated around the motor stator housing. By forced convection, it can suction extra heating and ensure the pump effective cooling.
• Extremely dry installation pump require particular motor cooling. If necessary, Hydroman® slurry pump with cooling jacket supply addtional motor cooling if the pumped fluid is hot or if the vertical pumps are always pumped. The same suitable if the fluid is lower than the motor level.
• The cooling jacket can additionally made as an aluminum casing over the stator cover. In such a way the heat is going to be conveyed to the pumping fluid by the aluminum casing.
• Centrifugal Slurry Submersible Pumps Cooling Jacket is electro vertical pump with hyperchorome or duplex SS materials suit for pumping sand, slurry and mude etc.
• Rated for Class 1 slurries
media with up to 20% solids
• Size：6-10inch
• Capacity: 100-700m3/h
• Head: 10-50 m
• Power: 15kw-160kw
• Max. particle: 60mm
• Sealing arrangement: Double mechanical seal
• Agitator or Cutter heads: Available
• Materials: High chrome, Hyperchrome, SS304, SS316L, Duplex SS etc.
• Temperature rating: 40°C (105°F) max
• Run dry motor
• Connection type:
1/2 HP: MNPT
3 to 30 HP: Hose coupling (MNPT available)
50 to 100 HP: FNPT
• Impeller diameter(s): 3.4 to 14.2in
• Max solid size: 0.4 to 1in
• Agitator: included with 1 through 30 HP models
• Chopper Pump: available with 4/7.5 HP
• Integrated cooling jacket & thermal protection
• Double mechanical seal (single with 20 HP)
• Voltages: 110, 110/220, 460/575, 208, 230 V
• Cable included
• High standard production--Our Hydroman® submersible dredging pumps are made to pump liquid with a portion of sollids as the max weight density of ash can reach to 45% and the slag max weight density can reach to 60%.
• Longer life time--Wearing parts of cooling jacket pumps are all produced with abrasion-proof materials - hardness chrome alloy which can guarantee the slurry pumps longer using life and high stability.
• Higher safety--The Hydroman® Centrifugal pump motors has higher safety performance like as overheating protection, inlet detection projection and the electro vertical pumps can also work contiunously in challenge working enviroments.
• Double Mechanical seal with Hydroman® pumps--The dual or double mechanical seal composed of two independent seals installed in a seal chamber of the pump external, which is controlled by an individual power supply. This makes them available for seal dangerous fluids as abrasive or corrosive fluids, for the seal side only connect with clear lubrication highly growing the meachanical seal service life. In addtion, the seal device can protect the electro motor from high-pressure water and impurities, so higher pumping capacity can be ensured.
Deal with all kinds of wastewater with abrasive or corrosive in water and waste water projects and industries, particularly raw sewage containing long fibers and solid matter, liquids with gases or air, even as untreated active mud, desalination of seawater etc.
Convey wastewater, mud and solid water carrier for
• Effluent Treatment
• Water Treatment
• Construction Service
• Trenches and Basements
• Mining
• Civil Engineering
• Industrial
• Municipal
• Reprocessing
1: What is your product range?
A: Centrifugal pump and conveyor belt. Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump. Conveyor belts includes sidewall conveyor belt, flat conveyor belt and heat resistant conveyor belt.
2: What's your MOQ, payment term and lead time?
A: MOQ for centrifugal pump is 1 set, MOQ for conveyor belt is 100cbm.
Payment Term: T/T, L/C, Western Union, PayPal and Trade Assurance.
Lead Time: in general 7 working days for slurry pump, 15 working days for water pump. Customization for communication.
3: What information should l let you know if l want to get a quotation?
A: Pump capacity, pump head, medium, medium temperature, pump material, quantity, if pos-sible, please also provide the pump model you are using now, price will be calculated as per the pump model; if not, we will recommend relevant product for reference.
4: lf l put a bigger motor on my pump, will it pump more?
A: No. The amount of water and the pressure (head) that a centrifugal pump produces is related to the rotational speed, impeller diameter and size of the impeller vanes.
5: Do you impact the finished product?
A: Yes, each batch of production and finished product wil be quality checked strictly before delivering, testing report or video can be sent to clients for reference.
6: How do you ship the finished product?
A: By sea, by air, by international express.
