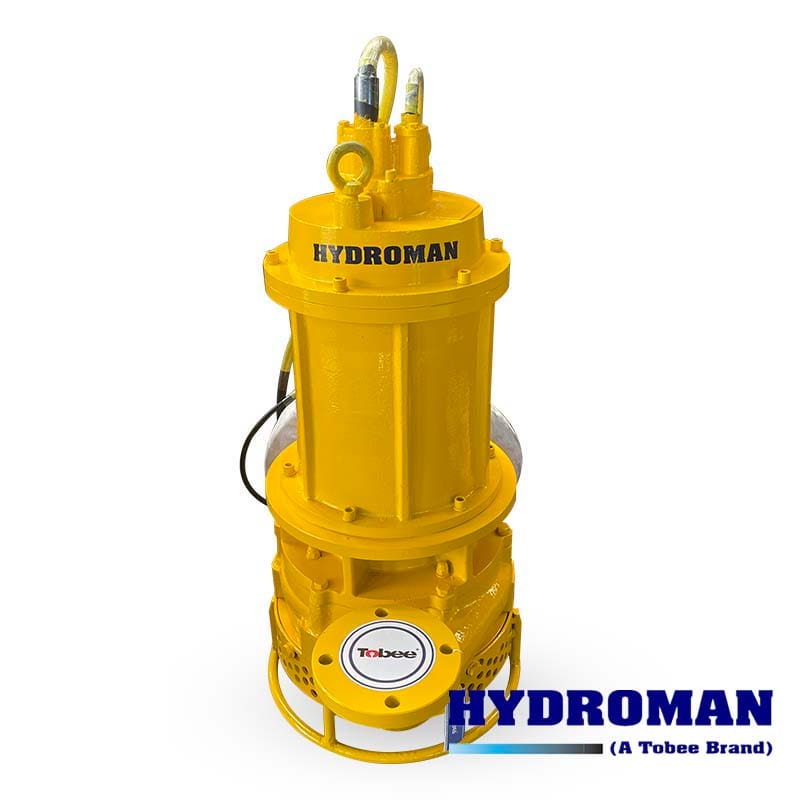

Hydroman® heavy-duty submersible centrifugal dredging marine pump enable to transfer up to 4000 cubic meters of material per hour through a maximum 23-inch discharge. The suction power can handle solids up to 120mm and transfers up to 70% solids without clogging. Also called Hydroman® TJQ submersible slurry pump, Hydroman® this type pump is an extremely rugged dredge pump for transporting the most abrasive solids from heavy-duty dredging situations.
▪ Capable of pumping wide array of materials
▪ Large selection of pumps and configurations
▪ Pump abrasive and gritty material with ease
▪ Allowing larger solids, up to 120mm
▪ Low maintenance
▪ Sand and sludge dredging
▪ Public facilities such as ports, canal, sediment dredging
▪ Mine waste such as sedimentation tank, pumping coal, slag and pit sand all contain solid material solution cleaning
▪ Industrial waste such as slag, dross, sludge, petroleum and asphalt residues dredging
▪ River silt dredging, underwater dredging, aggregate sludge cleaning, marble powder dredging, sewer silt dredging, etc
No. | Pump Type | Disch. DIA (mm) | CAP (m3/h) | Head (m) | Power (kw) | Rotation speed (r/min) | Eff. (%) | Biggest particles allow to pass (mm) | Weight (kg) |
1 | TJQ20-15-3 | 65 | 20 | 15 | 3 | 1460 | 43 | 10 | 110 |
2 | TJQ15-20-3 | 65 | 15 | 20 | 3 | 1460 | 43 | 10 | 110 |
3 | TJQ25-15-3 | 65 | 25 | 15 | 3 | 1460 | 43 | 10 | 110 |
4 | TJQ30-10-4 | 65 | 30 | 10 | 4 | 1460 | 43 | 10 | 120 |
5 | TJQ20-25-4 | 65 | 20 | 25 | 4 | 1460 | 43 | 10 | 120 |
6 | TJQ25-20-4 | 65 | 25 | 20 | 4 | 1460 | 43 | 10 | 120 |
