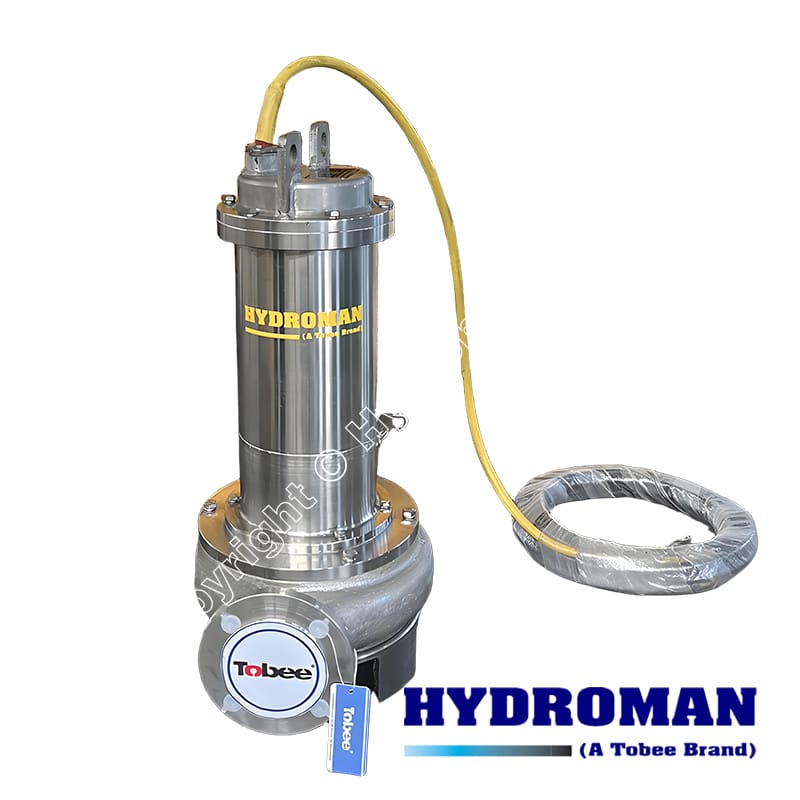

For harsh textile wastewater, choose the Hydroman® SS316L Submersible Sewage Pump for Textile Wastewater. This Electric Vertical Submersible Pump for Effluent Treatment operates fully submerged. As a Stainless Steel Sewage Pump for Dyeing Wastewater, it withstands pH extremes. It also serves as an Industrial Submerged Pump for Dirty Water Drainage moving fiber-filled effluent. Finally, it is a Corrosion Resistant Sewage Pump for Textile Industry with molybdenum-enriched 316L steel. Hydroman® SS316L Submersible Sewage Pump for Textile Wastewater is an electric vertical submerged solution for dirty water, sewage, and effluent handling without solids. Reliable, corrosion-resistant performance. Contact us today!
Why does textile effluent destroy ordinary pumps? Dyeing and finishing processes release aggressive chemicals—sulfuric acid, caustic soda, sodium chloride, and reactive dyes. Cast iron pumps corrode within months. Aluminum housings pit rapidly. The Hydroman® solution uses low-carbon 316L stainless steel, which contains 2–3% molybdenum. This alloy actively resists chloride-induced pitting and crevice corrosion, even at elevated temperatures. The “L” grade prevents weld decay, ensuring welded joints remain intact after years of submersion.
Engineered for continuous duty in aggressive environments, this pump includes five standout design elements:
Vortex Impeller with Fiber-Shedding Design
Unlike closed impellers that clog with textile lint and rags, the vortex impeller creates a turbulent flow path. Solids up to 2 inches pass without jamming. This feature reduces downtime for manual cleaning.
Double Mechanical Seal with Oil Chamber
The seal system includes a silicon carbide rotating face and a stationary carbon face, bathed in an oil reservoir. This arrangement prevents corrosive liquids from reaching the motor winding, even when the pump runs dry briefly.
IP68 Fully Submersible Motor Enclosure
Rated for continuous submersion up to 20 meters. The stainless steel housing dissipates heat directly into the surrounding liquid, eliminating overheating risks common with dry-well pumps.
Vertical Discharge Configuration
The Vertical SS316L Pump for Clean Effluent Handling design allows direct flange connection to rising pipelines. The motor sits above the wet end, keeping electrical components away from sediment buildup on sump floors.
Built-In Thermal Overload Protection
Embedded thermistors in the stator windings automatically cut power if temperatures exceed safe limits. After cooling, the pump restarts without manual reset—ideal for unattended textile effluent sumps.
Textile mills generate wastewater with pH fluctuations from 3 to 11. Sulfur dyes create acidic conditions; reactive dyes require alkaline fixation. Moreover, dyeing baths often contain Glauber’s salt (sodium sulfate) or common salt (sodium chloride), which accelerate galvanic corrosion in lesser alloys.
The Hydroman® pump’s 316L stainless steel offers three distinct advantages:
Operators report 3–5x longer service life compared to epoxy-coated cast iron pumps. Reduced replacement frequency lowers total cost of ownership despite higher initial investment.
The Hydroman® pump excels in specific textile mill scenarios where other pumps fail prematurely. Below are two priority applications.
Application 1: Dyeing House Collection Sump Transfer
(Using Stainless Steel Sewage Pump for Dyeing Wastewater)
After each dye batch, operators discharge residual liquor containing unfixed dyes, acetic acid, sodium hydroxide, and dispersing agents. These sumps also collect floor washdown water with loose fibers. The Stainless Steel Sewage Pump for Dyeing Wastewater handles temperatures up to 60°C (140°F) while resisting stress corrosion cracking. The vortex impeller passes fabric scraps, thread clumps, and even small rags without clogging. A typical installation involves a float switch–controlled pump that automatically transfers effluent to equalization tanks for pH neutralization. Mills using this pump reduce sump cleaning frequency from weekly to quarterly.
Application 2: Final Effluent Discharge to Municipal Treatment

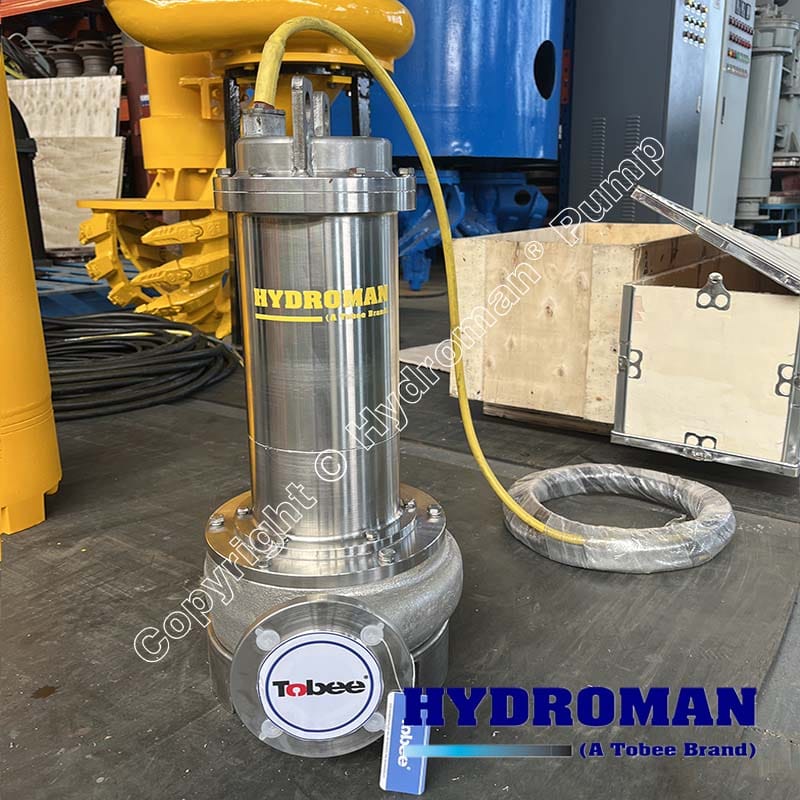

(Using Electric Submersible Pump for Wastewater Disposal Systems)
Before treated textile wastewater leaves the mill’s boundary, it must pass through a final lift station. Here, pH-adjusted and clarified effluent still contains trace chemicals and fine suspended solids. The Electric Submersible Pump for Wastewater Disposal Systems operates continuously, often with variable frequency drives to match fluctuating flow rates. The vertical SS316L construction minimizes footprint inside concrete wet wells. Because the pump handles “cleaner” effluent compared to raw dye baths, the Vertical SS316L Pump for Clean Effluent Handling designation applies—yet it retains full corrosion resistance for residual chlorides. Operators benefit from dry-pit reliability without the need for separate priming systems.
Q1: Can this pump handle long textile fibers without wrapping around the impeller?
Yes. The vortex impeller design creates a recessed chamber. Fibers, rags, and stringy materials pass through the volute without contacting the rotating element. Unlike semi-open impellers, there are no vanes to catch and wrap fibers. For extreme cases with fabric strips longer than 12 inches, we recommend installing a basket strainer upstream.
Q2: What is the maximum allowable chloride concentration for this pump?
The 316L stainless steel reliably withstands continuous exposure to 1,000 ppm chlorides at 50°C (122°F). For intermittent peaks up to 2,500 ppm (common in brine discharge from dye fixing), the pump maintains integrity. Above 3,000 ppm or at temperatures exceeding 70°C, we advise upgrading to duplex stainless steel. Always provide your water analysis for a precise recommendation.
Q3: Is the pump available with automatic operation (float switch)?
Absolutely. Hydroman® offers both manual and automatic models. The automatic version includes a built-in float switch or external control panel with level electrodes. For sumps with variable inflow, we supply a vertical SS316L pump with a level control system that prevents dry running. Manual models are suitable for timer-based or PLC-controlled systems.
Stop replacing corroded pumps every season. The Hydroman® SS316L Submersible Sewage Pump for Textile Wastewater delivers years of reliable service in dyeing houses, finishing plants, and effluent treatment stations. Whether you need an Electric Vertical Submersible Pump for Effluent Treatment or a Vertical SS316L Pump for Clean Effluent Handling, our engineering team will match the correct impeller size, motor power (0.75kW to 22kW), and discharge flange (2” to 6”) to your flow and head requirements.
Contact us today for a quote or site assessment. Provide your pH range, chloride concentration, fiber content, and required flow rate (m³/h or GPM). Hydroman® ensures fast delivery, OEM spare parts, and 18-month warranty. Hydroman® SS316L Submersible Sewage Pump for Textile Wastewater is an electric vertical submerged solution for dirty water, sewage, and effluent handling without solids. Reliable, corrosion-resistant performance. Contact us today!
