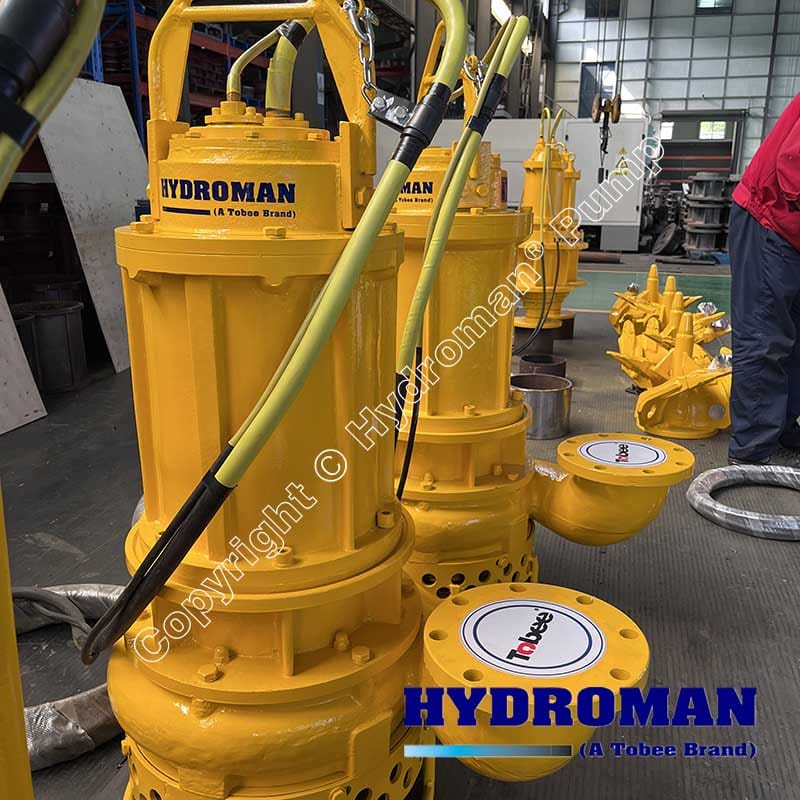

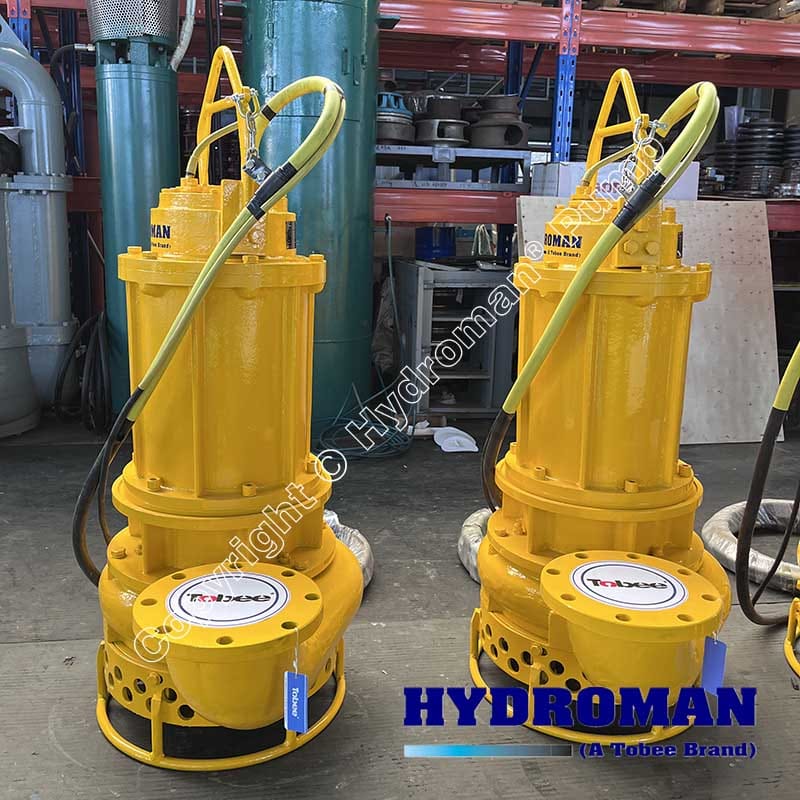

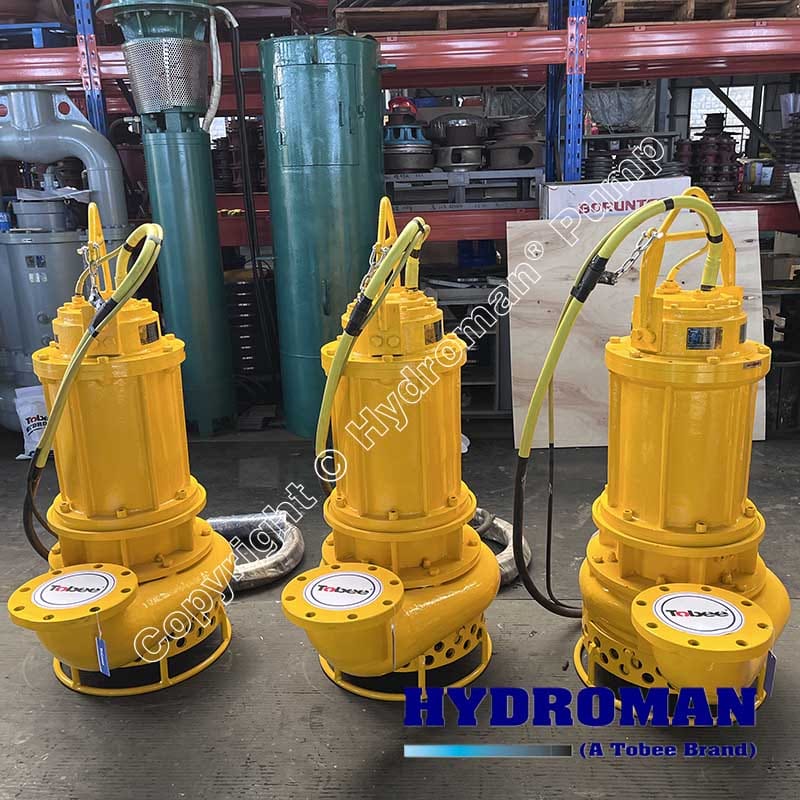

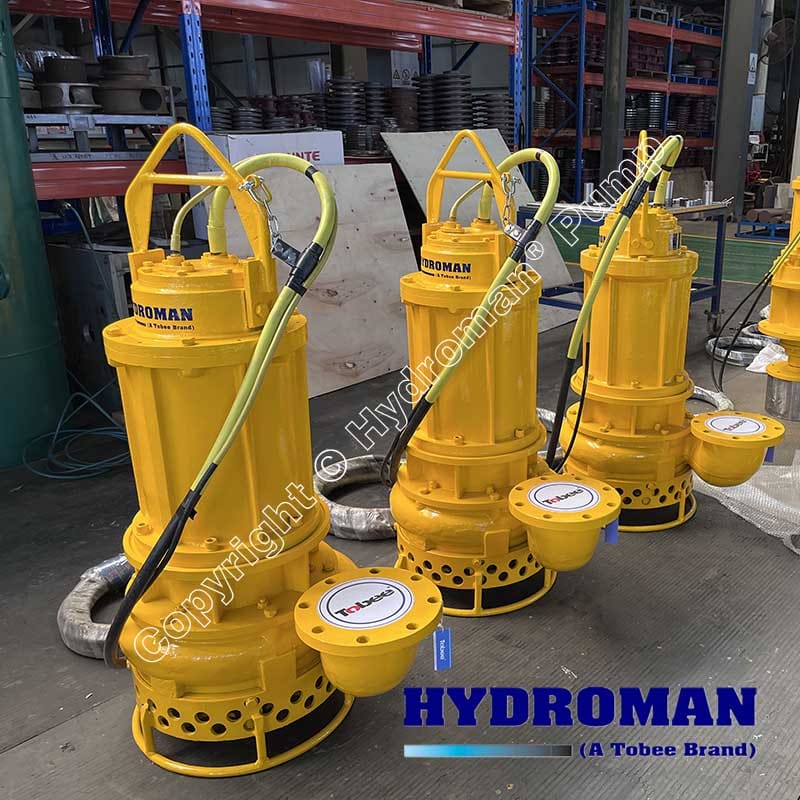

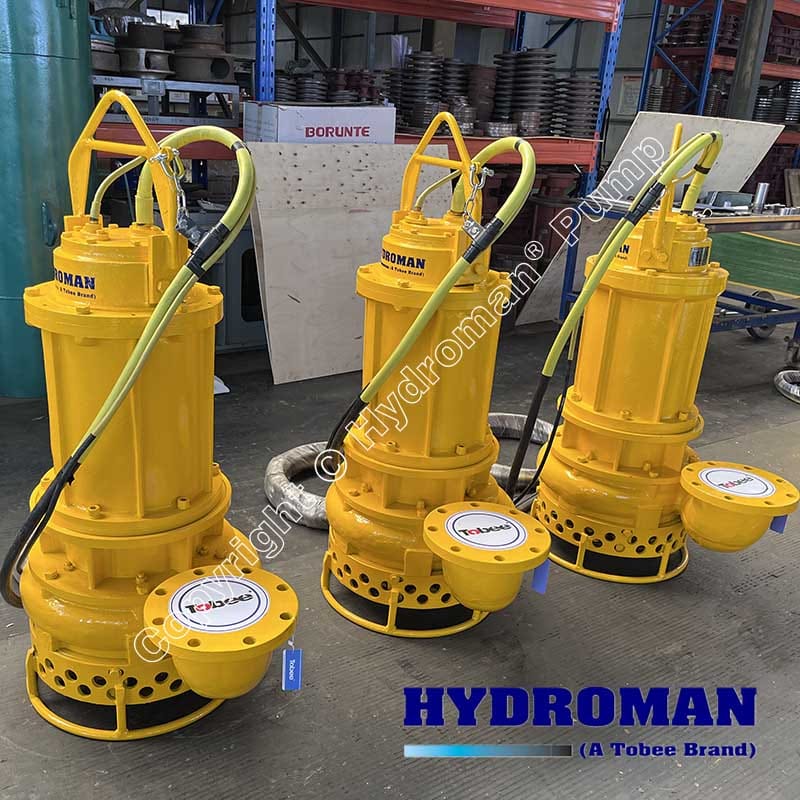

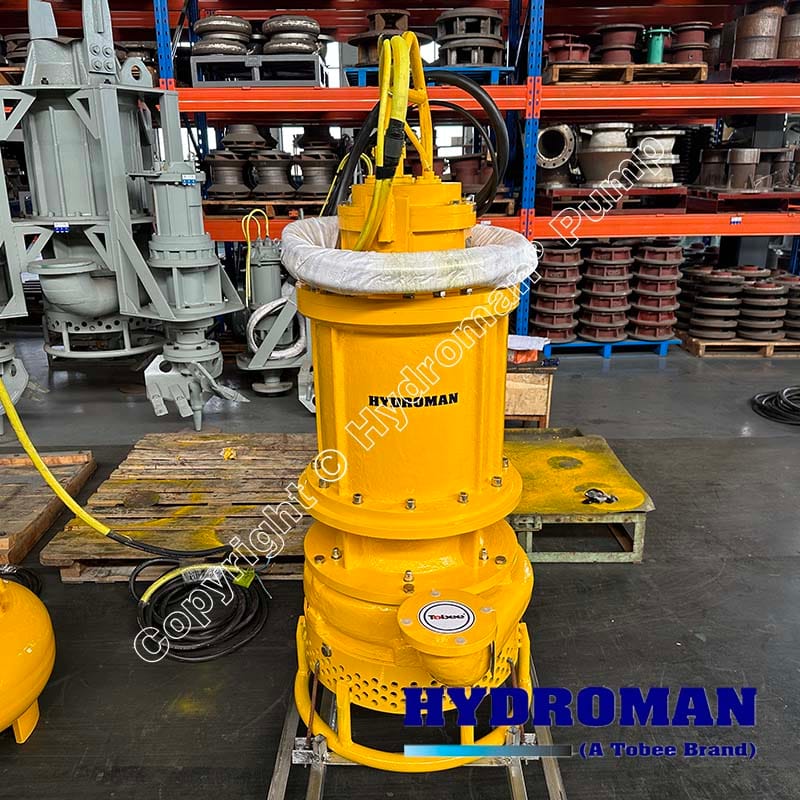

Submersible Mud Dredge Sand Slurry Pump for Removing Sludge

Hydroman^® Submersible Mud Dredge Sand Slurry Pump for Removing Sludge is a heavy-duty, wear-resistant pump specifically engineered for efficient removal of thick sludge, abrasive sand, and silt from rivers, lakes, ponds, harbors, construction sites, and industrial basins. Hydroman^® submersible agitator sand pump is designed for continuous operation in harsh and submerged environments, hydroman^® submersible dredging sand pump delivers reliable performance in high solids and high-viscosity applications.

Hydroman^® Submersible Mud Dredge Sand Slurry Pump for Removing Sludge Working Principle

• The electric motor drives the impeller to rotate at high speed, creating centrifugal force.

• This draws in the sludge/slurry mixture through the suction inlet and pushes it outward through the discharge outlet.

• Optional agitator or jet ring system stirs settled solids at the suction area, preventing sediment buildup.

• The entire unit operates underwater, delivering consistent pumping without cavitation or priming issues.

Hydroman^® Submersible Mud Dredge Sand Slurry Pump for Removing Sludge Components


• Impeller: Semi-open or closed design, made of Cr27 high chrome alloy for superior wear resistance.

• Pump Casing: High-chrome cast iron with large internal flow passages to reduce clogging.

• Agitator: Mounted on the motor shaft to agitator and re-suspend solids at the suction inlet.

• Shaft Seal: Double mechanical seal (silicon carbide or tungsten carbide), isolated by an oil chamber for extra motor protection.

• Motor: IP68-rated submersible motor with class F or H insulation, overload, and moisture protection.

• Cabling: Custom-length underwater-grade power cable, sealed to prevent water ingress.

• Bearings: Heavy-duty anti-friction bearings to handle axial and radial loads.

• Cutter Heads (Optional): Side cutters can be installed to fragment compacted material before suction.

Hydroman^® Submersible Mud Dredge Sand Slurry Pump for Removing Sludge Suitable Fluids

• Sludge with sand or gravel

• Mineral tailings and ore slurry

• Construction foundation mud

• Dredging sediment from rivers/lakes

• Wastewater with suspended solids

• Sewage sludge with fibrous material

Hydroman^® Submersible Mud Dredge Sand Slurry Pump for Removing Sludge Application

• River/Lake/Canal Dredging

• Pond and Lagoon Sludge Removal

• Mining Tailings Pond Pumping

• Sewage Treatment Sediment Transfer

• Tunnel/Trench Dewatering

• Industrial Tank Desilting

• Offshore Sand Reclamation Projects
