When compacted sand and abrasive slurry keep fouling your pump, you need something that cuts through the deposit instead of choking on it. This is what Hydroman's electric submersible sand pump with 4 side cutters and integrated agitator was built to do.
If you've run a pump at a Bohrium mine site for more than a season, you already know the pattern: sand settles overnight, packs down under its own weight, and by morning your suction line is fighting a wall instead of a slurry. Bohrium mine operations typically involve sand deposits, sediment build-up in settling ponds, mineral slurry transfer between processing stages, and feed material that carries a much higher solids concentration than a standard dewatering job.
A general-purpose submersible sand pump wasn't built for that. It was built for water with some grit in it, not for compacted layers that have had hours to cement together. When you push it into that kind of duty, you get the same three failures over and over: the inlet clogs on oversized particles, the casing and impeller wear out fast because of abrasive slurry, and the pump keeps tripping because it can't clear settled solids fast enough to keep priming.

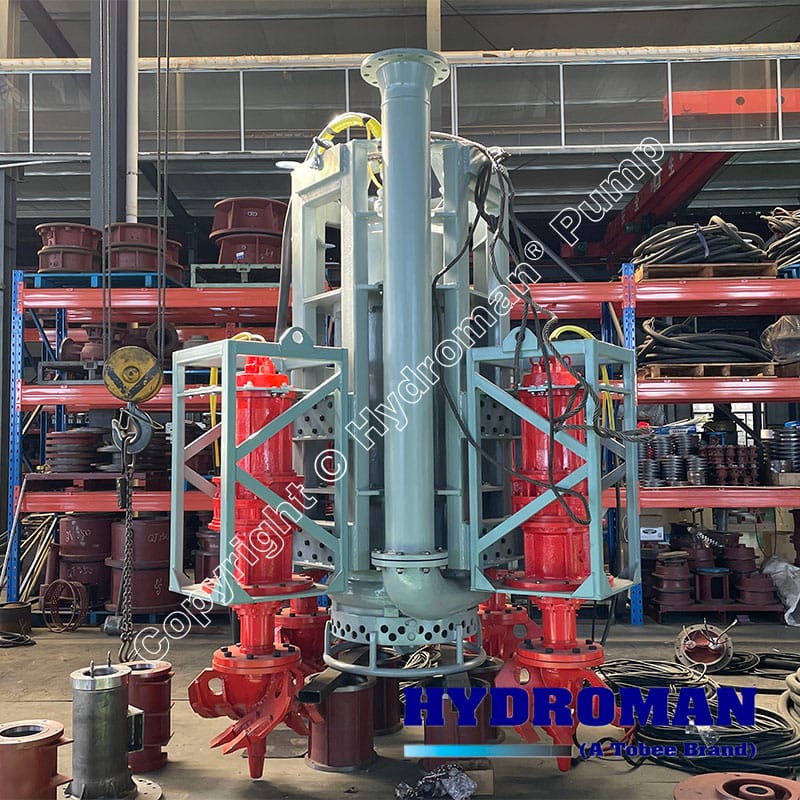

Hydroman's answer is an electric submersible sand pump with 4 side cutters, paired with agitation and wear-resistant construction. Instead of hoping the sand stays loose, the pump actively breaks it up, keeps it in suspension, and moves it as a continuous, pumpable slurry. That combination is really the whole idea behind this page.

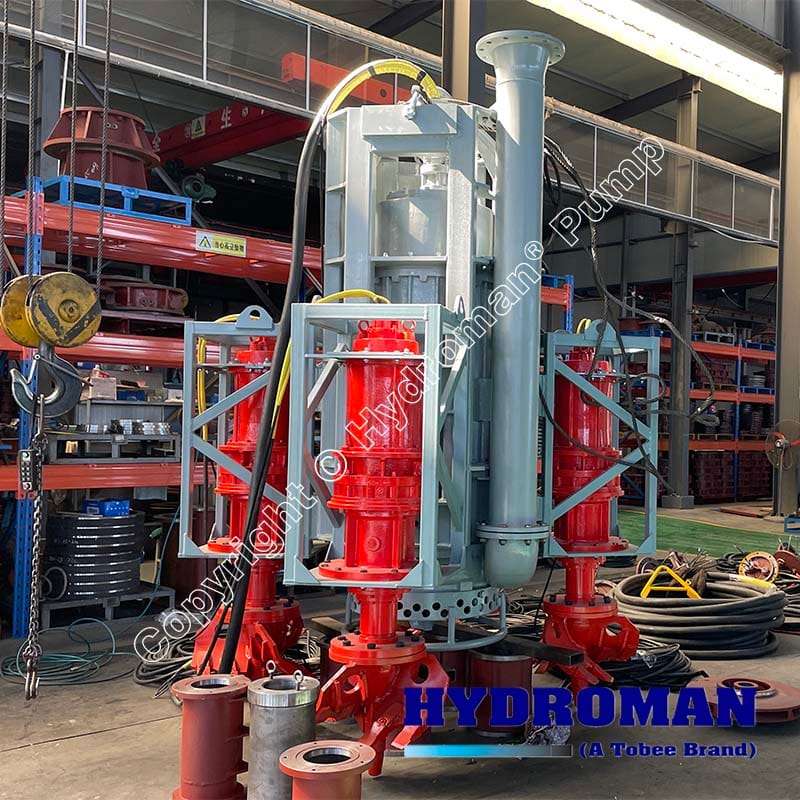

In plain terms, a submersible sand pump with 4 side cutters is a heavy-duty slurry pump that sits underwater, right at the point where the sand actually is, and does three jobs at once: it cuts, it stirs, and it pumps. That's different from a pump that just relies on suction and hopes the material flows in on its own.
Electric Motor Drive System
Hydroman builds this as an electric submersible sand pump rather than a hydraulic one. A submersible electric motor, oil-cooled and protected by mechanical seals, drives the shaft directly, so there's no hydraulic power pack, no hoses running to a separate power unit, and no fluid to maintain on that side of the system. For a fixed mining site running multiple shifts, that means faster installation, a stable power draw you can plan a site's electrical load around, and a lot less routine maintenance than a hydraulic setup demands. |  |

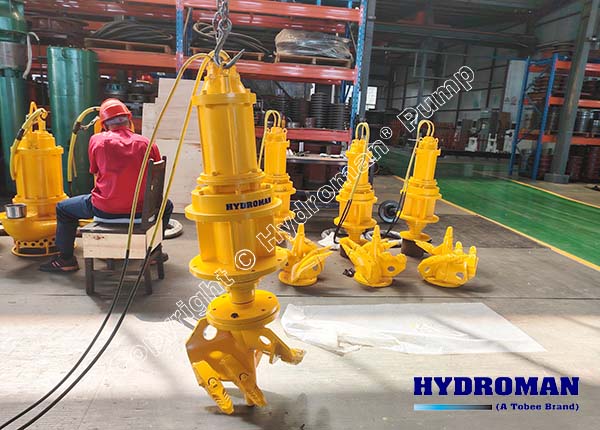

 | Four Side Cutter System for Sand Breaking
The four cutters sit around the suction inlet and rotate with the shaft, chewing into compacted sand and hardened sediment before it ever reaches the impeller. In practice this does a few concrete things: it breaks up sand that has cemented into a crust, it loosens material that would otherwise bridge across the intake, it keeps the effective suction area open, and it cuts down on the blockages that are the single most common reason a sand pump gets pulled for service. |
Agitator-Assisted Sand Slurry Handling
Around the cutters, an agitator stirs the water immediately surrounding the suction inlet. This keeps fine sand in suspension rather than letting it settle back down between pump cycles, which is exactly what a submersible sand pump with agitator is designed to solve. The practical benefit is a higher achievable solids concentration in the discharge, meaning fewer pump-hours are spent moving mostly water and more of each cycle is spent moving actual material. |  |
The sequence is straightforward, and it's worth walking through because it explains why this design holds up where a plain submersible sand slurry pump doesn't.
Step 1 — the cutter breaks compact sand. As the pump lowers into the deposit, the rotating cutter blades work into the packed layer, breaking it into particles small enough to be drawn in.
Step 2 — the agitator mixes sand with water. Immediately after the cutter loosens material, the agitator keeps it suspended in the surrounding water rather than letting it drop straight back down.
Step 3 — the impeller generates slurry flow. A heavy-duty impeller, typically cast from a high-chrome wear-resistant alloy, converts that suspended mixture into a continuous flow toward the discharge port.
Step 4 — slurry is transported through the pipeline. The pump then pushes the sand and water mixture through the discharge hose or pipeline to a settling pond, processing plant, or disposal point, functioning at this stage exactly like a submersible sand dredging pump.
The reason this matters is throughput consistency. A pump that only relies on suction sees its flow rate drop the moment the material in front of it compacts. A cutter-and-agitator design keeps feeding itself loose, pumpable slurry, so the flow rate you measured on day one is closer to what you're still getting in month six.
The motor is sized for continuous underwater duty rather than intermittent use, which matters in mining environments where the pump may run around the clock across shifts. Class F or H insulation and thermal protection are standard on Hydroman's electric submersible sand pump line, so the motor can handle sustained load without nuisance trips.
Sand is one of the most abrasive materials a pump will ever see, and it's the reason ordinary pumps wear out in months rather than years. Hydroman uses a high-chrome alloy (commonly around 25-27% chromium content, with hardness in the range of 58-62 HRC) for the impeller and wear plate, along with a wear-resistant casing and easily replaceable wear parts, so that when something does eventually wear down, it's a low-cost part swap rather than a full pump rebuild.
The pump is rated to handle sand, gravel, mineral slurry, and tailings, including feed with solids concentrations that would stall a standard sludge pump. This is the same capability that lets it double as a submersible sludge pump or submersible slurry pump in adjacent duties around a mine site, such as tailings pond cleanup or thickener underflow transfer.
Because there's no hydraulic power unit to site, hose, and maintain, installation is mostly a matter of lowering the pump, connecting the discharge line, and wiring the power and control cable. That's a meaningful advantage for smaller sites or temporary dredging setups where a full hydraulic package isn't practical.
The 4-cutter, agitator-driven design was developed for mining, but the same core pump platform, scaled down, covers a much wider set of jobs around a site.
| Sector | Typical Duty |
|---|---|
| Mining | Bohrium and other mineral mining, ore slurry transfer, tailings recovery |
| Dredging | River sand dredging, reservoir cleaning, sediment removal from settling ponds |
| Aggregate processing | Sand recovery from wash plants, gravel pumping between stockpiles |
| Sump pumps | Dewatering sand-laden sumps on construction and quarry sites |
| Sewage & effluent pumps | Grit-heavy effluent transfer where fibrous sludge and sand mix |
| Pond pumps | Fish pond, irrigation pond and stormwater pond desilting |
On a construction site, the same platform is often just called a sump pump for sand-heavy water. In a treatment plant, the identical duty gets filed under sewage and effluent pumps. On a fish farm or irrigation reservoir, it's a pond pump clearing out silt. It's worth knowing that whichever label your industry uses, the underlying requirement is the same: move water that's carrying more solids than a standard pump was designed for, without clogging or wearing out early.
Not every job needs a full mining-spec unit with cutters. Hydroman's range scales from small submersible sand pump models for light sump and pond duty up through multi-cutter mining units, and matching the size to the job is where most buyers either save money or waste it.
| Power | Typical Use Case | Approx. Discharge |
|---|---|---|
| 0.75 HP | Small submersible sand pump for garden ponds, light sump drainage | 1.5"-2" |
| 1 HP | Residential/light commercial sump, small pond desilting | 2" |
| 1.5 HP | Construction dewatering with moderate sand load | 2"-3" |
| 3 HP | Quarry sump duty, aggregate wash plant recirculation | 3"-4" |
| 5 HP | Small dredging jobs, tailings pond transfer | 4" |
| 7.5-375 kW range | Full mining duty with 4 side cutters and agitator | 4"-16" |
As a rule of thumb, if you're pumping mostly water with occasional sand and your head requirement is under about 10 meters, a 0.75 HP to 1.5 HP unit is usually enough. Once you're dealing with compacted sand, continuous high-solids slurry, or discharge distances over 100 meters, that's when the cutter-and-agitator models start to earn their keep.
This is one of the first forks in the road when you're specifying a pump, and the honest answer is that neither option is universally better — it depends on what power source is already available at your site.
| Feature | Electric Submersible Sand Pump | Hydraulic Submersible Sand Pump |
|---|---|---|
| Power source | Electric motor, fixed site power | Hydraulic power unit or excavator hydraulics |
| Installation | Simpler — power and control cable only | Requires hydraulic hoses and a power pack |
| Maintenance | Lower — no hydraulic fluid or hose wear | Higher — hydraulic seals, hoses, fluid changes |
| Best fit | Mining plants, fixed dredging sites, treatment plants | Excavator-mounted dredging, mobile jobsites |
| Operation | Continuous, stable electric supply | Tied to hydraulic equipment uptime |
Hydraulic submersible sand pumps make a lot of sense where you're already running an excavator on site and want to mount the pump directly to it for mobile dredging. But for a fixed installation — a mine's tailings line, a treatment plant's grit channel, a permanent sump — an electric submersible sand pump is usually the more economical and lower-maintenance choice over the life of the equipment.
If you've been shopping around, you've probably already come across Tsurumi submersible sand pumps and Toyo submersible agitator sand pumps — both are established names, particularly in dewatering and construction dredging. They're solid, well-proven products for their intended duty. The comparison worth making isn't about brand reputation so much as which configuration actually matches your solids load and abrasion profile.
| Feature | Hydroman | Typical Industry Standard |
|---|---|---|
| Drive type | Electric submersible, mining-duty motor options | Electric or hydraulic, general duty |
| Cutter system | 4 side cutters available for compacted sand | Usually single agitator, no dedicated cutters |
| Solids handling | High-concentration slurry rated | Medium to heavy slurry |
| Wear resistance | High-chrome alloy wet end, replaceable wear parts | Varies by model and price tier |
| Customization | Mining-specific configurations on request | Standard catalog range |
When you're comparing something like a Tsurumi submersible sand pump or a Toyo submersible agitator sand pump against Hydroman's line, the questions that actually matter are: does the cutter arrangement match your compacted-sand condition, what alloy is the impeller cast from, and what solids concentration is the pump actually rated for versus what it can survive for a week before wearing out. Those specifics tell you more than the badge on the motor housing.
Getting the size submersible sand pump question right up front saves you a re-order later. Five things to work through before you buy:
If you're weighing up what genuinely is the best submersible sand pump for your site, the honest answer is: whichever one is correctly sized and configured for your sand, not necessarily the biggest or most expensive unit on the spec sheet.
Below is a representative specification range across the Hydroman electric submersible sand pump line, including the 4-side-cutter mining configuration.
| Model Range | Power | Discharge Size | Max Flow | Max Head | Cutter Option |
|---|---|---|---|---|---|
| Compact / sump duty | 0.55-1.5 kW (0.75-2 HP) | 50-80 mm | up to 30 m³/h | up to 12 m | Standard agitator |
| Medium / pond & construction | 2.2-5.5 kW (3-7.5 HP) | 80-100 mm | up to 90 m³/h | up to 20 m | Agitator, optional 2-cutter |
| Mining / dredging duty | 15-160 kW | 100-300 mm | 150-1500 m³/h | 15-45 m | 4 side cutters + agitator |
| Heavy mining duty | 160-375 kW | 300-400 mm | 1500-3000+ m³/h | up to 60 m | 4 side cutters + agitator |
Exact figures vary by model and are confirmed at order stage against your sand gradation, slurry density and site head requirement.
Submersible sand pump price varies enormously with power and configuration, so it's worth breaking the question down rather than asking for one number. A small submersible sand pump in the 0.75-1.5 HP range for sump or pond duty sits at the low end of the market. Add a cutter system, higher-chrome wear parts, and mining-duty motor protection, and the price climbs with the added capability — which is exactly what you're paying for when material abrasion and continuous duty are part of the job.
If you're planning to buy a submersible sand pump for a project with an ongoing sand or slurry duty, it's worth budgeting for wear parts from day one rather than treating them as a surprise cost later. A replacement submersible sand pump impeller or wear plate is a routine, low-cost maintenance item on a well-designed unit; replacing the whole pump because a non-replaceable part wore through is the expensive outcome you're trying to avoid.
Looking at pumps for sale and comparing "submersible sand pump price" across suppliers? Ask each one for the actual wear-part warranty and expected wear-part life at your slurry density — that number tells you more about total cost of ownership than the sticker price on the pump alone.
A representative Bohrium mine site brief looked like this: sand and mineral fines settling overnight in a transfer sump, a discharge run of roughly 150 meters to the next processing stage, and a history of standard pumps clogging within days because the settled layer had compacted too hard for suction alone to break up.
The fix followed the same logic covered on this page: an electric submersible sand pump with 4 side cutters was sized to the sump's sand gradation and required flow rate, with a high-chrome wet end specified for the abrasive mineral content in that particular ore. The cutters handled the overnight compaction, the agitator kept the suction zone loose between cycles, and the pump ran the full transfer distance without the blockages that had been shutting the line down under the previous setup.
It's a fairly typical mining case, and it's exactly the profile this pump platform was built around: not clean water with a bit of grit, but sand that has had time to settle, harden, and fight back.
Plenty of submersible sand pump manufacturers can sell you a motor in a housing. What you actually need from a manufacturer on a mining or dredging job is someone who understands why your last pump failed and can configure the next one so it doesn't repeat the same failure.
Send us your sand particle size, solids concentration, and required discharge distance, and we'll come back with a configuration — cutters, agitator and materials — sized for your actual conditions, not a generic catalog spec.
Sara Liang
+86 189 3110 6396 (Whatsapp/Wechat)
Inquiry@tobeepump.com
It's a pump designed to run fully underwater and move water carrying a high load of sand, grit or mineral solids, rather than clean or lightly contaminated water. It combines a submersible electric motor with a wear-resistant wet end built to handle abrasive material.
The four cutters actively break up compacted sand and hardened sediment around the suction inlet before it reaches the impeller, which prevents the blockages and bridging that shut down pumps relying on suction alone.
Yes, provided the wet end is built for it — a high-chrome alloy impeller and casing, along with replaceable wear plates, are what let an electric submersible sand pump survive continuous abrasive duty rather than wearing out in weeks.
Electric models run off site power and are simpler to install and maintain for fixed installations. Hydraulic models depend on a hydraulic power unit or excavator, which suits mobile dredging but adds hydraulic maintenance overhead.
Work from your sand particle size, solids concentration, pumping distance and required flow rate, then match motor power to those figures rather than picking by pipe size alone. See the sizing and specification tables above for reference ranges.
Hydroman specializes in mining and dredging-duty submersible pumps, with configurations built around each site's actual sand and slurry conditions rather than a single fixed catalog spec, backed by direct technical support for sizing and installation.
Yes — the same cutter-and-agitator platform functions as a submersible sand dredging pump for river sand recovery, reservoir desilting and sediment removal, in addition to fixed mining and industrial duty.
The wetted parts — impeller, wear plate and casing liner — are typically cast from a high-chrome alloy in the 25-27% chromium range, hardened to roughly 58-62 HRC, with wear parts designed to be replaced individually rather than requiring a full pump rebuild.
