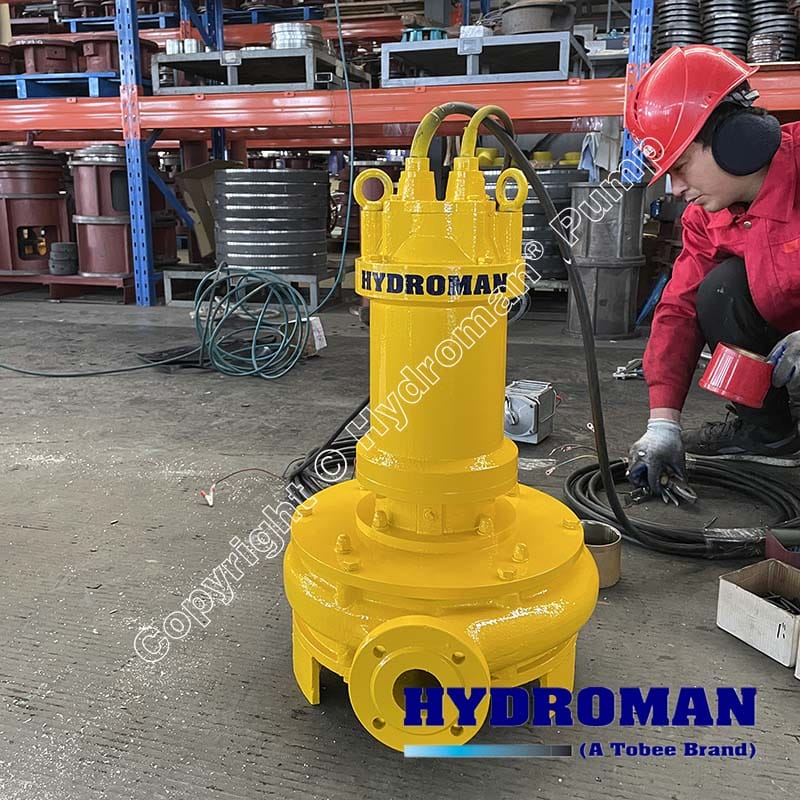

Hydroman® Heavy-Duty Submersible Sewage Dewatering Pumps are engineered to efficiently remove water from challenging environments containing sewage, sludge, and high solids content. Designed for resilience in construction, mining, municipal, and industrial applications, Hydroman® Submersible Slurry Mud Sewage Pump excel in flood control, excavation dewatering, and wastewater management, offering robust performance in abrasive and corrosive conditions.
Hydroman® Heavy-Duty Submersible Sewage Dewatering Pumps Benefits
• Heavy-Duty Construction
Cast iron or stainless steel components offer excellent resistance to abrasion, corrosion, and wastewater chemicals.
• Submersible IP68 Motor
High-efficiency motor with thermal overload protection and Class H insulation. Designed for continuous submerged duty.
• Double Mechanical Seal in Oil Chamber
Features double mechanical seals with durable silicon carbide faces to prevent leakage and extend service life.
• Easy Maintenance Design
Compatible with auto-coupling (duck foot) guide rail systems for fast removal and reinstallation without entering the sump.
Hydroman® Heavy-Duty Submersible Sewage Dewatering Pumps Performance Parameters
Model | Capacity Q (m3/h) | Head H (m) | Speed n (r/min) | Motor Power P (kw) | Eff. η (%) |
40TWQ | 8.4-14.4 | 14-16 | 2900 | 1.5 | 42-70 |
50TWQ | 7-50.4 | 8-36 | 1450-2900 | 0.75-7.5 | 46-62 |
65TWQ | 17.5-44.4 | 11-30.2 | 2900 | 2.2-4 | 39-72 |
80TWQ | 20.3-72 | 5.7-27.5 | 2900 | 2.2-7.5 | 51-75 |
100TWQ | 35-120 | 5.6-38.5 | 1450 | 4-15 | 46-80 |
150TWQ | 49-300 | 5.5-44.5 | 1450 | 5.5-37 | 58-82 |
200TWQ | 110-480 | 5.7-44.5 | 1450 | 11-75 | 63-83 |
250TWQ | 420-840 | 7-35 | 980-1450 | 30-90 | 63-84.5 |
300TWQ | 280-1140 | 6.7-27 | 980-1450 | 45-110 | 68-84.5 |
350TWQ | 700-1800 | 8-40 | 980 | 45-160 | 68-85 |
400TWQ | 1050-2640 | 12-33 | 980 | 132-160 | 71-85 |
500TWQ | 1400-3600 | 9-22.5 | 980 | 110-200 | 72-85 |
600TWQ | 2500-6000 | 8-25 | 590-740 | 110-315 | 65-78 |
Hydroman® Heavy-Duty Submersible Sewage Dewatering Pumps Optional Accessories

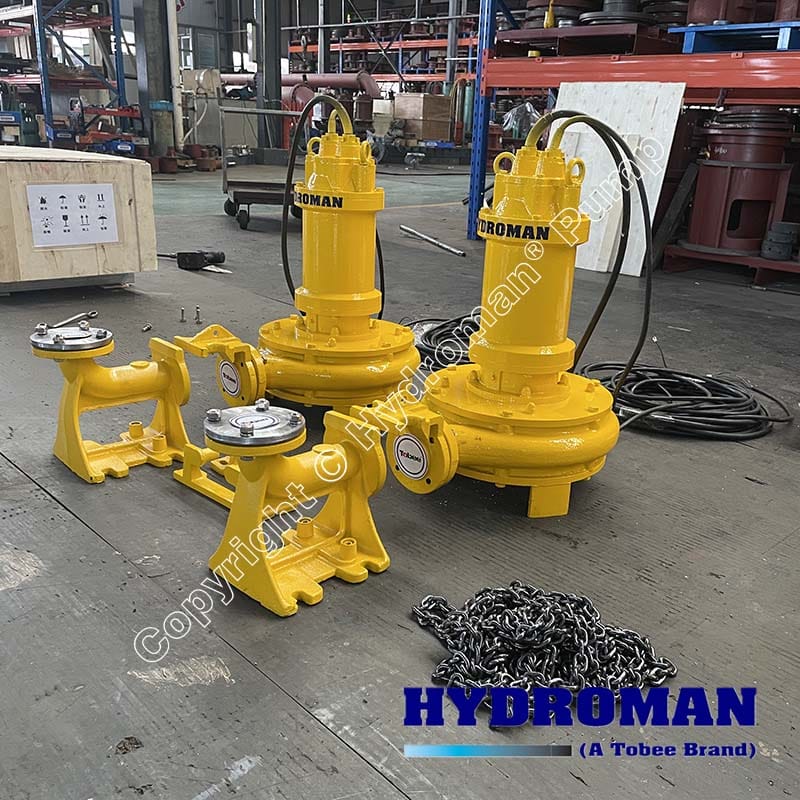

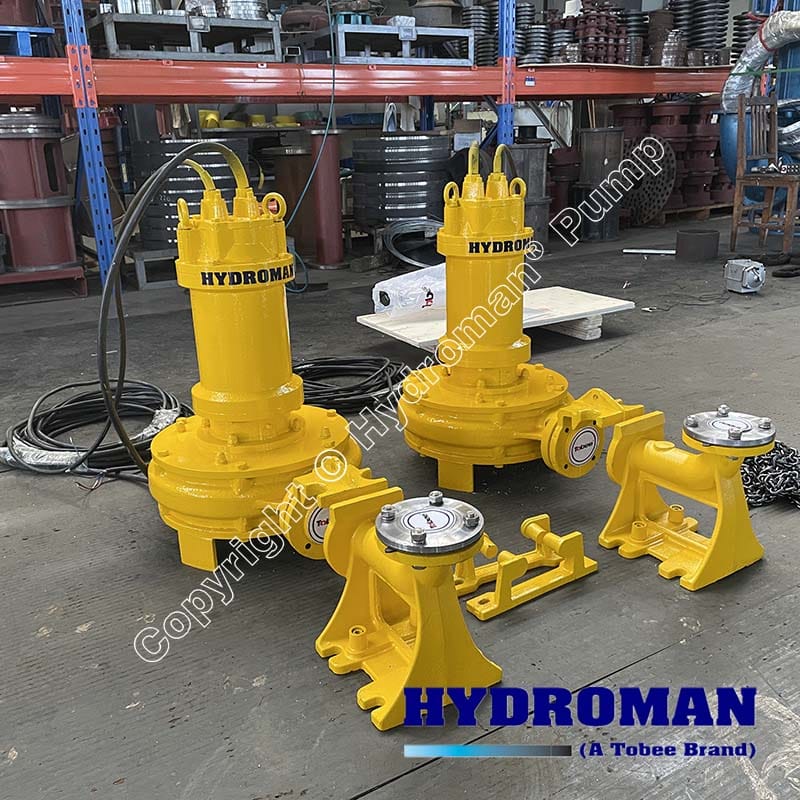

• Auto-coupling duck foot system for pit installations
• Control panels with overload, phase, and level protection
• Float or ultrasonic level sensors
• Flexible discharge hoses and check valves
• Stainless steel lifting chain
• Cooling jacket for low-level liquid operation
Hydroman® Heavy-Duty Submersible Sewage Dewatering Pumps Applications
• Municipal wastewater and sewage lift stations
• Tunneling, mining, and construction site dewatering
• Industrial sludge and slurry transfer
• Flood control and stormwater drainage
• Agricultural wastewater and livestock effluent handling
• Treatment plant settling tank or clarifier pumping
