Engineered for Extreme Slurry Handling

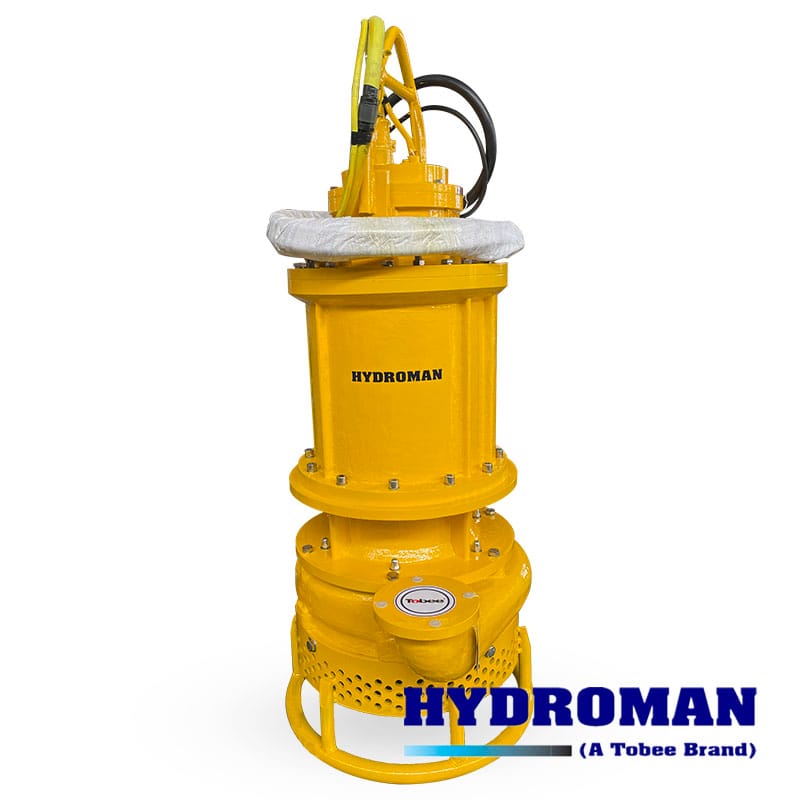

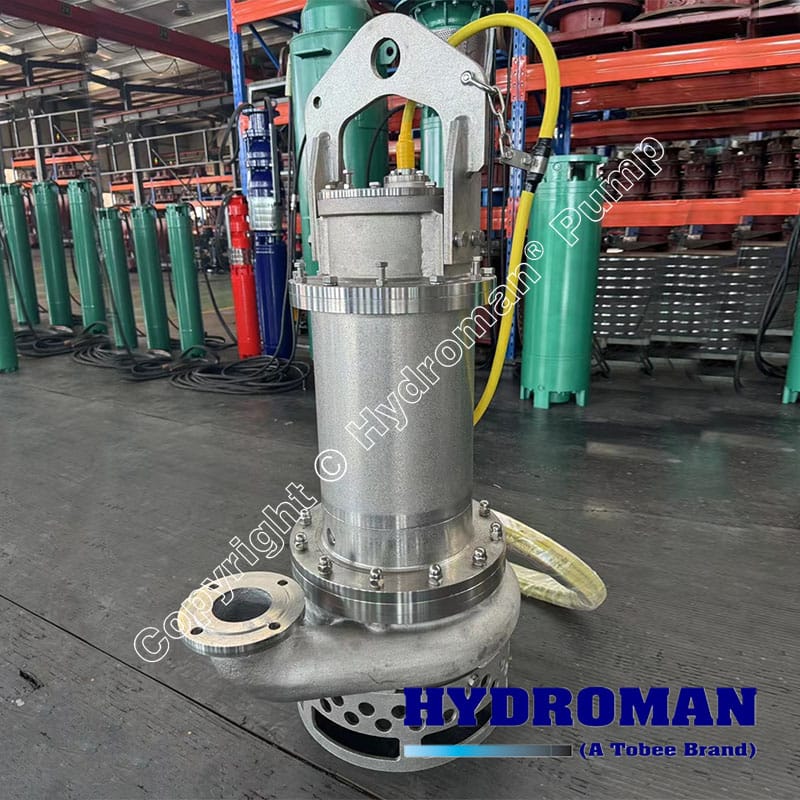

The Hydroman® 100TJQ Submersible Slurry Pump redefines reliability in abrasive and high-density slurry transfer operations. Designed for mining, industrial wastewater, and dredging applications, this electric sludge pump combines robust construction with cutting-edge hydraulic efficiency to tackle the most demanding environments. Featuring a 316L stainless steel wetted end and IE4 premium efficiency motor, the 100TJQ series Submersible Slurry Pump delivers 40% longer service life than conventional submersible pumps while reducing energy costs by up to 25%.
1. Heavy-Duty Construction of Electric Sludge Pump
Material Excellence:
• Pump Housing: 15mm thick 316L stainless steel (optional super duplex for seawater)
• Impeller: Ni-Hard 4 alloy with 5X wear resistance vs standard cast iron
• Shaft: 17-4PH stainless steel with tungsten carbide sleeves
• Seal System: Double mechanical seals
• Motor Protection: IP68-rated, oil-filled motor with PT100 thermal sensors
2. Unmatched Performance of 100TJQ Slurry Pump
• Flow Capacity: 35-200 m³/h
• Max Head: 65m (213 ft)
• Solids Handling: Up to 32mm diameter (adjustable agitator optional)
• Power Range: 11–250kW (15–335HP), 380V–6.6kV options
3. Smart Operation Features of Dewatering Pump
• Auto-Cleaning Mode: Reverse rotation function to clear blockages
• Remote Monitoring: 4-20mA/Modbus outputs for SCADA integration
• Energy Savings: Power factor >0.95 with built-in capacitor banks
• Reduced Downtime: 50% fewer maintenance intervals
• Lower TCO: 30% energy savings + 2-year warranty
• Safety Compliance: ATEX/IECEx versions for explosive zones
• Environmental Protection: Leak-proof design prevents site contamination
1. Mining & Mineral Processing
• Tailings Management: Pump slurries with 60–70% solids to disposal sites.
• Underground Dewatering: Handle acidic water (pH 2–4) in deep mine shafts.
• Coarse Ore Transfer: Move 50–70mm rock fragments without clogging.
Why 100TJQ?
• Tungsten carbide-lined wet end for 10,000+ hour wear life in iron ore slurry.
• 6.6kV high-voltage models eliminate step-down transformers.
2. Industrial Wastewater Treatment
• Chemical Sludge Removal: Resists H2S, chlorides, and hydrocarbons.
• Steel Mill Scale Handling: Manages 800°C thermal shocks in rolling mills.
• Paper Mill Fiber Recovery: Vortex impeller prevents fiber entanglement.
Why 100TJQ?
• Optional duplex stainless steel for pH 1–12 compatibility.
• Dual mechanical seals with clean water flush for toxic media.
3. Dredging & Marine Projects
• Harbor Maintenance: 2,00 m³/h capacity for rapid sediment removal.
• River Restoration: Eco-friendly sludge extraction with low turbidity.
• Offshore Operations: Cathodic protection kit for seawater corrosion.
Why 100TJQ?
• Agitator-equipped models fluidize compacted sediments.
• Remote-controlled deployment for hazardous underwater environments.
Certified Reliability
• ISO 9001: Quality management compliance.
• CE/ATEX: EU market and explosive atmosphere certification.
• MSHA: Approved for U.S. mining operations.
Proven Track Record
• 1,450+ Units operational across 28 countries.
• Case Study: Reduced downtime by 62% at a Chilean copper mine.
Custom Engineering
• Voltage Flexibility: 380V/415V/6.6kV configurations.
• Material Upgrades: Titanium, Hastelloy C276, or ceramic coatings.
• IoT Integration: Predictive maintenance alerts via Hydroman® Cloud.
Q: How to handle abrasive slurries?
A: Pair with Ni-Hard impellers and replaceable wear plates (20mm thickness).
Q: Maintenance frequency?
A: Annual seal inspection, 2-year motor overhaul (field service available).
Q: Lead time for custom orders?
A: 6–8 weeks for non-standard configurations.
