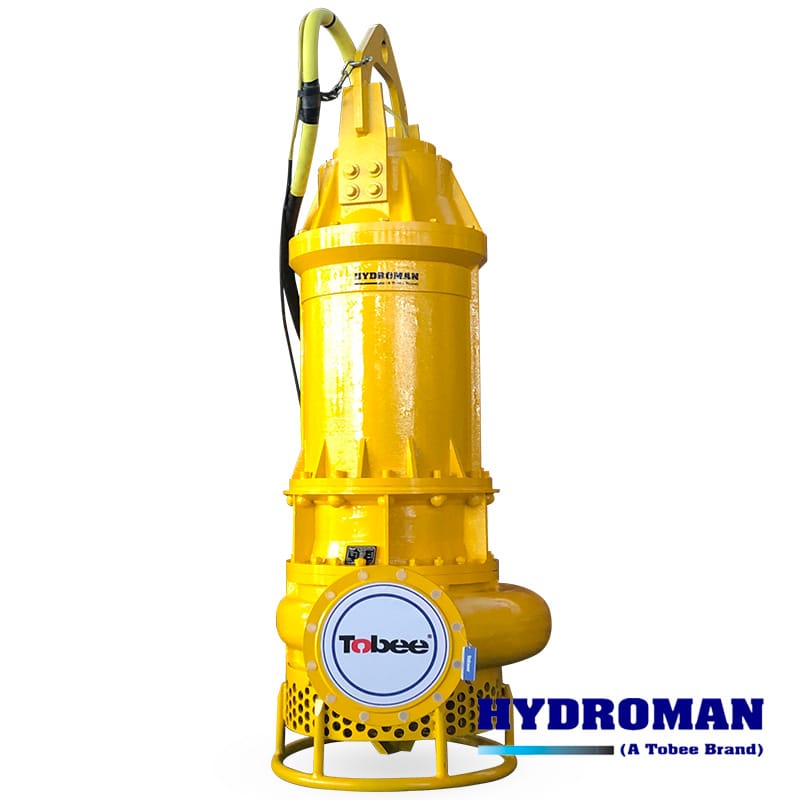

TJQ Submersible Tailings Slurry Electric Pump

Hydroman^® TJQ submersible tailings slurry electric pump can handle abrasive and corrosive slurries with ease in a wide range of operating conditions including head up to 150m, capacity (flow rate) up to 4000m3/h, etc. Hydroman^® designing, manufacturing and supplying durable TJQ submersible tailings slurry electric pump to suit a diverse range of mine dewatering and slurry applications within mines, quarries and industrial sites. With extensive application expertise, our submersible pumps have a long history in mine dewatering, mill scale pumping, ash handling, tailings disposal, pond water return, coal and ash handling and various miscellaneous sump services. Whatever your requirements, our team will work with you to develop an optimum solution.

Hydroman^® TJQ Submersible Tailings Slurry Pump Technical Specifications:

▪ Power Range: 3 kW – 315 kW

▪ Flow Rate: Up to 4000 m³/h

▪ Head: Up to 150 meters

▪ Solid Handling: Up to 120 mm diameter

▪ Material: High-chrome alloy (impeller), stainless steel (casing)

▪ Voltage: 380V/660V/1140V, 50Hz/60Hz

▪ Control Panel: IP65 rated, PLC optional, thermal and leakage sensors included

Applications of Hydroman^® TJQ Submersible Tailings Slurry Pumps:

Mining Industry
▪ Tailings disposal: Pumping mineral waste (tailings) from processing plants to tailings ponds or storage dams.

▪ Ore slurry transport: Moving ore slurries from mining sites to processing facilities.

▪ De-silting and pit dewatering: Removing water mixed with sand, silt, and rocks from open-pit or underground mines.

Dredging Operations
▪ Sediment removal: Used for dredging lakes, rivers, reservoirs, and canals filled with mining or industrial waste.

▪ Environmental cleanup: Removing contaminated sediments containing heavy metals or chemicals from tailings ponds.

Coal Processing
▪ Ash slurry pumping: Transporting fly ash, bottom ash, or coal slurry in coal-fired power plants.

▪ Fine coal tailings: Handling fine particles from coal washing processes.

Tailing Dams and Ponds
▪ Slurry management: Reclaiming water and managing the tailings for environmental compliance.

▪ Pond dredging: Removing settled solids from tailing ponds to increase capacity or prepare for reclamation.

Hydroman^® TJQ Submersible Tailings Slurry Pump Conformation as below:

For more information about our range of submersible pumps, please get in touch with our team.

Contact: Bella Zhang

WhatsApp: +8618000656103

Email: Sales3@tobeepump.com
