Name: Electric Submersible Dredging Sand Pump with Side Cutters
Brand: Hydroman
SKU: 300TJQ160-6P

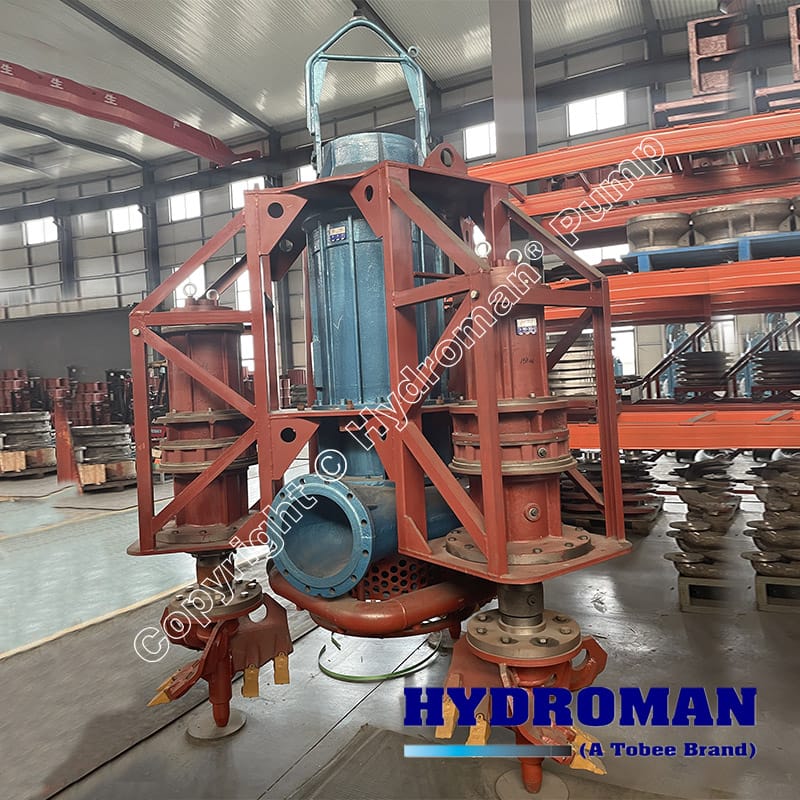

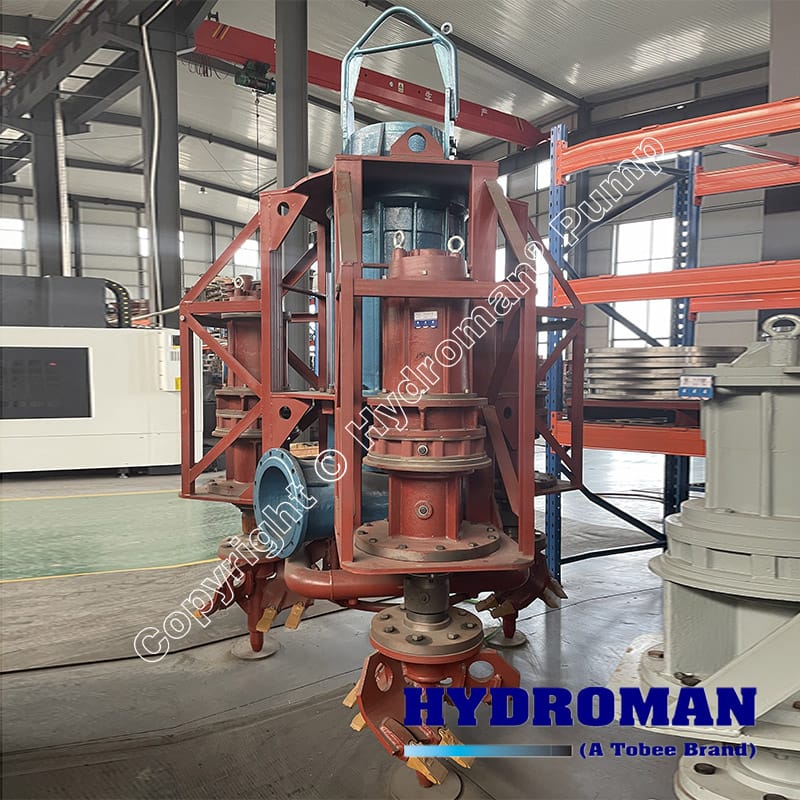

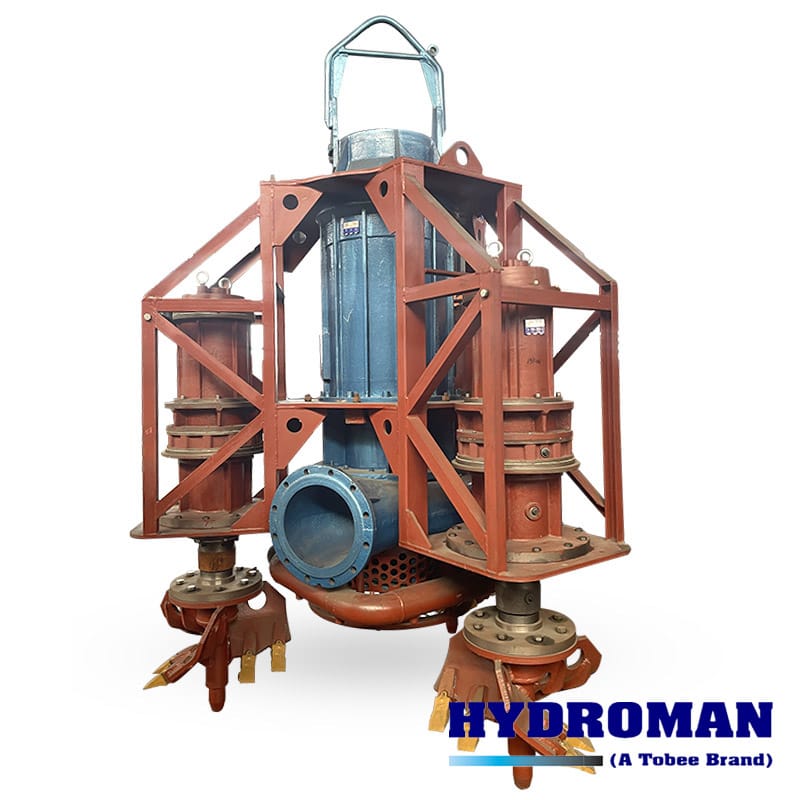

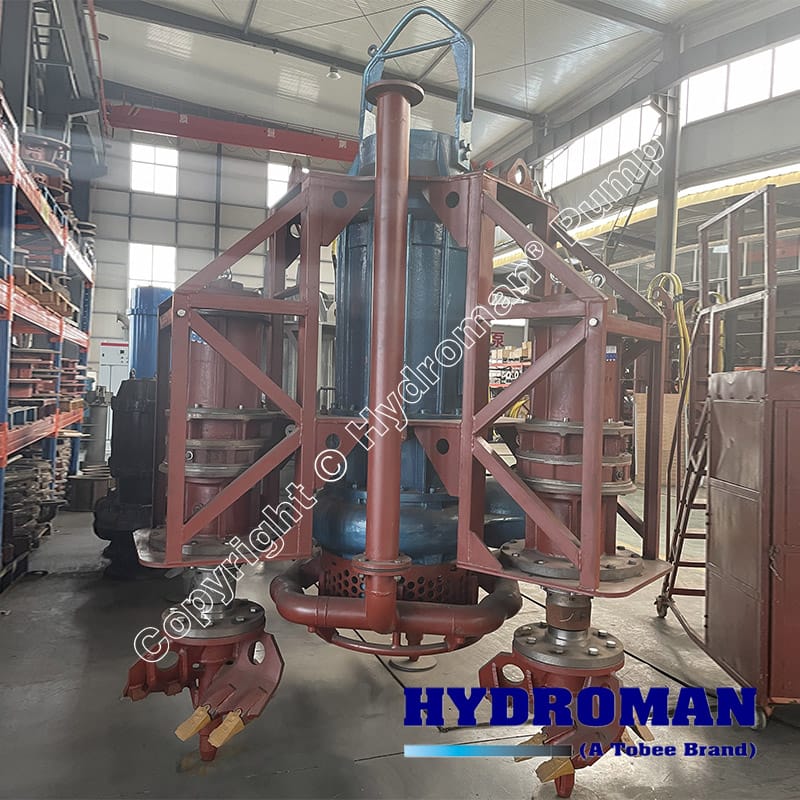

Electric Submersible Dredging Sand Pump with Side Cutters

300TJQ160-6P

Hydroman

Size Guide

$47,999.00 $48,900.00

Introduction：

Hydroman submersible dredging sand pump is equipped with side cutters and is designed to be electrically driven, these submersible pumps are ideal solutions for transferring fluids with sediment like slurry, dredge, sludge, gravel, sand and mining etc.

Pump Application:

Submersible Sand Dredging Pump

Fishfarm Pond Submersible Dredge Pump

Submersible mining silica sand pump

Quantity :

Description

Hydroman^® TJQ submersible pumps are ideal solutions with electrically driven for transferring fluids with sediment like slurry, dredge, sludge, gravel, sand and mining etc. They are also called submersible agitator sand pump, submersible dewatering gravel pumps, submersible canals dredging pump etc. And Hydroman^® submersible dredging sand pump can be equipped with side cutters.

In Hydroman^® TJQ submersible slurry pump, side cutters play a crucial role in improving the efficiency and effectiveness of slurry handling. Here's a clear description of their function:

Side cutters are auxiliary rotating tools mounted near the pump suction inlet. Their primary function is to agitate and break up compacted solids or sediments around the pump intake area, allowing the slurry to become more fluid and easier to pump. By loosening dense materials such as sand, clay, or silt, side cutters enhance the pump’s ability to continuously intake slurry and prevent clogging or cavitation.

Hydroman^® Electric Submersible Dredging Sand Pump Performance Parameters:

No.	Model	Size (mm)	Capacity Q (m3/h)	Head H (m)	Power P (kw)	Eff. η (%)	Speed n (r/min)	Max. particles (mm)	Weight (kg)
1	150TJQ200-60-90	150	200	60	90	48	980	14	1550
2	200TJQ400-40-90	200	400	40	90	54	980	28	1550
3	200TJQ500-25-90	200	500	25	90	60	980	25	1550
4	200TJQ400-50-110	200	400	50	110	53	980	28	1970
5	250TJQ600-30-110	250	600	30	110	61	980	28	1970
6	300TJQ780-26-110	300	780	26	110	62	980	50	1970
7	300TJQ1000-18-110	300	1000	18	110	64	980	50	1970
8	200TJQ400-60-132	200	400	60	132	53	980	28	2000
9	200TJQ500-45-132	200	500	45	132	56	980	28	2000
10	200TJQ500-55-132	200	500	55	132	55	980	28	2000
11	300TJQ800-35-132	300	800	35	132	63	980	42	2000
12	300TJQ1000-22-132	300	1000	22	132	64	980	50	2000
13	200TJQ650-52-160	200	650	52	160	58	980	28	2650
14	300TJQ780-50-185	300	780	50	185	60	980	38	3330
15	250TJQ600-55-200	250	600	55	200	62	980	28	4080
16	300TJQ800-55-220	300	800	55	220	60	980	38	3400
17	350TJQ1250-35-220	350	1250	35	220	65	980	45	3400
18	350TJQ1750-30-250	350	1750	30	250	70	980	55	3750
19	350TJQ1500-35-250	350	1500	35	250	70	980	50	3750
20	350TJQ1750-40-315	350	1750	40	315	70	980	55	4200
21	400TJQ2000-35-315	400	2000	35	315	72	980	60	3800
