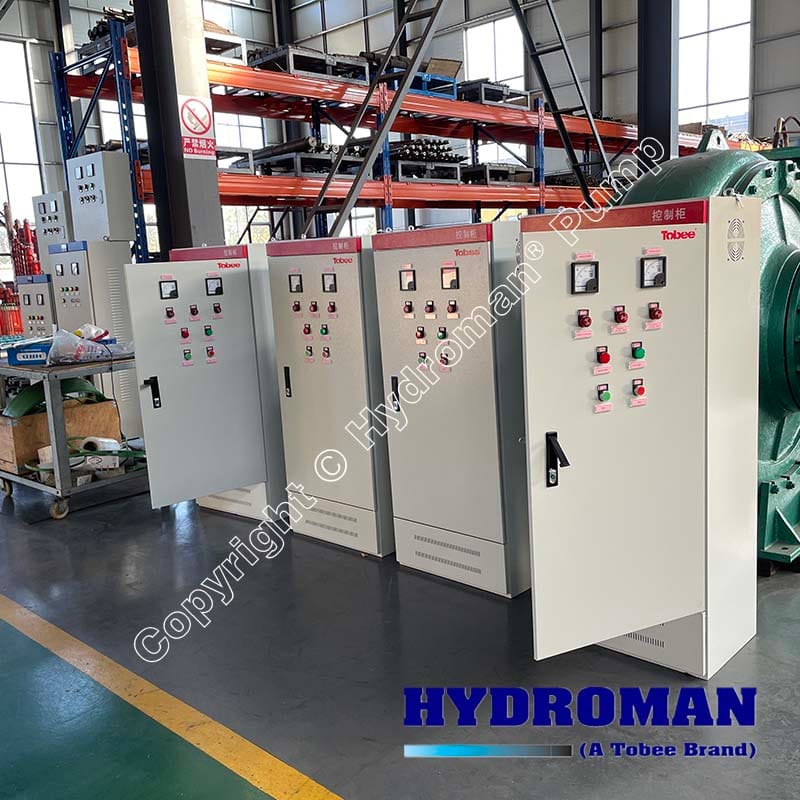

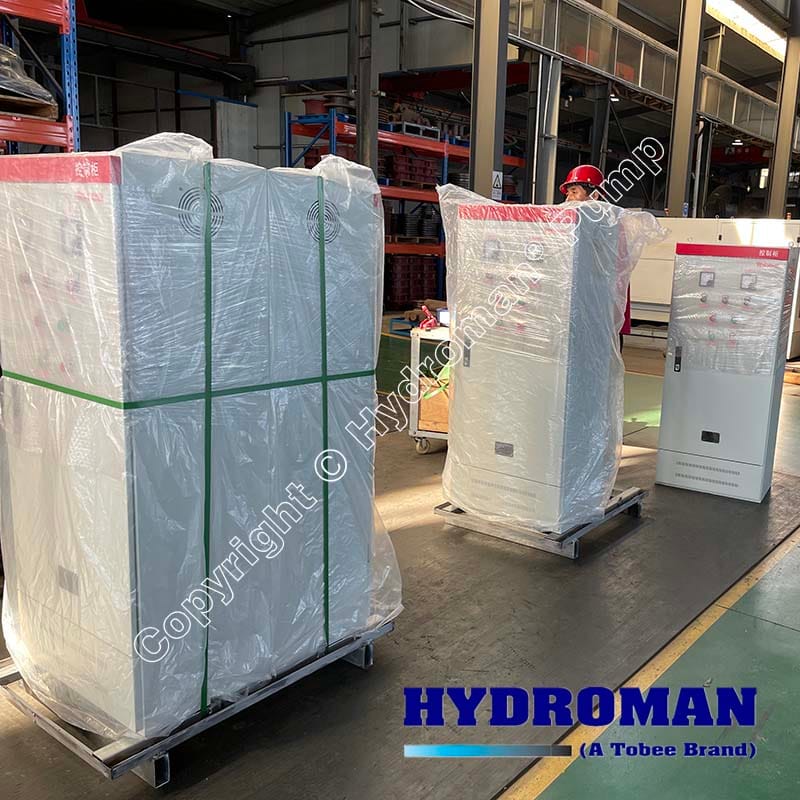

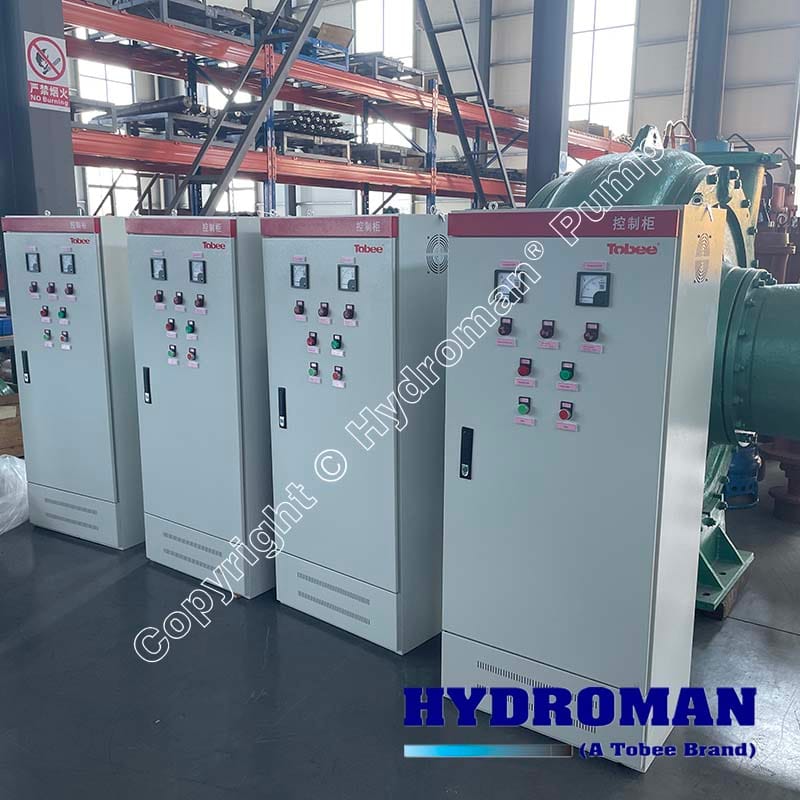

is a important control system for Hydroman® submersible slurry pump, control box with DOL start，soft start and VFD start three start ways. VFD control cabinet (Variable frequency drive control panel ) is most popular for electric submersible slurry pump, as VFD control cabinet has the characteristics with small starting current, controllable torque and speed regulation and energy-saving operation.
What Key Components Included in VFD Control Panel
▪ Variable Frequency Drive (VFD)
▪ Protection Devices
▪ Control & Switching Elements
▪ Human-Machine Interface (HMI)
▪ Power Distribution
▪ Cooling System
▪ Communication & Networking
How Does VFD Control Cabinet Work?
▪ Input Power → VFD converts AC to DC, then back to variable AC.
▪ Speed Control → Adjusts frequency (Hz) to change motor RPM.
▪ Protection → Monitors current, voltage, and temperature to prevent faults.
▪ Automation → Can be controlled via PLC, HMI, or remote signals.
Wepanel® control panel application
▪ Water/Wastewater Treatment – Controls submersible sewage sludge pump speed to match demand, reducing energy consumption.
▪ Booster Pumps – Maintains constant pressure in water supply systems.
▪ Irrigation Systems – Adjusts flow of submersible water pump based on soil moisture sensors.
▪ Solar/Wind Power Plants – Controls submersible pump speeds in energy storage systems.
▪ Pipelines – Controls submersible mud pump stations for efficient crude oil transfer.
▪ Ballast Pumps – Adjusts water flow of inline pipe centrifugal water pump for ship stability.
