The Cooling Jacket for Vertical Slurry Sand Pump is not an accessory; it's a critical Motor Cooling System for Submersible Sand Pump operation, especially for the demanding Hydroman® TJQ series. This Thermal Protection Jacket for Hydraulic Slurry Pump acts as a dedicated Cooling Sleeve for TJQ Submersible Sand Pump, forming a vital Overheat Protection Jacket for Slurry Pump Motor. When faced with dry running, high solids content, or elevated liquid temperatures, this High Temperature Cooling Jacket for Sand Pump becomes indispensable for protecting your investment. It's the core Cooling Jacket for Heavy Duty Submersible Pump applications where standard cooling fails.

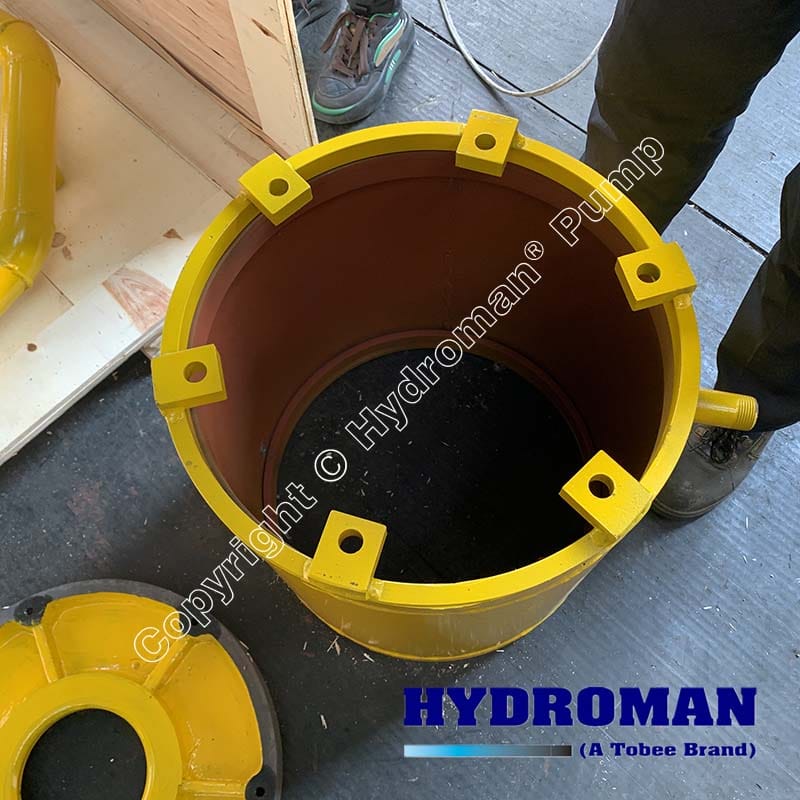

Unlike standard submersible pumps that rely solely on the surrounding liquid for cooling, the Hydroman® cooling jacket is a purpose-built chamber surrounding the motor housing. It functions as a dedicated Motor Cooling System for Submersible Sand Pump:
• Coolant Circulation: A portion of the pumped slurry or an external cooling fluid is actively circulated through the jacket.
• Convective Heat Transfer: This fluid flows directly around the motor stator housing, absorbing the intense heat generated during operation.
• Heat Dissipation: The heated fluid is then carried away from the motor, effectively transferring thermal energy out of the critical components.
• Temperature Regulation: This continuous forced convection process maintains the motor within its safe operating temperature range, preventing dangerous overheating.
Submersible pumps in slurry and sand applications face extreme challenges. The Hydroman® Cooling Jacket for Heavy Duty Submersible Pump like the TJQ is essential for:
• Preventing Dry Running Overheating: If the pump inlet becomes uncovered or runs dry, the surrounding cooling medium is lost. The jacket provides active cooling independent of submersion depth.
• Handling High Solid Content: Abrasive slurries can impede natural water flow around the motor. The jacket forces coolant circulation, ensuring heat removal isn't blocked by solids.

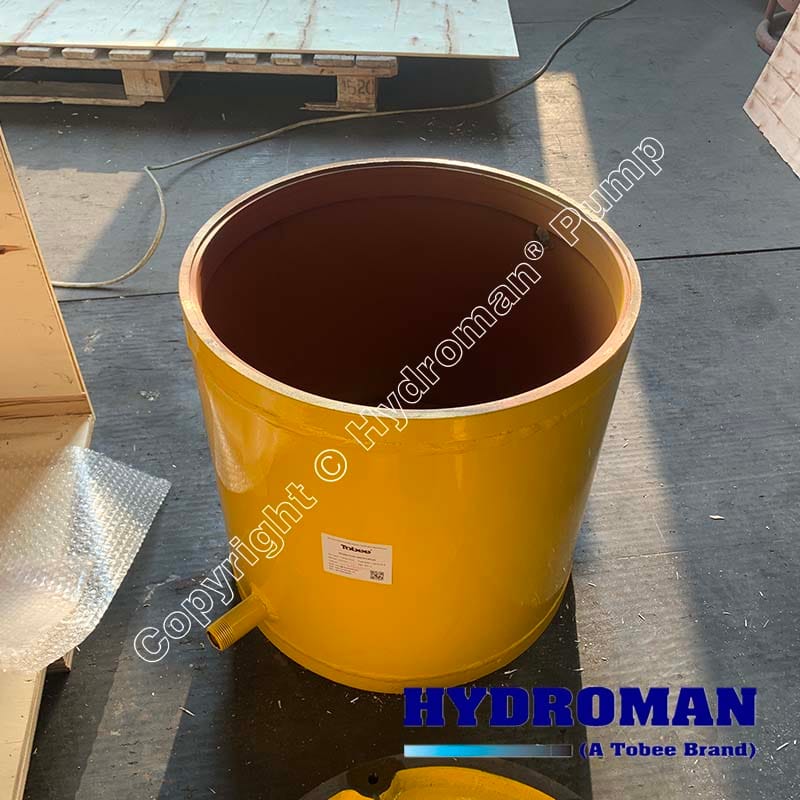

• Managing High Liquid Temperatures: Pumping hot liquids (above 60°C / 140°F) overwhelms standard cooling. The jacket provides the necessary High Temperature Cooling Jacket for Sand Pump capacity.

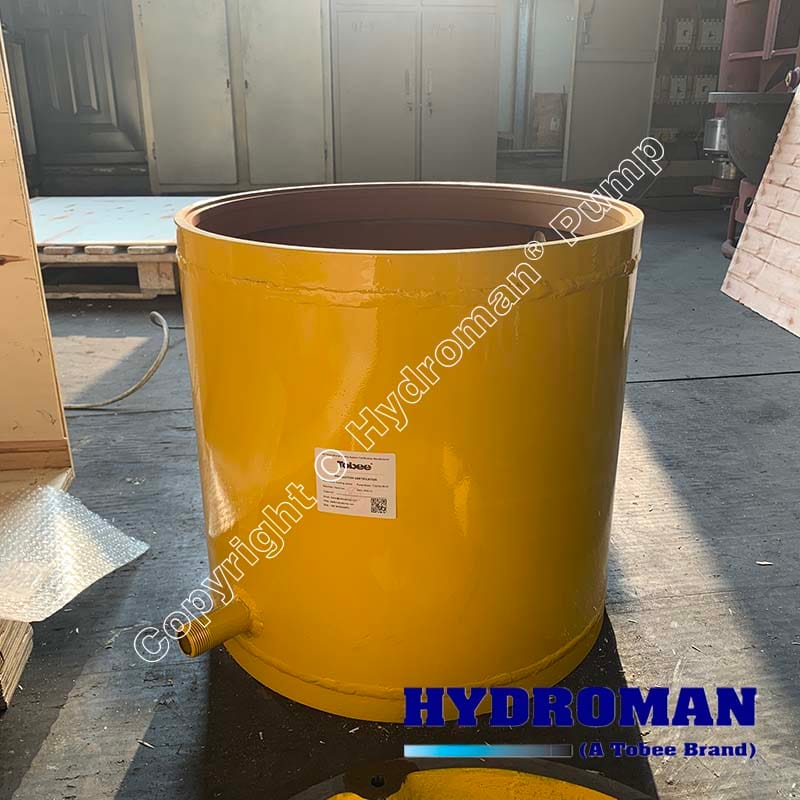

• Operation in Open Sumps/Challenging Wells: Without well walls to channel cooling water, or where sludge/sand deposits form on the motor surface, the jacket ensures consistent cooling flow. This Thermal Protection Jacket for Hydraulic Slurry Pump is vital in these scenarios.
• Enabling Continuous Duty: Extended operation, especially under load, generates significant heat. The jacket allows for safe, non-stop pumping cycles.

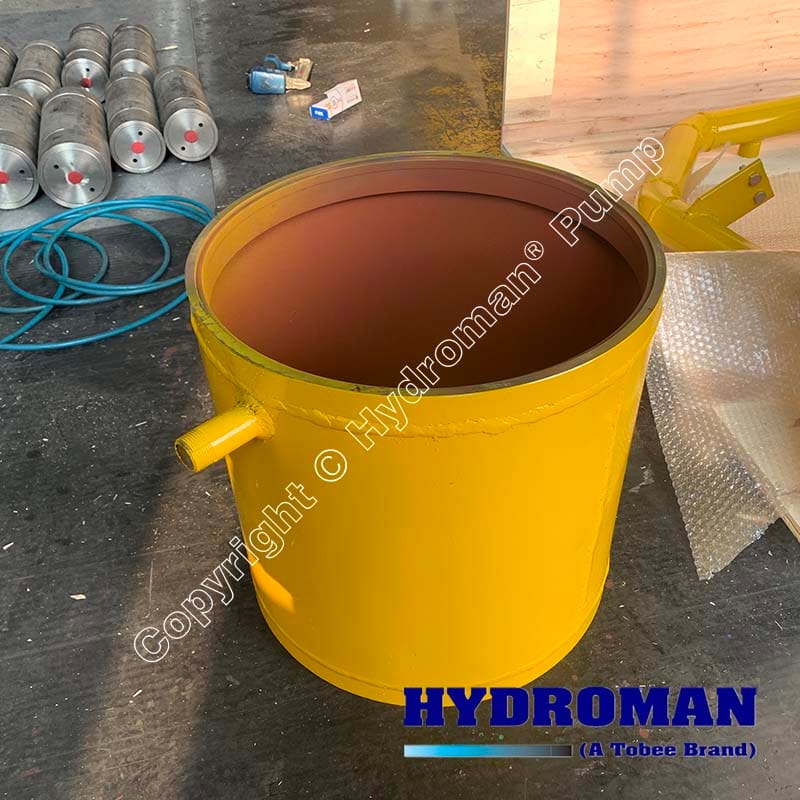

Integrating this Cooling Sleeve for TJQ Submersible Sand Pump delivers tangible advantages:

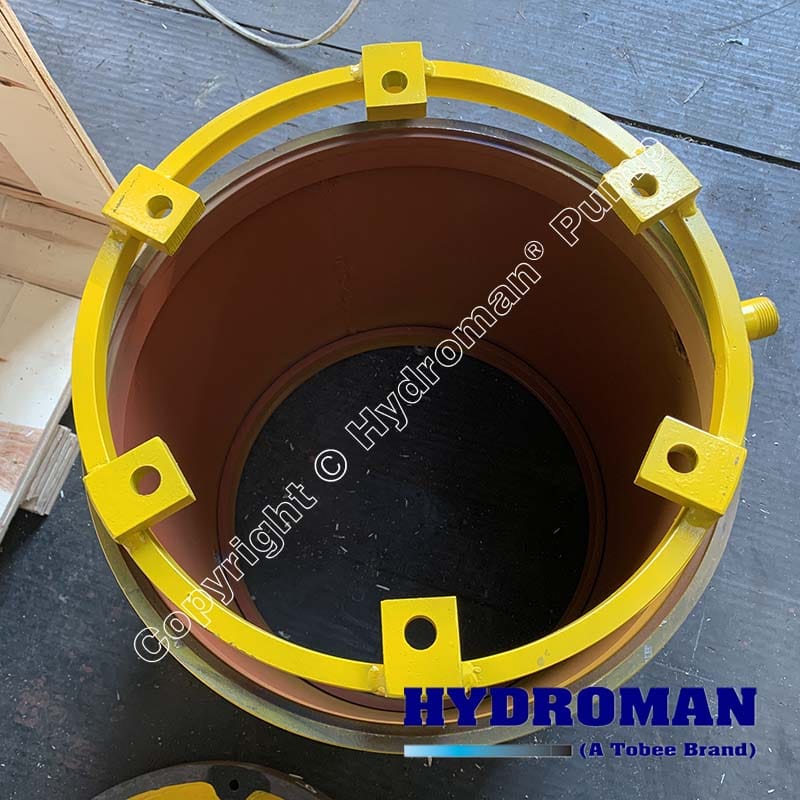

• Unmatched Motor Protection: Significantly reduces the risk of winding insulation failure and bearing damage caused by excessive heat – the primary Overheat Protection Jacket for Slurry Pump Motor function.
• Extended Pump Lifespan: By maintaining optimal operating temperatures, the jacket drastically reduces thermal stress on all motor components, leading to longer service life and reduced total cost of ownership for your Hydroman® TJQ.
• Maintained Pump Efficiency: Overheating motors lose efficiency rapidly. Consistent cooling ensures the pump operates at its designed performance curve, saving energy.
• Reduced Downtime & Maintenance Costs: Preventing heat-related failures minimizes unplanned stoppages and costly repairs or motor replacements.
• Enhanced Application Versatility: Allows safe operation of the Hydroman® TJQ in a much wider range of challenging conditions, including partial submersion and warm environments, maximizing your pump's utility.
Q: How does the Hydroman® cooling jacket differ from standard submersible pump cooling?
A: Standard submersibles rely passively on the surrounding liquid for cooling. The Hydroman® cooling jacket is an active Motor Cooling System for Submersible Sand Pump, circulating fluid (pumped or external) directly around the motor housing via a dedicated chamber, providing far superior and reliable heat removal, especially in adverse conditions.
Q: When is a cooling jacket absolutely necessary for my Hydroman® TJQ pump?
A: A Cooling Jacket for Heavy Duty Submersible Pump like the TJQ is strongly recommended or essential when: the pumped liquid temperature exceeds 60°C (140°F), the pump operates in conditions prone to dry running or partial submersion, handling slurries with very high solids content that could impede flow, or installed in open bodies of water without structures to guide cooling flow. Grundfos specifically highlights their importance for dry-installed pumps.
Q: Can the cooling jacket handle very high temperatures?
A: Yes, the Hydroman® High Temperature Cooling Jacket for Sand Pump is designed specifically to manage elevated heat loads. While the standard TJQ motor operates up to 80°C liquid temperature, using the cooling jacket with appropriate coolant (sometimes external) is the primary method recommended for handling liquids above 60°C, ensuring the motor itself stays within safe limits.
Don't let motor overheating become the weak link in your demanding slurry or sand pumping operations. The Hydroman® Cooling Jacket for Vertical Slurry Sand Pump is engineered to deliver robust Thermal Protection precisely where it's needed most. It transforms the TJQ into a truly resilient Heavy Duty Submersible Pump, capable of conquering dry runs, hot liquids, and abrasive solids with unwavering reliability.
Enhance pump reliability and lifespan—contact Hydroman® engineers now for the optimal motor cooling solution for your TJQ application! Protect your pump. Protect your productivity.
