200TJQ Submersible Agitator Slurry Sand Pump

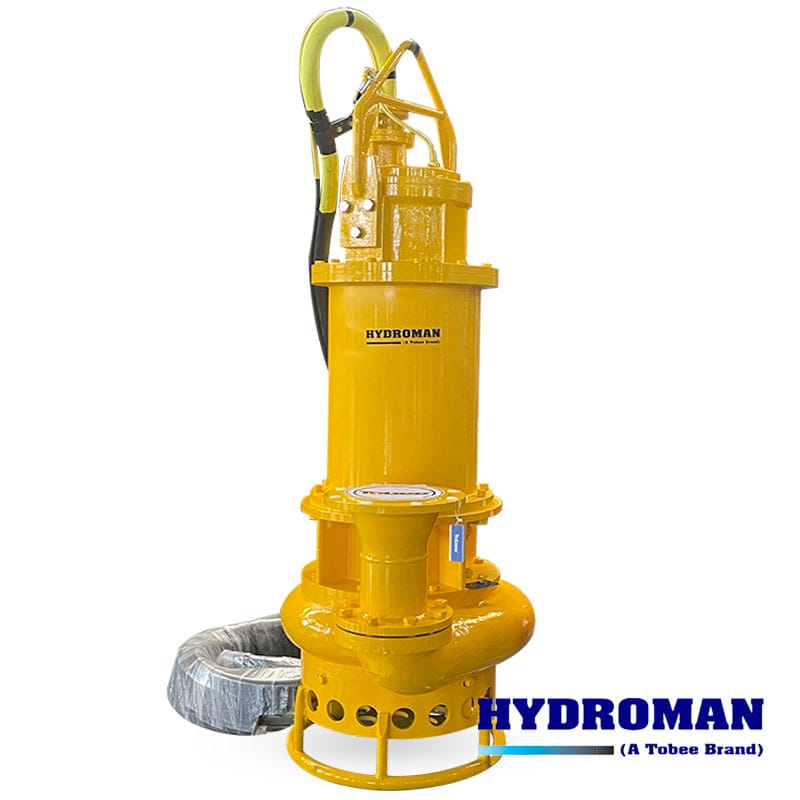

Hydroman^® 200TJQ Submersible Agitator Slurry Sand Pump

called 200mm submersible slurry pump with agitator, and agitator built-in the bottow of submersible slurry pump, combining the powerful side cutters, cutter headm or water jet ring systerm options, Hydroman^®  TJQ electric submersible agitator dredging mud sludge pump is a reliable solution for handling abrasive and high-density slurries  in mining, dredging, construction, and wastewater treatment operations, so it is also a heavy-duty submersible slurry pump, a heavy duty submersible sand pump, a heavy duty submersible mud pump and a heavy duty submersible sludge pump.

Hydroman^® 200TJQ Submersible Agitator Slurry Sand Pump SPECIFICATIONS:
Size: 200mm
Capacity: 220-780m3/h
Head: 8-125m
Max. particles: 40mm
Max. concentration: 70%
Max. working depth: ≤ 150m
Agitator or Cutterheads: Available
Sealing arrangement: Double mechanical seal
Materials: Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc

Hydroman^® 200TJQ Submersible Agitator Slurry Sand Pump Key Advantages
• Prevents Blockages: Agitation prevents particle sedimentation at the pump inlet, extending wear life.
• Energy Efficient: A 6-level motor is more wear-resistant.
• Submersible Design: Operates fully submerged, eliminating the need for priming.
• Enhanced Solids Handling: Capable of processing high-solid-content slurries (up to 60–70% concentration) without auxiliary mixing equipment.
• Energy Efficiency: Eliminates the need for separate pre-mixing devices, reducing overall power consumption.
• Reduced Maintenance Downtime: Double mechanical seal design, decreasing failure rate.
• Adaptable to variable slurry densities and viscosities, from wastewater sludge to dense mining tailings.
• Effective in deep submersion (up to 100 meters) due to sealed motor technology (IP68 rating).
• Environmental Benefits: No noise, low-vibration operation suitable for ecosensitive areas (e.g., harbor dredging).

Hydroman^® 200TJQ Submersible Agitator Slurry Sand Pump Application
• Extracting ore slurries (e.g., iron, copper tailings) from settling ponds.
• Pumping high-density abrasive mixtures (up to 70% solids) in processing plants.
• Riverbed/sand excavation: Removes sediment for channel deepening or land reclamation.
• Harbor cleanup: Pumping silt, clay, or polluted sludge with homogenized agitation.
• Dewatering slurry walls or tunnel boring machine (TBM) discharge.
• Handling bentonite slurries in foundation engineering.
• Pumping chemical sludge from settling tanks in refineries.
• Transferring coal ash slurries in power plants.
• Sand extraction: Pumping sand-water mixtures from quarries.
• Gravel washing plants: Recirculating slurry in processing lines.

Any question of Hydroman^® 200TJQ Submersible Agitator Slurry Sand Pump , please kindly feel free to contact us:

Name: Donna Zhang

Email: Sales2@tobeepump.com

Whastapp: +8618031340097
