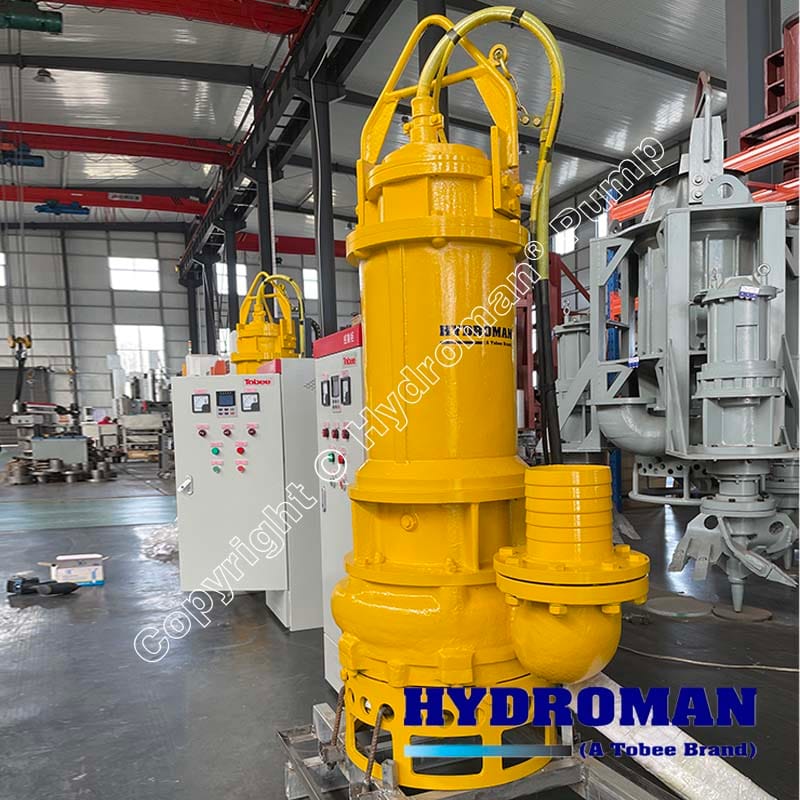

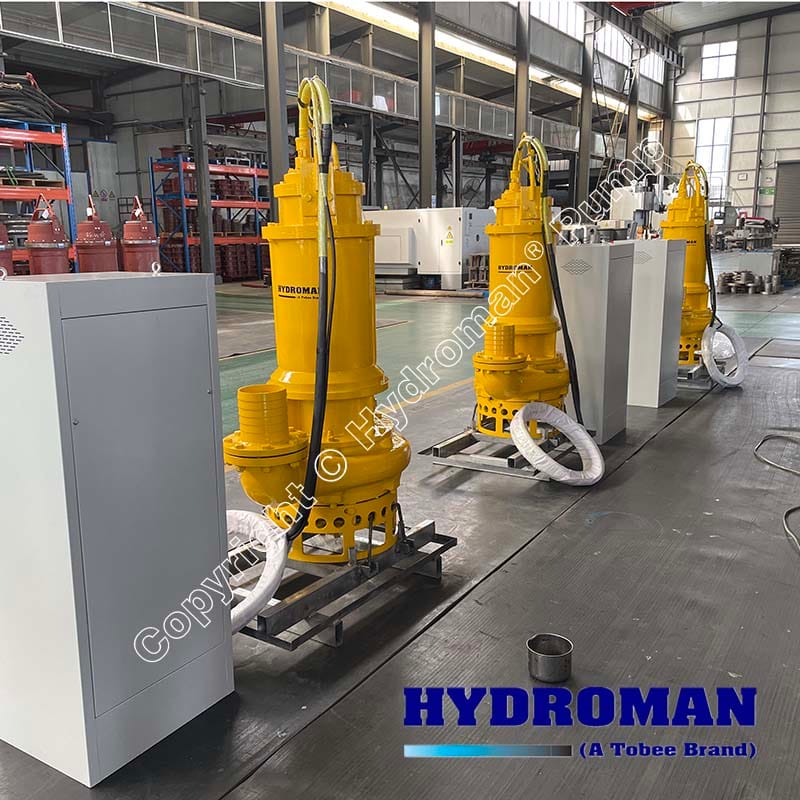

Hydroman® TJQ submersible mine dewatering slurry pump is the heavy duty designed for efficient dewatering, slurry, sludge, mud and dredge handling in mining, construction, and industrial applications. They are also called submersible centrifugal dredging electric pump, submersible dredging pump, submersible mining silica sand pump, submersible agitator sand pump, submersible sludge pump etc.

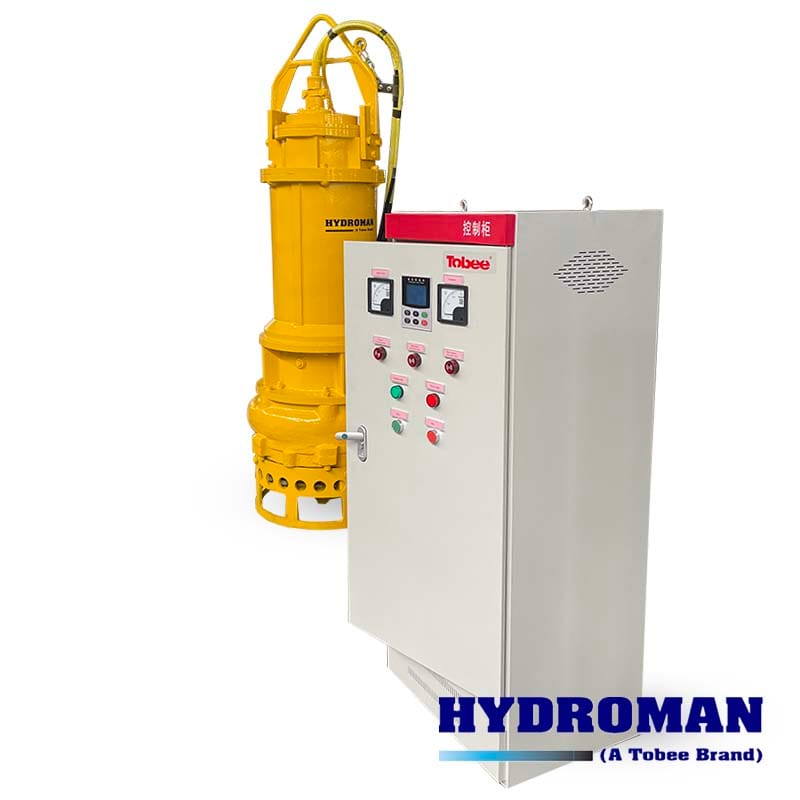

The Submersible Mine Dewatering Slurry Pump with Control Cabinet is a high-efficiency, heavy-duty pump designed for underground mining, tunneling, and other harsh environments where dewatering of slurry and sediment-laden water is essential. This unit combines powerful pumping performance with intelligent control, ensuring safe and efficient operation.
▪ Submersible Design:
Fully submersible electric motor and pump for convenient installation and minimal space usage.
▪ Heavy-Duty Construction:
Built with wear-resistant high-chrome alloy and stainless steel for extended service life in abrasive conditions.
▪ High Efficiency:
Capable of handling high concentrations of solids and slurry with excellent hydraulic performance.
▪ Integrated Control Cabinet:
Comes equipped with an intelligent control cabinet offering automatic start/stop, overload protection, dry-run protection, and remote monitoring options.
▪ Corrosion and Abrasion Resistant:
Suitable for aggressive liquids containing sand, silt, coal, and other solid particles.
▪ Wide Application:
Ideal for mine drainage, tunnel dewatering, construction sites, flood control, and slurry transfer.
Power Range: 3 kW – 315 kW
Flow Rate: Up to 2500 m³/h
Head: Up to 150 meters
Solid Handling: Up to 120 mm diameter
Material: High-chrome alloy (impeller), stainless steel (casing)
Voltage: 380V/660V/1140V, 50Hz/60Hz
Control Panel: IP65 rated, PLC optional, thermal and leakage sensors included
We can also customize the most reliable pump solution for your application according to your specific requirements!
