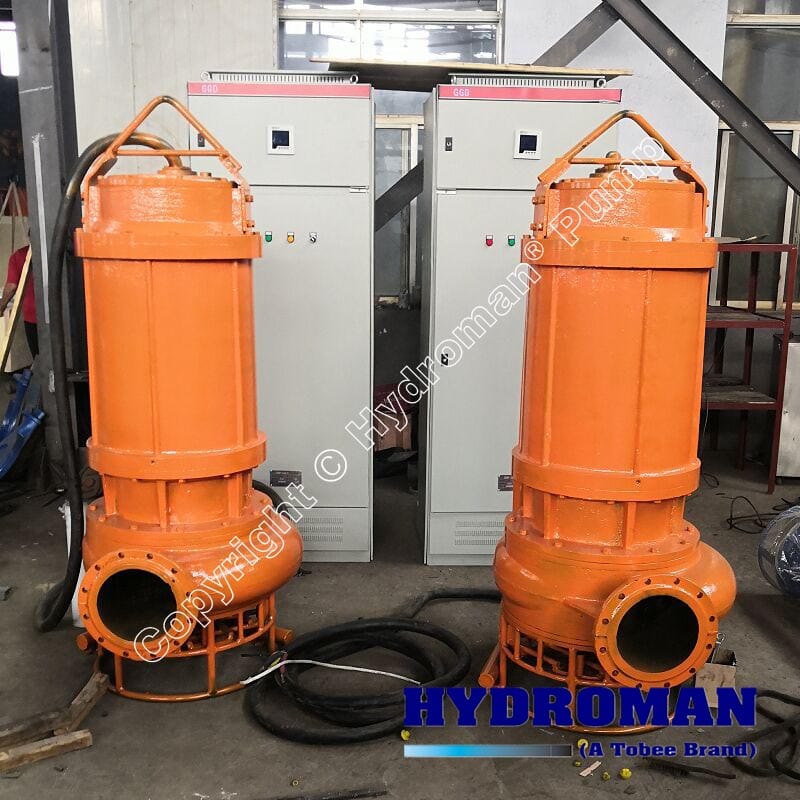

Efficiently removing dense sand, gravel, sludge, and sediments underwater demands robust equipment designed for the harshest conditions. The Hydroman® Sand Mining Submersible Sludge Suction Pump stands out as a premier solution. This Electric Submersible Sludge Pump with Agitator is engineered specifically for the rigorous demands of sand mining and similar heavy-duty applications. It combines powerful suction capabilities with an integrated Hydroman Electric Agitator to liquefy compacted materials, ensuring optimal performance in moving slurry, gravel, sand, mud, and sediments. This Submersible Electric Pump for Slurry Handling delivers high efficiency sand sludge suction precisely where it's needed, submerged directly in the challenging medium.
The defining feature of this heavy duty submersible pump for sand mining is its bottom-mounted Hydroman Electric Agitator. Unlike standard submersible pumps that can struggle with settled solids, this agitator features a specialized impeller that rotates at high speed just above the pump's suction inlet. Its key function? To vigorously spray the deposited sludge into turbulent flow. This action:
• Breaks Up Compacted Material: Settled sand, gravel, mud, and sediments form dense layers that are difficult for a pump to draw in. The agitator's impeller forcefully disrupts this compaction.
• Creates a Homogeneous Slurry: By mixing the settled solids with the surrounding water or liquid, the agitator transforms dense deposits into a fluid slurry with consistent viscosity.
• Prevents Clogging & Blockages: The turbulent flow keeps solids suspended, preventing them from settling again directly at the suction inlet and causing blockages.
• Maximizes Solids Intake: The turbulent slurry flows much more readily into the pump, significantly increasing the volume of solids (sand, gravel, etc.) that can be efficiently handled and transported.
• Reduces Pump Strain: By pre-conditioning the material, the agitator allows the main pump impeller to operate more efficiently, handling the slurry rather than fighting compacted solids, reducing wear and energy consumption.
This synergy between the powerful electric driven submersible pump with agitator and the targeted agitation action is what makes this unit a high efficiency sand sludge suction pump, capable of handling mixtures with solids concentrations up to an impressive 70% by weight.
• Sand mining applications are inherently abrasive. Pumping sand, gravel, sandstones, and other sediments rapidly wears down standard components. The Hydroman® Submersible Slurry Pump for Mining Applications is built to endure:
• High-Chrome Iron Construction: Critical wear parts, including the agitator impeller, the main pump impeller, and wear plates, are typically cast from ultra-durable high-chrome iron. This material offers exceptional resistance to the scouring effects of sand and gravel.
• Robust Mechanical Seals: A sophisticated sealing system is paramount for a submersible pump. Hydroman® pumps utilize robust, often double or tandem, mechanical seals with clean water flushing options where necessary. This prevents abrasive slurry from entering the motor chamber, ensuring long-term reliability even submerged in dirty water, wastewater, or seawater.
• Heavy-Duty Electric Motor: The pump is powered by a reliable, high-torque electric motor specifically designed for submerged operation and the demanding start-stop cycles common in mining and dredging. Its vertical design optimizes space and ensures efficient power transfer directly to the agitator and pump impeller.
• Adjustable Wear Plate: Some models feature an adjustable wear plate between the impeller and the suction cover. This allows operators to maintain optimal pump efficiency over time by compensating for wear, extending service intervals.
While engineered as a premier Submersible Slurry Pump for Mining Applications, its capabilities extend far beyond extracting sea sand or river sand. This electric submersible sludge pump with agitator is equally effective in numerous demanding scenarios:
• Dredging Operations: Removing accumulated sediments (mud, sand, sludge) from harbors, marinas, canals, rivers, and lakes to maintain navigable depths.
• Construction Site Dewatering: Efficiently pumping slurry-laden water from foundations, trenches, and tunnels, handling sand, gravel, and silt stirred up during excavation.
• Environmental Remediation: Cleaning contaminated sediments from ponds, lagoons, and industrial sites, effectively removing sludge, waste, and big solids suspended in dirty water or wastewater.
• Industrial Process Handling: Transferring abrasive slurries in mineral processing plants or handling waste streams containing heavy solids.
• Quarry & Aggregate Processing: Moving sand, gravel, and crushed stone slurries during washing and classification processes.
Q: Why is the bottom agitator crucial for a sand mining submersible pump?
A: Settled sand, gravel, and sludge form dense, compacted layers that are extremely difficult for a standard pump to draw in. The bottom-mounted Hydroman Electric Agitator actively breaks up this compaction by spraying the deposited sludge into turbulent flow, creating a pumpable slurry and preventing blockages at the suction inlet. This dramatically increases suction efficiency and solids handling capability.
Q: Can this heavy duty submersible pump handle large solids?
A: Yes, a key strength of the Hydroman® Sand Mining Submersible Sludge Suction Pump is its ability to pass large solids. The combination of the agitator preventing compaction and the robust pump hydraulics allows it to efficiently handle gravel, stones, and other big solids commonly encountered in sand mining, dredging, and construction applications, alongside finer sands and muds.
Q: What maintenance is required for the electric agitator?
A: The Hydroman Electric Agitator is designed for durability with wear-resistant materials like high-chrome iron. Maintenance primarily involves periodic inspection of the agitator impeller and shaft seal for wear, especially in highly abrasive environments like pumping sand and gravel. Regular greasing of the agitator shaft bearings (if applicable, per manual) is also essential. Its integration with the pump simplifies access during routine pump maintenance checks.
When efficiency, reliability, and the ability to handle the toughest mixtures of sand, gravel, sludge, and sediments are non-negotiable, the purpose-built Hydroman® Sand Mining Submersible Sludge Suction Pump with Electric Agitator delivers. Its unique design, featuring the powerful bottom agitator to create turbulent flow, combined with heavy-duty construction and wear-resistant materials, makes it the superior submersible slurry pump for mining applications, dredging, construction, and environmental cleanup.
Hydroman® Sand Mining Submersible Sludge Suction Pump with Electric Agitator delivers powerful sand and slurry handling for mining operations. Choose Hydroman® for efficient, electric-driven performance. Inquire now!
