The Hydroman® submersible slurry pump has adopted stainless steel structure and acid-resistant impeller which make sure continous and long-time running.
• SS316L Stainless steel designed for anti-corrosive
• Maximum capacity is 2400 m3 per hour
• Maximum particle is 120mm
• Agitator or Cutter heads is suitable
• Minimum head is 7 meters
• Other materials as High chrome, Hyperchrome, SS304, Duplex SS are available
• The Hydroman® SS pump is extremely made to pumping aggressive slurry. The Hydroman® Duplex Stainless Steel (DSS) corrosion-resistant Sludge Pump is designed with the top standard alloy to longer its using life.
• The DSS Sludge pump can be customized by your requirements. ALL the pump parts connected with the aggresive slurries are designed with duplex stainless steel alloy which supply addtional aggresive resistance capabilities. The Sludge pumps can work in the 90℃ slurry temperature.
• Usual SS Pumps normally perform bad in chemical corrosion projects with pumping solid materials. The Hydroman® DSS Sewage Submersible Pump is most aggressive-resistant than other stainless steel and has the abrasive resistance to pumping slurries--there do not compare.
The immersion dredge pumps are designed by high class stainless steel which can challenge the harsh working applications. No matter handling aggresive fluids, high pressure organization and continously work, these High-Temperature Resistant Submersible Slurry Pump performed well in anti wear, rust and damaged. Built for longer service time, they lower maintennance cost and provide safaty for Industrial and Marine engineers.
• Aggresive resistance characteristics: suitable for bring, alkaline or open chemical conditions.
• Heavy duty System: dependable work even in high need enviroments.
• Lower cost investment: reduce maintance and using with long time.
Q: Can this Heavy-Duty Submersible Sludge Stainless Steel Pump run dry?
A: No, completely not! submersible stainless steel pump will be damaged even in short time dry run. The mechanical sealing need cooling and lubrication when the pump is working. Without liquid, the mechanical sealing will be overheating and cracked, which will lead to the leakage of the pump and the liquid enter into the motor. Therefore, the motor will may be damaged for it need liquid to cool during the operation period. Hydroman® suggest ensure the motor always submerged under the water during operation. There are two methods can ensure the pump operating only just sbmerged. Firstly, only operators can clearly see the circustance of the pump bottom, then they can turn on or shut down the pump manually. Secondly, installed a float switch which can automatically shut down the pump when the liquid lower to the special position in the chamber. IF you think the run dry can not avoid, please feel free to contact with us, we will provide suitable pumps for your projects.

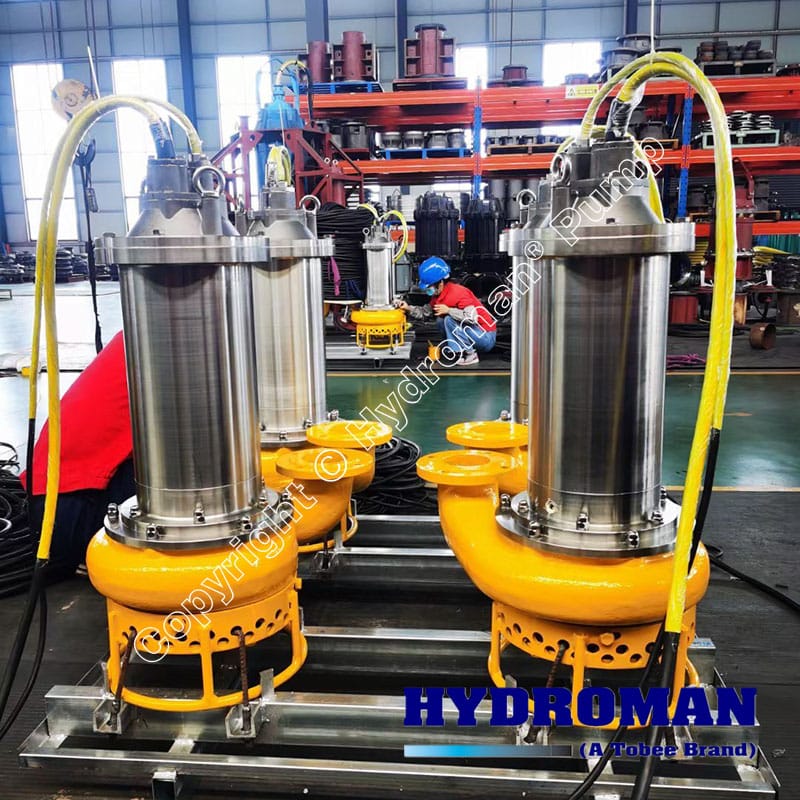

Q: How do I know which Industrial Stainless Steel Submersible Mud Pump is suitable for my application?
A: Clealy know the pump system will help you do the right choice. With the main information inculding project condition, pipe diameter, medium, flow rate, pressure and head, you can properly choose the vertical Stainless Steel Sewage Submersible Pump that can provide the available flow rate and pressure, operate with the best effiency to reduce the life time cost.
It is good for selecting the right motor rotating speed if know the pump is intermittent or continous running. For example, a continous running pump for all day needs 4 pole motor, not 2 pole motor. Lower the rotate speed and larger the pump size can decrease the motor and pump wear,therefore reduce the maintance cost during their operation lifetime.
Q: Can the pump motor turely be submerged under water?
A: Yes, completely. TheAbrasion-Resistant Stainless Steel Slurry Pump motor actually need to be submerged in liquid during running to cooling and avoid overheating. The IP class of these slurry pumps is 68 which can prevent the dust and liquid invaded.
Q: What do manual and automatic mean?
A: It is the two methods for operating the Heavy-Duty Submersible Sludge Pump Stainless Steel. Manual means the operator open or close the pump by hands, who is responsible for any damage of the pump and closing it to avoid dry running.
Automatic meas the pump will turn on or off by one or more float switches which connected with the motor for inspecting the liquid level of the sump, the pump will turn on with the high liquid and turn off the lower acceptable liquid.
Q: What size solids can this Best Stainless Steel Slurry Pump handle?
A: Please specify your solid condition, we will recommend the suitable Best Stainless Steel Slurry Pump for your application. For the detail informaiton on the solid, please contact with us for more informaiton.
