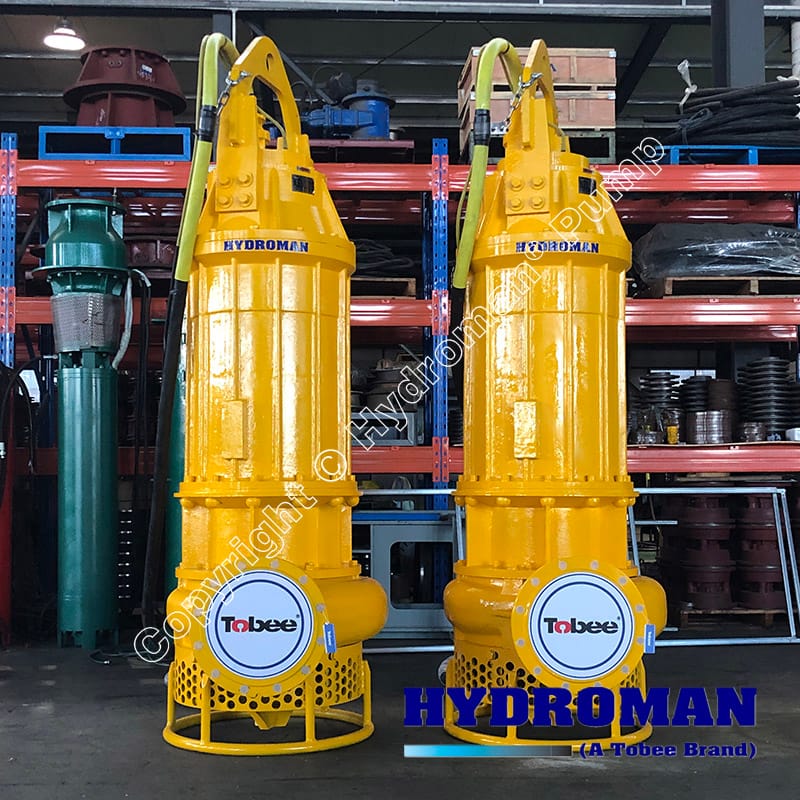

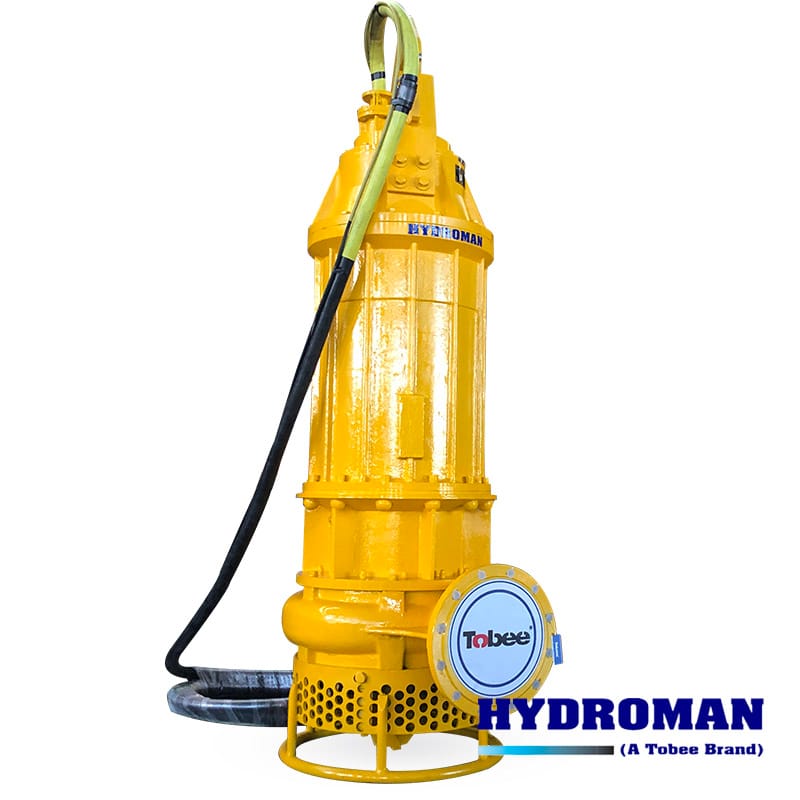

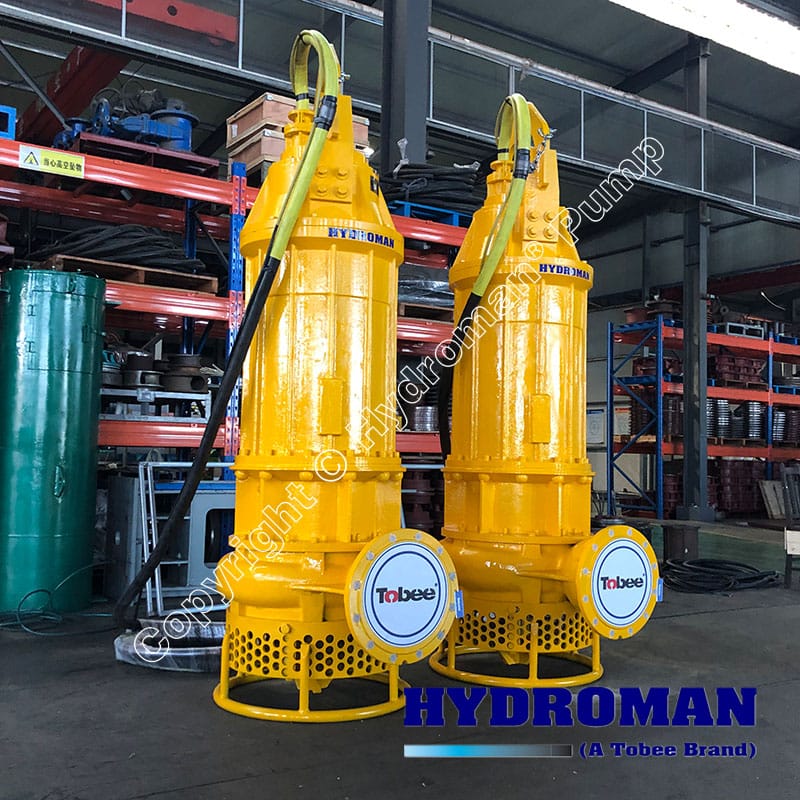

Hydroman® TJQ submersible dredge slurry pumps is suitable for conveying media containing various particle sizes of solid particles such as sediment, cinder, tailings and ore sand. It's ideal for heavy duty dredging applications, where the ability to pump at up to 70% solids is crucial for high-concentration mixture.
Hydroman® are proud to offer customers high quality and reliable submersible pumps in both standard and engineered-to-order options to provide flexible solutions for a variety of pumping challenges. A wide range of installation and mounting methods allows for flexibility in any sump and open pit application.
▪ Hydroman® submersible pumps are used in the most difficult environments. These pumps are able to break up and collect sediments within a high-concentration mixture, thanks to powerful water jet ring and optional side cutters.
▪ Submersible pumps ensure a long life of the components, a wide power range for any dredging need, and exceptional reliability even in complex environments and harsh situations. They can handle solids up to 120 mm, maintain high performance even for a long time and operate at great depths.
▪ There are also many accessories available for various dredging applications, such as control cabinet, side agitators and cutters, pipeline, cooling jacket and jet ring.
▪ The unique characteristics of Hydroman® submersible pumps ensure the ideal performance in all conditions of use, reducing operating costs and maximising efficiency.
▪ Marine Dredging: Cleaning harbors, rivers, or canals.
▪ Mining: Pumping slurry in gold, iron ore, coal, or sand mining operations.
▪ Construction: Foundation excavation or underwater construction projects.
▪ Industrial: Removing settled sludge from tanks or basins in water treatment plants.
▪ Oil & Gas: Cleaning drilling mud tanks or tailing ponds.
▪ Size: 50-400mm
▪ Capacity: 10-2500m3/h
▪ Head: 8-150m
▪ Max. particles: 120mm
▪ Max. concentration: 70%
▪ Max. working depth: ≤ 150m
▪ Agitator or Cutterheads: Available
▪ Sealing arrangement: Double mechanical seal
▪ Materials: Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc
