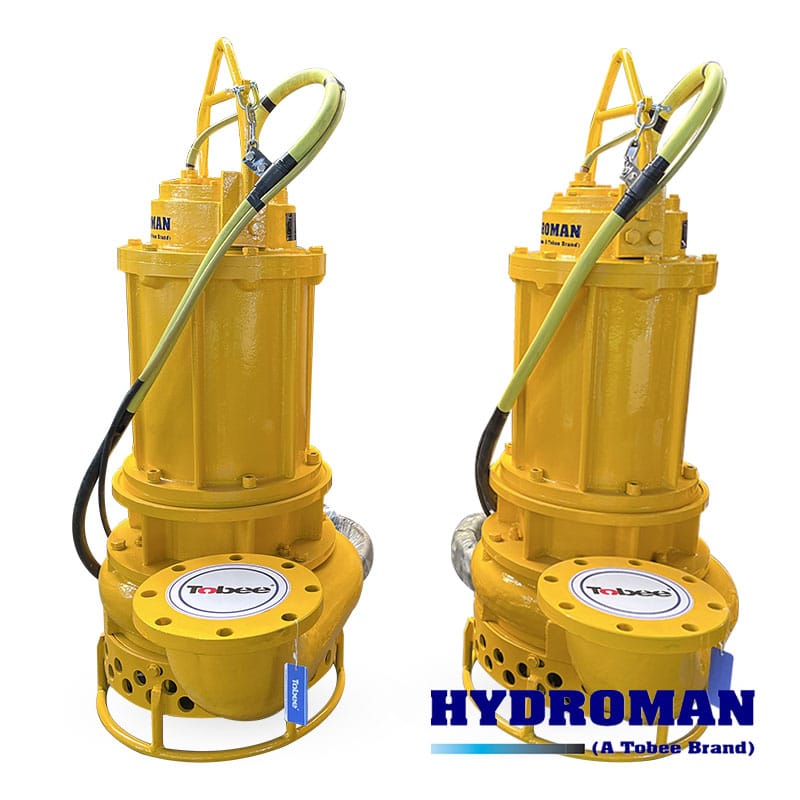

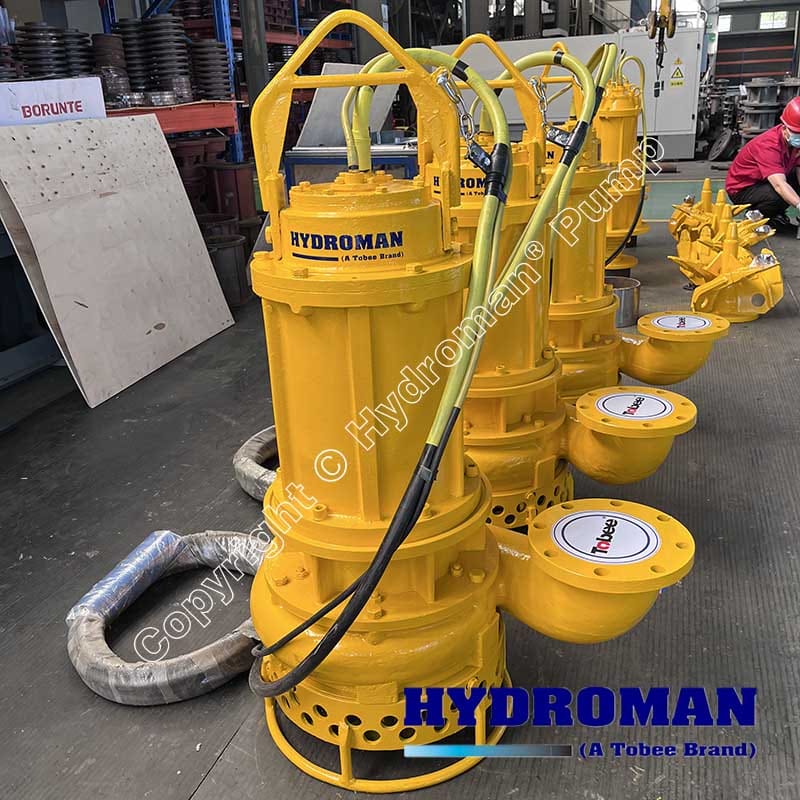

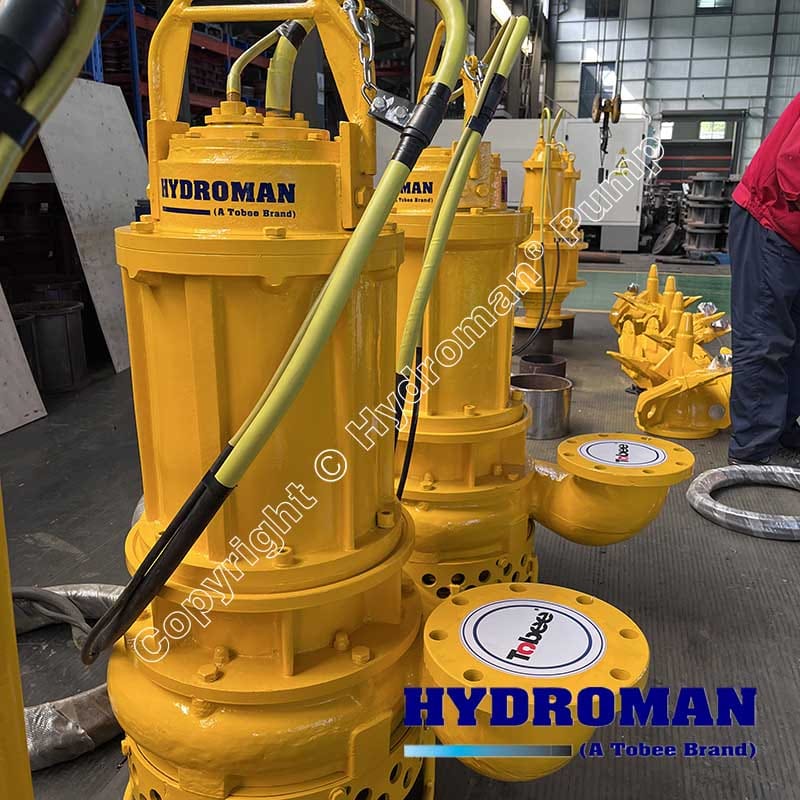

Hydroman® submersible dredge slurry pump have perfect dredging capacity, capable of pumping a mixture with up to 70% solids. Hydroman® submersible dredge slurry pump includes compact, powerful, and durable features, up to large-sized submersible pumps for the most demanding applications like sea sand, slurry, sludge, mining, dredge and other high-concentration mixture. This 6inch Electric submersible pump belongs to the Hydroman® TJQ submersible slurry pump series, also called sea sand submersible pump, submersible dredge slurry pump, gravel gold river dredging pump, underground mine submersible pump etc.
Dredging & Marine Engineering
▪ River and Lake Dredging: Removing sediment buildup to restore water depth and flow.
▪ Harbor and Port Maintenance: Clearing silt and debris to keep navigation channels open.
▪ Coastal Reclamation: Moving sand or silt for land reclamation projects.
▪ Beach Nourishment: Transporting offshore sand to rebuild eroded beaches.
▪ Pipeline Trenching: Removing seabed material to install underwater pipelines or cables.
Mining & Mineral Processing
▪ Tailings Transfer: Pumping thick, abrasive slurries from processing plants to tailing ponds.
▪ Ore Slurry Transport: Moving ore-water mixtures (e.g., gold, iron, copper, coal).
▪ Settling Pond Cleaning: Removing sediment from ponds used in mineral separation.
▪ Underground Mine Dewatering: Handling slurry and water in deep mines.
Industrial & Utility
▪ Power Plants: Handling ash slurry and waste sediments from coal power stations.
▪ Steel & Cement Plants: Transporting high-density slurry from scrubbers or mixers.
▪ Paper & Pulp Industry: Pumping fibrous slurries or sludge from tanks.
▪ Chemical Plants: Moving corrosive or abrasive chemical slurries safely.
Oil & Gas
▪ Drilling Mud Recovery: Pumping drilling fluids and cuttings in offshore platforms.
▪ Tank Cleaning: Removing sludge from oil storage tanks or separators.
▪ Produced Water Handling: Transporting water-sand-oil mixtures.
No. | Model | Size (mm) | Capacity Q (m3/h) | Head H (m) | Power P (kw) | Eff. η (%) | Speed n (r/min) | Max. particles (mm) | Weight (kg) |
1 | 150TJQ150-18-18.5 | 150 | 150 | 18 | 18.5 | 49 | 980 | 32 | 550 |
2 | 150TJQ200-12-18.5 | 150 | 200 | 12 | 18.5 | 53 | 980 | 45 | 550 |
3 | 150TJQ150-22-22 | 150 | 150 | 22 | 22 | 47 | 980 | 32 | 600 |
4 | 150TJQ200-15-22 | 150 | 200 | 15 | 22 | 50 | 980 | 45 | 600 |
5 | 150TJQ60-46-30 | 150 | 60 | 46 | 30 | 41 | 980 | 14 | 550 |
6 | 150TJQ70-38-30 | 150 | 70 | 38 | 30 | 42 | 980 | 21 | 710 |
7 | 150TJQ100-35-30 | 150 | 100 | 35 | 30 | 44 | 980 | 21 | 710 |
8 | 150TJQ108-30-30 | 150 | 108 | 30 | 30 | 44 | 980 | 21 | 710 |
9 | 150TJQ150-30-30 | 150 | 150 | 30 | 30 | 46 | 980 | 21 | 710 |
10 | 150TJQ150-35-30 | 150 | 150 | 35 | 30 | 46 | 980 | 21 | 710 |
11 | 150TJQ200-20-30 | 150 | 200 | 20 | 30 | 52 | 980 | 21 | 710 |
12 | 150TJQ240-20-30 | 150 | 240 | 20 | 30 | 55 | 980 | 21 | 710 |
13 | 150TJQ100-50-37 | 150 | 100 | 50 | 37 | 44 | 980 | 21 | 850 |
14 | 150TJQ150-35-45 | 150 | 150 | 35 | 45 | 47 | 980 | 36 | 1000 |
15 | 150TJQ200-30-45 | 150 | 200 | 30 | 45 | 49 | 980 | 36 | 1110 |
16 | 150TJQ150-45-55 | 150 | 150 | 45 | 55 | 46 | 980 | 21 | 1140 |
17 | 150TJQ250-35-55 | 150 | 250 | 35 | 55 | 51 | 980 | 36 | 1140 |
18 | 150TJQ200-45-75 | 150 | 200 | 45 | 75 | 49 | 980 | 21 | 1540 |
19 | 150TJQ200-50-75 | 150 | 200 | 50 | 75 | 48 | 980 | 14 | 1550 |
20 | 150TJQ200-60-90 | 150 | 200 | 60 | 90 | 48 | 980 | 14 | 1550 |
